Originally posted by: Kyle_Wang

Hi Dear Friend

    here is a brief introduction of my problem.  i am scheduling products to run different machines. different product requires different machine configuration. for example Product A--> Machine configure A; Product B --> Machine configure B. Machine configure A to Machine configure B will trigger conversion cost.   each machine has their own start state of configuration (time0). do you some suggestion to me to handle this ?

Originally posted by: PhilippeLaborie

Hello,

You should use the notion of "transition distance" to model sequence-dependent setup times on your machines.

I suggest you have a look at distributed examples sched_setup and sched_sequence. In OPL a transition distance is modeled as a set of triplets <i,j,tij> where i and j are the (integer) types representing the configuration of two consecutive tasks and tij is the setup time. Integer types can be associated with each interval variable in a sequence at the construction of the sequence variable. Then this transition distance can be passed to a noOverlap constraint.

If you want setup costs instead of setup times, you need to use expressions typeOfNext/Prev that return the type of the previous/next interval of a given interval variable in a sequence. See delivered example sched_tcost.

Hope it helps,

Philippe

Originally posted by: Kyle_Wang

Hi Philippe

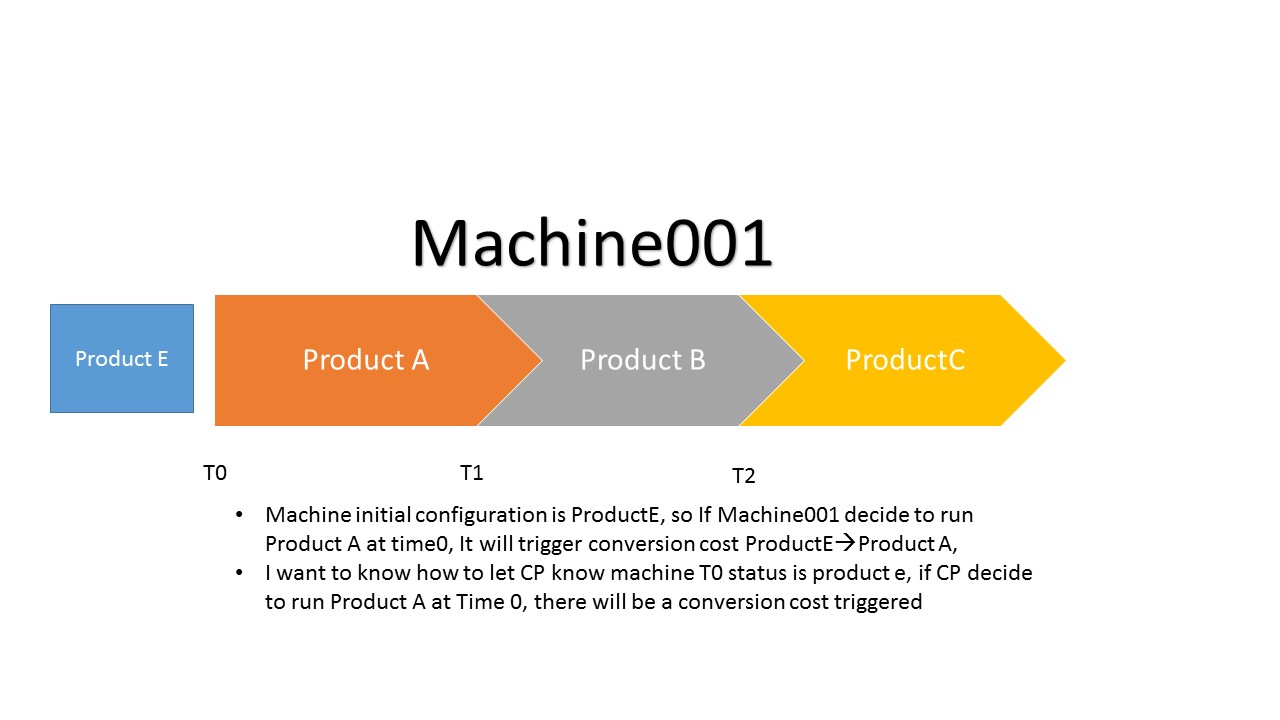

   thanks for your response. maybe i did not explain my question clearly.  let me explain in another way.

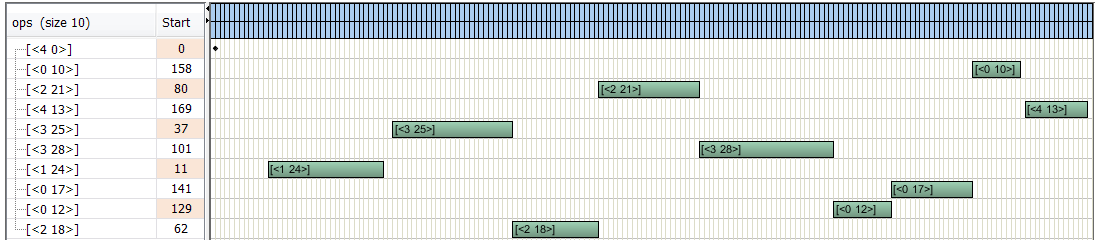

Originally posted by: PhilippeLaborie

using CP;

int ProdA = 0;
int ProdB = 1;
int ProdC = 2;
int ProdD = 3;
int ProdE = 4;

tuple TTime { int prod1; int prod2; int delay; }
{TTime} TT = {
  <ProdA, ProdB, 2>,  <ProdA, ProdC, 7>,  <ProdA, ProdD, 9>,  <ProdA, ProdE, 1>,
  <ProdB, ProdA, 5>,  <ProdB, ProdC, 6>,  <ProdB, ProdD, 2>,  <ProdB, ProdE, 7>,
  <ProdE, ProdA, 12>, <ProdE, ProdB, 11>, <ProdE, ProdC, 15>, <ProdE, ProdD, 14>, <ProdE, ProdE, 10> };

tuple Op { int product; int duration; }
{Op} ops = {
  <ProdE, 0>, // Initial operation
  <ProdA, 10>,  <ProdC, 21>,  <ProdE, 13>,  <ProdD, 25>,  <ProdD, 28>,
  <ProdB, 24>,  <ProdA, 17>,  <ProdA, 12>,  <ProdC, 18> };

dvar interval act[o in ops] size o.duration;

dvar sequence machine
   in    all(o in ops) act[o]
   types all(o in ops) o.product;

minimize max(o in ops) endOf(act[o]);
subject to {
  endOf(act[first(ops)])==0;
  noOverlap(machine, TT, true);
}
