Originally posted by: A6UM_Can_Nguyen

Hi all,

I have a reference transport problem in CPLEX,

but I want it to read data from Excel, and I looked at the link below to do but could not solve my problem.

http://www-01.ibm.com/support/docview.wss?rs=0&context=SSCMS55&uid=swg21401340&loc=en_US&cs=utf-8&cc=us&lang=all

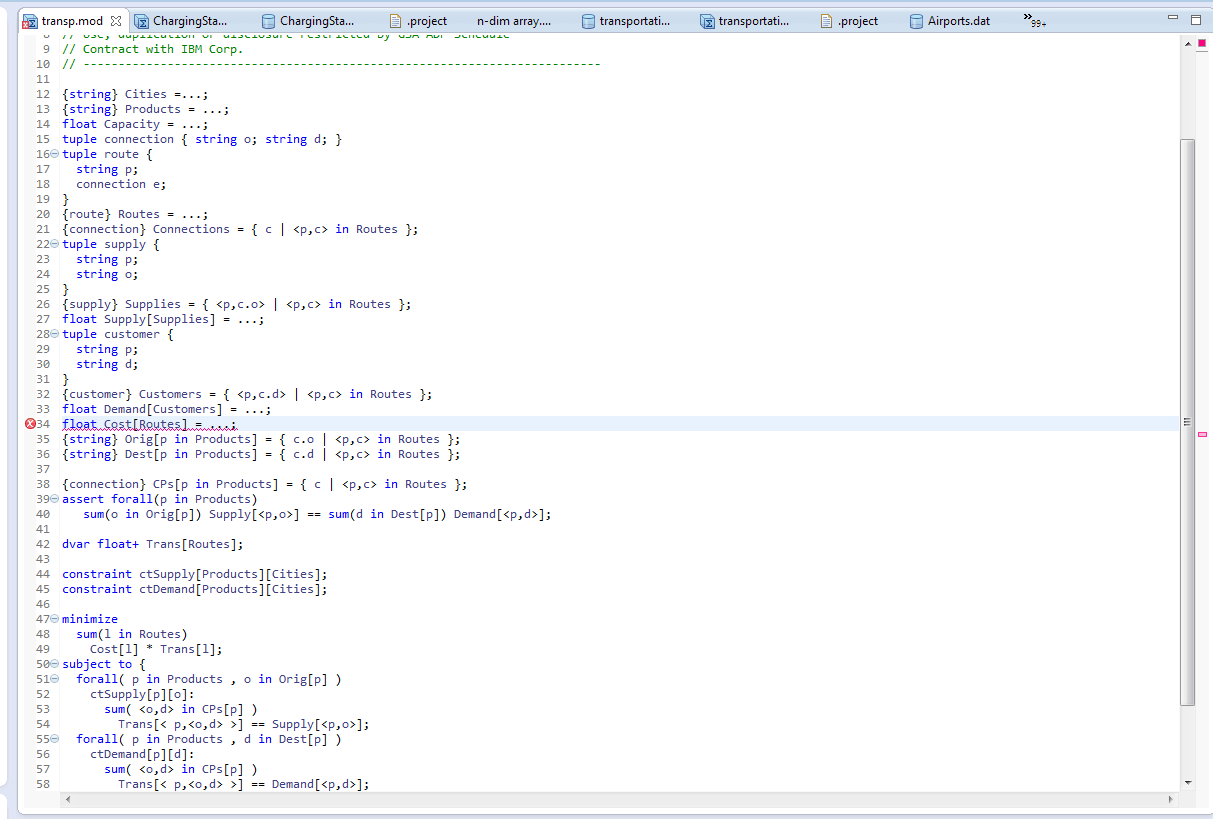

There are many errors as shown below:

Please attach the .mod, .dat and Excel files. If anyone can solve for me to run this model well then really thanks a lot.

Nguyen IBM

Originally posted by: A6UM_Can_Nguyen

Hi Alex,

Please help me run this example in advance.

Thank you,

IBM Nguyen

Hi,

since you want to read data from excel, you should rather use SheetRead rather than SheetWrite:

Cities from SheetRead(sheet,"'Data'!A1:A11");
Products from SheetRead(sheet,"'Data'!B13:D13");
Routes from SheetRead(sheet,"'Data'!B15:D52");

regards

Originally posted by: A6UM_Can_Nguyen

Dear Alex,

it is error, please help.

I

Hi,

you get that error because you have too many items in your array:

Cost = [30,10, 8,10,11,71, 6,22, 7,10, 7,21,82,13,19,11,12,10,25,  //83,15,
 //39,14,11,14,16,82, 8,27, 9,12, 9,26,95,17,24,14,17,13,28,99,20,
 //41,15,12,16,17,86, 8,29, 9,13, 9,28,99,18,26,14,17,13,31,104,20
 ];

will work.

You should check line by line that you read what you need from the excel file.

Do not hesitate to have a look at https://www.ibm.com/support/knowledgecenter/SSSA5P_12.7.0/ilog.odms.ide.help/OPL_Studio/opllangref/topics/opl_langref_spreadsheet_oil.html

regards

Originally posted by: A6UM_Can_Nguyen

Dear Alex,

It still have not run.

.

Hi,

the 2 files I attached work fine

regards

Originally posted by: A6UM_Can_Nguyen

Hi Alex.

It worked well, but why the constraints can not have?

//  forall( p in Products , o in Orig[p] )
//    ctSupply[p][o]:
//      sum( <o,d> in CPs[p] )
//        Trans[< p,<o,d> >] == Supply[<p,o>];
//  forall( p in Products , d in Dest[p] )
//    ctDemand[p][d]:
//      sum( <o,d> in CPs[p] )
//        Trans[< p,<o,d> >] == Demand[<p,d>];
