CNC Machining. What is it?

By Michelle W. Ricks posted Sat July 11, 2020 06:59 AM



CNC machining is the engineering process by which pre-programmed computer software commands the running of machinery and the factory tools. The method is often wont to control a variety of complex machinery, from lathes and grinders to routers and mills. By CNC machining, three-dimensional cutting tasks are often done during a single set of prompts.

Abbreviation of “computer numerical control,” the CNC process runs rather than and along these lines succeeds — the restrictions of manual control, where live operators are needed to prompt and guide the commands of machining tools by buttons, levers, and wheels. To the spectator, a CNC system may take after a daily set of PC parts, however, the consoles and software programs are employed in CNC machining differentiate it from all other parts of the calculation.



How Does CNC Machining Work?
Once the system of CNC is started, the specified cuts are programmed into the software. And read out to equivalent tools and machinery, which perform the dimensional tasks as stated, very similar to a robot.

In the programming of CNC, the program producer inside the arithmetical system will often assume mechanisms are perfect. Even with the option of errors which is more when a CNC machine is bound to cut in more than one direction at once. The employment of a tool in a numerical control system is defined by a sequence of inputs known as the part program.

Programs are entered through punch cards with a numerical control machine. Against this, the programs for CNC machines are provided to computers through minor keyboards. During a computer’s memory, CNC programming is retained. The code is written and revised by the program writer. So, CNC systems provide much more wide computational capacity. One of the best things, CNC systems are by no means static, meanwhile newer prompts are often added to pre-defined programs via revised code.


Different Types of CNC Machines


The initial numerical control machines date to the year of 1940 at that time motors were first employed by which the movement is control of pre-existing tools. By way of the advanced technologies, the mechanisms were improved with analog computers. And eventually with digital computers, which run to the increase of CNC machining.
The overwhelming majority of today’s CNC arsenals are electronic. A number of the further common CNC-operated processes comprises of hole-punching, ultrasonic welding, and laser cutting. CNC systems machines which are frequently used as following:

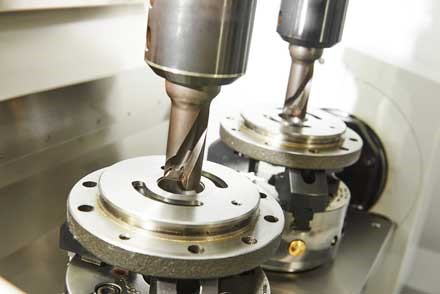

CNC Mills


CNC mills are accomplished of running on programs comprised of number and letter-based prompts, which guide parts through different distances. The programming employed for a mill machine might be supported either G-code or some unique language developed by a producing team. Basic mills contain a three-axis system (X, Y, and Z), though most new mills can accommodate three extra axes.

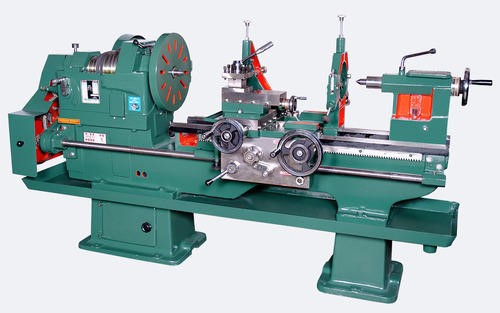

Lathes


With index able tools, parts are cut in a circular direction in lathe machines. By CNC technology, the cuts engaged by lathes are administered with high speed and accuracy. CNC lathes are wont to produce multifaceted designs that wouldn’t be possible on by hand run versions of the machine. Generally, the control functions of CNC-run lathes and mills are alike. Like the previous, lathes are often directed by unique proprietary code or G-code. But, most of the CNC lathes contains two axes as X and Z.

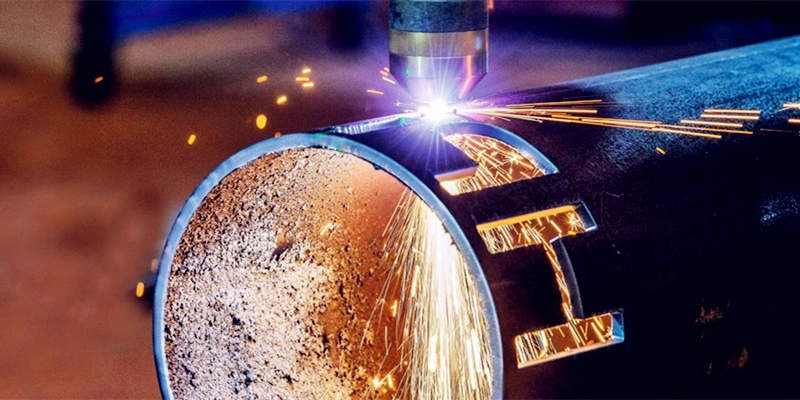

Plasma Cutters

The plasma cutter is used to cut material with a plasma torch. The method is mostly applied to metal materials but also can be used on other surfaces. For the production of the heat and speed essential to cut metal, plasma is produced by the mixture of electrical arcs and compressed-air gas.

Electric Discharge Machines

Electric-discharge machining (EDM) — consecutively mentioned as spark machining and dies sinking. It is a process that molds workpieces into specific shapes with electrical sparks. Current releases happen between two anodes with EDM, and this evacuates segments of a given workpiece.
At the point when the space between the terminals decreases, the electrical field turns out to be more intense and hence stronger than the dielectric. For a current, it makes feasible to go between the 2 electrodes. Thus, parts of a workpiece are detached by each electrode. Subtypes of EDM comprise of:



  • Wire EDM, whereby sparkle disintegration is employed to get rid of portions from an electronically conductive material.
  • Sinker EDM, where a cathode and workpiece are absorbed dielectric liquid for piece formation.

In a procedure referred to as flushing, debris from each ended workpiece is pulled away by a liquid dielectric, which seems once the current between the 2 electrodes has stopped and is supposed to remove any longer electric charges.


Water Jet Cutters
In CNC machining, water jets are the tools that are used to cut rigid materials, like metal and granite, with some high-pressure applications of water. The water is mixed with sand or another strong rough substance in some cases. Often through this process, Factory machine parts are created.


Water planes are utilized as a cooler option for materials that can't contact the warmth serious procedures of other CNC machines. However, water planes are utilized in a variety of sectors, like the mining and aerospace industries. The method is powerful for the needs of cutting and carving, among other functions. The use of Water jet cutters is for the applications that need very complex cuts in material because the lack of warmth prevents any change within the material's intrinsic properties which will result from metal on metal cutting.


Conclusion:
There are many benefits of CNC machining. One time a tool path is made and a machine is programmed, it can run on or many times as you want. CNC machines are constructed for exact manufacturing and repeatability which makes them highly scalable and cost-efficient. Also, CNC machines can able to work with many materials from aluminum, plastics to more exotic materials like titanium. This makes the CNC machine an ideal machine for practically any job. That’s why it is one of the best famous methods of manufacturing metal and plastic components.
