Changing Gantt bar display value

For both GS and GA we display the work order or task description in the gantt bar.

changing the GS to display the work order/task is much simpler than doing the same for GA

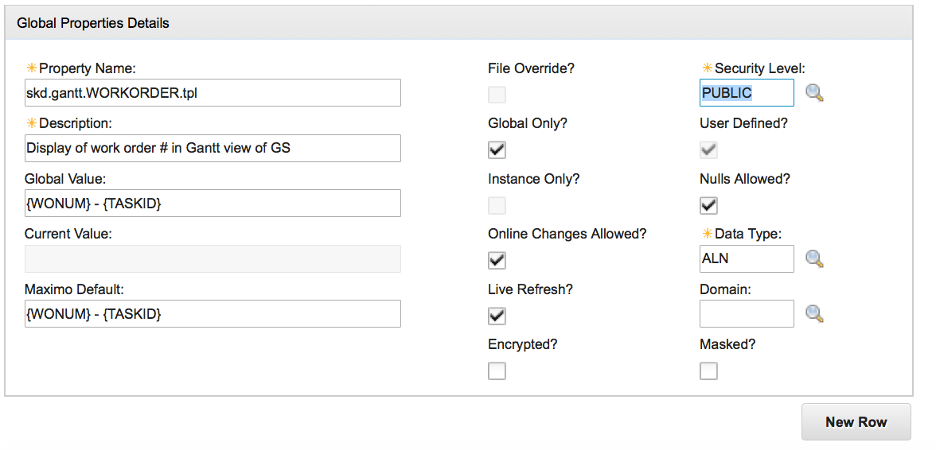

GS the work order # and task can be added by adding the following system property

skd.gantt.WORKORDER.tpl

{WONUM} - {TASKID}

save and live refresh will get you the following

or

I added a dash between the 2 values and as you can see when no task exists it look odd

• So, may wish to just use a space between the 2 values

This will also apply to the Work view in GA and GR-RF as well

For GA – Assignment View – is not already mapped to the Work order and task so the admin must first map these fields for Assignment table

Warning – when you map fields there could be a performance hit to displaying gantt views.

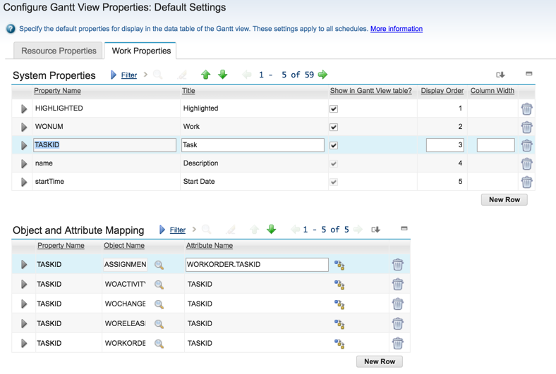

In GA open the Default Settings

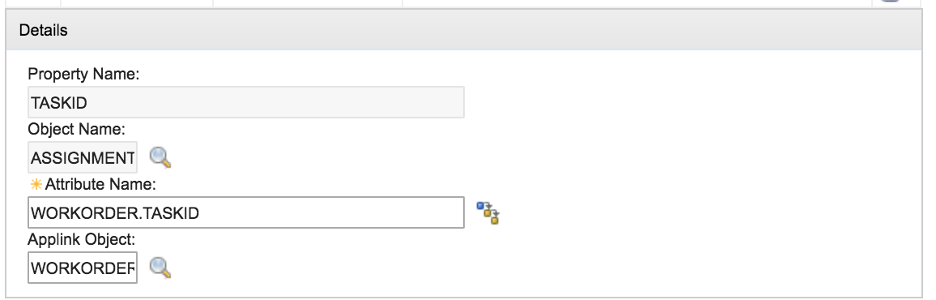

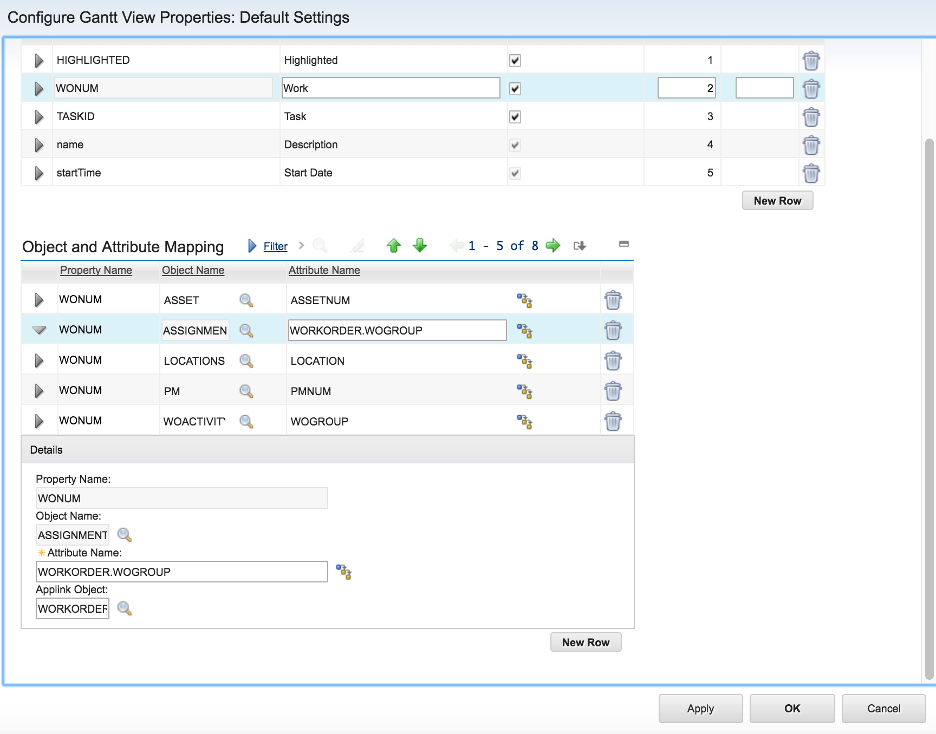

Now user needs to map Assignment to WO as shown below

now in system properties create a new row like the following

skd.gantt.ASSIGNMENT.tpl

{WONUM} - {TASKID}

save and live refresh

or

so again, may wish to remove the dash so work orders without tasks display better

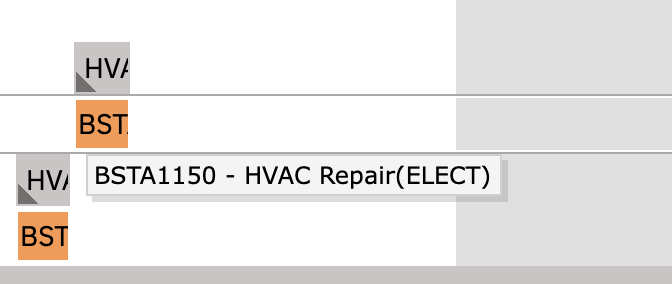

For Mouse Over information the system property can be used to Display WONUM information at the Work Order bar too:

skd.gantt.WORKORDER.tip.tpl = {WONUM} {TASK} - {name}

Same for the  Assignment:

skd.gantt.ASSIGNMENT.tip.tpl = {WONUM} {TASK} - {name}{RESOURCE}
