When using thin provisioned volumes and deleting a file from the file system, operating system will not physically free space on the disk array. It only reduces the number of link counts on the relevant file without physical data deletion. This means that the file was deleted but the space was not freed.
Possibilities how to physically freeing up space in the SVC pool are:
- rm file ; dd if=/dev/zero bs=1M coutn=X of=file
does not use SCSI UNMAP just brute force
- rm file ; chfs -a reclaim=normal|fast /FS
SCSI UNMAP in use, we don't need to physically overwrite the entire file or FS , and we can free up space even from a file where only part of it is unused
- addvdisccopy on affected vdisk (which will return allocated extents as we can see later)
Let's take a look at what happens on the OS and what on the disk array
We have 8.5 SVC version , there are some automation on 8.6 but the principle is the same, AIX version was 7300-02-02-2420
#ENV CREATION
#SVC - part (1GB exten size)
chsystem -hostunmap on
mkvdisk -mdiskgrp stg_flash -iogrp 1 -nofmtdisk -cache readwrite -vtype striped -size 10 -unit gb -rsize 1 -autoexpand -name zmazma10
mkvdiskhostmap -host sktom73v_1 zmazma10
#AIX - part
mkvg -S -y vg_unmap -s 64 hdisk1
mklv -y lvunmap -t jfs2 vg_unmap 158
crfs -v jfs2 -d lvunmap -m /unmap -A yes -p rw -a agblksize=4096 -a logname=INLINE -a options=cio
mount /unmap
#SVC - occupied capacity
lsvdisk zmazma10 | grep -w -E "used_capacity|real_capacity|free_capacity”;lsvdiskextent zmazma10
used_capacity 131.25MB
real_capacity 145.00MB
free_capacity 13.75MB
id number_extents
60 1
analyzevdisk zmazma10;while :; do OOO=$(lsvdiskanalysisprogress -nohdr | cut -d " " -f2); [ $OOO -eq 0 ] && break; done;lsvdiskanalysis zmazma10 | grep thin_size
thin_size 0.00MB
# 1GB written
dd if=/tmp/1Gfile bs=1M of=/unmap/1Gfile
lsvdisk zmazma10 | grep -w -E "used_capacity|real_capacity|free_capacity";lsvdiskextent zmazma10
used_capacity 1.07GB
real_capacity 1.08GB
free_capacity 11.50MB
id number_extents
60 1
61 1
analyzevdisk zmazma10;while :; do OOO=$(lsvdiskanalysisprogress -nohdr | cut -d " " -f2); [ $OOO -eq 0 ] && break; done;lsvdiskanalysis zmazma10 | grep thin_size
thin_size 1.07GB
# 2GB
dd if=/tmp/1Gfile bs=1M of=/unmap/1Gfile_1
used_capacity 2.07GB
real_capacity 2.08GB
free_capacity 11.00MB
id number_extents
60 1
61 1
70 1
thin_size 2.12GB
# 10GB
df -g /unmap
Filesystem GB blocks Free %Used Iused %Iused Mounted on
/dev/lvunmap 9.88 0.00 100% 14 44% /unmap
used_capacity 9.88GB
real_capacity 9.89GB
free_capacity 12.50MB
id number_extents
53 1
54 1
60 2
61 2
66 1
70 2
71 1
thin_size 9.87GB
We can see how extens allocation works when FS is graddually filled
1) reclaim=NORMAL
for i in 1 2 3 4 5 6 7 8 9 10
do
dd if=/tmp/1Gfile bs=1M of=/unmap/1Gfile_${i} &
done
df -g /unmap
Filesystem GB blocks Free %Used Iused %Iused Mounted on
/dev/lvunmap 9.88 0.00 100% 13 41% /unmap
rm /unmap/*
df -g /unmap
Filesystem GB blocks Free %Used Iused %Iused Mounted on
/dev/lvunmap 9.88 9.83 1% 3 1% /unmap
filemon -o /tmp/filemon.out -O lv,pv,detailed -T 500000 ;chfs -a reclaim=normal /unmap;trcstop
Run trcstop command to signal end of trace.
Wed Dec 3 15:48:23 2025
System: AIX 7.3 Node: sktom73v Machine: 00FC00E34B00
[filemon: Reporting started]
[filemon: Reporting completed]
[filemon: 9.444 secs in measured interval]
lvmstat -v vg_unmap -r
PV_name reclaim Mb_freed Mb_pending Mb_success Mb_failed Mb_reused
hdisk1 on 114432 0 114432 0 0
grep -p "VOLUME: /dev/lvunmap" /tmp/filemon.out
VOLUME: /dev/lvunmap description: /unmap
reads: 2 (0 errs)
read sizes (blks): avg 8.0 min 8 max 8 sdev 0.0
read times (msec): avg 0.456 min 0.393 max 0.518 sdev 0.062
read sequences: 2
read seq. lengths: avg 8.0 min 8 max 8 sdev 0.0
writes: 5 (0 errs)
write sizes (blks): avg 8.0 min 8 max 8 sdev 0.0
write times (msec): avg 1.324 min 0.335 max 4.564 sdev 1.625
write sequences: 5
write seq. lengths: avg 8.0 min 8 max 8 sdev 0.0
seeks: 7 (100.0%)
seek dist (blks): init 64,
avg 3444136.0 min 8 max 20659336 sdev 7698871.6
time to next req(msec): avg 11.149 min 0.002 max 44.323 sdev 16.254
throughput: 3.0 KB/sec
utilization: 0.00
lsvdisk zmazma10 | grep -w -E "used_capacity|real_capacity|free_capacity";lsvdiskextent zmazma10
used_capacity 9.88GB
real_capacity 9.89GB
free_capacity 12.50MB
id number_extents
47 1
48 1
49 1
50 1
51 1
52 1
53 1
54 1
60 1
61 1
analyzevdisk zmazma10;while :; do OOO=$(lsvdiskanalysisprogress -nohdr | cut -d " " -f2); [ $OOO -eq 0 ] && break; done;lsvdiskanalysis zmazma10 | grep thin_size
thin_size 0.00MB
We can see that all 10 extents are still allocated but analyzevdisk already shows that the fs is empty
addvdiskcopy -mdiskgrp stg_flash -syncrate 150 -rsize 1 -autoexpand -autodelete zmazma10
lsvdisk zmazma10 | grep -w -E "used_capacity|real_capacity|free_capacity";lsvdiskextent zmazma10
used_capacity 131.25MB
real_capacity 145.00MB
free_capacity 13.75MB
id number_extents
60 1
After addvdiskcopy we can see that extents were released back to the pool
2) reclaim=FAST
for i in 1 2 3 4 5 6 7 8 9 10
do
dd if=/tmp/1Gfile bs=1M of=/unmap/1Gfile_${i} &
done
df -g /unmap
Filesystem GB blocks Free %Used Iused %Iused Mounted on
/dev/lvunmap 9.88 0.00 100% 13 41% /unmap
rm /unmap/*
df -g /unmap
Filesystem GB blocks Free %Used Iused %Iused Mounted on
/dev/lvunmap 9.88 9.83 1% 3 1% /unmap
filemon -o /tmp/filemon.out -O lv,pv,detailed -T 500000 ;chfs -a reclaim=fast /unmap;trcstop
Run trcstop command to signal end of trace.
Wed Dec 3 16:16:18 2025
System: AIX 7.3 Node: sktom73v Machine: 00FC00E34B00
[filemon: Reporting started]
[filemon: Reporting completed]
[filemon: 5.332 secs in measured interval]
lvmstat -v vg_unmap -r
PV_name reclaim Mb_freed Mb_pending Mb_success Mb_failed Mb_reused
hdisk1 on 118528 0 118528 0 0
grep -p "VOLUME: /dev/lvunmap" /tmp/filemon.out
VOLUME: /dev/lvunmap description: /unmap
reads: 2 (0 errs)
read sizes (blks): avg 8.0 min 8 max 8 sdev 0.0
read times (msec): avg 2.296 min 0.302 max 4.290 sdev 1.994
read sequences: 2
read seq. lengths: avg 8.0 min 8 max 8 sdev 0.0
writes: 5 (0 errs)
write sizes (blks): avg 8.0 min 8 max 8 sdev 0.0
write times (msec): avg 0.471 min 0.323 max 0.751 sdev 0.146
write sequences: 5
write seq. lengths: avg 8.0 min 8 max 8 sdev 0.0
seeks: 7 (100.0%)
seek dist (blks): init 64,
avg 3444250.7 min 8 max 20660024 sdev 7699128.0
time to next req(msec): avg 14.282 min 0.000 max 56.163 sdev 21.182
throughput: 5.3 KB/sec
utilization: 0.00
lsvdisk zmazma10 | grep -w -E "used_capacity|real_capacity|free_capacity";lsvdiskextent zmazma10
used_capacity 9.88GB
real_capacity 9.89GB
free_capacity 12.50MB
id number_extents
0 1
17 1
40 1
41 1
42 1
43 1
44 1
45 1
60 1
71 1
analyzevdisk zmazma10;while :; do OOO=$(lsvdiskanalysisprogress -nohdr | cut -d " " -f2); [ $OOO -eq 0 ] && break; done;lsvdiskanalysis zmazma10 | grep thin_size
thin_size 5.72GB
addvdiskcopy -mdiskgrp stg_flash -syncrate 150 -rsize 1 -autoexpand -autodelete zmazma10
lsvdisk zmazma10 | grep -w -E "used_capacity|real_capacity|free_capacity";lsvdiskextent zmazma10
used_capacity 5.88GB
real_capacity 5.89GB
free_capacity 13.25MB
id number_extents
47 1
48 1
49 1
50 1
51 1
52 1
#CONCLUSION

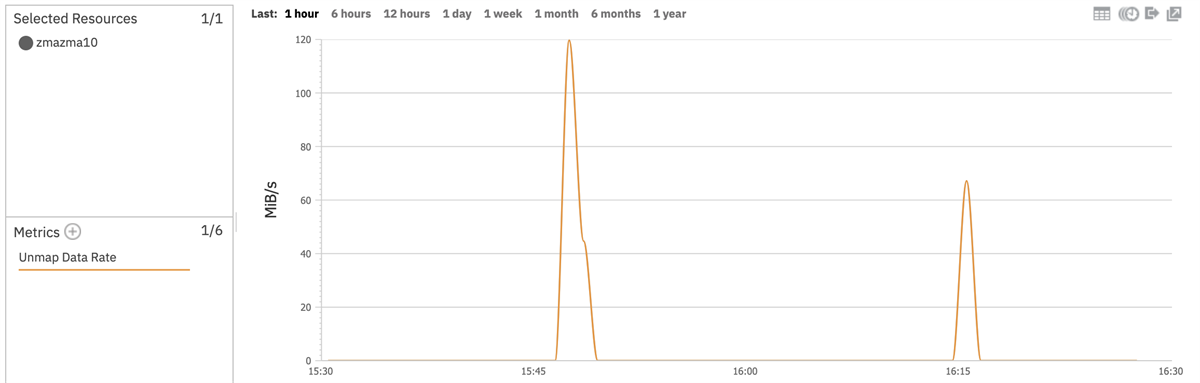

In both cases normal,fast we can see the some FS activity (filemon) 2 read , 5 writes which means 2 x 8 blocks x 512B = 8KB read read 20 KB write. Normal operation took 9.44s fast 5.33s.As you can see from attached picture unmap operations caused max unmap data rate on SVC 120MB/s for normal and 68 MB/s for fast option
but crutial point is that fast option was not able to release all allocated volume space and 5.72GB was still occupied which means 6 extents allocation
