Summary:

This article describes the use case for Query operations of Microsoft Dynamics CRM 365 Connector with the $expand function in the on-premise

Prerequisites:

• The user needs to have a working account for Microsoft Azure Active Directory and a Microsoft Dynamics CRM 365 license to access the API

• License for the Integration server 10.3 or above

Contents:

We will analyze the various options of querying the business objects, Example: $expand & filters in the Microsoft Dynamics CRM 365 using Query Operation service in the Connector. More information can be found at https://www.odata.org/getting-started/basic-tutorial/#expand

Steps:

1. User needs to start the Integrations Server and open Designer along with the latest Microsoft Dynamics CRM 365 package installed, also the Connection should be established

2. Once the Server gets started, the user needs to create the CCS (cloud connector service) for the query operation available in the Connector. In this example, we will query the Accounts business object

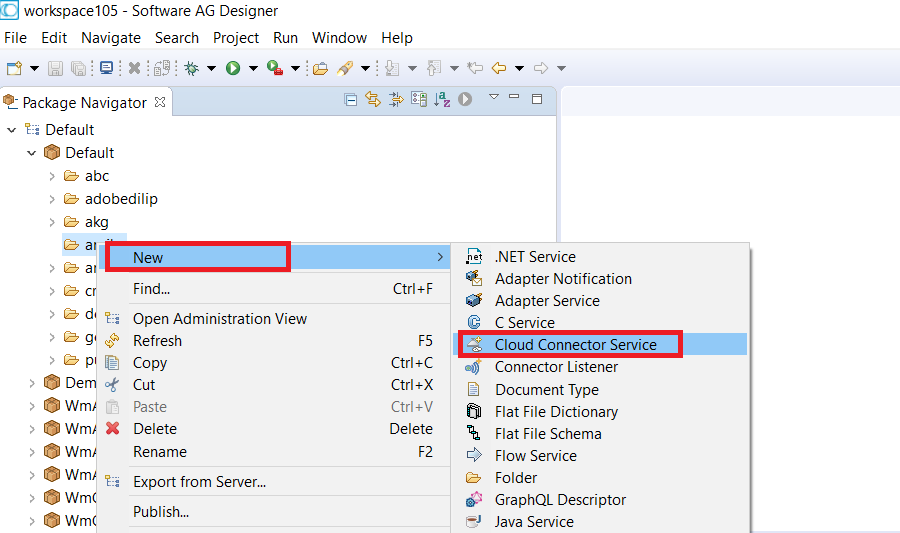

3. To create the CCS, choose any folder and Right-click to choose New → Cloud Connector Service Option

image900×533 37.4 KB

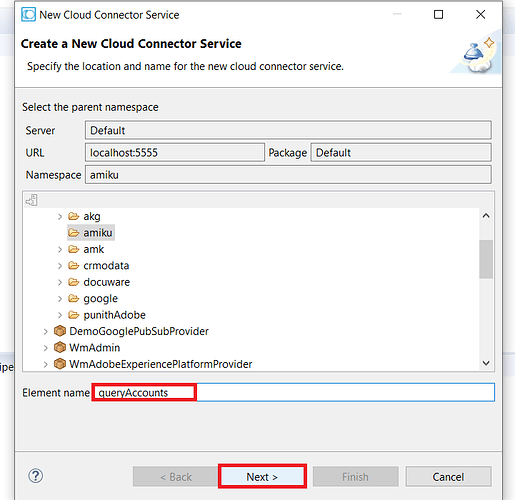

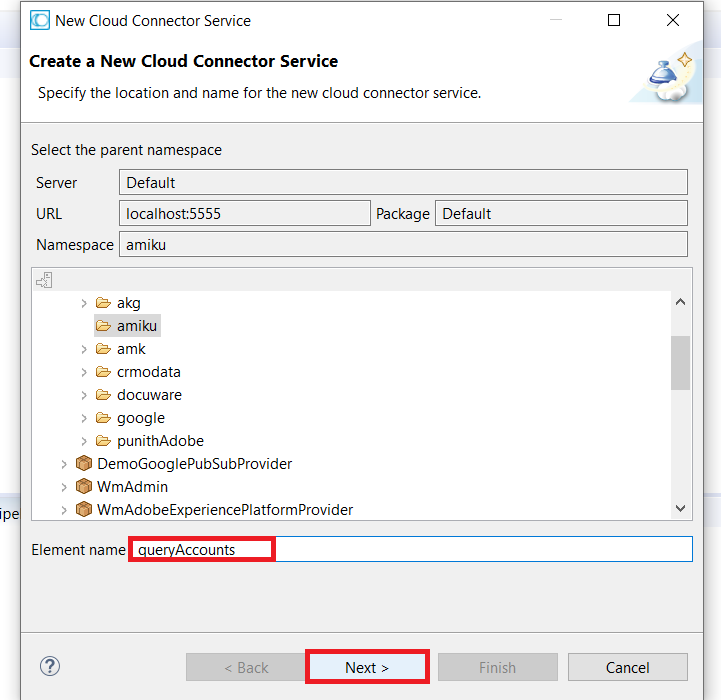

4. Enter any name for the CCS as per user requirements, Example: queryAccounts

image721×700 29.8 KB

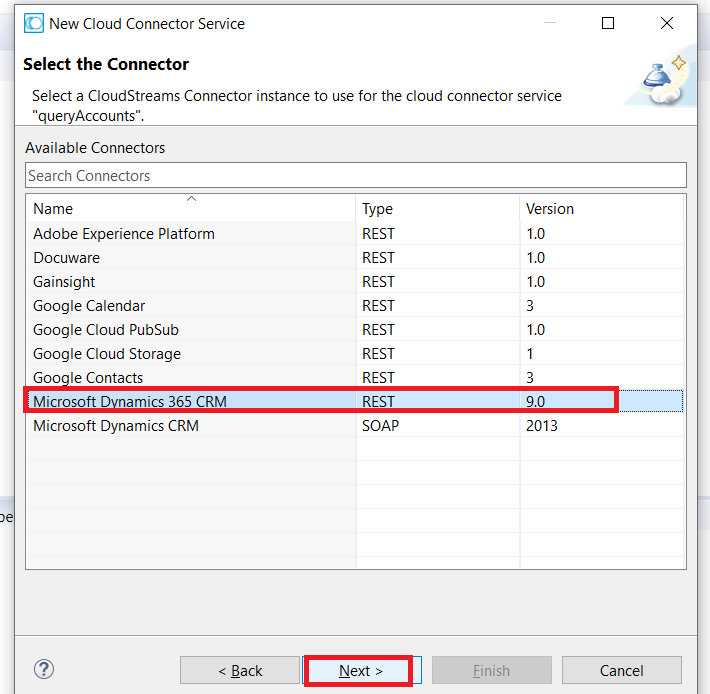

5. Now choose the Microsoft Dynamics 365 CRM option from the available Connectors list and click Next

image710×694 28.7 KB

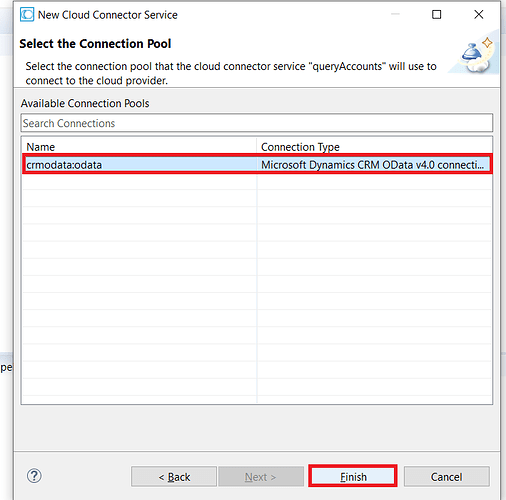

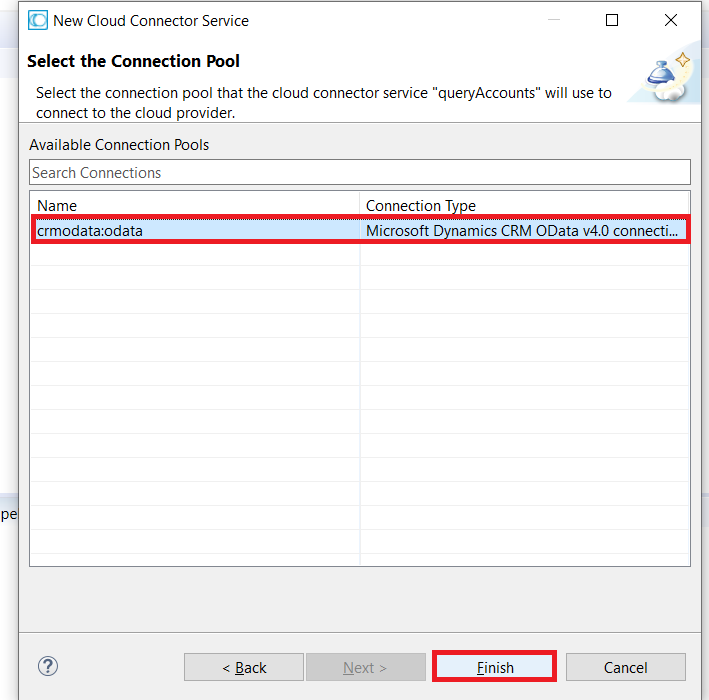

6. Choose the Connection alias from the available Connection Pool list and click Finish

image709×700 23.2 KB

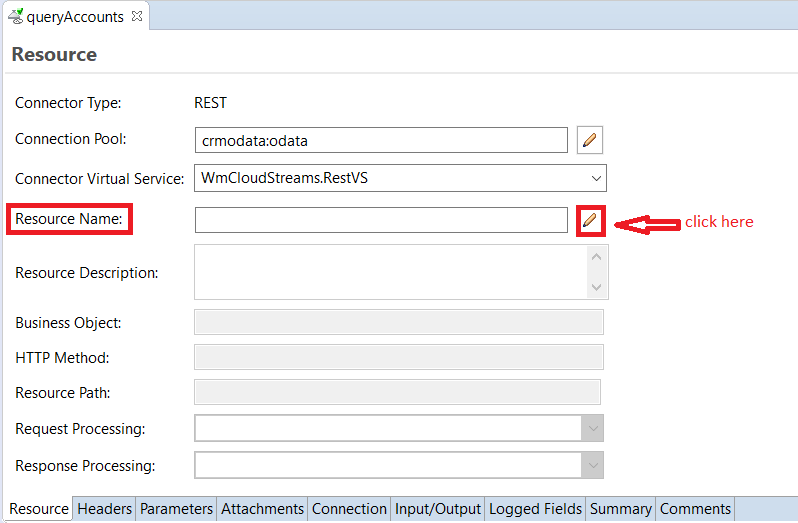

7. Now click Recourse Name option as mentioned in the below screenshot

image798×523 13.3 KB

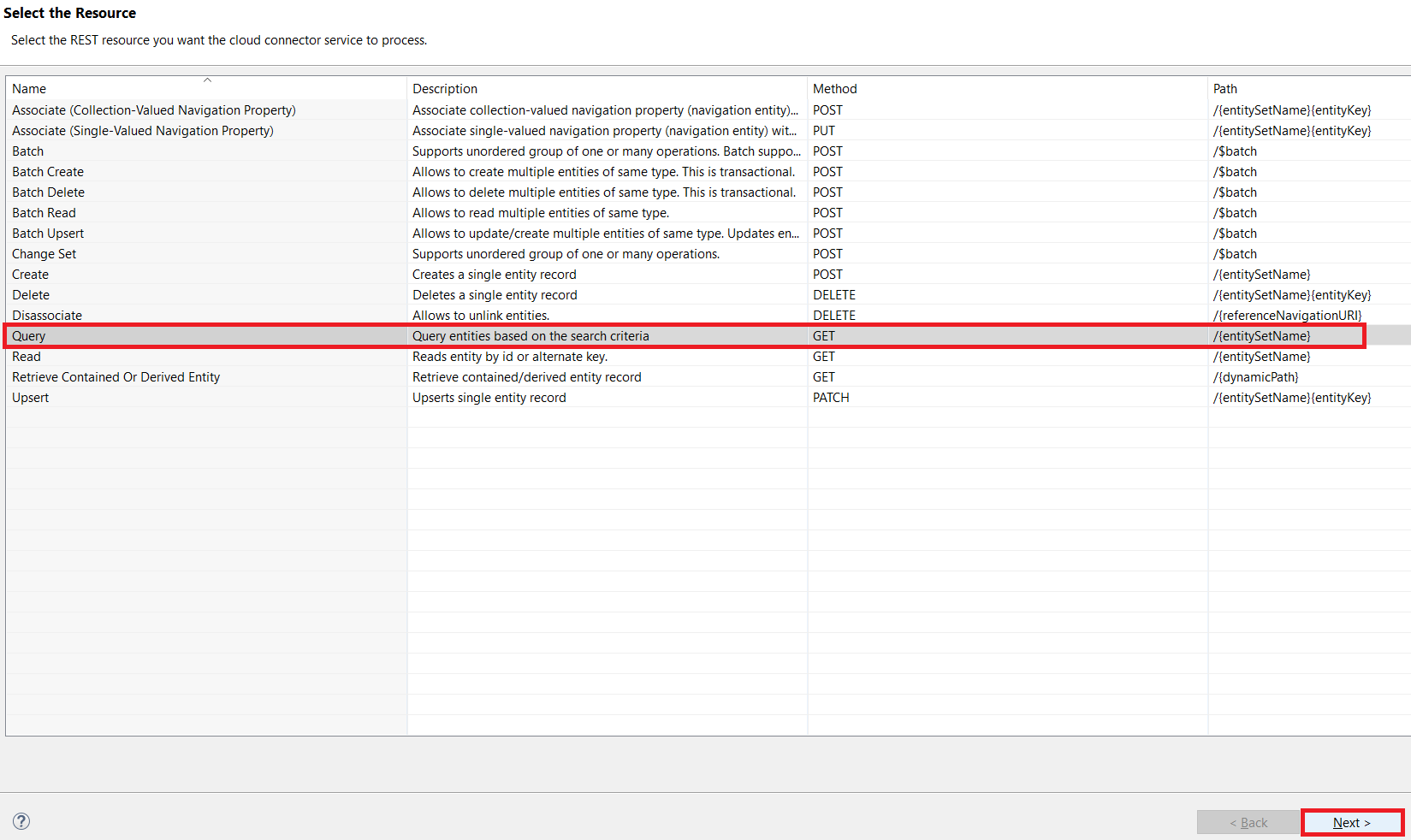

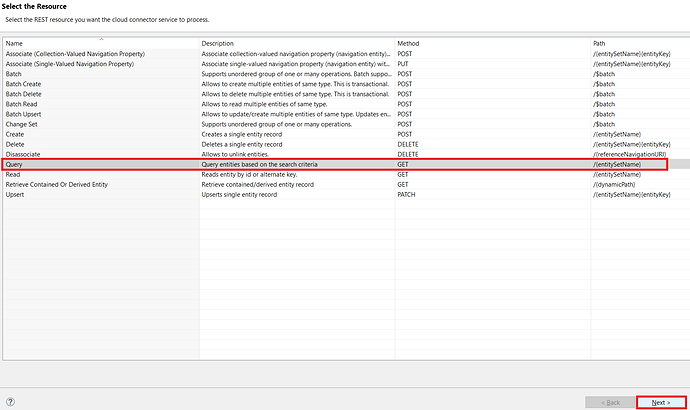

8. Then choose the Query resource from the list of resources and click Next

image1649×982 43.4 KB

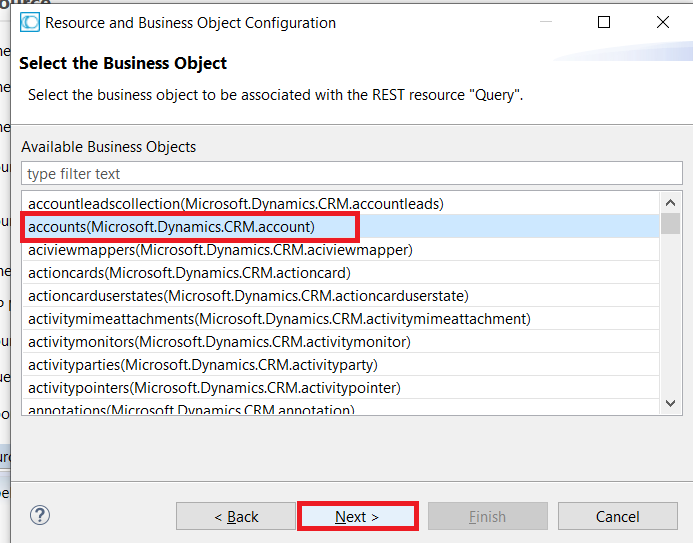

9. All the business objects will appear in the next window, here we will choose the accounts business object to query the accounts. Choose accounts and click Next

image693×543 24 KB

10. In the next screen, the user will find all the fields list with respect to the accounts business object. Here user can choose the fields required to be seen in the response. Example: Choose name, account id & $expand and then click Finish & Save

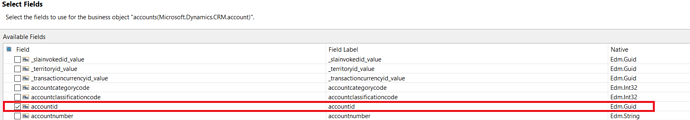

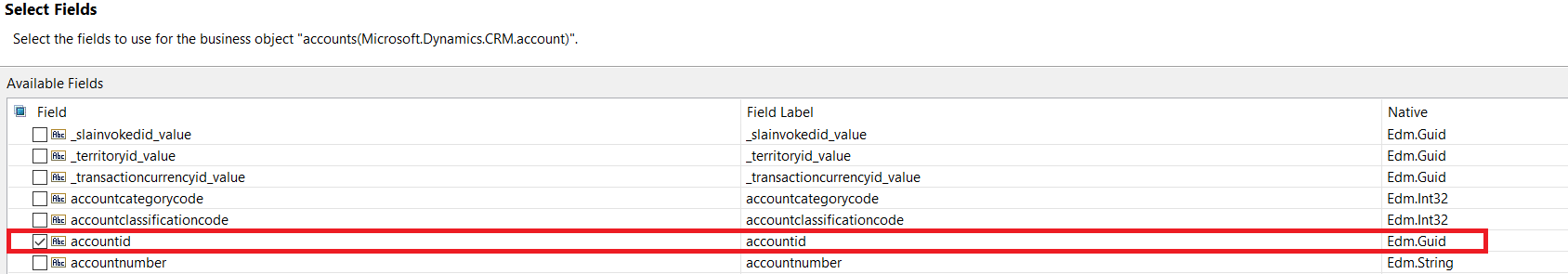

Choose accountid:

image1688×295 10.3 KB

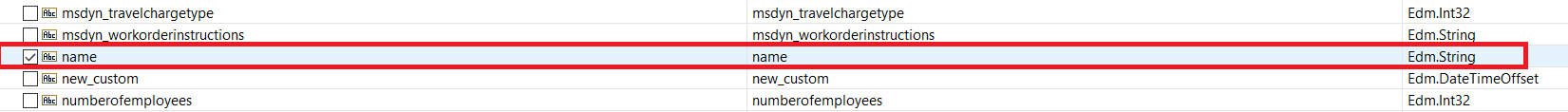

Choose name:

image1651×118 5.22 KB

Choose $expand: Related entities to be included inline in the response. More information about the $expand can be found at Using $select, $expand, and $value in ASP.NET Web API 2 OData - ASP.NET 4.x | Microsoft Learn

image1721×600 26.7 KB

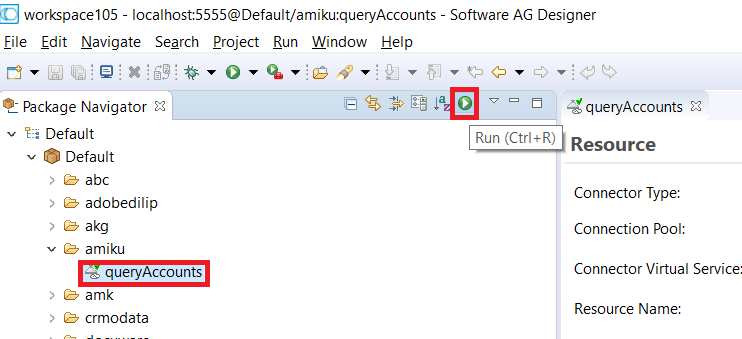

11. Now we will run the queryAccounts CCS

image742×339 23.6 KB

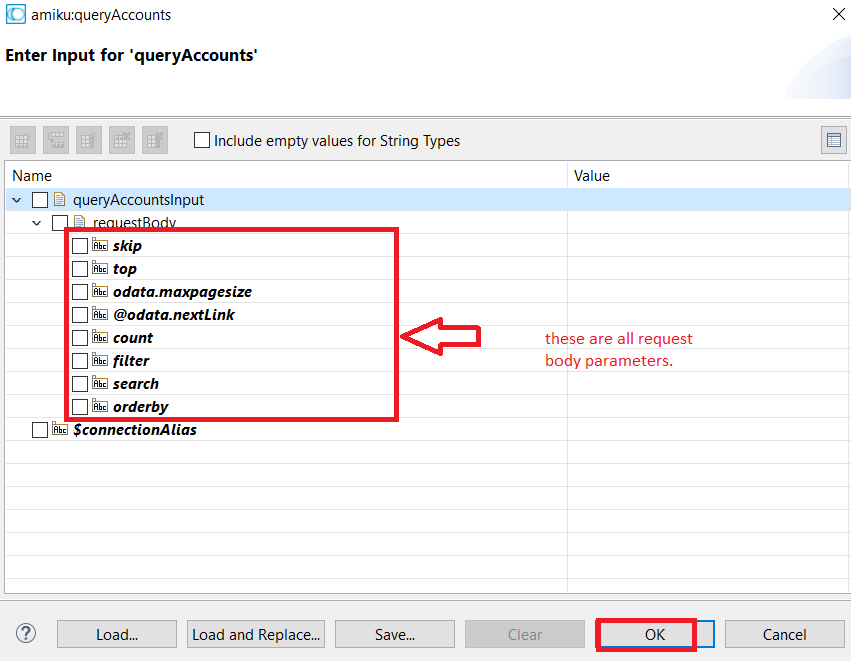

12. The next screen shows all the request parameters. First, we will run this service without specifying any parameters, click OK

image851×661 19.4 KB

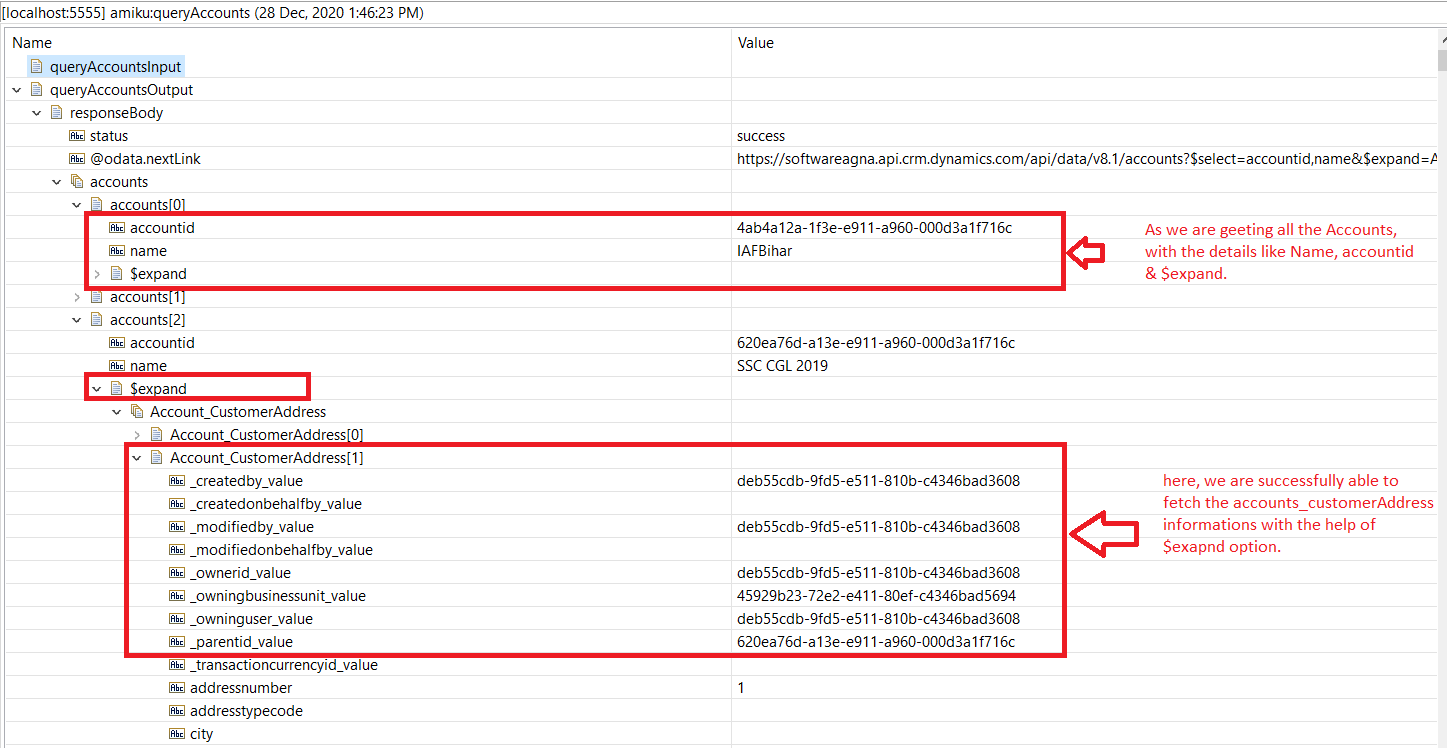

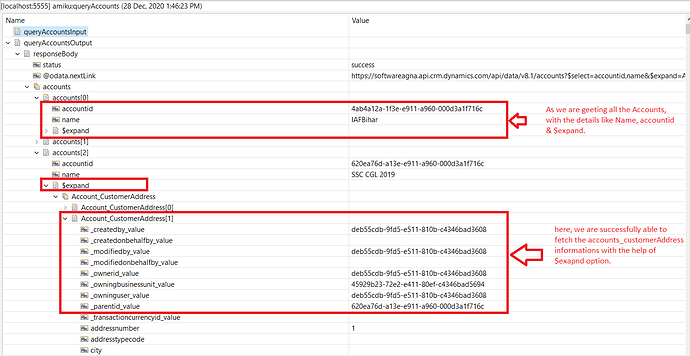

13. This service executes successfully, the user will get all the account details present in the tenant with the fields selected in the above step 10

image1447×748 46.2 KB

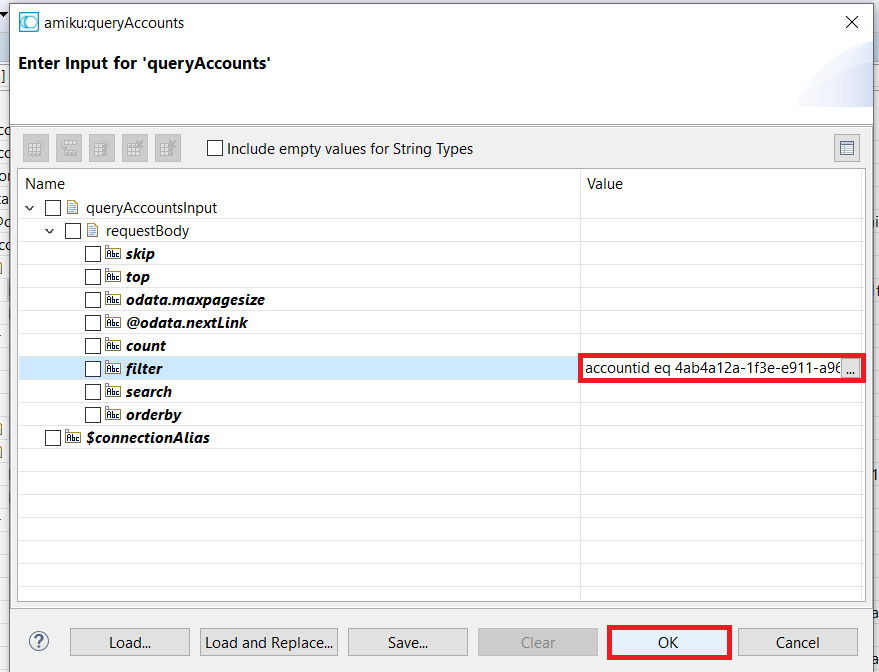

14. Now we will query based on the request parameters. Rerun this service again, this time we will fetch the information about the particular accountid (not all the accounts). Example: Specify the filter option

filter: accountid eq 4ab4a12a-1f3e-e911-a960-000d3a1f716c

image879×672 24.5 KB

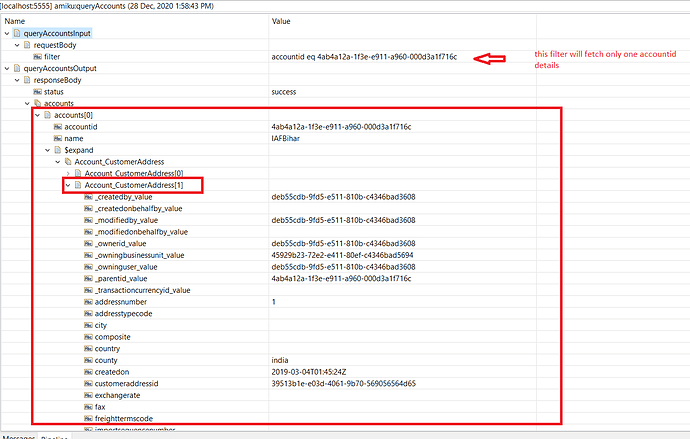

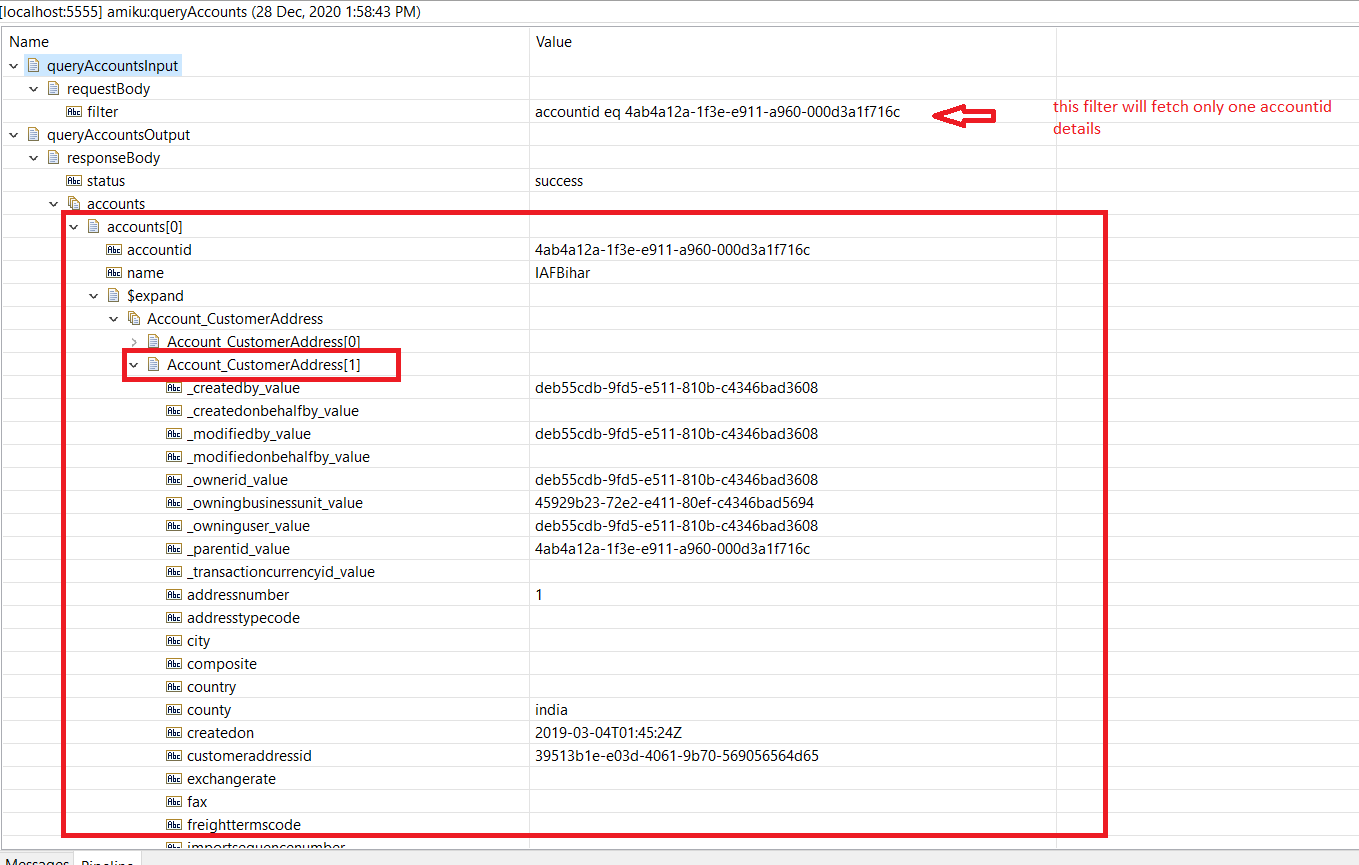

Results:

image1359×865 43.9 KB
