Introduction

This document provides the text for the procedures covered in the video “Get started with webMethods Service Designer” which is available on:

• webMethods Service Designer videos
• Vimeo

Note: This page is also available as a PDF at the end of the page.

Get webMethods Service Designer

1. Visit the Software AG Tech Community portal. The Software AG Tech Community home page is displayed, as shown below:



   image1894×859 63.9 KB
2. Sign in if you have an account or register to create a new account.
3. After signing in, go to the webMethods Service Designer page by clicking Try free > webMethods Service Designer. The webMethods Service Designer home page is displayed, as shown below:



   image965×811 27.7 KB
4. Click Download free trial button and follow the steps to download the required archive.

Get started with webMethods Service Designer

1. Click Try free > webMethods Service Designer.
2. Click Follow our quick start guides and tutorials. The Guide to Download and Install webMethods Service Designer Free Download page is displayed, as shown below:



   image888×842 54.2 KB

Launch webMethods Service Designer

1. Extract the files in the archive that you have downloaded.
2. Open the wMServiceDesigner folder in the extracted files.
3. Run ServiceDesigner.exe to launch webMethods Service Designer.

Note: While launching, webMethods Service Designer will prompt you to start the Local Development Server.

699×502 24.8 KB

Create a Hello World service

1. Create a new package:
   a. Click File > New > Package.



   image643×557 109 KB

   b. Type a package name, such as HelloWorld.
2. Create a new folder in the package:
   a. Click File > New > Folder.
   b. Type a folder name, such as services.
3. Create a new flow service in the folder:
   a. Click File > New > Flow Service.
   b. Type a name for the flow service, such as myFirstService.
4. Add an invoke step to the flow service:
   a. Drag and drop the Invoke step from Palette > Insert.
   b. Type or select the pub.string:concat built-in service.



   image678×736 111 KB
5. Add two string variables to the Input section of the concat service:
   a. Click the Input/Output tab.
   b. Drag and drop String from the variables tab to the Input section.



   image724×525 73.2 KB

   c. Type a name for the variable, such as InputA.
   d. Drag and drop String from the variables tab to the Input section to add a second variable.
   e. Type a name for the variable, such as InputB.



   image676×679 114 KB
6. Save the service.
7. Map each variable to the input parameters of the concat service:
   a. Click the Pipeline tab.
   b. To map the variables:
   i. Drag and drop InputA to the Service In variable inString1.
   ii. Drag and drop InputB to the Service In variable inString2.



   image697×279 29.8 KB
8. Save the service.
9. Drop the additional variables that get added to the output of the flow service:
   a. Select the redundant variables displayed under Pipeline Out, such as inString1, inString2, InputA, and InputB.
   b. Right-click on any of the selected variables and select Drop.



   image718×653 80.4 KB
10. Save the service.
11. Run the service:
    a. Click Run.
    b. Provide the input when prompted. Example: type “Hello ” for InputA, and type “World!” for InputB.



    image726×653 125 KB

    c. Click Ok.

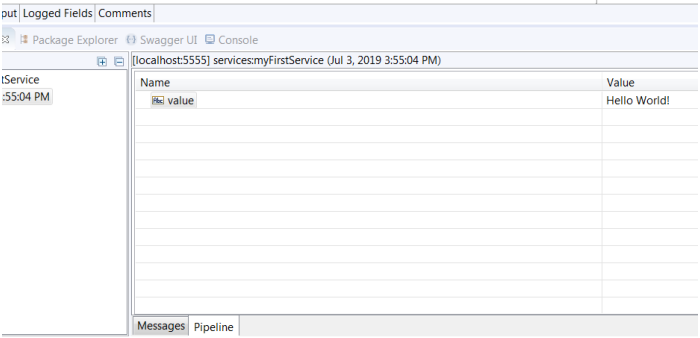

12. The two string inputs that you provide are concatenated and the result (such as, “Hello World!”) is displayed in the Results tab.

image700×338 23 KB
