Interesting question. Your heap size can grow up to 8GB. When the Query Service hits the max heap size, it should perform some garbage collection, discarding old records in order to make room for new requests. That garbage collection may take some time, during which the java process will be busy.
So what is the threshold you want to be alerted at and what will you do when you are alerted? Having the java heap full is not necessarily a problem, in fact it is a good use of resources. If you restart your query service, you are throwing out cached results that could be used to service requests without having to hit the database again.
The documents you linked are not directly related to the way you are using CA, but the principle still applies. If you increase the max heap size, you will have a reduction in the frequency of issues, and perhaps even avoid the XQE errors you are seeing. As far as setting a threshold on the system metric to be alerted about the heap size, it is up to you, but I'm not sure that you will be able to act on the alert. Having said that the alert can be a good way for you to understand when your max heap size may need to be increased (or conversely, decreased), according to user activity.
------------------------------
Luke Peterson
Business Analytics Advocate
IBM
------------------------------
Original Message:
Sent: Mon November 04, 2019 11:42 AM
From: brenda grossnickle
Subject: Where are the JVM Metrics located?
So now that I know where the query service JVM metrics are located, how should i set the metrics to monitor their usage? And what do the 4 metrics mean? How can i set the metrics to monitor if the actual JVM heap size is close to or topping out at the the maximum size limit of 8192?
We were getting intermittent Query Service Busy error when running reports. (We do not use cubes.) So in following the two URLs below, I increased the "Initial JVM Heap size for the query service" to 4096. And increased the "JVM Heap size limit for the query service" to 8192. Then restarted the Query Service.
XQE-GEN-0028 errors
Increase the JVM heap size
https://www.ibm.com/support/pages/report-fails-your-request-could-not-be-completed-because-query-service-busy-cognos-analytics
https://www.ibm.com/support/knowledgecenter/en/SS4Q96_6.1.1/com.ibm.help.scc.configure.doc/scc_configuring_JVM_heap_size_Cognos_Query_Service.html
------------------------------
brenda grossnickle
Original Message:
Sent: Thu October 24, 2019 04:45 PM
From: DENNY NAREZNY
Subject: Where are the JVM Metrics located?

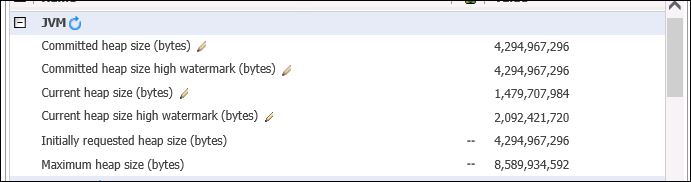

@brenda grossnickle If you select the query service you will see the JVM Mertics under the heading JVM. (Screenshot Attached)
------------------------------
DENNY NAREZNY
Original Message:
Sent: Thu October 24, 2019 04:26 PM
From: brenda grossnickle
Subject: Where are the JVM Metrics located?
cognos 11.0.9
In the Cognos Administration and Security Guide there is "JVM Metrics" section that says there is "current heap size", "initial requested size", "maximum heap size", "up time" and "commited heap size".
When i go to BI Administration -> Status -> System -> Metrics - System, the only JVM metric that I see is "Up Time". How can i see the other JVM metrics? We went from CQM to DQM and are having a lot of issues. I really want to keep an eye on the JVM metrics but cannot figure out where they are located.
------------------------------
brenda grossnickle
------------------------------
#CognosAnalyticswithWatson
