Sorry for late reply . Yes I have resolved the issue and published in medium too.
Thanks much for your help.
https://medium.com/@anilmekala/java-compute-node-to-unzip-multiple-files-ibm-ace-12-159612c949ef
Original Message:
Sent: Wed October 29, 2025 01:51 AM
From: Matthias Blomme
Subject: Uzip the multiple files and writing into destination directory using JCN and FileOutput node
@Mekala AnilPrasadReddy did you manage to solve your issue?
------------------------------
Regards
Matthias Blomme
Integration Specialist
Integration Designers
Turnhout
Original Message:
Sent: Thu September 18, 2025 01:43 AM
From: Matthias Blomme
Subject: Uzip the multiple files and writing into destination directory using JCN and FileOutput node
Hi Mekala
You have configured your file output node to exactly do what you are seeing. You have specified a fixed file name and selected "Write directly to the output file (append if file exists)"
If you don't want to overwrite existing files, change that configuration
Also, if you want to write multiple file names, you can set that using the local environment
LocalEnvironment.Destination.File.Name allows you to dynamically set the output file name.
https://www.ibm.com/docs/en/app-connect/13.0.x?topic=files-using-local-environment-variables-file-nodes
------------------------------
Regards
Matthias Blomme
Integration Specialist
Integration Designers
Turnhout
Original Message:
Sent: Sun September 07, 2025 12:10 AM
From: Mekala AnilPrasadReddy
Subject: Uzip the multiple files and writing into destination directory using JCN and FileOutput node
Hi SMEs,
I have a requirement read the zipfile from from source directory , unzip the files using JCN and write into destination directory

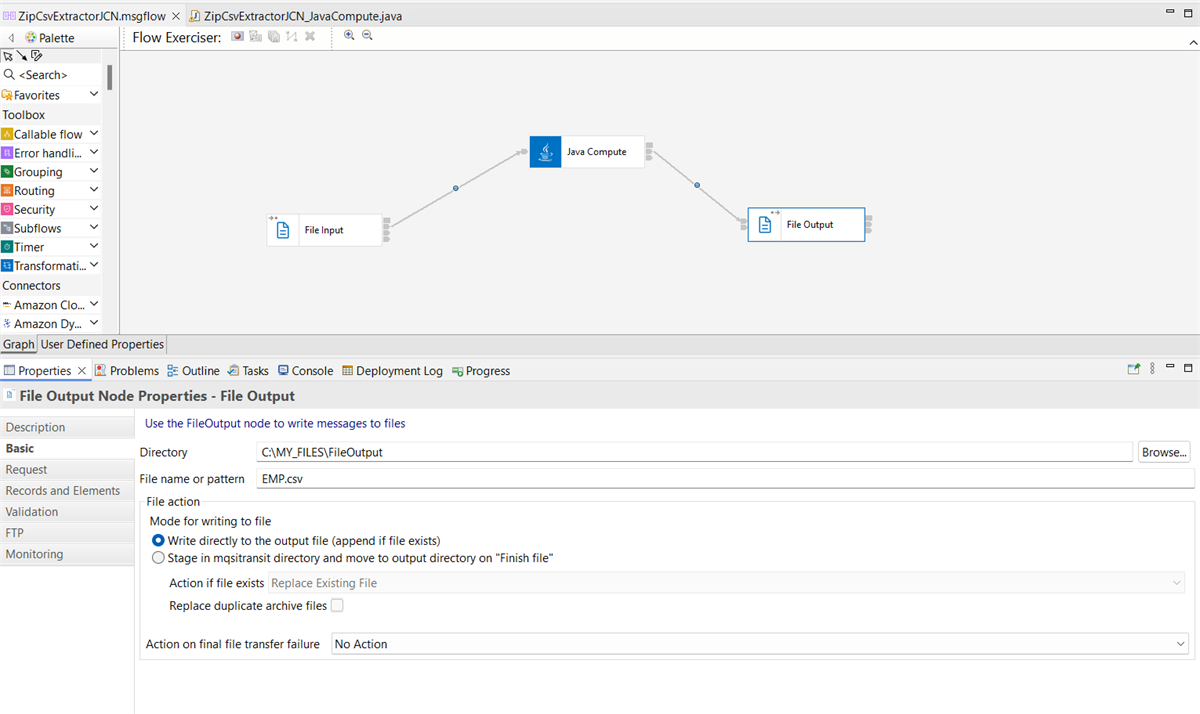

Flow design :
FileInput ---> JCN ---> FileOutput
JCN :
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.util.zip.ZipEntry;
import java.util.zip.ZipInputStream;
import com.ibm.broker.javacompute.MbJavaComputeNode;
import com.ibm.broker.plugin.MbBLOB;
import com.ibm.broker.plugin.MbElement;
import com.ibm.broker.plugin.MbException;
import com.ibm.broker.plugin.MbMessage;
import com.ibm.broker.plugin.MbMessageAssembly;
import com.ibm.broker.plugin.MbOutputTerminal;
import com.ibm.broker.plugin.MbUserException;
public class ZipCsvExtractorJCN_JavaCompute extends MbJavaComputeNode {
public void evaluate(MbMessageAssembly inAssembly) throws MbException {
MbMessage inMessage = inAssembly.getMessage();
try {
MbMessage outMessage = new MbMessage();
copyMessageHeaders(inMessage, outMessage);
// 1. Extract BLOB from input message
MbElement blobElement = inMessage.getRootElement().getLastChild().getFirstElementByPath("BLOB");
byte[] zipBytes = (byte[]) blobElement.getValue();
// 2. Create ByteArrayInputStream and ZipInputStream
ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(zipBytes);
ZipInputStream zipInputStream = new ZipInputStream(byteArrayInputStream);
ZipEntry entry;
// 3. Loop through entries in the ZIP
while ((entry = zipInputStream.getNextEntry()) != null) {
String entryName = entry.getName();
String[] fileNameSplit = null;
// 3.2. If the entry is a CSV file
if (entryName != null && entryName.toLowerCase().endsWith(".csv")) {
// 3.2.1. Create ByteArrayOutputStream and buffer
ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
byte[] buffer = new byte[4096];
int bytesRead;
// 3.2.2. Loop to read from ZipInputStream into buffer
while ((bytesRead = zipInputStream.read(buffer)) != -1) {
// 3.2.2.2. Write to ByteArrayOutputStream
byteArrayOutputStream.write(buffer, 0, bytesRead);
}
// 3.2.3. Get CSV content as byte array
byte[] csvBytes = byteArrayOutputStream.toByteArray();
// 3.2.4. Create OutputRoot for BLOB
MbElement outRoot = outMessage.getRootElement();
// Create BLOB parser and set CSV content
MbElement blobRoot = outRoot.createElementAsLastChild(MbBLOB.PARSER_NAME);
blobRoot.createElementAsLastChild(MbElement.TYPE_NAME_VALUE, "BLOB", csvBytes);
// 3.2.5. Propagate
MbMessageAssembly outAssembly = new MbMessageAssembly(inAssembly, outMessage);
MbMessage localEnv = outAssembly.getLocalEnvironment();
MbElement root = localEnv.getRootElement();
MbElement fileElem = root
.createElementAsLastChild(MbElement.TYPE_NAME, "Destination", null)
.createElementAsLastChild(MbElement.TYPE_NAME, "File", null);
fileNameSplit = entryName.split("/");
fileElem.createElementAsLastChild(MbElement.TYPE_NAME_VALUE, "Name", fileNameSplit[1]);
fileElem.createElementAsLastChild(MbElement.TYPE_NAME_VALUE, "Directory", "C:\\MY_FILES\\FileOutput");
fileElem.createElementAsLastChild(MbElement.TYPE_NAME_VALUE, "Action", "create");
fileElem.createElementAsLastChild(MbElement.TYPE_NAME_VALUE, "CreateMissingDirectories", "true");
getOutputTerminal("out").propagate(outAssembly);
// Close output stream
byteArrayOutputStream.close();
}
// 3.3. Close current zip entry
zipInputStream.closeEntry();
Thread.sleep(300);
}
// 3.5. Close streams
zipInputStream.close();
byteArrayInputStream.close();
}catch (IOException e) {
throw new MbUserException(this, "evaluate()", "", "", "IOException occurred: " + e.getMessage(), null);
}
catch (MbException e) {
// Re-throw to allow Broker handling of MbException
throw e;
} catch (RuntimeException e) {
// Re-throw to allow Broker handling of RuntimeException
throw e;
} catch (Exception e) {
// Consider replacing Exception with type(s) thrown by user code
// Example handling ensures all exceptions are re-thrown to be handled in the flow
throw new MbUserException(this, "evaluate()", "", "", e.toString(), null);
}
}
public void copyMessageHeaders(MbMessage inMessage, MbMessage outMessage) throws MbException {
MbElement outRoot = outMessage.getRootElement();
// iterate though the headers starting with the first child of the root
// element, stopping before the last child (body)
MbElement header = inMessage.getRootElement().getFirstChild();
while (header != null && header.getNextSibling() != null) {
// copy the header and add it to the out message
MbElement newHeader = outRoot.createElementAsLastChild(header.getParserClassName());
newHeader.setName(header.getName());
newHeader.copyElementTree(header);
// move along to next header
header = header.getNextSibling();
}
}
/**
* onPreSetupValidation() is called during the construction of the node
* to allow the node configuration to be validated. Updating the node
* configuration or connecting to external resources should be avoided.
*
* @throws MbException
*/
@Override
public void onPreSetupValidation() throws MbException {
}
/**
* onSetup() is called during the start of the message flow allowing
* configuration to be read/cached, and endpoints to be registered.
*
* Calling getPolicy() within this method to retrieve a policy links this
* node to the policy. If the policy is subsequently redeployed the message
* flow will be torn down and reinitialized to it's state prior to the policy
* redeploy.
*
* @throws MbException
*/
@Override
public void onSetup() throws MbException {
}
/**
* onStart() is called as the message flow is started. The thread pool for
* the message flow is running when this method is invoked.
*
* @throws MbException
*/
@Override
public void onStart() throws MbException {
}
/**
* onStop() is called as the message flow is stopped.
*
* The onStop method is called twice as a message flow is stopped. Initially
* with a 'wait' value of false and subsequently with a 'wait' value of true.
* Blocking operations should be avoided during the initial call. All thread
* pools and external connections should be stopped by the completion of the
* second call.
*
* @throws MbException
*/
@Override
public void onStop(boolean wait) throws MbException {
}
/**
* onTearDown() is called to allow any cached data to be released and any
* endpoints to be deregistered.
*
* @throws MbException
*/
@Override
public void onTearDown() throws MbException {
}
}
I am able to read zip file , unzipping with JCN . But while writing into destination directory its appending to existing file (creating single DEPT.csv and appending EMP.csv records also).
I want to create new file in the destination directory same names which zip contains .
Please review and let me know where exactly went wrong in my code .
Regards,
Anil
------------------------------
Mekala AnilPrasadReddy
------------------------------
