  • 1.  resilient-circuits codegen not working as resilient tutorial video

    Posted Thu July 16, 2020 06:04 AM

    Following by IBM security learning academy`s resilient tutorial video (Resilient Developer's Corner - Integration First Steps - https://www.securitylearningacademy.com/course/view.php?id=4644 ) to use resilient-circuits codegen to automate the generation of Python integration code, it failed to comply to generate the python template code (tox.ini, setup.py, __init__.py, funct_calc_sum.py, and etc). I am wondering how to fix it as what it did from the video tutorial. Thanks in advances.

    resilient-circuits codegen -p calculator -m fn_calc -f calc_sum --workflow calc_sum --rule "calc: sum"

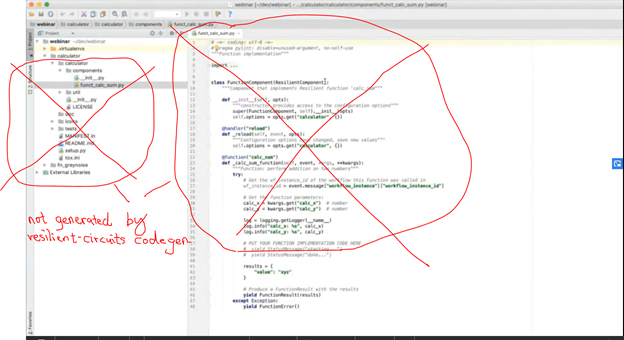

    [Screenshot from the video tutorials]

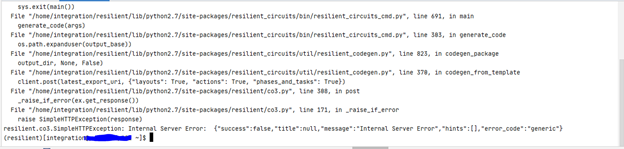

    Warning / Errors Response
    Unverified HTTPS requests (cafile=false).
    Traceback (most recent call last):
    File "/home/integration/resilient/bin/resilient-circuits", line 10, in <module>
    sys.exit(main())
    File "/home/integration/resilient/lib/python2.7/site-packages/resilient_circuits/bin/resilient_circuits_cmd.py", line 691, in main
    generate_code(args)
    File "/home/integration/resilient/lib/python2.7/site-packages/resilient_circuits/bin/resilient_circuits_cmd.py", line 303, in generate_code
    os.path.expanduser(output_base))
    File "/home/integration/resilient/lib/python2.7/site-packages/resilient_circuits/util/resilient_codegen.py", line 823, in codegen_package
    output_dir, None, False)
    File "/home/integration/resilient/lib/python2.7/site-packages/resilient_circuits/util/resilient_codegen.py", line 370, in codegen_from_template
    client.post(latest_export_uri, {"layouts": True, "actions": True, "phases_and_tasks": True})
    File "/home/integration/resilient/lib/python2.7/site-packages/resilient/co3.py", line 308, in post
    _raise_if_error(ex.get_response())
    File "/home/integration/resilient/lib/python2.7/site-packages/resilient/co3.py", line 171, in _raise_if_error
    raise SimpleHTTPException(response)
    resilient.co3.SimpleHTTPException: Internal Server Error: {"success":false,"title":null,"message":"Internal Server Error","hints":[],"error_code":"generic"}

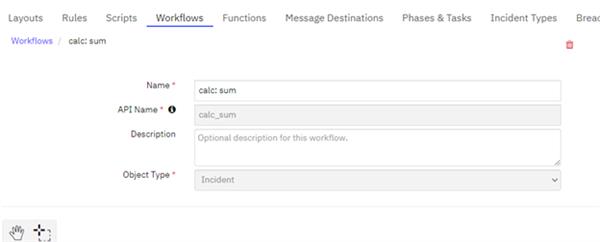

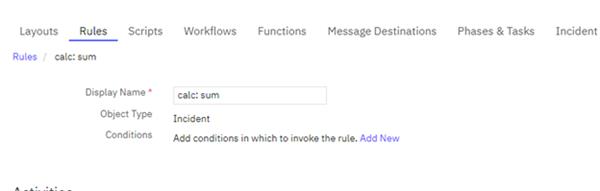

    References for Resilience `s package, function, workflow, and rules (Under Resilient web console)

    resilient-circuits codegen -p calculator -m fn_calc -f calc_sum --workflow calc_sum --rule "calc: sum"

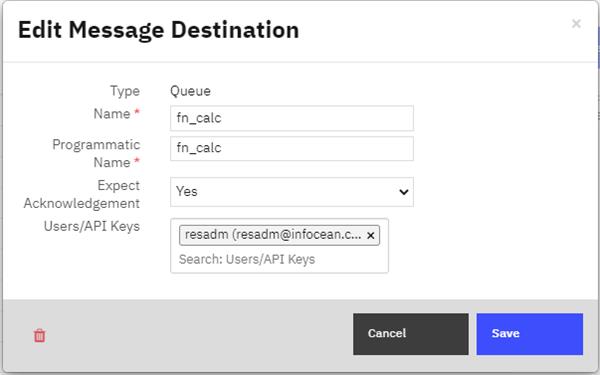

    message destination : -m fn_calc

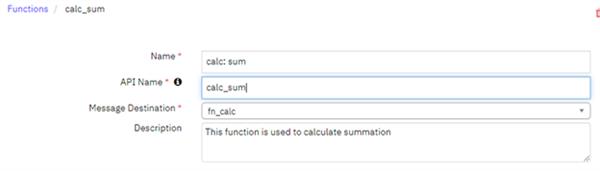

    Funcitons: -f calc_cum


    Workflow: --workflow calc_sum

    Rule: --rule "calc: sum"


    ------------------------------
    Ivan To
    ------------------------------


  • 2.  RE: resilient-circuits codegen not working as resilient tutorial video

    Posted Fri July 17, 2020 11:03 AM
    Hi resilient-cicruits codegen capability has been depricated and this functionality can now be found in 'resilient-sdk'.

    pip install resilient-sdk ...

    ]# resilient-sdk --help
    usage:
    $ resilient-sdk <subcommand> ...
    $ resilient-sdk -v <subcommand> ...
    $ resilient-sdk -h


    Python SDK for developing Resilient Apps

    optional arguments:
    -h, --help show this help message and exit
    -v, --verbose Set the log level to DEBUG

    subcommands:
    one of these subcommands must be provided


    codegen Generate boilerplate code to start developing an app
    docgen Generate documentation for an app
    extract Extract data in order to publish a .res file
    package Package an integration into a Resilient app

    For support, please visit ibm.biz/resilientcommunity

    ------------------------------
    John Quirke
    ------------------------------

    ------------------------------
    John Quirke
    ------------------------------



  • 3.  RE: resilient-circuits codegen not working as resilient tutorial video

    Posted Thu July 23, 2020 12:26 AM
    Edited by Jared Fagel Thu July 23, 2020 12:27 AM
    @John Quirke where did you see that this was deprecated?​

    I do see that resilient-sdk is now used in the V37 documentation, but I don't see it in the "What's new" notes anywhere, nor was the Developer site updated with that information that I can find. V37 also didn't have a "Resilient IRP Function Developer Guide" published.


    ------------------------------
    Jared Fagel
    Cyber Security Analyst I
    Public Utility
    ------------------------------



  • 4.  RE: resilient-circuits codegen not working as resilient tutorial video

    Posted Sun July 19, 2020 03:24 PM
    Hi @Ivan To,

    There is awesome webinar about codegen here. ​

    Best

    ------------------------------
    Jasmine
    ------------------------------
