Required ports for ISVA clustering

  • 1.  Required ports for ISVA clustering

    Posted Mon October 28, 2024 03:31 PM
    Hi all,

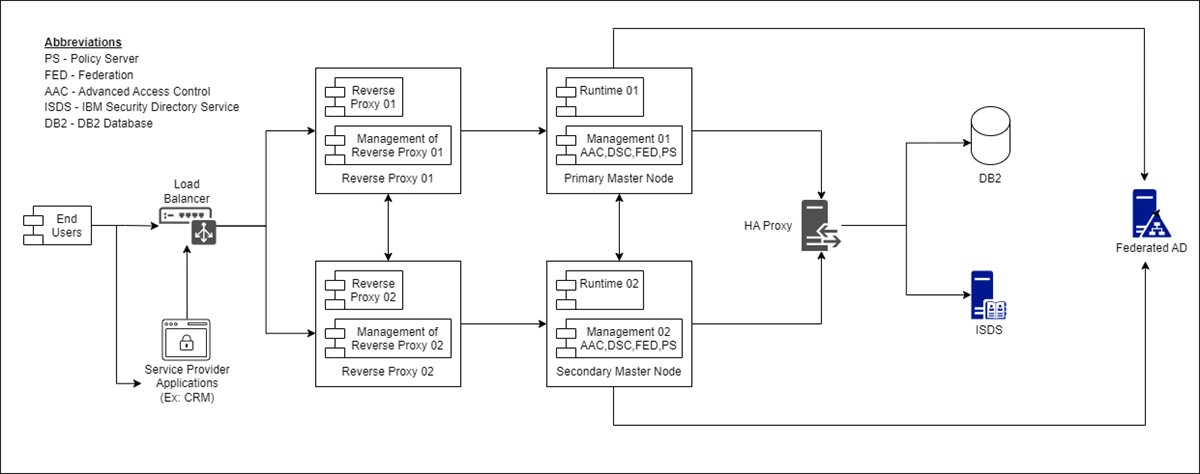

    This is our architecture diagram and can you please assist us what are the necessary ports that we need to complete the clustering ?
    How to cluster the Reverse Proxy 01 and Reverse Proxy 02 and is it necessary to cluster the both reverse proxies with Primary Master Node and the Secondary Master Node ?
    Thanks and best regards


    ------------------------------
    Nilrandha Fernando
    ------------------------------


  • 2.  RE: Required ports for ISVA clustering

    Posted Wed October 30, 2024 06:31 AM
    Edited by Animesh Sangal Wed October 30, 2024 06:57 AM

    Nilrandha,

    Ports details for you reference:

    Port Remarks
    7135, 7136, 443 Internal webSEAL to policy server
    7135, 7136, 443 External webSEAL to policy server
    LDAP port: 389,636 Internal webSEAL to LDAP
    LDAP port: 389,636 External webSEAL to LDAP
    LDAP port: 389,636 Policy server to LDAP
    Config DB port Policy server to Config DB
    Ext DB port like oracle(if any): 1521 Policy server to Runtime  DB



    ------------------------------
    Animesh Sangal
    ------------------------------
