Hi there,

We currently have several java services in place which are being used to get common data from SAP as follows:

• if data is not to be found in hashtable A, then SAP FM z_xxx is being called to repopulate it, otherwise get data directly from hashtable A.

The problem is that the java hashtables using the heap are storing a huge amount of data causing long gc cycles which have a big impact on the performance.

What would be a wiser approach if you have a lot of services which require the same data from SAP?

Thank you in advance,
Oliver

Terracotta distributed cache will fit your requirement very well, have a look at that.

There are OOTB services to put/get key-values to/from cache.

Hi,

I will give it a try.
So, basically I should set up a public cache manager, add the teracotta server arrays and add as many caches as I need with the Distributed flag enabled.
Is there a detailed documentation out there on Empower so I know exactly which settings I have to make to suit my needs?
Of great interest to me is to find out what value to set for ‘Maximum Elements in Memory’ and I also would like to know what happens if I want to set a scheduled job which would update the values in the cache at specific hours (as data in SAP is constantly changed).
And I would also like to know what happens if for some reasons a server leaves the cluster (will the service which would take data from the distributed cache fail?).

Thanks,
Oliver

Refer the below docs:

Integration Server Administrator’s Guide
Integration Server Built-In Services Reference

For refreshing the cache with new values, you need to write a custom logic using the OOTB services which will pull out the data from the datasource (source of truth) and load them in to cache.

I would suggest you to do a POC/T and let us know if you have any issues.

Note that Terracotta does require a separate license.

Hi,

I started to test the services.
Unfortunately we do not have a license for BigMemory, only for distributed cache is working.
When having caches of type key as String and value as String I was flawlessly able to use the service.
Now if I have a cache of type key as String and value as String table (lookup table) it is not working as intended. When using the pub.cache.get service I am getting as value only a part of the String table which is not good.
Is there any workaround for this type of cache (relationship one to many) - Key:String and Value:Lookup table (String table) - String ?

I can check on the putting the string table to a cache but how about using a IData (IS document) define fieldname and field value and them put it to the cache as on object? Will that work?

Update: We manged to use the search service by creating a new cache. So it did not work either clearing the old cache or reloading the cache manager. This seems to be a bug from my point of view which should be fowarded to SAG for investigation.
Thank you for your support!
Now I have a clear overview of the wM caching logic

Oliver

Hi,

Already used as workaround to pass the value as JSON
It also works as IData. Afterwards, I created a Java service to convert the IData to Lookup table.

Now I am currently struggling to understand how to use the pub.cache.search service as I am afraid that there are no clear tutorials provided by SAG for this.
Let’s say I have a key -value pair of type String:IData (IS document).
The document has below structure:
documentA
A
B
C

And let’s say I want to search the cache for A=

On search attributes I have:
Expression: valueOfA and Expression: value.documentA.A (is this correct?).

What should I pass to the search service as input besides cacheManagerName,cacheName,includeAttributes,includeKey,includeValue and maxResults?
Is the criteria (valueOfA=%value%) correct?

I tried to run the search service several times but always end up with getting the result list output which is of type com.wm.app.b2b.client.cache.config.SearchResult. How can I retrieve the output in documentList form if it’s possible?

I managed to find a tutorial on Empower: Pub.cache_Search.pdf

I have followed it but no matter what I try I am still getting error net.sf.ehcache.search.attribute.UnknownAttributeException: Search attribute referenced in Query.addCriteria unknown (yes, the attribute is defined in the cache as specified in the tutorial).
I tried to restart the server, reload the cache manager but same result…

Hi there,

Trying to use pub.cache:search for the first time but without luck.

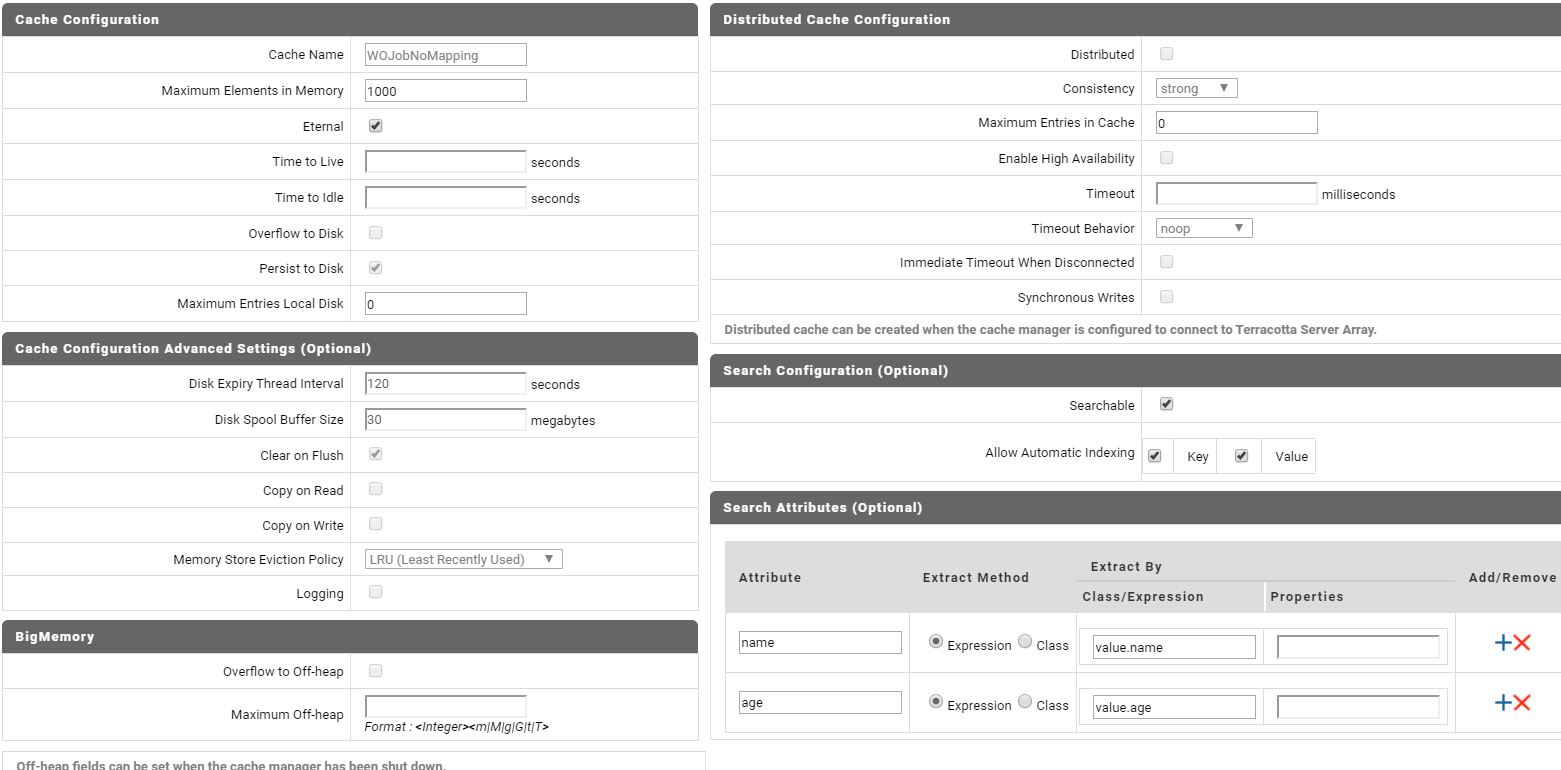

I’d configured the cache to be searchable ( you can refer to the print screen)

When tried with these search criteria:-

1. OP1 = name
   OPR = eq
   OP2 =

ERROR returned:-
Could not run ‘searchCache’
net.sf.ehcache.search.attribute.UnknownAttributeException: Search attribute referenced in Query.addCriteria unknown: name

or

2. OP1 = value.name
   OPR = eq
   OP2 =

ERROR returned:-

Could not run ‘searchCache’
net.sf.ehcache.search.attribute.UnknownAttributeException: Search attribute referenced in Query.addCriteria unknown: value.name

Any advice??

https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files3/5f0f4073af3604695890aaadd4e03bd42151f989_2_1035x510.jpeg 1.5x, https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files3/5f0f4073af3604695890aaadd4e03bd42151f989_2_1380x680.jpeg 2x" data-dominant-color="E6E6E6">

SearchCache.JPG1561×770 146 KB

@Niemand

I am new to caching implementation.
Could you post the solution you did for the IData caching. Do you have some kind of steps that i can follow to implement the same
