Hi guys,

i have a question for you,

i am installing a new webMethods server with UM IS and MWS, and i have an issue with the connection between IS and UM.

i need to understand this : Connection Factory Lookup Name

i dont know what i must to put in there…

we are trying to instance a process and it can not,

i have this config :
Connection Factory Lookup Name local_um

i upload a few pictures for you understand,

regards and good weekend,

Alejandro Fernandes

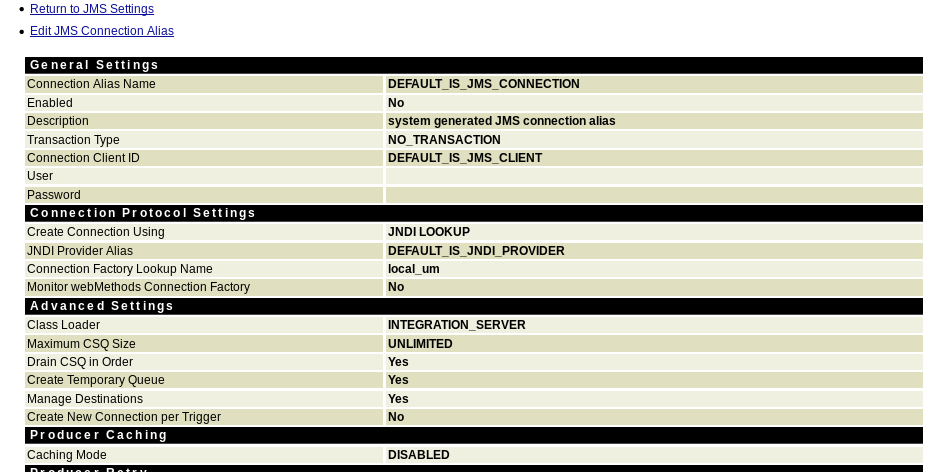

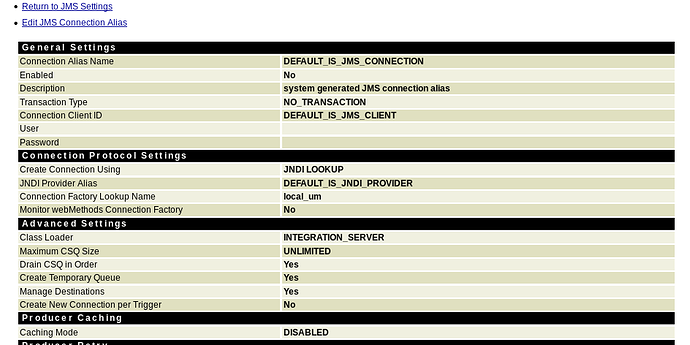

https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files/b2c7f1407abbe4eb7a68ce6e694ca44aa058b3ea.png 1.5x, https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files/b2c7f1407abbe4eb7a68ce6e694ca44aa058b3ea.png 2x" data-dominant-color="C6C6B8">

error1.png944×472 54.6 KB

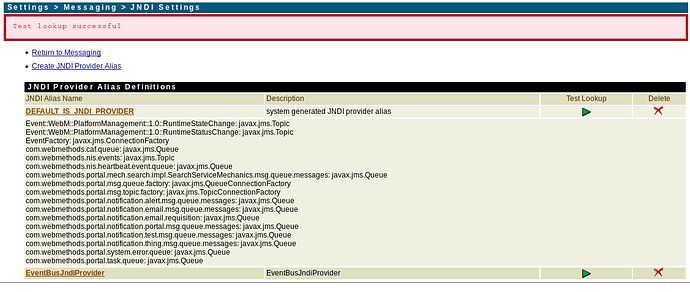

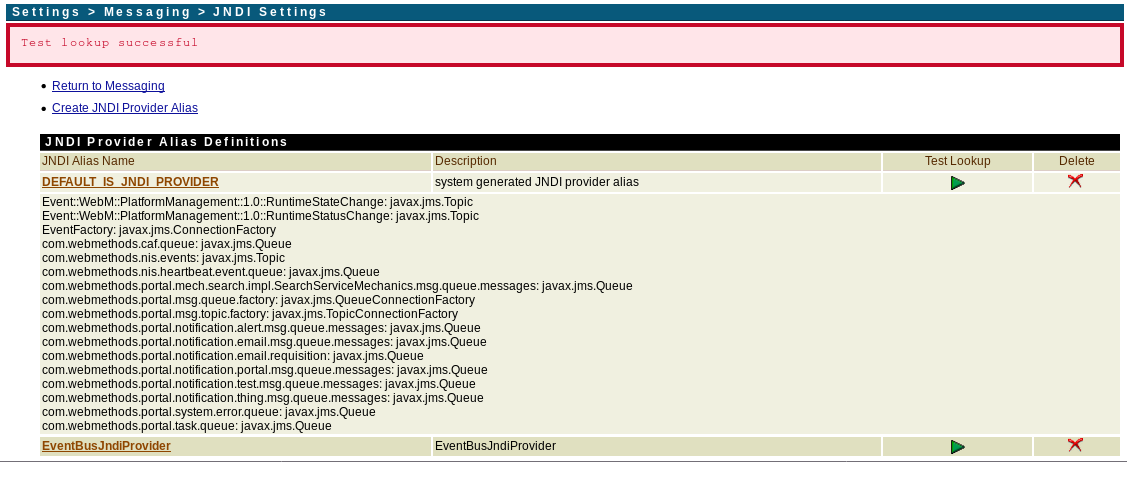

https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files3/55d7ce7f14e7e33f4c092f1a11cd72144879a52c_2_1035x438.png 1.5x, https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files/55d7ce7f14e7e33f4c092f1a11cd72144879a52c.png 2x" data-dominant-color="DBD8CF">

error3.png1127×477 74.3 KB

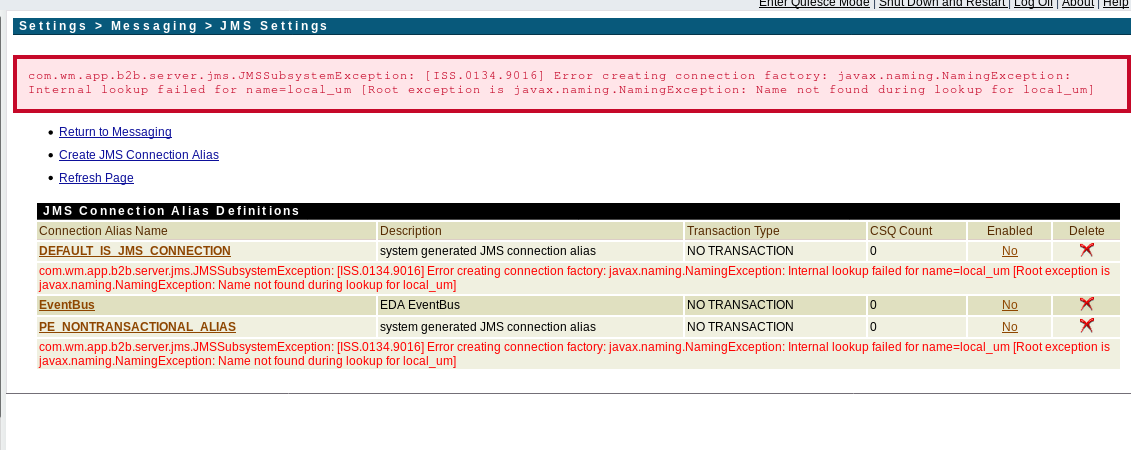

https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files3/32b09146698ab8e34b197d7a9913a1da3037861c_2_1035x411.png 1.5x, https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files/32b09146698ab8e34b197d7a9913a1da3037861c.png 2x" data-dominant-color="E3D9D6">

error2.png1131×450 59.4 KB

the last image

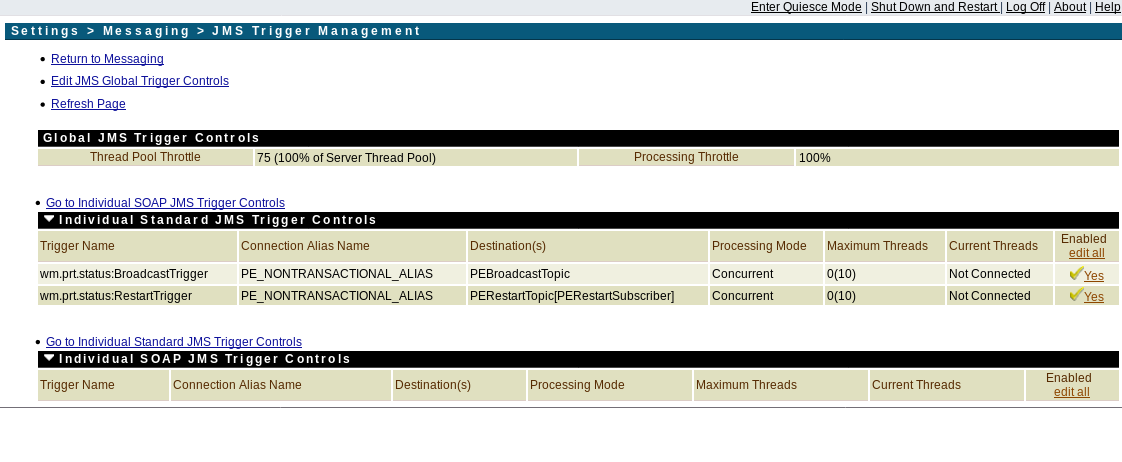

https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files3/504f6e29f069db04b41dcbab642c25c60b592cec_2_1035x426.png 1.5x, https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files/504f6e29f069db04b41dcbab642c25c60b592cec.png 2x" data-dominant-color="CFD0CB">

error4.png1122×462 52.4 KB

You have to create the Connection Factory Name on UM Enterprise Manager with the name “local_name”

Go to UM EM and select the UM instance in the navigation panel. Click on JNDI tab and create the CF “local_um”

hi !,

yes i saw that “solution” but i cant find the connection factory in the JNDI TAB,

i attached an image, can u help me to find out that please?

Alejandro

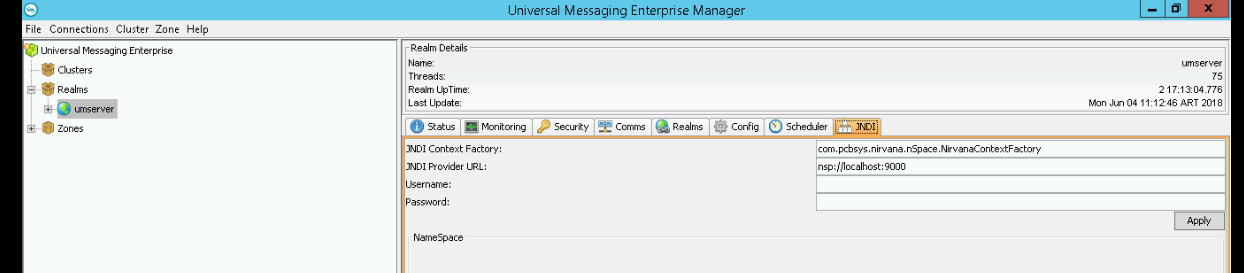

https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files3/b5270dabfb979ebea5b0127863116b5b3934dc87_2_1035x226.png 1.5x, https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files/b5270dabfb979ebea5b0127863116b5b3934dc87.png 2x" data-dominant-color="E0E6E5">

um em.png1244×273 45 KB

Hi Alejandro,
It looks like you have not created the JDNI context; when you open the JNDI tab it will ask you and you need to say yes.
Jane

Jane how are you?,

thanks, i just have clicked the "apply " buton and works,
then i added and works perfectly

thanks a lot

regardsss
