Product/components used and version/fix level:

Integration Server 10.3 Fix #20

Detailed explanation of the problem:

Hello!
I’ll need to develop a flow service that will connect to a SOAP API that uses SSL authentication.

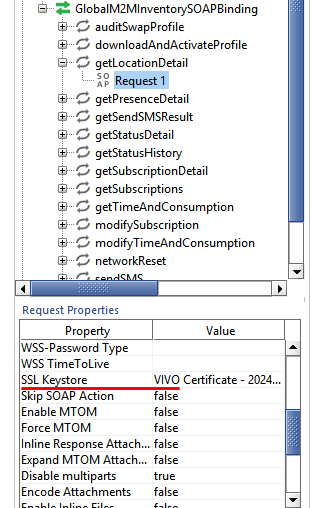

We managed to do successfully some SOAP calls via SOAP UI after setting the .pfx file with its password.

image313×508 12.3 KB

But, how can I set our Integration Server to use a specific certificate when calling an operation of this WS?

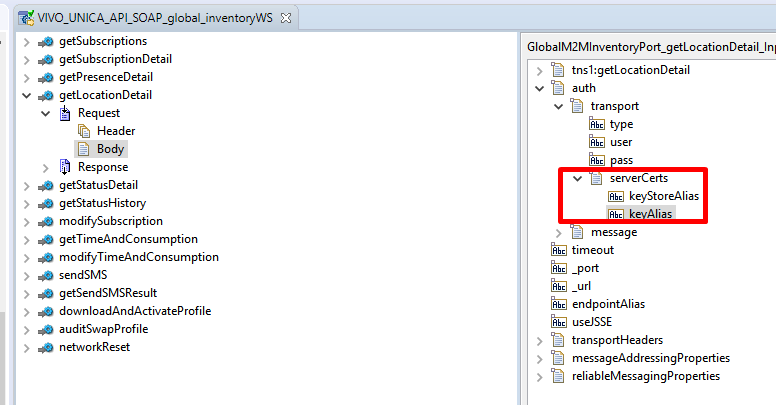

I can see in Designer the following properties:

image776×405 24.2 KB

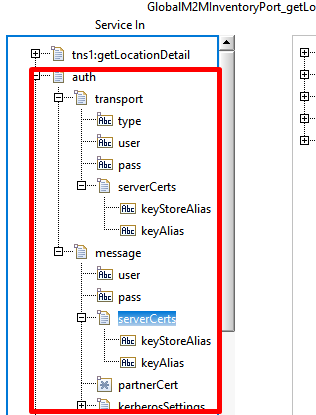

When called in the flow service:

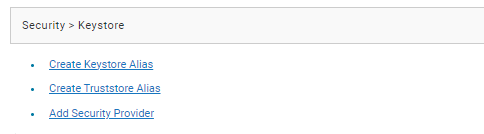

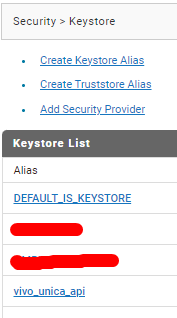

And this screen on IS admin page:

Are the above places the correct ones to set to use the pfx while doing the request?

Or, does exist a correct/better way to do it?

Thank you in advance!

Error messages / full error message screenshot / log file:

No error

Question related to a free trial, or to a production (customer) instance?

Production (customer)

Hi, both places pointed out above are the right ones when it comes to setup SOAP calls using SSL authentication.

Additionally, I recommend taking a look at Web Service Developer’s Guide. The following chapters may give you further clarity on how to solve it:

• Signature for a Web Service Connector
• Passing Message-Level Security Information to a Web Service
  Connector

@moacy.barbosa thanks for your return.

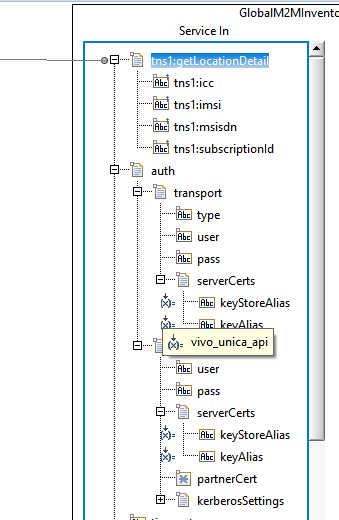

With the guide that you provided, I managed to set and call the SOAP service via our Integration Server.

image339×520 11.9 KB
