What is IBM MQ ?

IBM MQ allows you to manage and optimize enterprise architecture. Enterprise architecture management is the practice of aligning IT infrastructure and systems with business strategy and goals. It involves documenting the organization's IT landscape, planning, designing, and overseeing the implementation of architectural changes to meet changing business requirements.

Key Features

The IBM MQ Adapter (JMS variant)  provides the following key features:

• Sender adapter supports synchronous message read via JMS Poll Variant.
• Supports Transactional JMS Session for data consistency.
• Provides multiple actions for failed transaction handling: Keep the Message and Process Again or Move to Another Queue.
• Receiver adapter allows reliable publishing of messages to Topics and Queues.
• Supports Persistent and Non Persistent message delivery via JMS.
• Supports Byte and Text JMS messages.

Using IBM MQ JMS Receiver Adapter to Write Employee Data to a Queue

In IBM MQ JMS Receiver Adapter, we can write employee data ( send as a message) to a queue in the IBM MQ server. The adapter ensures secure and reliable communication.

Prepare Details in Content Modifier

In SAP Cloud Integration, you can populate necessary details or message in Message Body of Content modifier.

Configure Connection tab for IBM MQ JMS Receiver Adapter ?

In IBM MQ JMS Receiver Adapter, you must configure fields like Hostname and Port for specifying the IBM MQ server's address and the communication port. You can also select Authentication as Basic from the dropdown, enter the Credential Name for identifier associated with the user credentials (Username and Password) and specify Channel Name that facilitates the connection between the client application and the queue manager.

Specify the Queue Manager Name used to manage and coordinate queues in the IBM MQ server. Enter Cipher Suite Name for secure data transmission. The Application Name helps track the specific application during message transactions.

You can also select Transport/Network Protocol as TCP/IP and specify the Character Set ID (CCSID) for defining how character data is encoded.

Parameter	Description
Hostname	Specify as mqd-b57b.qm.eu-de.mq.appdomain.cloud
Port	Specify the port number as 31636
Authentication	Select Authentication as Basic.
Credential Name	Specify as IBM_MQ_54
Channel Name	Specify as CLOUD.ADMIN.SVRCOS
Queue Manager Name	Specify as QMGR
Cipher Suite Name	Specify as *TLS12LOWER
Application Name	Specify as MainApplication
Transport/Network Protocol	Select as TCP/IP
Character Set ID (CCSID) for Non-ASCII Names	Specify as 819

Execute Write Using the IBM MQ JMS Receiver Adapter

Go to the Processing tab, select the Message Destination Type as Queue and specify the Queue Name where the message will be sent on the IBM MQ server.

Select the Target Client and enable the Transactional JMS Session.



Parameter	Values
Message Destination Type	Select as Queue.
Queue Name	Specify as EmployeeData
Target Client	Select as JMS-Compliant
Transactional JMS Session	Enable the transactional JMS session.



Set Advanced for JMS Message Properties

In the Advanced tab, you have the option the Message Type as Text or Byte, we will select Text here. Specify a Correlation ID to uniquely identify and link related messages within the messaging system. You can also set the Delivery Mode to Persistent to ensure message reliability.

Next, define the ReplyTo Destination to specify where responses should be routed, set the Expiry time (in milliseconds) to control message validity, assign a Priority level to influence processing order, and include a Timestamp (in milliseconds).

Additionally, you can also define custom JMS Message Properties to the message.



Reading Messages from a Queue Using the IBM MQ JMS Sender Adapter

Our example illustrates how the IBM MQ JMS Sender Adapter allows querying to read a message.

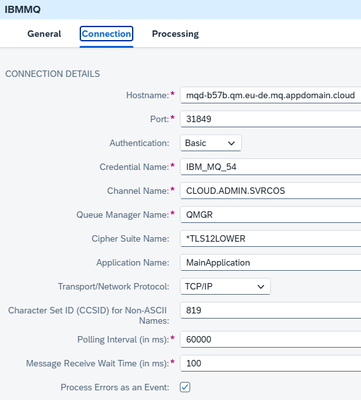

Configure the Connection tab for IBM MQ JMS Sender Adapter

The connection details for this configuration are the same as those used in the IBM MQ JMS Receiver adapter.

Additionally, here you need to specify the Polling Interval (in milliseconds) which determines how frequently the system polls messages from IBM MQ server. You should also set the Message Receive Wait Time which defines how long the system waits to receive messages. To ensure visibility of failed error messages in the messages processing logs, enable the Process Errors as an Event option.

Parameter	Description
Hostname	Specify as mqd-b57b.qm.eu-de.mq.appdomain.cloud
Port	Specify the port number as 31849
Authentication	Select Authentication as Basic.
Credential Name	Specify as IBM_MQ_54
Channel Name	Specify as CLOUD.ADMIN.SVRCOS
Queue Manager Name	Specify as QMGR
Cipher Suite Name	Specify as *TLS12LOWER
Application Name	Specify as MainApplication
Transport/Network Protocol	Select as TCP/IP
Character Set ID (CCSID) for Non-ASCII Names	Specify as 819
Polling Interval	Specify as 60000
Message Receive Wait Time	Specify as 100
Process Errors as an Event	Enable to utilize Process Errors as an Event

Read a Message using IBM MQ JMS Sender Adapter

In the IBM MQ JMS Sender Adapter, you can read a message by selecting the Message Destination Type as Queue and specifying the Queue Name from where the message will be read on the IBM MQ server.

Select Target Client as JMS-Complaint and enable Transactional JMS Handling to ensure data consistency and reliability. Set Failed Transaction Handling to Move Message To Another Queue to forward undeliverable messages to a designated queue.

You can set the Max Delivery Count to specify the number of attempts  to be made before marking a message as failed. Provide the Queue Name, such as QueueData, where failed messages will be stored. Additionally, configure the Message Selector to filter messages based on specific criteria.

Quick Links

For detailed information about IBM MQ adapter configuration, see IBM MQ Adapter Guide.

For detailed information about IBM MQ adapter, see IBM MQ Adapter for SAP Integration Suite.

Note: The IBM MQ adapter is available as part of your SAP Integration Suite license.

------------------------------
