Hi Team,

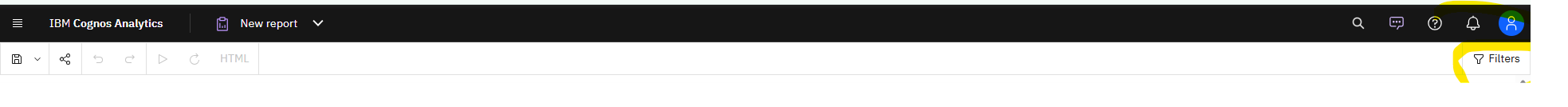

Could you please help me how to hide below filter icon in the Viewer

Thanks,

Srini

Hi,
the first thing that comes to my mind is to deactivate the full intractivity. Go to Report-> Report and then to the properties pane:
Keep in mind that this renders the report in a different view mode. Interactive visualizations (version 11.1)  are not supported anymore.

Hi Team,

Could you please help me how to hide below filter icon in the Viewer

Thanks,

Srini

Hi,

Thanks for the suggestion, We need the full interactivity Yes and Filter icon need to disabled in Cognos Viewer

Note; Currently we are using Cognos 12.0.4 Version

Thanks,

Srini

Hi,
the first thing that comes to my mind is to deactivate the full intractivity. Go to Report-> Report and then to the properties pane:
Keep in mind that this renders the report in a different view mode. Interactive visualizations (version 11.1)  are not supported anymore.

Hi Team,

Could you please help me how to hide below filter icon in the Viewer

Thanks,

Srini

Hi,
the first thing that comes to my mind is to deactivate the full intractivity. Go to Report-> Report and then to the properties pane:
Keep in mind that this renders the report in a different view mode. Interactive visualizations (version 11.1)  are not supported anymore.

Hi Team,

Could you please help me how to hide below filter icon in the Viewer

Thanks,

Srini

Not an answer to the original question, but in case future readers find this useful...

A similar way to remove interactivity, but keep the CA11/12 look and feel is to use the interactive toolbar toggle switch that is also found in the report properties.

Hi,
the first thing that comes to my mind is to deactivate the full intractivity. Go to Report-> Report and then to the properties pane:
Keep in mind that this renders the report in a different view mode. Interactive visualizations (version 11.1)  are not supported anymore.

Hi Team,

Could you please help me how to hide below filter icon in the Viewer

Thanks,

Srini

Hi Marc Reed,

Thanks for the response  , Enable on-demand Toolbar option disabled  in the Properties and still i am getting Filter icon in the viewer, Could you please let me know how to disable the Filter icon

Thanks,

Srini

Not an answer to the original question, but in case future readers find this useful...

A similar way to remove interactivity, but keep the CA11/12 look and feel is to use the interactive toolbar toggle switch that is also found in the report properties.

Hi,
the first thing that comes to my mind is to deactivate the full intractivity. Go to Report-> Report and then to the properties pane:
Keep in mind that this renders the report in a different view mode. Interactive visualizations (version 11.1)  are not supported anymore.

Hi Team,

Could you please help me how to hide below filter icon in the Viewer

Thanks,

Srini

Hi Srini,

then there is no way to hide the filters area in the report I'm aware of. The On-Demand Toolbar can be hidden in properties of roles, but that does not hide the filters pane as well:

The only hint I have is to follow these instructions here and look if you can find the UI element and its ID.

Determine the id of a user interface object

You need to determine the id of an existing user interface element when you create extensions that exclude features or items, or that add menu items to an existing menu.

Procedure

1. If you are running Cognos Analytics 11.0.7 or later, follow these steps:

a) Open the Windows Services window and stop the IBM Cognos service.

b) Open the file installation_location\wlp\usr\servers\cognosserver\bootstrap.properties.

c) Add the following line:

disableXSRFCheck=true

d) Save the file.

e) Restart the IBM Cognos service.

2. Sign in to your IBM Cognos Analytics server.

3. Type the following URL in a web browser: http://<server_name>:<port>/bi/v1/perspectives/<view> where <view> is the view (home, authoring, dashboard, or modeller) that contains the user interface object.

A JSON file is returned that contains a description of all the user interface elements in the view.

4. Search for the hover text for the user interface element.

The id and featureId of the user interface items are displayed following the hover text.

Hi Marc Reed,

Thanks for the response  , Enable on-demand Toolbar option disabled  in the Properties and still i am getting Filter icon in the viewer, Could you please let me know how to disable the Filter icon

Thanks,

Srini

Not an answer to the original question, but in case future readers find this useful...

A similar way to remove interactivity, but keep the CA11/12 look and feel is to use the interactive toolbar toggle switch that is also found in the report properties.

Hi,
the first thing that comes to my mind is to deactivate the full intractivity. Go to Report-> Report and then to the properties pane:
Keep in mind that this renders the report in a different view mode. Interactive visualizations (version 11.1)  are not supported anymore.

Hi Team,

Could you please help me how to hide below filter icon in the Viewer

Thanks,

Srini

Hi Srini, Robert,

In fact it is possible to hide the Show filters button using the Feature customization for a role.  For Interactive-viewer reports, menu options that can be hidden are found in the Reporting section.  In particular for this case, uncheck the Show filters option found under Reporting > Collections > Toolbar.

Here is a link to the documentation about role-based Feature customization (to hide/show elements in the UI):  https://www.ibm.com/docs/en/cognos-analytics/12.0.x?topic=roles-examples-hiding-menu-options-feature

(For users that belong to multiple roles, the profile with highest priority is applied.  You can increase the priority for the role on the Customization tab under Advanced).

Hi Srini,

then there is no way to hide the filters area in the report I'm aware of. The On-Demand Toolbar can be hidden in properties of roles, but that does not hide the filters pane as well:

The only hint I have is to follow these instructions here and look if you can find the UI element and its ID.

Determine the id of a user interface object

You need to determine the id of an existing user interface element when you create extensions that exclude features or items, or that add menu items to an existing menu.

Procedure

1. If you are running Cognos Analytics 11.0.7 or later, follow these steps:

a) Open the Windows Services window and stop the IBM Cognos service.

b) Open the file installation_location\wlp\usr\servers\cognosserver\bootstrap.properties.

c) Add the following line:

disableXSRFCheck=true

d) Save the file.

e) Restart the IBM Cognos service.

2. Sign in to your IBM Cognos Analytics server.

3. Type the following URL in a web browser: http://<server_name>:<port>/bi/v1/perspectives/<view> where <view> is the view (home, authoring, dashboard, or modeller) that contains the user interface object.

A JSON file is returned that contains a description of all the user interface elements in the view.

4. Search for the hover text for the user interface element.

The id and featureId of the user interface items are displayed following the hover text.

Hi Marc Reed,

Thanks for the response  , Enable on-demand Toolbar option disabled  in the Properties and still i am getting Filter icon in the viewer, Could you please let me know how to disable the Filter icon

Thanks,

Srini

Not an answer to the original question, but in case future readers find this useful...

A similar way to remove interactivity, but keep the CA11/12 look and feel is to use the interactive toolbar toggle switch that is also found in the report properties.

Hi,
the first thing that comes to my mind is to deactivate the full intractivity. Go to Report-> Report and then to the properties pane:
Keep in mind that this renders the report in a different view mode. Interactive visualizations (version 11.1)  are not supported anymore.

Hi Team,

Could you please help me how to hide below filter icon in the Viewer

Thanks,

Srini

Hi Srini,

then there is no way to hide the filters area in the report I'm aware of. The On-Demand Toolbar can be hidden in properties of roles, but that does not hide the filters pane as well:

The only hint I have is to follow these instructions here and look if you can find the UI element and its ID.

Determine the id of a user interface object

You need to determine the id of an existing user interface element when you create extensions that exclude features or items, or that add menu items to an existing menu.

Procedure

1. If you are running Cognos Analytics 11.0.7 or later, follow these steps:

a) Open the Windows Services window and stop the IBM Cognos service.

b) Open the file installation_location\wlp\usr\servers\cognosserver\bootstrap.properties.

c) Add the following line:

disableXSRFCheck=true

d) Save the file.

e) Restart the IBM Cognos service.

2. Sign in to your IBM Cognos Analytics server.

3. Type the following URL in a web browser: http://<server_name>:<port>/bi/v1/perspectives/<view> where <view> is the view (home, authoring, dashboard, or modeller) that contains the user interface object.

A JSON file is returned that contains a description of all the user interface elements in the view.

4. Search for the hover text for the user interface element.

The id and featureId of the user interface items are displayed following the hover text.

Hi Marc Reed,

Thanks for the response  , Enable on-demand Toolbar option disabled  in the Properties and still i am getting Filter icon in the viewer, Could you please let me know how to disable the Filter icon

Thanks,

Srini

Not an answer to the original question, but in case future readers find this useful...

A similar way to remove interactivity, but keep the CA11/12 look and feel is to use the interactive toolbar toggle switch that is also found in the report properties.

Hi,
the first thing that comes to my mind is to deactivate the full intractivity. Go to Report-> Report and then to the properties pane:
Keep in mind that this renders the report in a different view mode. Interactive visualizations (version 11.1)  are not supported anymore.

Hi Team,

Could you please help me how to hide below filter icon in the Viewer

Thanks,

Srini

Hi Marc Reed,

Thanks for the response  , Enable on-demand Toolbar option disabled  in the Properties and still i am getting Filter icon in the viewer, Could you please let me know how to disable the Filter icon

Thanks,

Srini

Not an answer to the original question, but in case future readers find this useful...

A similar way to remove interactivity, but keep the CA11/12 look and feel is to use the interactive toolbar toggle switch that is also found in the report properties.

Hi,
the first thing that comes to my mind is to deactivate the full intractivity. Go to Report-> Report and then to the properties pane:
Keep in mind that this renders the report in a different view mode. Interactive visualizations (version 11.1)  are not supported anymore.

Hi Team,

Could you please help me how to hide below filter icon in the Viewer

Thanks,

Srini

Hi Team,

Could you please help me how to hide below filter icon in the Viewer

Thanks,

Srini
