Originally posted by: Nablokov

Hello,

I used WTX 8.4 "Design Studio" and "Integration Flow Designer" on Windows XP. Yesterday, I have instaleld these tools WTX 8.4 on windows 7. For the time being, no issue on design studo. However, On Integration Flow Designer when I open a system, I have "unresolved parameters" for data on entry. If I want to "Edit a laucner", i get "No card information".  No idea about what I am wrong?

If you have an idea,

Thanks by advance,

Nablokov

Originally posted by: paul.brett

What does the version display, when using the Help->About option?

Are you able to create a new file from scratch (instead of opening an existing .MSD document)?

Was the software installed with administrative privileges?

Thank-you.

Paul

Follow me on Twitter

Originally posted by: Laurent(Satisco)

Hi!

Some more details may be useful.

Are you using source or compiled maps in your system?

If compiled maps, did you recompile on the new platform, and store the maps in the right location?

I'd check the paths for the different objects first. Maybe also worth checcking the versions of WTX are the same on the initial and new platform, just in case.

Hope this helps

Laurent

Originally posted by: Nablokov

Thanks for your help,

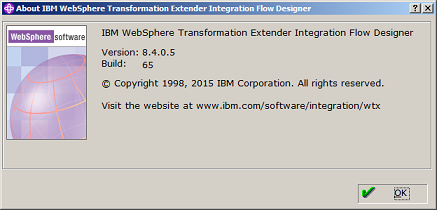

To Paul : The sofware is installed with administrative privileges but I am not administrator. My version :

View Details|VersionIFD.JPG

To Laurent : Everything is by default, I'm using source map (if I compiled the map it doesn't change nothing)

I found a workaround :

- rigthclick on the system and choose 'edit the component'

- close the system

- reopen ...and it's OK, I can see every entry and output cardsand edit the launcher.

Do you have an idea about what can explain that ?

Moreover, I have another issue when I import a xsd (or anything else) to create a .mtt. When I valide, I get a message "unable to open ttmaker.log". I have tried to use an administrator account, and I get the same issue.

Thanks by advance

Nablokov

Originally posted by: Laurent(Satisco)

Hi,

not sure about the maps, but this looks like a compatibility issue between versions. Are you using the same path between the old and new versions?

The xsd import issue looks like a permissions problem, but I'm sure Paul will be more "on topic" than me.

Laurent

Originally posted by: Nablokov

Hi Laurent,

I used strictly the same paths, the same system file and the same "WTX Design Studio" version whether this is using Windows XP or Windows 7.

One difference is I am administrator on Windows XP and not on WIndows 7.

Arnaud

Originally posted by: paul.brett

;You will need to either:

1.  Get administrative permissions on your Windows 7 box

or

2.  Uninstall the WTX product, and re-install with a custom installation, and choose a folder to which you have full read-write permissions.

Thank-you.

Paul

Follow me on Twitter

Originally posted by: Nablokov

Thanks Paul and Laurent ,

for the two issues :

1/ "Error Integration Flow Designer unable to open system" : this issue is not linked to administrative permisssions.

But I found a workaround

2/ "cannot open ttmaker.log" :this issue was resolved with administrative permissions with a custom installation, as you have told me

Originally posted by: paul.brett

Are you referring to any components or sub-systems by a relative path?  Do you get the same problem when using an absolute path?

Are the files on a local or remote file system?  Can you replicate the issue for files on a local system only?

Are you using any kind of source control software?  (where you check-out and check-in the components)

Thank-you.

Paul

Follow me on Twitter
