Hello everyone,

I’m currently facing a an issue on a REST-API exposed in Mediator, with JSON Content. Details on the software version below.

Whenever a client invokes our Web Service, the following error is presented:

{
"Exception": "Mediator encountered an error:Unable to invoke ESB Service:ab.mediator.cd.priv:copyCDRequest. Exception:Failed to convert JSON to XML payload.  while executing operation:validation-rules service:OmnichannelAPI_Voucherify at time:9:59:36 AM on date:Jan 12, 2021. The client ip was:12.34.5.67. The current user:Default. The consumer application:null"
}

This happens when calling the aforementioned flow service, which is being called through the “Run webMethods Integration Server Service” policy, at the Request Level.

To debug this situation, I have made a dynamic savePipelineToFile, but the request is not even reaching this flow service.

I have investigated further, and I’ve reached the conclusion that only some types of requests fail, and I’ve pinpointed it to some specific characters, which I present below:

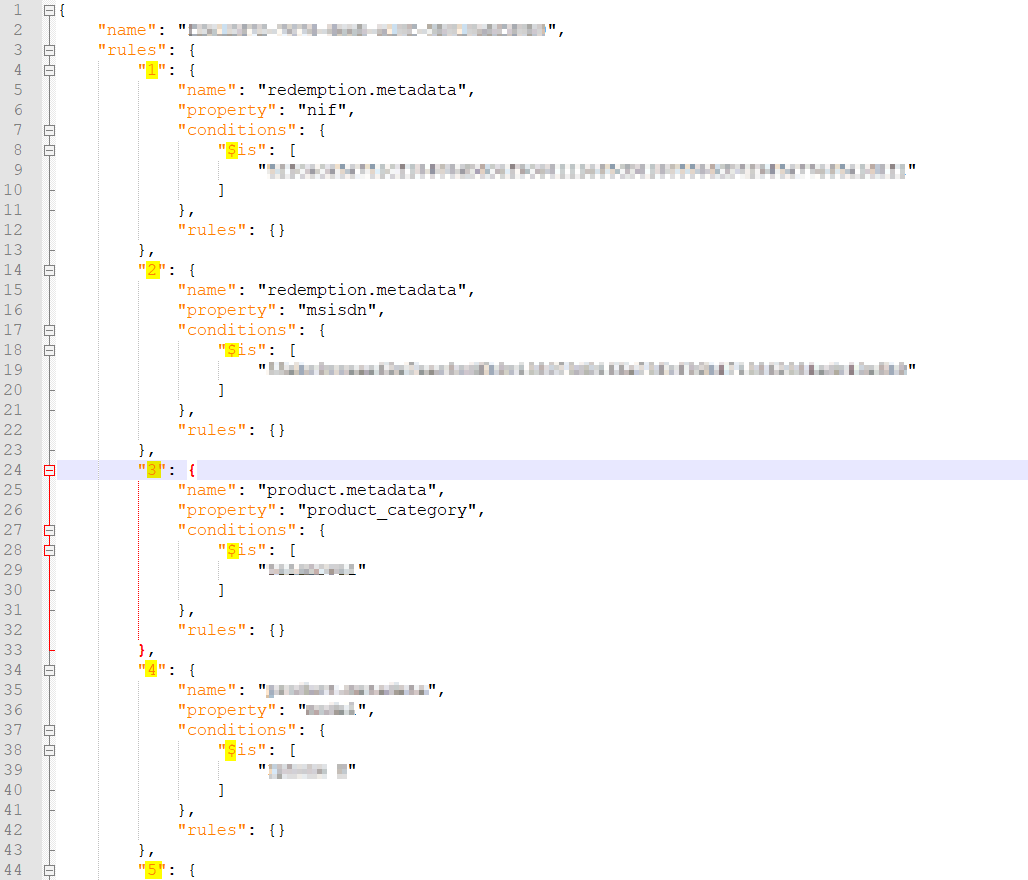

2021-01-12 15_19_10-_new 1 - Notepad++1028×880 32.1 KB

The request below fails due to the characters that are highlighted, numbers and symbols like the dollar sign ($). I am aware that it is not standard to define numbers or symbols as the first character for a JSON Property Name, but this provider only has these fields available this way.

I would like to ask you:

1. Is this a know error with the product or configuration? Is there a fix or a configuration that can solve this?
2. If no fix or solution is available, is there any way to workaround this?

Software Information:
webMethods Integration Server 9.12.0.0 with WmMediator
IS_9.12_Core_Fix18 installed

Thank you in advance for your help.

Best Regards,

Luís Monteiro

Hello,

I was able to solve this problem. Below I’ll describe the process and actions taken:

1. Activated Full Logging on the Virtual Service (Log Always, with Request and Response);
2. In there, I was able to check that this error was being returned by the wsstack class, when trying to convert to XML, due to XML not accepting numbers and/or symbols as an element name (which is compliant with XML Rules/Norms);
3. Apparently, when using wsstack, Mediator first tries to convert the JSON Request to XML before applying any of the other policies;
4. Unpublished the Virtual Service;
5. Changed CentraSite to axis-free mode in centrasite.xml;
6. Restarted CentraSite;
7. Published the Virtual Service again;
8. After testing again, the Virtual Service was invoked and executed/run sucessfully.

Hope this may help someone with the same problem in the future.

Best Regards,

Luís Monteiro
