Product/components used and version/fix level:

Product - webMethods Integration Server
Version - 9.12.0.0

Detailed explanation of the problem:

There is one AS2 Interface, where the Processing Status for that particular transaction is showing ‘DONE W/ ERRORS’. But when checking the ‘Related Documents’ for that particular transaction, it says MDN is well received.

The issue here is - the delivery service is throwing the error (in the Activity Log):

8/16/2023 1:41:57 PM Waiting for EDIINT envelope failed. Please check the configurations, Iteration: 2, MaxWaitLimit: 32000 milli sec EDIINT status: SendMsg:ERROR

8/16/2023 1:41:57 PM Delivery Error: Waiting for EDIINT envelope failed. Please check the configurations, Iteration: 2, MaxWaitLimit: 32000 milli sec EDIINT status: SendMsg:ERROR

8/16/2023 1:41:55 PM Waiting for EDIINT envelope completion, Iteration: 1, Waiting: 2000 milli sec

But in the ‘Related Dcouments’ MDN is already received and the status couldn’t update to Delivered.

MDN RECEIVED EDIINT MDN 8/16/2023 1:42:15 PM

Error messages / full error message screenshot / log file:

https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files3/b1a4ef815f2bac3cc5d95e018c762cc3c7299b87_2_1035x277.jpeg 1.5x, https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files/b1a4ef815f2bac3cc5d95e018c762cc3c7299b87.jpeg 2x" data-dominant-color="E0E5EF">

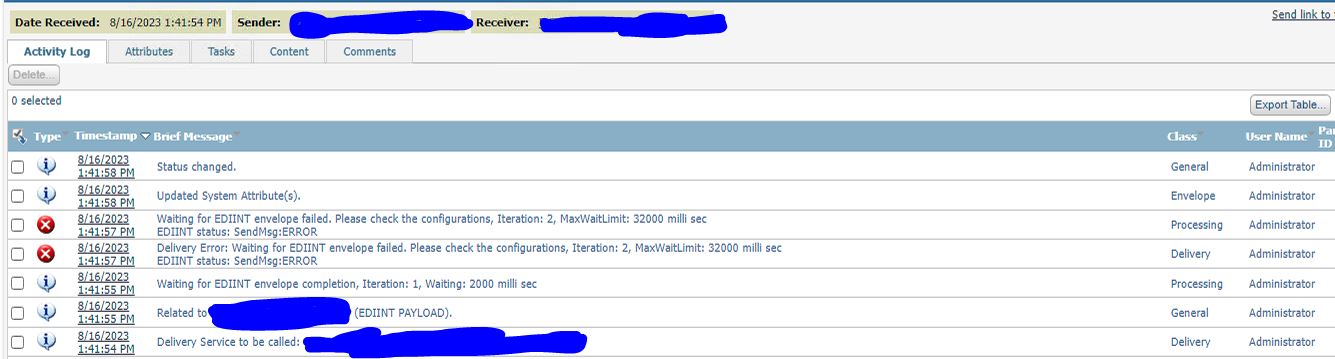

actvity-log1335×359 66.8 KB

https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files3/f9a97d58ffb906d4a262baeb4f83758c57cfaf5b_2_1035x151.jpeg 1.5x, https://higherlogicdownload.s3.amazonaws.com/IMWUC/webMethods/Files/f9a97d58ffb906d4a262baeb4f83758c57cfaf5b.jpeg 2x" data-dominant-color="C6D2E2">

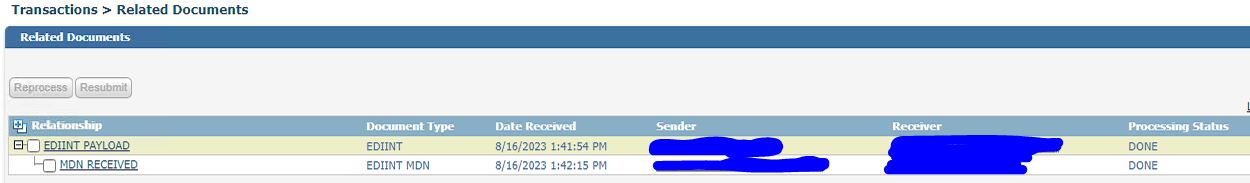

mdn-status1250×183 26.7 KB

Question related to a free trial, or to a production (customer) instance?

A Production instance.
