Introduction
This blog provides a comprehensive, step-by-step guide for configuring a Kerberized Hive Dataserver connection with IBM Cognos Analytics on Windows Operating system. This blog aims to clarify the necessary steps for configuring a Kerberized Hive connection with Cognos Analytics
Overview
Technology/Applications Covered:
- IBM Cognos Analytics 12.0.4
- Kerberos
- Hive DataServer
- Windows Operating System 2019
- Hive JDBC driver hive-jdbc-3.1.3000.7.1.7.0-551-standalone.jar
Prerequisites
- A Cognos Analytics server running versions 12.0.4 or 11.2.4 Fixpack 4
- Hive Database
- Keytab file
- krb5.ini
Content Overview
This guide is organized into the following sections:
A) Placement of the krb5.conf file
B) Placement of the Hive keytab file
C) Configuring the jaaslogin.config file
D) Placing the Hive drivers in Cognos
E) Creating the cached credentials

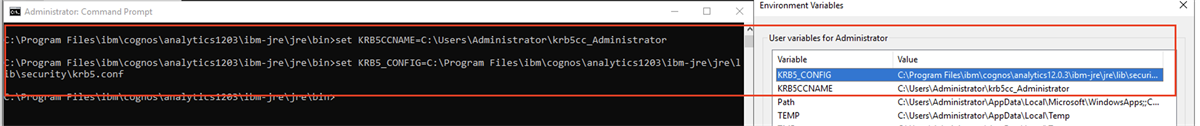

F) Setting environment variables
G) Test the kerberized Hive connection outside of Cognos
H) Testing the kerberized Hive connection from Cognos
Detailed Configuration Steps
A) Placement of the krb5.conf file
To set up a Kerberized Hive connection with Cognos, you will need to obtain the krb5.conf and keytab files from your administrator.I have provided sample krb5.ini file received from the Hive administrator as shown below
Once you have these files, follow these steps:
For Windows:
Place the krb5.ini file in the C:\Windows directory and ensure it is named krb5.ini.
For Cognos Installation:
Copy the same krb5.ini file to the Cognos installation directory:
Cognos_Installation\ibm-jre\jre\lib\security.
Rename the file to krb5.conf when placing it in this directory.
Make sure the file names are correctly set for both Windows and Cognos directories to ensure proper configuration.
B) Placement of the Hive keytab file
Place the keytab file received from the Hive administration under the Cognos_Installation\configuration directory as show below
C) Configuring the jaaslogin.config sample file.
Depending on the JRE used with Cognos Analytics, you must select the appropriate jaas.config file. If you're using the default IBM JRE bundled with Cognos Analytics, choose the jaas-ibm.config.sample. If you're using an Oracle JRE, select the jaas-oracle.config.sample provided for Oracle. In this setup, we are using the default IBM JRE bundled with Cognos Analytics, so we will use the jaas-ibm.config.sample to point to the Hive keytab file located in the Cognos_Installation\configuration directory.
To begin, rename jaas-ibm.config.sample to jaas-ibm.config. Then, open the file in a text editor and specify the Hive principal name along with the path to the keytab file.
==============================================================
com.cognos.biserver.security.xqe.jdbc
{
com.ibm.security.auth.module.Krb5LoginModule required useDefaultCcache=false;
};
com.cognos.biserver.security.xqe
{
com.ibm.security.auth.module.Krb5LoginModule required debug=true
principal="hive31_1@HIVE.IBM.COM"
useKeytab="C:\\Program Files\\ibm\\cognos\\analytics1203\\configuration\\hive31_1.keytab"
credsType=acceptor;
};
other
{
com.ibm.security.auth.module.Krb5LoginModule required debug=true
principal="hive31_1@HIVE.IBM.COM"
useKeytab="C:\\Program Files\\ibm\\cognos\\analytics1203\\configuration\\hive31_1.keytab"
credsType=acceptor;
};
=========================================================================
If you not sure what the hive principal to provide in the jaas config file you can request the information from the Hive administrator or you run a a klist -k command from CA_Install\ibm-jre\jre\bin using the command line by placing the hive keytab file under the Cognos_Installation\ibm-jre\jre\bin directory which will provide you with the information as shown below :
klist -k hive31_1.keytab
D) Placing the Hive drivers in Cognos
We will be using the hive driver hive-jdbc-3.1.3000.7.1.7.0-551-standalone.jar for tested in conformance DQM JDBC drivers Tested with Cognos to the hive jdbc drivers tested inhouse under the Cognos_installation\drivers directory as shown below:
E) Creating the cached credentials before testing the Hive connection using the jdbcinfo.jar tool
