IBM Aspera Orchestrator Dashboard Overview

By Shwetha GopalaKrishna posted 5 hours ago



IBM Aspera Orchestrator Dashboard Overview

Content by Pratheek Venkatesha

The Orchestrator dashboard is a customizable portal page that provides centralized access to system and workflow information. It’s designed to help users monitor, manage, and interact with workflows and other Aspera products efficiently.

This guide will show you how to define and view a Dashboard, which can be used to view and monitor different aspects of Orchestrator.

Dashboard

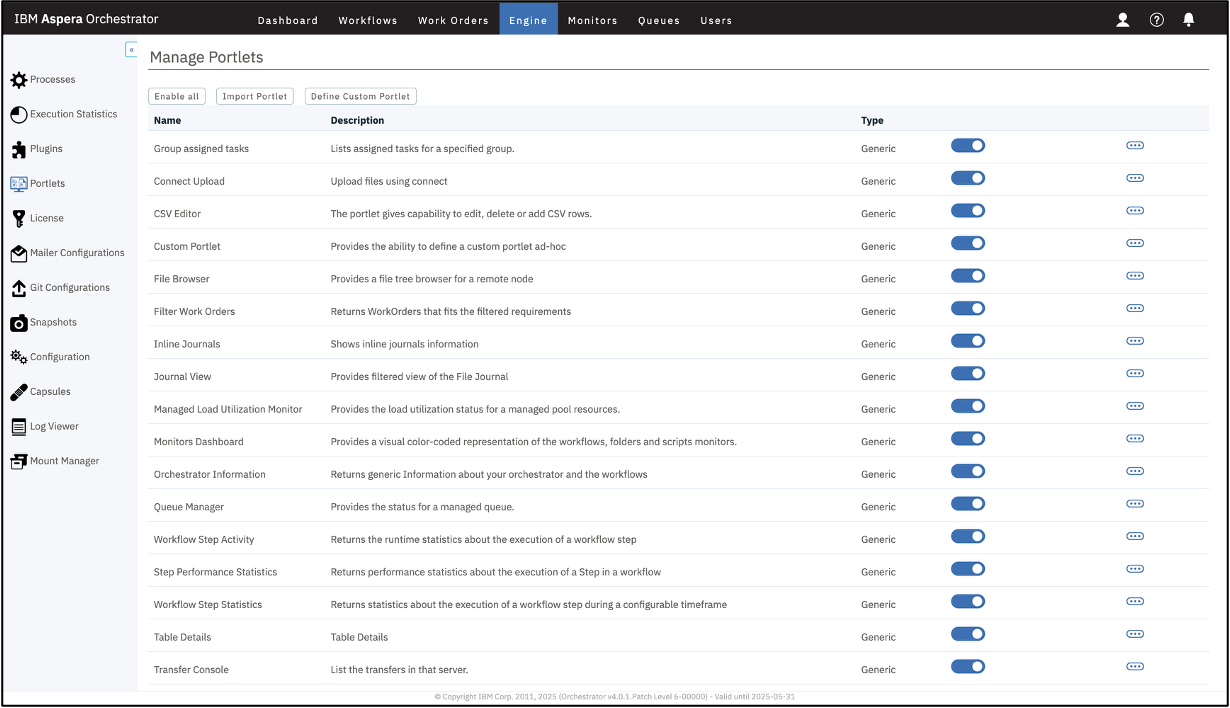

To begin, you can go to the Portlets page inside the Engine tab to see all the available portlets. Each portlet has a different use case and can be used to define different dashboards.

Engine


The Portlet Description explains the functionality of each portlet.

  • Enable a portlet by selecting the slider to the right of that portlet.
  • Once you have enabled one or more portlets, go to the Users page and select a user for which you want to define a dashboard.

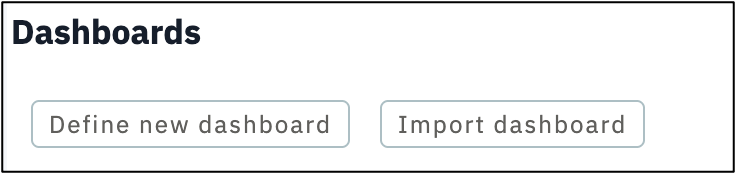

  • Here you will find a Dashboard section, where you can Define a new dashboard.
    Define a new Dashboard

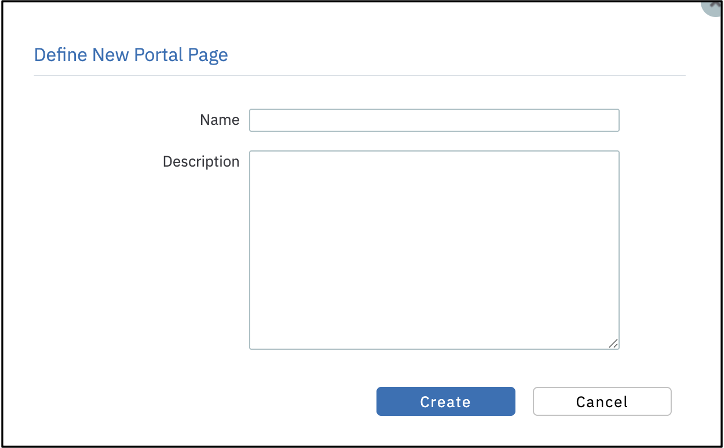

  • Provide a name and an optional description for the dashboard.
    Provide a name and description
  • Select the 3-dot button next to the dashboard name to configure your dashboard.
    Select 3 dot button

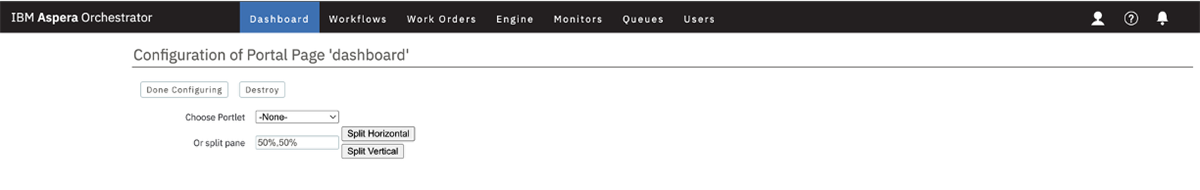

  • In the next page, choose the portlet to be used in the dashboard.
  • You can configure a dashboard to use a single portlet or multiple portlets by splitting the view pane however you choose.
    Choose the portlet
  • When you have configured the dashboard, save the changes and select the ‘Done Configuring’ button.
  • You will be directed back to the Dashboards section of the User page, where you have to Activate a dashboard using the 3-dot button.
    Activate the Dashboard

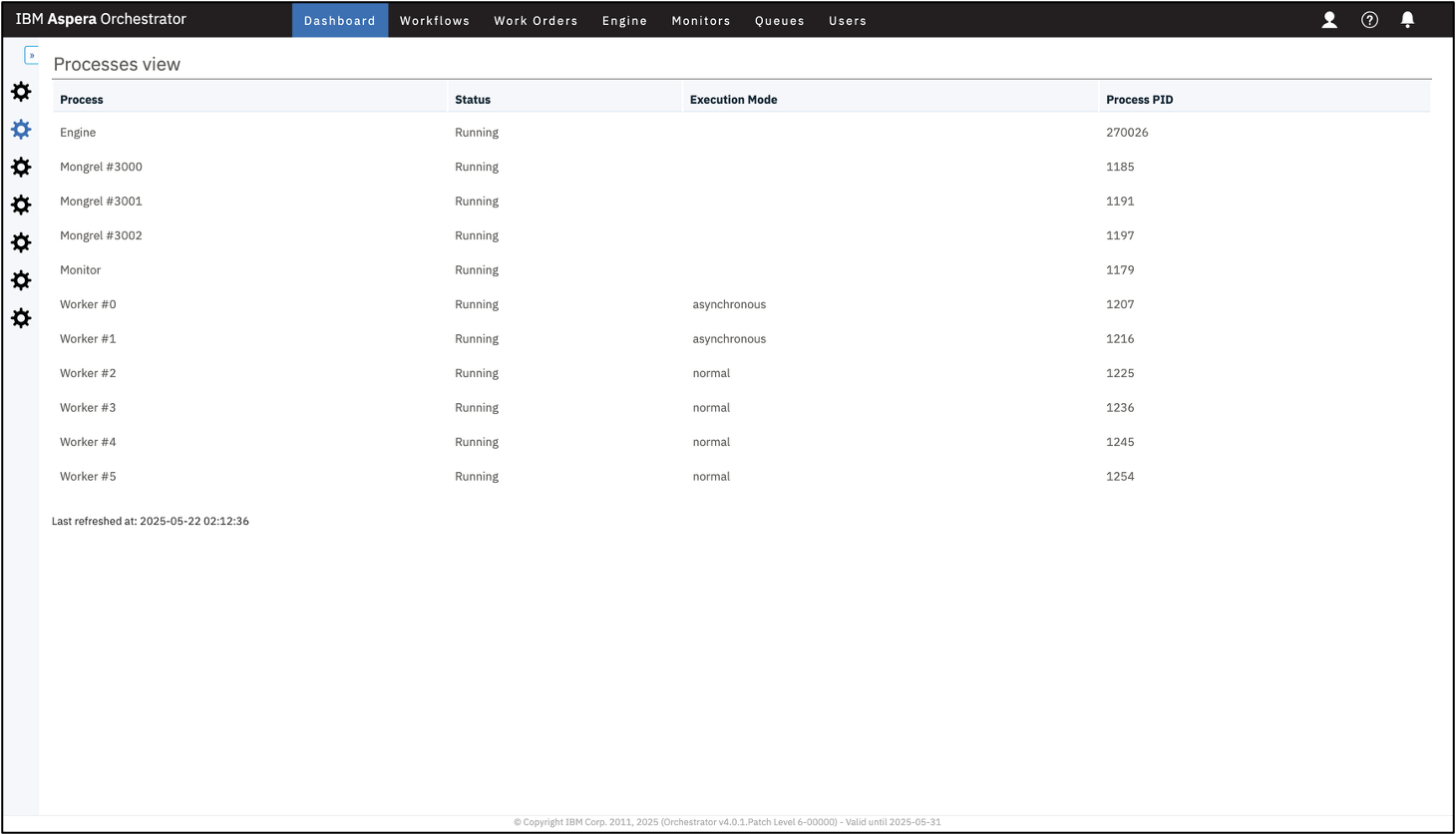

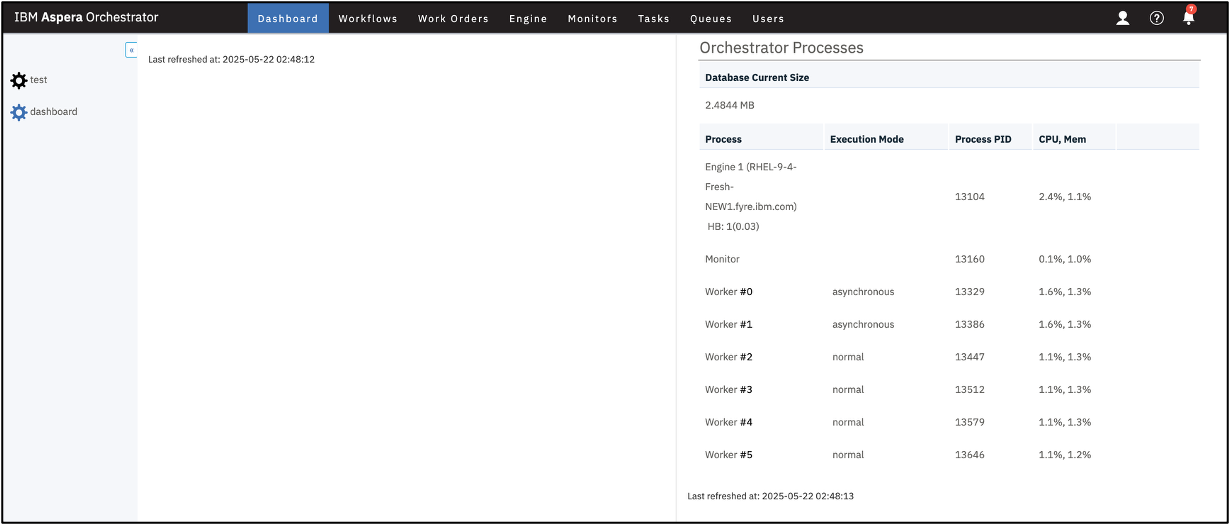

  • Once the dashboard is activated, you can go to the Dashboard tab to view all your defined dashboards.
    View defined Dashboards
