In modern integration platforms, efficiently managing and transferring large files is a critical requirement. Traditional approaches often face severe limitations due to memory constraints, particularly when dealing with substantial data volumes. This post explores how a strategic shift to streaming, piping, and the powerful Claim Check Pattern provides a robust and scalable solution.

Even though streaming and piping is natively supported by Node.js , when coupled with claim check as standard integration pattern and capable of working this on a distributed system running a myriad of protocols, provides a single interface for any endpoint system.

The Memory Trap: Why Traditional File Handling Falls Short

Historically, integration connectors processed file content by eagerly fetching the entire file, serializing it into a string (either plain text or Base64 encoded), and then passing this complete, serialized content through the integration flow's context.

While suitable for smaller files, this method quickly became problematic for larger ones. The entire file content was loaded into memory, leading to potential "out of memory" errors due to limitations in applications. This approach significantly hindered scalability and performance when dealing with high-volume or large-file transfers, creating a major bottleneck in enterprise integrations.

Unleashing Efficiency: The Power of Streaming, Piping, and Claim Checks

To overcome these memory and performance limitations, a fundamental shift in architecture was necessary. The core idea was to move away from eager loading and full serialization towards a more efficient, lazy, and stream-based approach.

Understanding Stream-Based Processing

• Streaming: Instead of loading an entire file at once, streaming involves processing data in small, manageable chunks as it becomes available. This is particularly beneficial for large files as it avoids the need to hold the entire file in memory simultaneously. Think of it like drinking water from a tap versus filling an entire bathtub before taking a sip.


• Piping: In the context of data streams, piping allows the output of one stream to be directly connected as the input of another. This creates a highly efficient flow where data moves directly from a source to a destination without intermediate buffering of the entire content, significantly reducing memory footprint and improving throughput. In environments like Node.js, this often involves leveraging built-in stream functionalities to connect readable and writable streams seamlessly.

The Clever Claim Check Pattern

A key architectural pattern adopted for enhanced large file support is the Claim Check Pattern. This pattern, well-documented in enterprise integration patterns, is crucial for handling large messages or data payloads efficiently without passing the entire content through the messaging infrastructure.

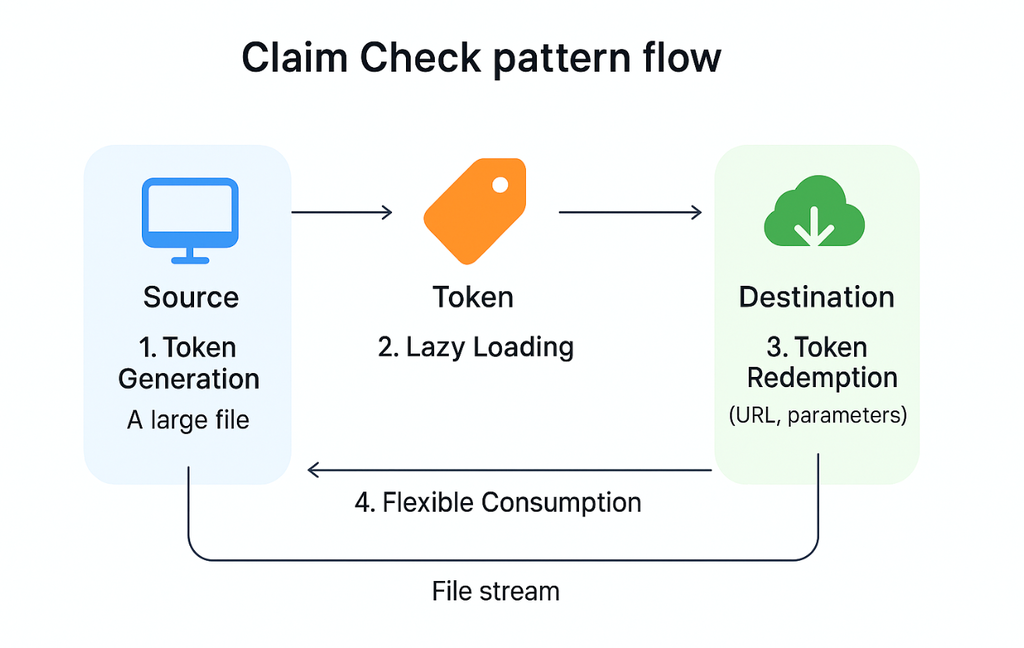

In the context of file transfer, the claim check pattern works as follows:

1. Token Generation: Instead of transmitting the entire file, the source component, upon an initial request from an integration, creates a compact 'claim check token.' This token acts as a pointer to the large file, optionally embedding critical information like its access URL, relevant data parameters, or necessary secret access details.


2. Lazy Loading: The file content itself is not directly available until it's genuinely needed later in the integration flow (e.g., for transformation or by a destination component). This is the "lazy loading" aspect – data is fetched only when demanded.


3. Token Redemption: To access the file content, a consuming component "redeems" the claim check token. This involves decoding the token, which contains information such as a URL and necessary data parameters. The consumer then invokes this URL with the provided details to retrieve the file as a stream.


4. Flexible Consumption: Upon redemption of the claim check token, the destination component gains access to the file content. It can then efficiently pipe this content as a stream directly to another endpoint for downstream consumption, a method strongly advised for superior memory management, though string conversion remains an alternative for specific transformation needs.

In the context of the Claim Check pattern, the most efficient approach is to avoid transforming the data stream during its transfer between endpoints. This strategy minimizes the overhead associated with stream transformations, ensuring that the large file content moves as directly and quickly as possible from its source to its ultimate destination or processing point.

Evolving API for Direct Streaming

When designing an API for direct streaming, the focus shifts from traditional request-response cycles with fixed-size payloads to continuous data flow. This is particularly relevant for scenarios involving large files, real-time data feeds, or media content.

The definition and communication of these data types are primarily handled through standard HTTP headers:

• Content-Type Header (Client Request): The HTTP header that a client sends to notify the server about the kind of data (media type) in the request body.


• This header specifies the MIME type of the payload being sent in the request. It's crucial for the server to correctly interpret and parse the incoming data.


• Common Content-Type values include:


  • application/json: Used for JSON (JavaScript Object Notation) data. This is very common for REST APIs. Example: Content-Type: application/json.
  • application/octet-stream: Used for arbitrary binary data. This is a generic type indicating that the content is a stream of bytes, and the client doesn't know or specify the exact file type. It's often used for file uploads when the specific MIME type is unknown or not relevant. Example: Content-Type: application/octet-stream

For upload operations data streams can be processed with versatility, accommodating both string data streams for textual content and binary streams for raw or non-textual file content. To enhance data transmission capabilities, request formats can evolve beyond conventional application/json payloads to incorporate multipart/form-data. This allows for the efficient bundling of structured data (such as metadata) alongside the raw file stream within a single request, providing a robust mechanism for handling diverse data types and associated information.

Handling Back-pressure in Stream Transfer

Back pressure refers to a situation in a data pipeline where a downstream component (a consumer) is unable to process data as quickly as an upstream component (a producer) is generating or sending it. Without proper handling it can cause memory exhaustion , data losses and cascading failures.

Pipeline

 in stream processing links operations where one's output feeds the next. Its strength against backpressure comes from propagating flow control: a "pull-based" model ensures consumers dictate data flow. If a downstream consumer slows, this "pull" signal propagates upstream, automatically throttling the producer and preventing buffer overflows throughout the entire pipeline.

Conclusion: The Future is Scalable

By meticulously adopting streaming, piping, and the powerful claim check pattern, integration connectors can effectively overcome the long-standing memory limitations associated with large file transfers. This architectural shift enables robust, scalable, and highly efficient handling of substantial data volumes, paving the way for more powerful and reliable integration solutions across diverse enterprise landscapes.
