Authors: Nishant Sinhai and Ranvijay Singh
Step-1 > Configure SSO between ISAM and IGI . Please refer this CookBook
https://developer.ibm.com/identitydev/docs/how-to-cookbook-for-ibm-security-access-manager-9-0-and-ibm-security-identity-governance-and-intelligence-5-2/
Step-2 -- > Modify WebSeal Login Page and give the reference of IGI forgot password link (Make sure you are going through Junction otherwise you need to open direct access for IGI port which is not good practice )
NOTE :-- Added check on Username , because IGI Forgot Password Operation required User Name .You can ignore this change and give user details on IGI Forgot password Link .
Ex:--
<script type="text/javascript">
function theFunction ()
{
var uname=document.getElementById("username");
var myurl=document.getElementById("myurl");
if (uname != null && uname.value == '') {
alert("Please provide a valid username");
document.getElementById("myurl").href="#";
//alert("Please provide a valid username"+myurl);
}
else
{
document.getElementById("myurl").href="https://websealhost/ideas/desk?realm=IDEAS&action=forgotpassword&user="+uname.value;}
}
</script>
<div class="login-inputs"> <label for="username">Username:</label> <input class="ease-in-anim-fast" placeholder="Username" id="username" name="username" type="text"> <label for="password">Password:</label> <input class="ease-in-anim-fast" placeholder="Password" id="password" name="password" autocomplete="off" type="password"> <input name="login-form-type" value="pwd" type="hidden"> <input class="submitButton button-1 ease-in-anim-fast" value="Login" type="submit"><a id="myurl" href="" onClick="return theFunction();">Forgot Password</a>
</div>
Step-3 -- > Add this below resource in DynURL and attach un-auth ACL
/forgotpwd /ideas/desk?realm=IDEAS&action=forgotpassword&user=*
/logincss /ideas/css/login.css
/VAADIN /ideas/VAADIN/*
/UIDL /ideas/desk/UIDL/?v-uiId=*
/PUSH /ideas/desk/PUSH?v-uiId=*
/APP /ideas/desk/APP/connector/0/18/icon/*
Step-4 -- > Execute this below command from ISAM pdadmin console
#server task <WebSeal_Server_Name> dynurl update
EX :- server task idp_webseal-webseald-isamlabsec.ibm.com dynurl update
pdadmin sec_master> acl show isam_igisso_isam_unauth
ACL Name: isam_igisso_isam_unauth
Description: fedAutoCfg
Entries:
User cicdemo1-webseald/isam901 TcmdbsvaBRl
Group iv-admin TcmdbsvaBRrxl
Any-other Tr
Unauthenticated Tr
Verify Objects and ACL attached on the object
pdadmin sec_master> object list /WebSEAL/isamlabsec.ibm.com-idp_webseal
/WebSEAL/isamlabsec.ibm.com-idp_webseal/APP
/WebSEAL/isamlabsec.ibm.com-idp_webseal/forgotpwd
/WebSEAL/isamlabsec.ibm.com-idp_webseal/logincss
/WebSEAL/isamlabsec.ibm.com-idp_webseal/PUSH
/WebSEAL/isamlabsec.ibm.com-idp_webseal/UIDL
/WebSEAL/isamlabsec.ibm.com-idp_webseal/VAADIN
EX :
pdadmin sec_master> object show /WebSEAL/isamlabsec.ibm.com-idp_webseal/APP
Name: /WebSEAL/isamlabsec.ibm.com-idp_webseal/APP
Description: Object from host isamlabsec.ibm.com.
Type: 16 (Management Object)
Is Policy Attachable: Yes
Extended Attributes:
Attached ACL: isam_mobile_unauth
Attached POP:
Attached AuthzRule:
Effective Extended Attributes:
Effective ACL: isam_mobile_unauth
Effective POP:
Effective AuthzRule:
Step-4 -- > Now we can use IGI Forgot password feature directly on WebSeal Login page .
Verified this Use case :
1 > Clicked on forgot password link its given alert to add valid user
2 > Given Valid user name and clicked on forgot password , able to proceed with forgot password operation.

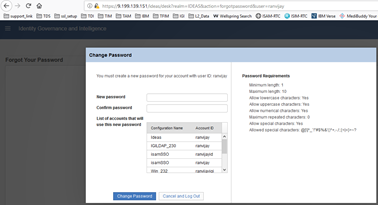

After providing correct security answer moved on reset password page
3 > Verified in IGI OUT_EVENT queue
