How to connect IBM Storage Scale CES S3 bucket for IBM Storage Fusion Backup & Restore location Using Self-Signed SSL/TLS Certificates

By Nijo K J posted 21 days ago



Ensuring secure and reliable backup storage is critical for enterprise environments. IBM Storage Fusion provides robust backup and restore capabilities, and integrating it with IBM Storage Scale CES S3 offers a scalable, high-performance solution. However, when using self-signed SSL/TLS certificates, additional configuration is required to establish trust between the systems.

In this guide, I walk through the step-by-step process of setting up IBM Storage Scale CES S3 as a backup and restore target for IBM Storage Fusion using self-signed SSL/TLS certificates. This includes:

  • Generating and deploying self-signed certificates for CES S3

  • Configuring IBM Storage Fusion to trust these certificates

  • Setting up a secure and reliable backup storage location

Whether you're currently implementing this setup or evaluating IBM Storage Scale CES S3 as a backup target, this guide will serve as a useful reference. Let’s dive in!

To establish secure communication between the IBM Storage Scale CES S3 service and IBM Storage Fusion's backup and restore functionality using self-signed SSL/TLS certificates, follow these steps:​

1. Generate a Self-Signed SSL/TLS Certificate:

  • Create a Subject Alternative Name (SAN) Configuration File:

Create a file named san.cnf with the following content, replacing placeholders with your actual domain and IP address:

[req]

req_extensions = req_ext

distinguished_name = req_distinguished_name

[req_distinguished_name]

CN = localhost

[req_ext]

subjectAltName = DNS:localhost,DNS:your-domain.com,IP:your-server-ip

This configuration ensures the certificate is valid for the specified domain names and IP addresses.

  • Generate the TLS Key, Certificate Signing Request (CSR), and Certificate:

Use OpenSSL to generate the necessary files:

openssl genpkey -algorithm RSA -out tls.key

openssl req -new -key tls.key -out tls.csr -config san.cnf -subj "/CN=localhost"

openssl x509 -req -days 365 -in tls.csr -signkey tls.key -out tls.crt -extfile san.cnf -extensions req_ext

These commands create a private key (tls.key), a CSR (tls.csr), and a self-signed certificate (tls.crt) valid for one year.

2. Deploy the Certificate to IBM Storage Scale CES S3 Service:

  • Locate the CES Shared Root Path:

On a CES node, determine the cesSharedRoot path by running:

mmlsconfig | grep cesSharedRoot

  • Move the Certificate and Key to the Appropriate Directory:

Transfer the tls.key and tls.crt files to the CES S3 configuration directory:

mv tls.key /path/to/cesSharedRoot/ces/s3-config/certificates/

mv tls.crt /path/to/cesSharedRoot/ces/s3-config/certificates/

Replace /path/to/cesSharedRoot with the actual path obtained from the previous step.

  • Restart the S3 Service on All CES Nodes:

Execute the following commands to apply the new certificate:

mmces service stop s3 -a

mmces service start s3 -a

This restarts the S3 service across all CES nodes, ensuring the new certificate is in use.

Verify the Subject Alternative Name (SAN) correctly updated in the cert

openssl x509 -in /ibm/fs1/ces/s3-config/certificates/tls.crt -text -noout | grep -A2 "Subject Alternative Name"

            X509v3 Subject Alternative Name:

                DNS:scale-vm.ocpinstall.gym.lan, DNS:scale-vm-ces-vip.ocpinstall.gym.lan, IP Address:192.168.252.150

            X509v3 Subject Key Identifier:

3. Create a Secret in IBM Storage Fusion for the Self-Signed Certificate:

Before configuring the backup storage location, create a secret to store the self-signed certificate:

oc create secret generic s3-cert-secret --from-file=cert.pem=path/to/tls.crt -n ibm-spectrum-fusion-ns

Replace path/to/tls.crt with the actual path to your certificate file.

4. Configure the Backup Storage Location in IBM Storage Fusion:

After creating the secret, add the backup storage location:

  • Access the IBM Storage Fusion Interface:

Log in to the IBM Storage Fusion user interface.

  • Navigate to Backup & Restore Locations:

Go to Backup & restore > Locations and click Add location.

  • Enter Backup Location Details:

Provide the following information:

    • Location Name: A descriptive name for the backup location.
    • Location Type: Select S3Compliant.
    • Endpoint: The URL of your S3 service (e.g., https://your-server-ip:6443).
    • Bucket: The name of the S3 bucket to use for backups.
    • Access Key and Secret Key: Credentials for accessing the S3 service.
    • Certificate Secret Name: Enter the name of the secret created earlier (s3-cert-secret).

This configuration ensures that IBM Storage Fusion recognizes and trusts the self-signed certificate when communicating with the S3 service.

  • Finalize the Configuration:

Click Add to complete the setup.

By following these steps, you establish a secure, trusted connection between the IBM Storage Scale CES S3 service and IBM Storage Fusion's backup and restore functionality using a self-signed SSL/TLS certificate.​

5. Screenshots

  • Scale S3 bucket added to fusion backup and restore Object storage location

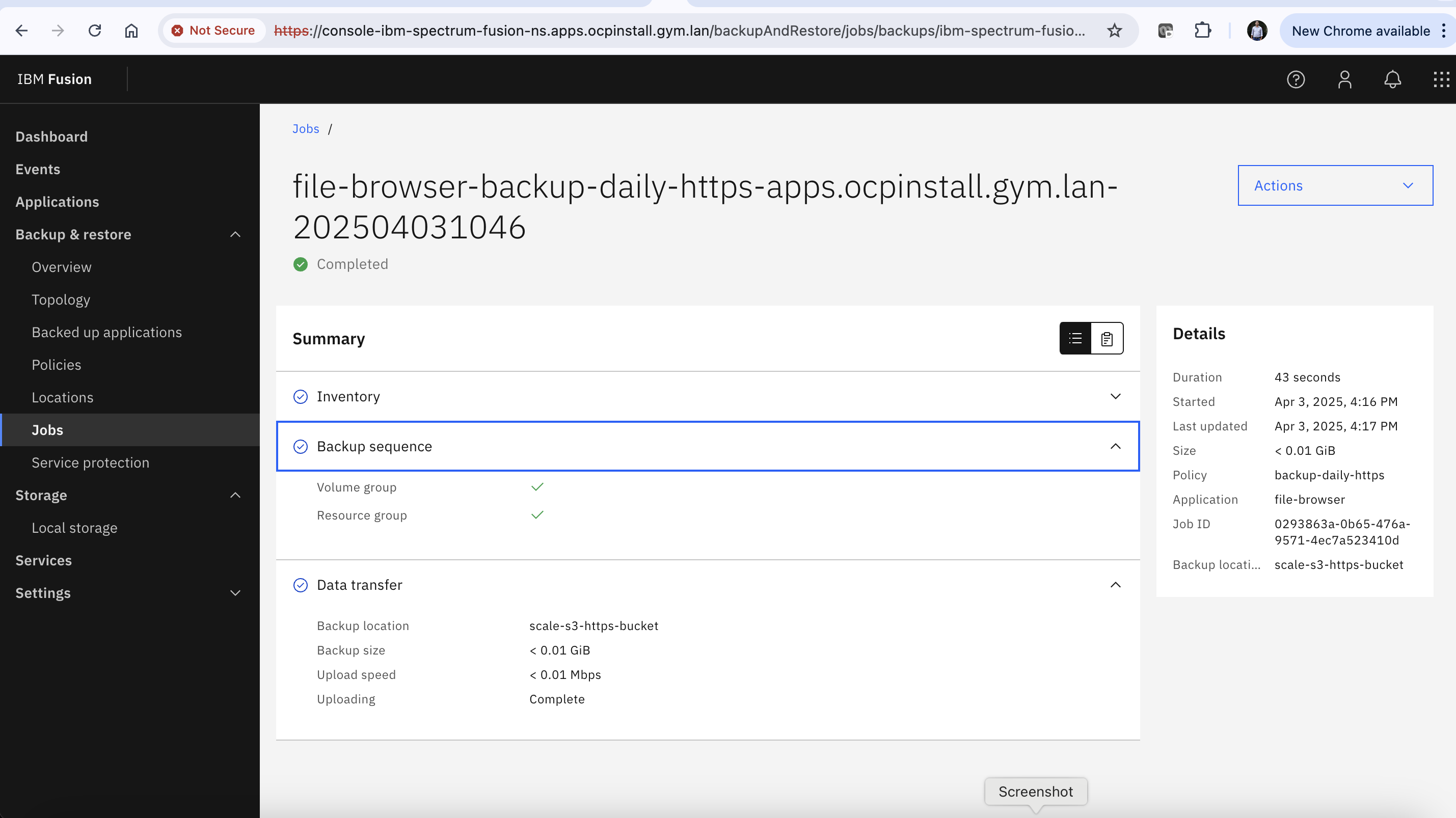

  • Backup successfully completed to the Object storage location (Scale S3 bucket)
