Introduction

As enterprise workloads become increasingly parallel, diverse, and latency-sensitive, the role of the AIX kernel in orchestrating concurrency has never been more critical. Running on IBM Power Systems with hardware features such as SMT8, massive memory bandwidth, and NUMA aware processor modules AIX is engineered to manage highly dynamic workloads while maintaining stability under extreme operational conditions.

This blog provides a deeper look into how the AIX kernel schedules threads, manages processor resources, and maintains workload integrity when systems operate near their performance ceilings

---------------

1. Concurrency in the AIX Kernel: A Multi-Layered Model

AIX implements concurrency in stacked layers:

• User threads

• Kernel threads

• Virtual processors

• Physical SMT hardware threads

The kernel is responsible for balancing fairness, reducing contention, and selecting ideal processor queues for incoming workloads.

Highlights:

• Dispatch queues for pending runnable threads

• Contention mitigation through adaptive locks

• Dynamic rebalancing across CPU modules

• Avoiding hot spots and ensuring throughput

Sources: IBM Concurrency Handling Technical Papers, AIX Performance Management Guide.

---------------

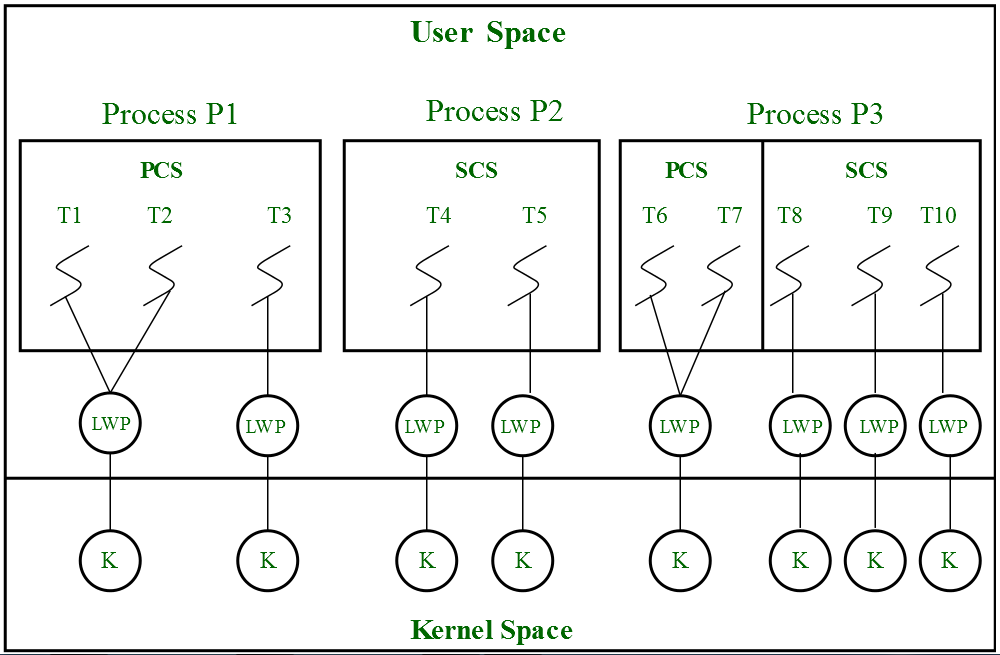

2. Thread Scheduling: How AIX Selects Where Work Should Run

Thread scheduling in AIX is dynamic and priority-driven. The kernel considers:

• CPU consumption

• I/O wait time

• Real-time priority class

• Interaction with other threads

• Cache locality and CPU load

Scheduling objectives:

• Reduce thread migration

• Maintain cache locality

• Optimize for throughput or latency depending on workload type

• Respond quickly to interactive tasks

Sources: AIX Scheduler Design, IBM AIX 7.3 Performance Tuning Redbooks.

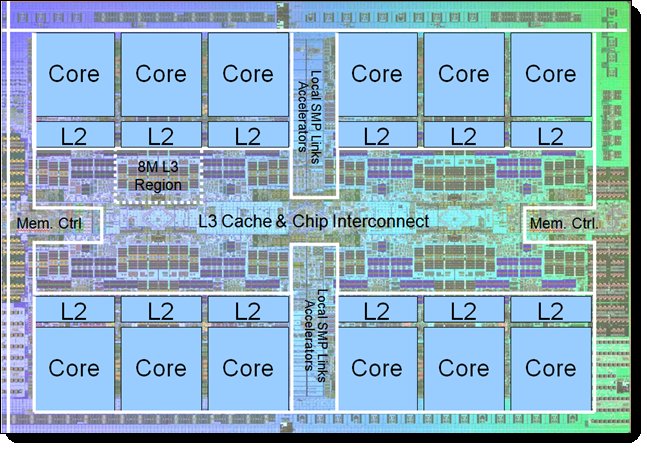

IBM Power processors implement up to SMT8, enabling 8 simultaneous hardware threads per core.

How AIX uses SMT8:

• Switches dynamically between SMT1 / SMT2 / SMT4 / SMT8

• Reduces SMT mode when cores are saturated

• Increases SMT when workloads benefit from parallelism

• Uses heuristics to detect microarchitectural pressure

Performance considerations:

• Cache sharing across SMT siblings

• Memory bandwidth distribution

• Latency vs throughput trade-offs

Sources: IBM Power Systems Processor Architecture Guides, SMT Behavior Research Papers.

---------------

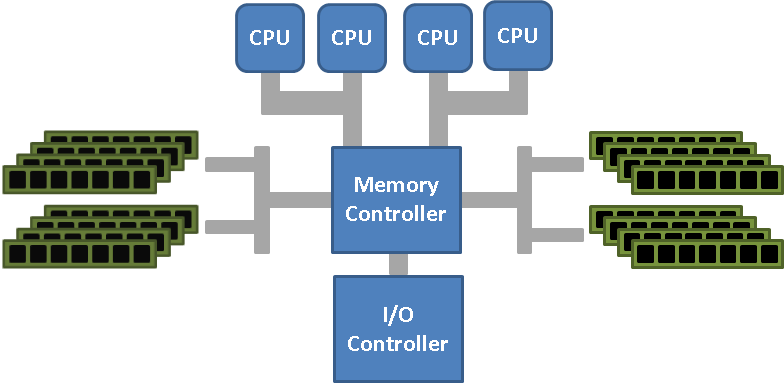

4. Thread Migration, Affinity, and NUMA Locality

AIX runs across multi-chip, multi-node Power Systems servers. NUMA locality is essential.

Why locality matters:

• Memory attached to the same node has lower latency

• Cross-node access increases wait cycles

• Scheduler tries to keep workloads close to their memory

Types of affinity:

• Soft affinity: preference for staying on same CPU/core

• Hard affinity: enforced when needed for performance

• System heuristics: identify memory-heavy workloads

Sources: IBM Performance Tuning Guide, NUMA Affinity Whitepapers.

---------------

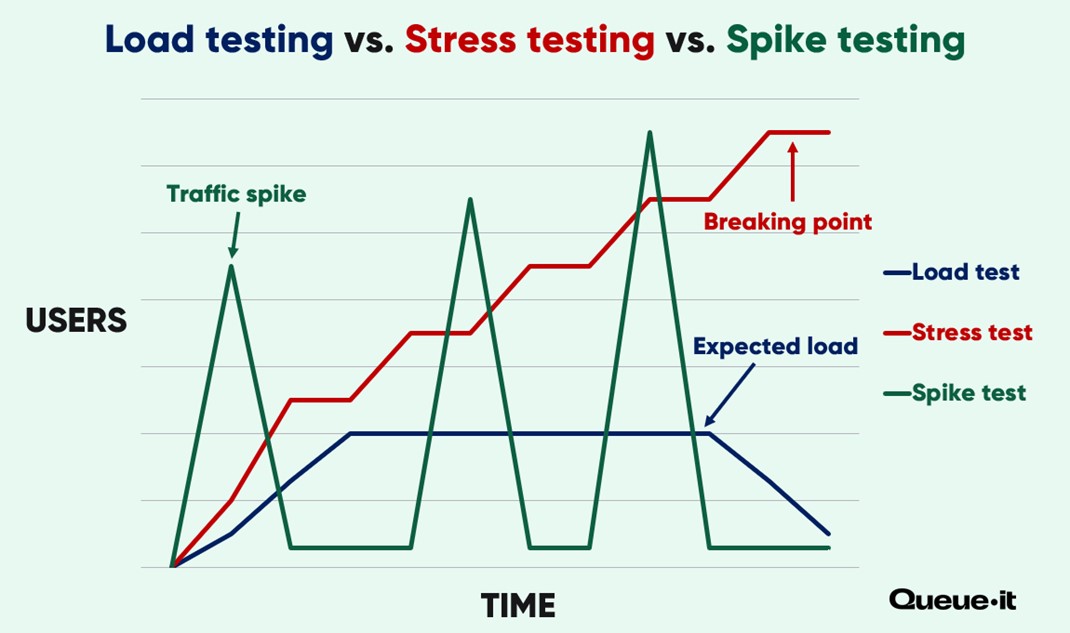

5. Extreme Workloads: How AIX Maintains Stability Under Pressure

Under extreme load (banking, telecom, real-time risk systems), AIX prevents degradation using:

Kernel safeguards:

• Thread throttling

• Lock contention detection

• CPU folding/unfolding

• Memory pressure controls

• Dispatch recalibration

These features help AIX remain stable even when systems reach near-maximum capacity.

Sources: IBM RAS Features for AIX, HPC Workload Behavior Analysis.

---------------

Conclusion

AIX’s kernel architecture is deeply optimized for concurrency, logical partitioning, NUMA locality, and high-density SMT workloads. This combination allows AIX to deliver consistent and predictable performance even under extreme enterprise workloads.

Understanding how AIX manages threads and concurrency offers powerful insights for performance tuning, capacity planning, and critical workload deployment.

Sources:

• IBM AIX 7.3 Kernel Architecture

• IBM Power10 Processor Technical Overview

• AIX Performance and Tuning Redbooks
