15 Puzzle

By Moloy De posted Thu March 11, 2021 08:38 PM

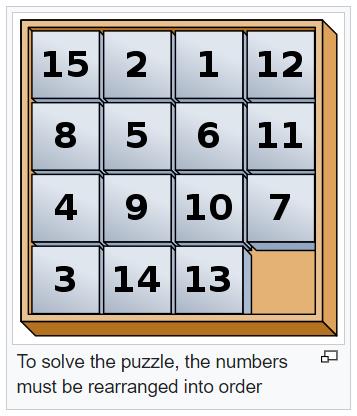

The 15 puzzle, also called Gem Puzzle, Boss Puzzle, Game of Fifteen, Mystic Square and many others, is a sliding puzzle that consists of a frame of numbered square tiles in random order with one tile missing. The puzzle also exists in other sizes, particularly the smaller 8 puzzle. If the size is 3×3 tiles, the puzzle is called the 8 puzzle or 9 puzzle, and if 4×4 tiles, the puzzle is called the 15 puzzle or 16 puzzle named, respectively, for the number of tiles and the number of spaces. The goal of the puzzle is to place the tiles in order by making sliding moves that use the empty space.

The puzzle was "invented" by Noyes Palmer Chapman, a postmaster in Canastota, New York, who is said to have shown friends, as early as 1874, a precursor puzzle consisting of 16 numbered blocks that were to be put together in rows of four, each summing to 34. Copies of the improved Fifteen Puzzle made their way to Syracuse, New York, by way of Noyes' son, Frank, and from there, via sundry connections, to Watch Hill, Rhode Island, and finally to Hartford (Connecticut), where students in the American School for the Deaf started manufacturing the puzzle and, by December 1879, selling them both locally and in Boston, Massachusetts. Shown one of these, Matthias Rice, who ran a fancy woodworking business in Boston, started manufacturing the puzzle sometime in December 1879 and convinced a "Yankee Notions" fancy goods dealer to sell them under the name of "Gem Puzzle". In late January 1880, Dr. Charles Pevey, a dentist in Worcester, Massachusetts, garnered some attention by offering a cash reward for a solution to the Fifteen Puzzle. The game became a craze in the U.S. in 1880.

Johnson & Story (1879) used a parity argument to show that half of the starting positions for the n puzzle are impossible to resolve, no matter how many moves are made. This is done by considering a function of the tile configuration that is invariant under any valid move, and then using this to partition the space of all possible labeled states into two equivalence classes of reachable and unreachable states.

The invariant is the parity of the permutation of all 16 squares plus the parity of the taxicab distance (number of rows plus number of columns) of the empty square from the lower right corner. This is an invariant because each move changes both the parity of the permutation and the parity of the taxicab distance. In particular, if the empty square is in the lower right corner then the puzzle is solvable if and only if the permutation of the remaining pieces is even.

Johnson & Story (1879) also showed that the converse holds on boards of size m×n provided m and n are both at least 2: all even permutations are solvable. This is straightforward but a little messy to prove by induction on m and n starting with m=n=2. Archer (1999) gave another proof, based on defining equivalence classes via a Hamiltonian Path.

QUESTION I : Does the parity argument hold for 5 by 5 board?
QUESTION II : How does the puzzle fit into Group Theory?
REFERENCE : Wikipedia
