In our previous blogs, we covered how to install IBM Db2 Data Management Console (DMC) and Db2. Now it's time to configure DMC with the Db2 instance we created.
This step is straightforward if you have already completed the installation steps and have the necessary connection parameters ready. These include:
-
Hostname
-
Port
-
Database name
-
Database username
-
Database password
With these details in hand, you’re ready to proceed with the configuration.

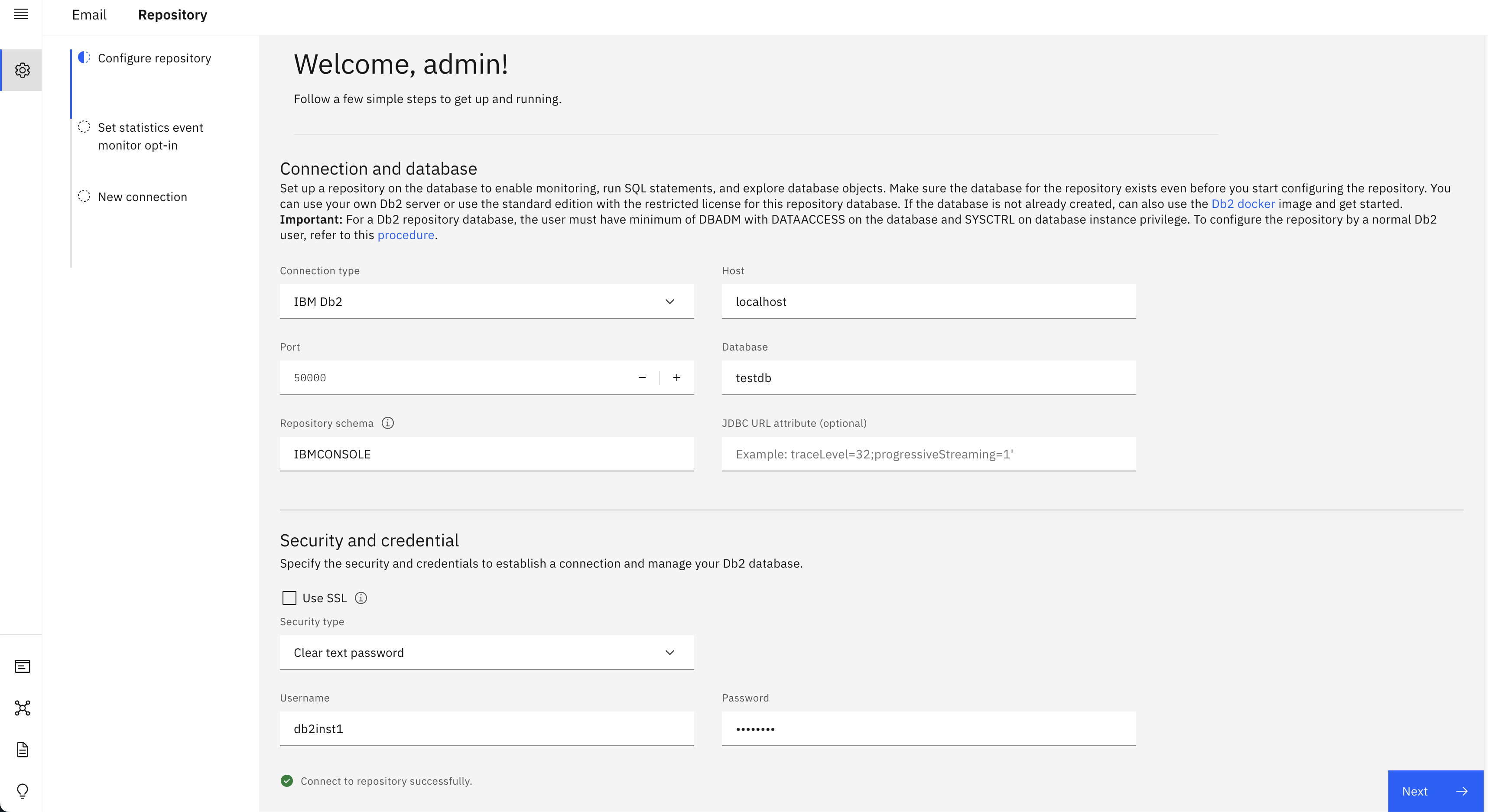

Start by opening the DMC in your web browser and logging in with your credentials. Once logged in, you’ll be redirected to a page prompting you to configure the DMC repository database.
As mentioned earlier, this repository database is used to store metadata related to DMC. It’s important to note that DMC stores all of its metadata in a specific schema named IBMCONSOLE. You are free to use the same database for your own purposes, as long as you do not delete or modify any tables under the IBMCONSOLE schema.
Let’s now walk through the steps required to configure the repository database.
On the next page, you'll see an optional configuration screen where you can specify the database you want to monitor.
In my case, I chose to monitor the same database that I used as the repository database, so I provided the same connection details. However, if you prefer, you can create a separate database using the Db2 CLI and use that for monitoring instead.
After clicking Next, you will be directed to the next page. Take some time to explore the available options.
SQL Editor
Monitoring Dashboard
In this blog, we walked through the initial configuration of IBM Db2 Data Management Console (DMC) and how to connect it to your Db2 instance. From setting up the repository database to choosing which database to monitor, you've now completed the foundational steps that prepare DMC for day-to-day use.
If you've followed along and completed these steps, your DMC environment is now fully integrated with your Db2 backend, and you're ready to take advantage of its full potential. Whether you chose to monitor the same database used as the repository or opted to configure a separate one, DMC now has the necessary insights to provide powerful visualizations, health checks, and performance metrics.
But the journey doesn’t end here.
In the next blog, we’ll begin exploring the functional capabilities that make DMC such a valuable tool for database administrators and developers alike. We'll start with the SQL Editor, which allows you to write, run, and manage SQL queries directly from your browser with an intuitive and feature-rich interface. Following that, we’ll dive into the Monitoring Dashboard, where you can gain real-time visibility into system performance, track resource usage, and proactively identify potential bottlenecks before they become issues.
These upcoming sections will demonstrate how DMC serves not just as a configuration console, but as a comprehensive platform for managing, monitoring, and optimizing your Db2 databases—no matter the scale or complexity of your environment.
Stay tuned as we continue this series and unlock more advanced features of DMC, empowering you to make the most of your Db2 infrastructure with clarity, control, and confidence.
Happy exploring with DMC!
