Expediting DB2 Performance and Lock Analysis using Instana Observability

1. Summary

Maintaining the performance and reliability of IBM DB2 databases is critical to business operations. This report highlights the capabilities of Instana's dedicated DB2 sensor and observability platform in proactively monitoring database health and rapidly diagnosing performance bottlenecks, particularly those caused by database lock contention and long-running queries.

Instana provides full-stack observability, meaning it automatically tracks performance metrics from the application layer down to the underlying DB2 instance. This capability ensures that you can transition from reactive troubleshooting to proactive performance optimization, significantly reducing downtime and improving application responsiveness.

2. Key Benefits of Using the Instana DB2 Dashboard

The Instana dashboards act as a single, intuitive control panel, transforming complex database data into actionable insights. Using a dashboard that includes DB2 specific performance information can help identify and speed up the following:

3. Creating a custom dashboard for DB2

Choosing DB2 metrics for a custom dashboard involves a strategic approach that balances high-level indicators (for triage) with deep-dive resource metrics (for root cause analysis).

• Strategic Use of Dynamic Focus

Instana's custom dashboards rely heavily on Dynamic Focus queries. Instead of picking metrics from every single server, you first define a query to select the exact DB2 instances you care about.

How it applies to DB2: You would typically focus the dashboard on entities of the type db2 or host that match a specific tag (e.g., environment: production, application: financial_service, or even the specific DB2 instance name). This ensures the dashboard is instantly relevant to the targeted business service.

Result: If your query matches multiple DB2 instances, the resulting graph will automatically include plots for all matching instances, allowing for easy comparison and identification of the worst-performing node.

• Selecting Metric Categories and Types

Once the DB2 instance is dynamically selected, you navigate through Instana's metric catalog to choose what to plot. Instana breaks down available metrics into clear categories.

Infrastructure Built-in Metrics: These are the core health metrics collected automatically by the Instana agent.

DB2 Relevance: This category is critical for choosing standard DB2 performance indicators like:

• Resource Consumption: CPU Utilization (Mean or Max), Memory Usage.

• Connection and Load: Connection Count, SQL Load/Throughput (Total Executions).

• I/O and Buffer: Buffer Pool Hit Ratios, Disk Read/Write Rates.

• Choosing Aggregation and Granularity

For every metric you select, you must define how the data should be presented, which is crucial for meaningful analysis.

Aggregation Type (SUM, MEAN, MAX, etc.): Instana requires you to choose the aggregation method. Some DB2 metrics are a running sum since the instance was started. Using the rate aggregation on these works the best to look for changes during a time period. For performance analysis:

Lock Waits: You would often choose MEAN or RATE to see the total number or the peak duration of lock waits during a specific interval.

Resource Usage: You might choose MEAN (Average) for general trends or MAX to detect dangerous peaks in CPU or memory.

Grouping: The "Group by" function is essential for comparing similar metrics.

DB2 Relevance: You might group a metric like "Average Query Execution Time" by a tag like instance or host to see which specific DB2 server is slower, or group by an application tag to see which application is placing the heaviest load.

The following table may help identify some key monitoring elements that you would put into a DB2 custom dashboards.

The documentation at Instana Custom Dashboards gives more details on the implementation.

4. Technical Deep Dive: Method for Lock and Query Analysis

For technical teams, Instana provides the granular detail needed for in-depth root cause analysis, particularly in managing database concurrency.

The 5-Step Lock Analysis Drill-Down

The platform allows analysts to quickly move from a high-level alert to the exact problematic SQL statement:

1. Identify the Spike: Start on the main dashboard and use the time range selector to zoom in on a period showing a spike in the Lock Wait by Time chart. This narrows the focus to the moment the issue occurred.

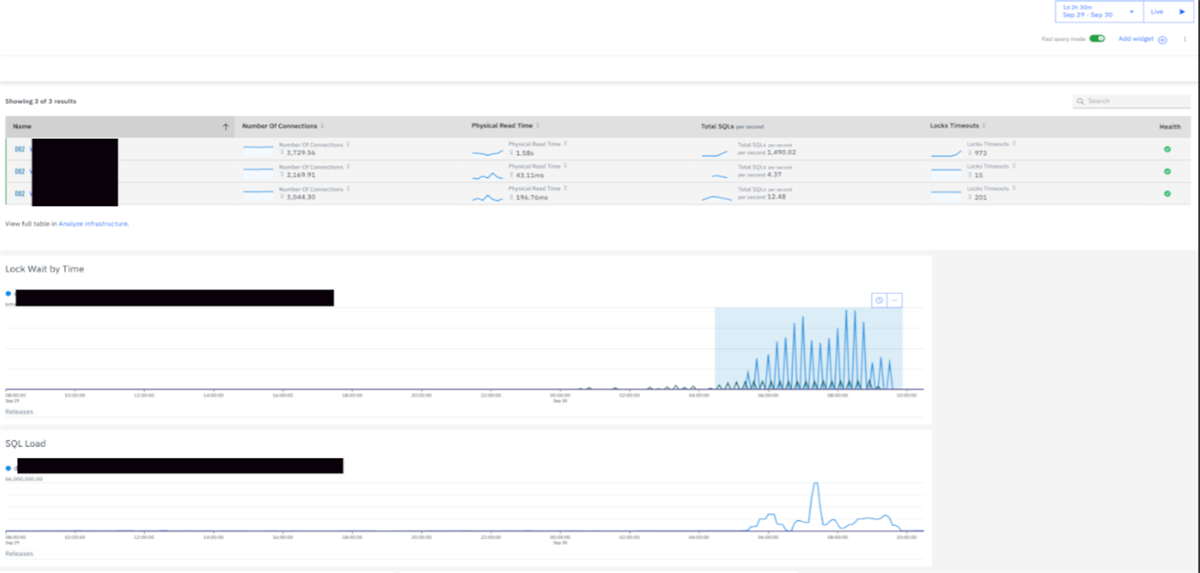

   (Description of information provided in this view: The initial view shows a summary of DB2 instances, their SQL usage, physical read times, the lock wait rate change, and average lock waits, allowing immediate identification of the affected host. Host and DB names have been redacted )

2. Navigate to Instance Details: Select the database instance to filter the infrastructure view. This is followed by clicking the specific DB link to access the full DB2 Details page.

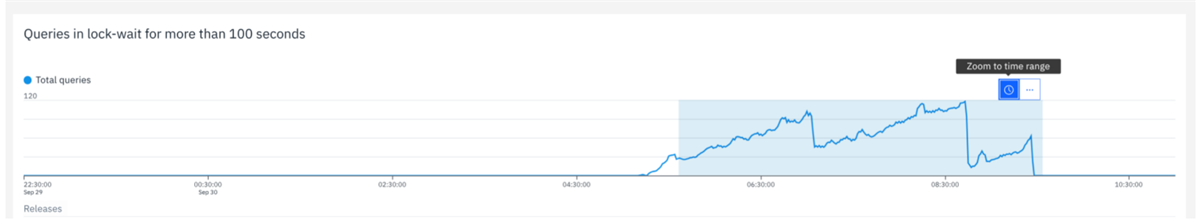

3. Validate Lock Impact: On the details page, review graphs that plot the count of "Top queries running more than 100 seconds" and "Queries in lock-wait for more than 100 seconds."

   (Description of information provided in this view: These charts confirm that the performance impact is specifically related to long-running and lock-waiting queries.)

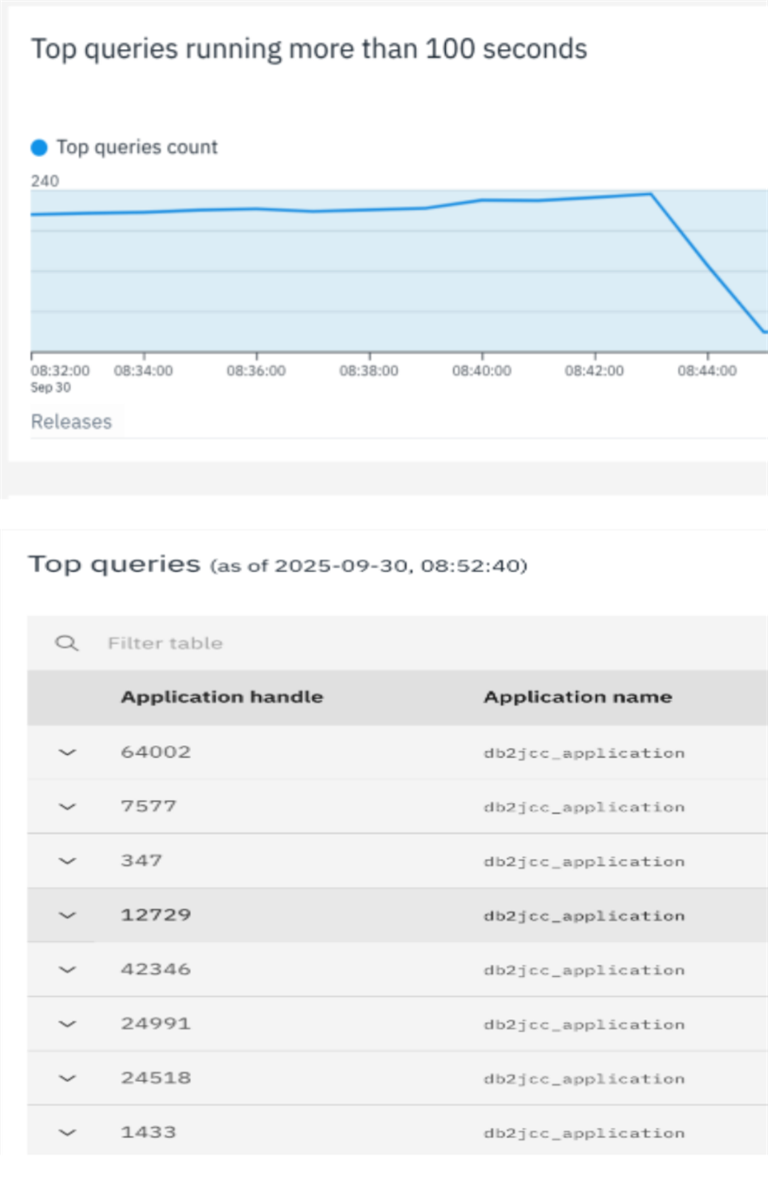

4. Isolate Top Offenders: Zoom in on the time range of the spike within the "Queries in lock-wait" graph. This action populates a detailed table of top queries involved. This table includes the Application handle, Session authorization ID, and the total Elapsed time the query has been running.

­

5. Determine Root Cause: By expanding a row in the top queries table, the analyst accesses the complete Lock waits details. This final view exposes the most critical information: the Holding application handle (which is causing the wait), the Lock object type (e.g., a table), and the Request Statement Text (the full SQL query code) that is experiencing the lock contention.

This methodical drill-down process allows technical teams to immediately identify the specific user, application, and SQL code responsible for database lock contention, enabling rapid resolution (e.g., killing the session or optimizing the query).

5. Customizing Observability: Tailoring Dashboards to Business Needs

Instana’s strength lies not only in its automated collection of full-stack data but also in the flexibility of its dashboards, which can be highly customized to align with specific business and operational objectives across technical and non-technical teams.

Beyond Standard DB2 Metrics

While Instana provides deep insights into core DB2 performance metrics (such as CPU usage, lock waits, deadlocks, and buffer pool statistics), customization allows teams to integrate these database views with higher-level application and business data.

Key Customization Elements:

• Full-Stack Correlation: Dashboards can pull metrics from any entity monitored by Instana, creating a holistic view. For example, a single custom dashboard can show the DB2 Lock Wait Rate alongside the latency of the Application Service consuming that DB2 instance, providing immediate root-cause context.

• Business Key Performance Indicators (KPIs): By integrating data from custom metrics or specific traced transactions, dashboards can be configured to monitor business-critical KPIs directly. Examples can include:

  • Successful Transaction Count: Tracking the volume of successful database write operations per minute.

  • User Logon Time: Monitoring the average time it takes for a user to complete the login process, directly correlating application and DB latency.

  • Order Processing Rate: Displaying the total number of orders or purchases processed, mapped directly against DB utilization.

• Targeted Team Views: Custom dashboards allow different teams to focus only on the metrics relevant to their role. This ensures that DBAs focus on server health while business owners can monitor customer-facing service level indicators (SLIs).

• This customizability ensures that Instana is not just a monitoring tool, but a versatile business intelligence platform for operational health, allowing stakeholders across the organization to instantly understand how infrastructure performance impacts business outcomes.

6. Conclusion and Recommendation

Instana's DB2 observability function significantly improves operational efficiency and database reliability. The ability to visualize and drill down into complex concurrency issues like locking within minutes—rather than hours of manual log analysis—is a crucial advantage. I highly recommend fully leveraging the Instana platform for all critical DB2 monitoring activities to ensure sustained high performance across applications and servers.
