The Art of Partition Creation: IBM HMC’s Modern Interface Redefined

Hardware Management Console

At the core of IBM Power Systems infrastructure management stands the Hardware Management Console (HMC)—your primary window into configuring, monitoring, and optimizing enterprise IT environments. This all-in-one tool lets you coordinate system resources from a secure browser interface, whether you're beside the data center racks or logged in remotely.

By centralizing resource management, issue alerts, and configuration tasks, HMC frees administrators from the hassle of managing disparate devices and tools, empowering them to concentrate on business outcomes rather than operational complexity.

Logical Partitions: Virtualising with Precision

IBM’s approach to logical partitioning breathes new life into a single server, dividing it into multiple secure, independent spaces called LPARs. Each LPAR acts as its own virtual machine, capable of running unique operating systems including AIX®, Linux®, and IBM i®. Administrators decide precisely how much compute, memory, and I/O each partition receives, letting them maximize utilization while keeping workloads isolated and protected. This level of fine-grained control makes IBM Power infrastructure adaptable, efficient, and resilient—foundational qualities for any large enterprise.

The Case for LPARs in Modern IT

In an era dominated by agility and cost effectiveness, logical partitions empower organizations to do more with less. Instead of dedicating entire physical machines to each workload, businesses slice up resources, deploying diverse operating systems and applications side by side on the same hardware. This reduces both operational expense and data center footprint, while maintaining airtight boundaries between different tasks for better security and reliability. Dynamic scaling allows IT teams to respond instantly to new demands, ensuring resources are always allocated where they’re most needed.

Reimagining Partition Creation: HMC’s Modern Panel

IBM’s latest CREATE PARTITION panel revolutionizes partition management by introducing a React-based interface that emphasises speed and clarity. Inspired by extensive administrator feedback, this upgrade minimises repetitive steps that plagued the old Carbon-based design. The process now unfolds in a streamlined, interactive table where every change—whether tweaking memory or assigning CPUs—is instantly visible, reducing missteps and making large-scale configuration more approachable than ever before.

Contemporary Design: Table-Driven, Instant Feedback

One of the standout features of this overhaul is a table-driven panel where fields are logically grouped and easily accessible. Adjustments to underlying resources display immediately, eliminating lag. The interactive nature of the panel means administrators can move quickly: it’s less time spent clicking through menus and more time working with a holistic overview of server resources, making the configuration process both intuitive and transparent.

Streamlined Versus Cumbersome: Workflow Comparison

Compared to the former multi-step, rigid workflow, the modern React-based design brings everything together in a unified dashboard. Administrators can now create single partitions through a simple, straightforward form or build out multiple LPARs using a scalable grid layout. Inline input and instant validation flag configuration errors at once, slashing the time spent correcting issues and vastly improving user experience. What was once a slow, segmented sequence is now a single, smooth, and responsive process.

The Technology: React’s Role in HMC

The migration to React enables a modular, component-based design that makes future enhancements and daily usage easier. React’s efficient state management and rendering pipeline ensure even complex workloads feel snappy and responsive. Additionally, IBM has prioritised accessibility, delivering enriched keyboard and screen reader support to make sure the tool is usable for every administrator. This strategic refactoring keeps HMC at the cutting edge of enterprise IT.

How to Find and Use the New Create Partition Feature

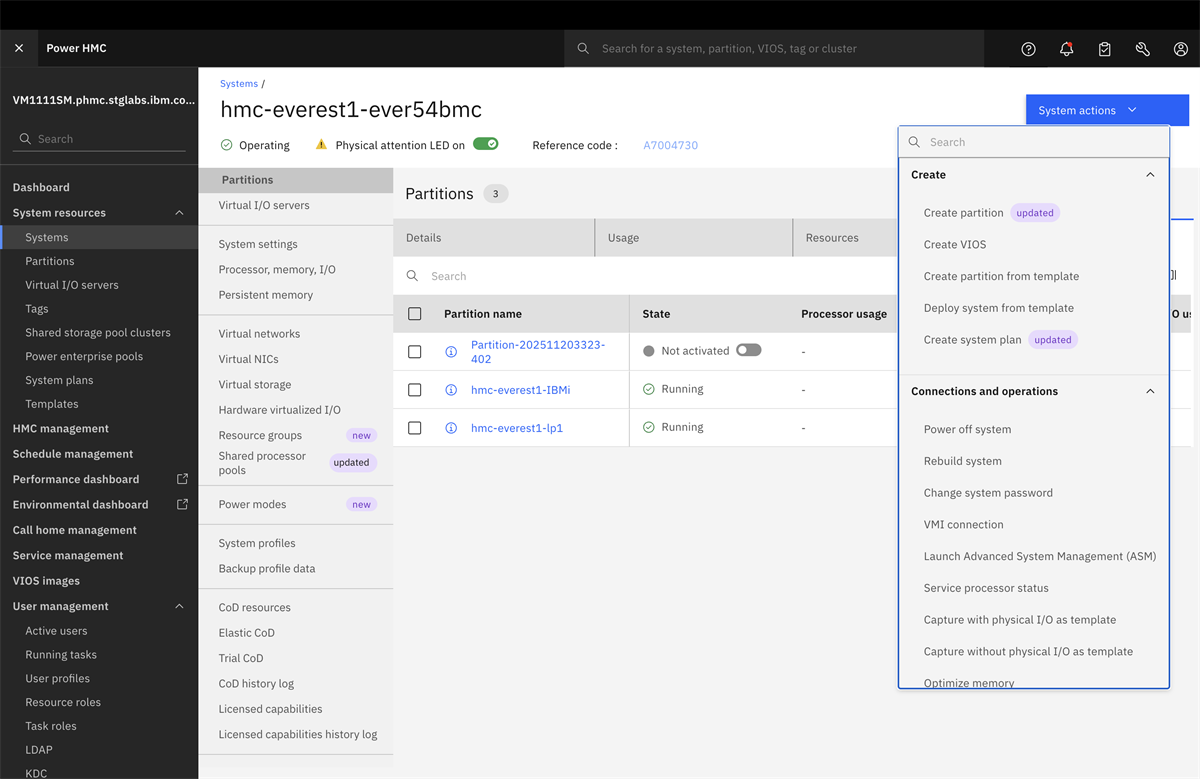

1.   From the HMC dashboard, use the left navigation menu to select System resources → Systems.

2.   Identify and select the target system from the list displayed.

3. Click on the system name to open the system overview panel.

4.  In the system actions menu, select Create Partition.

5. The new React-based Create Partition panel will launch, presenting administrators with an integrated table-driven interface for configuring logical partitions.

Single Partition Creation: Step-by-Step Process

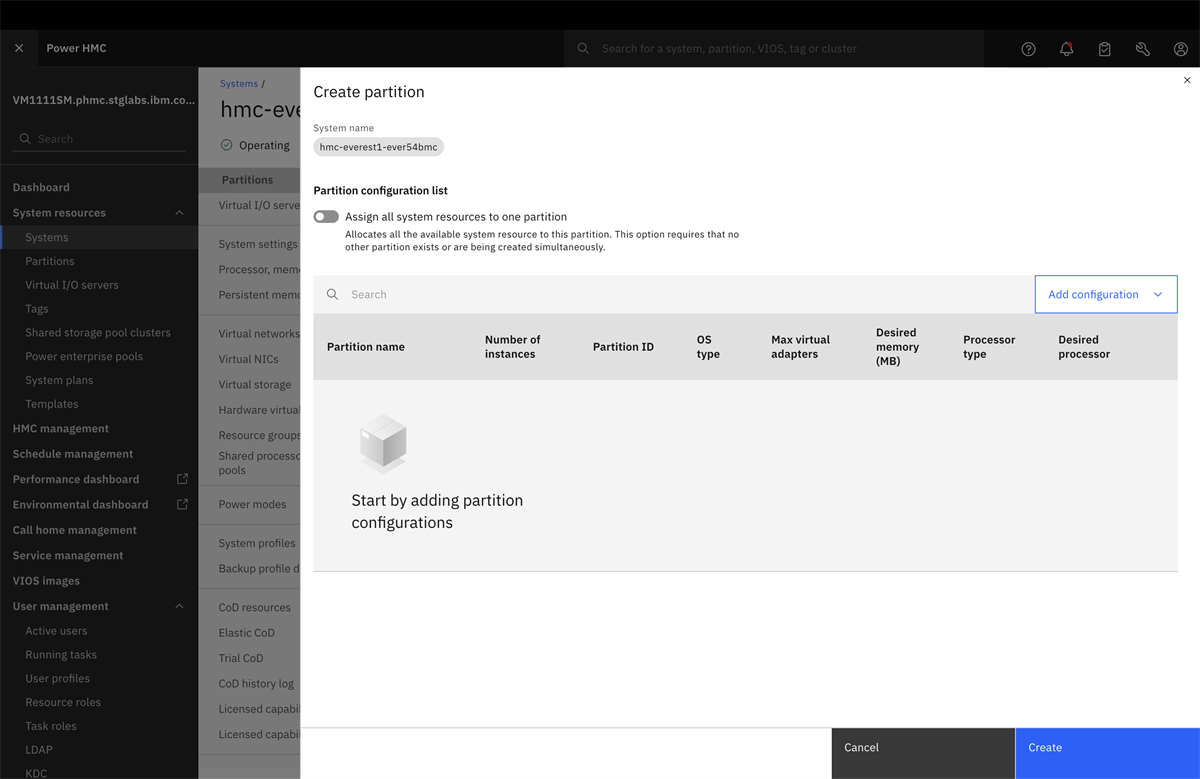

1.   1. In the Create Partition panel, click Add Configuration. This generates a new row pre-populated with default     values for the partition name, partition ID, processor type, and memory allocation.

2.   2. Select the required Operating System type from the dropdown (AIX®, Linux®, or IBMi®).

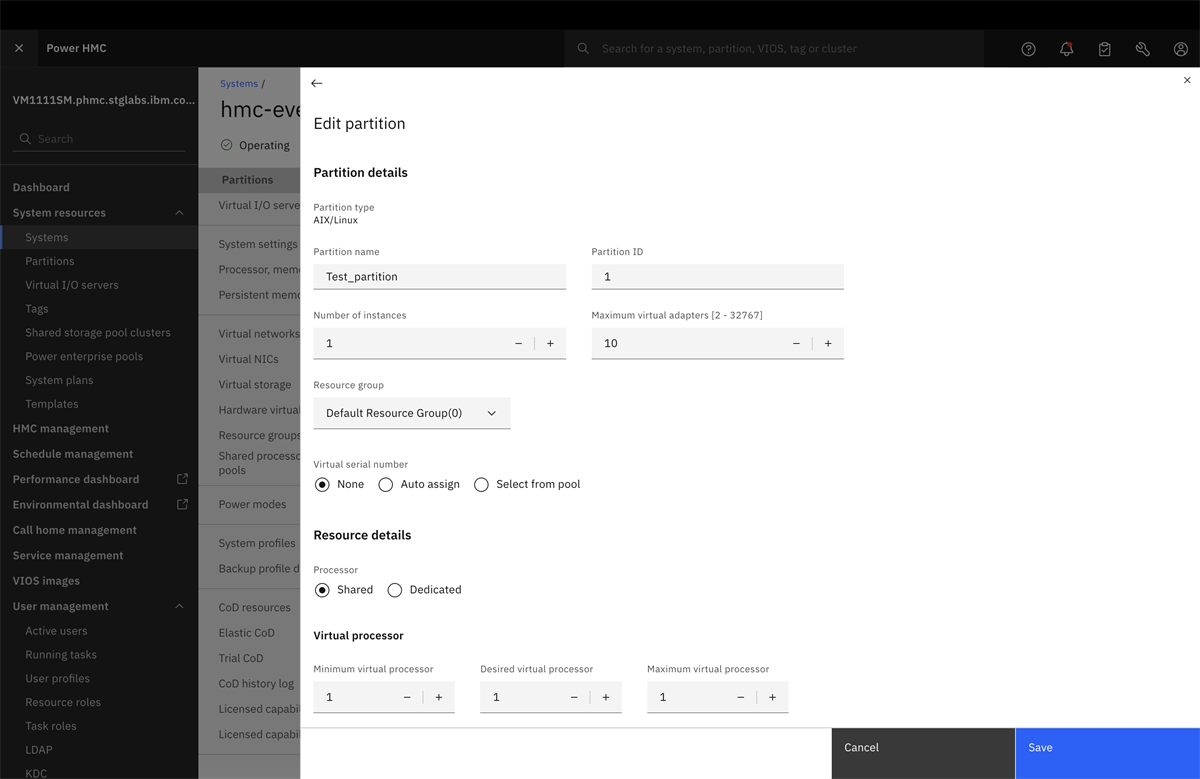

1.        3. Click the Edit icon on the configuration row to open resource assignment.

2.       4. Modify the partition name, Partition ID.

3.     5. Specify Processor Settings:

   - Choose Shared Mode or Dedicated Mode.

   - In Shared Mode, input Minimum, Desired, and Maximum Processor values.

   - Select between Capped or Uncapped sharing as needed.

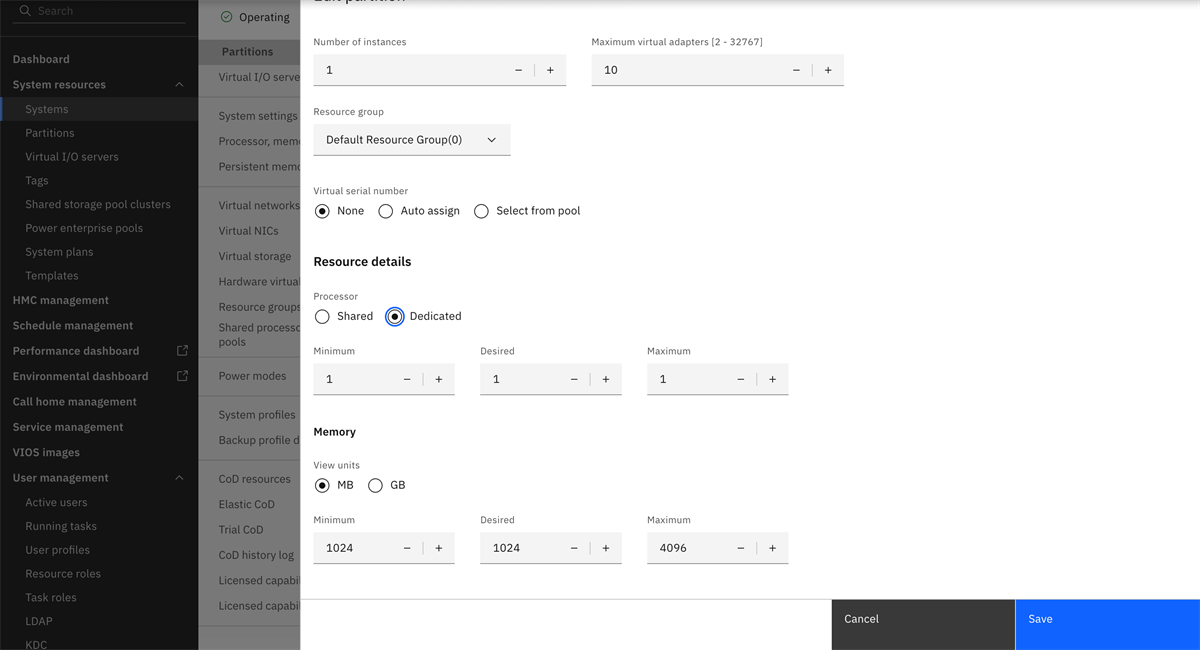

        - In Dedicated Mode, assign exclusive full processors.

6.Assign Memory Allocation:
   - Enter values in either Megabytes (MB) or Gigabytes (GB).
   - Real-time validation checks ensure input values are within acceptable   ranges, displaying error messages for out-of-range requests.

7.Once configuration is finalized, click Save to lock in your settings.

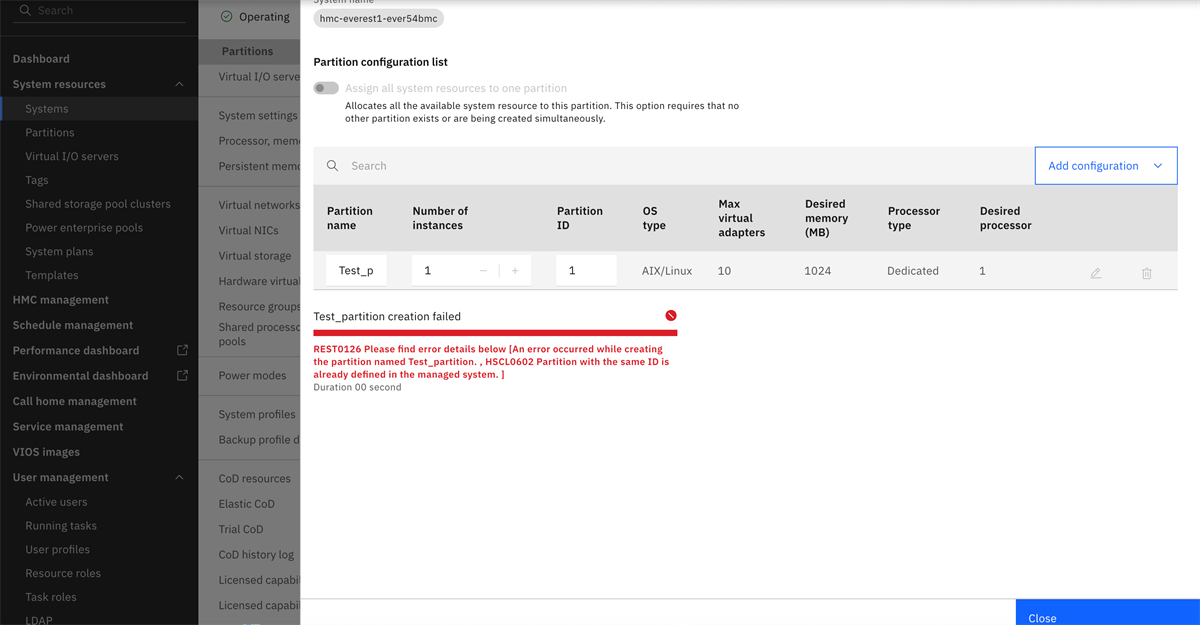

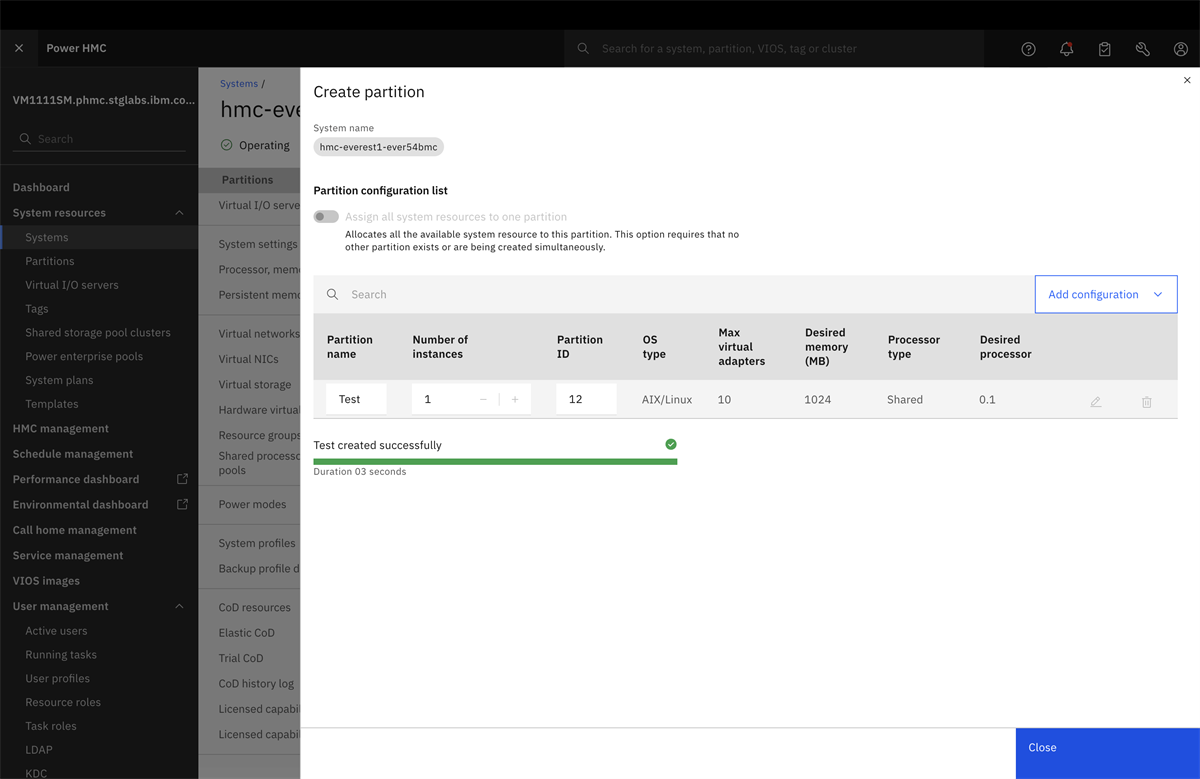

8.Click Create to initiate partition provisioning. The panel will provide a confirmation message with a green checkmark for successful creations or a detailed error message indicating specifics like insufficient processor pool or invalid memory range.

As

Multiple Partition Workflow

1. 1. In the Create Partition panel, click Add Configuration repeatedly or adjust the Number of Instances field. Enter a value in Number of Instances to create that quantity of partition rows automatically (up to a maximum of 20).

2. For each new row, the panel auto-populates defaults for partition name, processor type, and memory.
3. Individually configure each partition row:
   - Select the desired Operating System for each partition (AIX®, Linux®, or IBM i®).
   - Choose the Processor Mode (Shared or Dedicated), adjusting Minimum, Desired, and Maximum Processors as required.
   - Enter Memory allocations for each partition in MB or GB.
   - Use inline editing for all resource assignments.
4. Inline real-time validation checks all entries and flags any configuration issues across multiple rows. If a value exceeds a pre-set maximum (e.g., more than 20 instances), the panel immediately displays an error, preventing the invalid configuration from proceeding.
5. After configuring all partitions, select Save to confirm settings across the batch.
6. Click Create to provision all defined partitions collectively. The system will present success messages for each completed partition and detailed error messages if any partition fails due to resource constraints or configuration errors.

Panel Efficiency: Confidence and Speed

By bringing every option into one responsive panel, administrators can quickly make informed decisions without hunting for hidden fields or secondary options. Built-in safeguards and well-chosen defaults add another layer of assurance, preventing costly mistakes and making large-scale changes less daunting. Real-time error and success messages take the guesswork out of complex deployments.

Enhanced End-to-End Workflow

Previously, partition creation meant wading through multiple disconnected forms. Now, every setting from CPU to OS is presented side by side, saving clicks and reducing cognitive load. Automated population of key fields and the batch “Number of Instances” option cut down on formulaic, repetitive work. Before anything is deployed, dynamic validation checks all settings for compliance—only correct, optimized configurations move forward.

New vs. Old: A Leap Forward

Aspect	Previous Limitation	React-Based Solution
Customization	Static configuration	Dynamic, adaptable widgets
Performance	Frequent page loads	Real-time updates
Flexibility	Rigid form steps	Mix and match controls
Responsiveness	Fixed layouts	Adaptive component styling
Scalability	Inefficient imports	Modular, on-demand loading

User Advantages: Smoother, More Reliable Administration

This redesign is all about freeing up administrator time. Everything from autocompleted values to batch provisioning and error-proofed editing works together to accelerate workflows and reduce frustration. The result is stronger productivity and greater confidence in each configuration, thanks to built-in, proactive validation and crystal-clear feedback mechanisms.

Conclusion: A Platform Ready for the Future

IBM’s new partition creation interface marks a turning point for the HMC experience. By adopting cutting-edge technology and listening closely to user needs, IBM has produced a tool that’s not only streamlined and responsive but also deeply empowering for system administrators. Bulk tasks are now effortless, errors are clearly caught before they become issues, and even the largest systems can be provisioned or reconfigured at speed. The message is clear: with this update, IBM delivers a management experience and operational agility that keep enterprises ready for whatever comes next.
