You are going to take full advantage of that promise here, and approach building a simple tool that you package up as a multi-architecture container image. This allows users to interact with the tool in a consistent manner across all supported platforms.
In this article you will see how to build a multi-architecture container image. The approach will involve building images on each platform you wish to support for your image. Both Podman and Docker now support building all platform-specific images on the same system through emulation. This isn't currently available for the zos/s390x platform and therefore won't be covered.
The example tool is intentionally basic so you can focus on building and running multi-architecture container images.
You will start by building a Linux container image on a suitable Linux system. Once you are logged in to your system, create the following directory structure that uses the contents from the sample source directory, and copy the contents onto the host. Optionally, use git to clone this repository or download the repository compressed file from GitHub. You need to perform the same action to transfer the repository to your z/OS system.
basic-image-building/
|- src/
|- src/input/
|- src/input/hello.txt
|- src/java/
|- src/java/ExampleTool.java
|- src/resources/
|- src/resources/Containerfile.linux
|- src/resources/Containerfile.zos
In your terminal, change to the basic-image-building directory.
Building the tool (Linux)
To build the container image, you need the Containerfile for Linux src/resources/Containerfile.linux.
The Containerfile will:
- Compile the Java source files
- Copy the resultant Java class file into the container image
- Inform the container on how to run the tool by providing an
ENTRYPOINT
The Containerfile uses a multi-stage build. In the first "builder" stage it compiles the Java source files. Notice that this stage uses the icr.io/appcafe/ibmjava:8-sdk image as a base image. This is required for the javac command.
In the final stage, only the Java class file is copied from the "builder" stage into the container image. This stage also switches the base image to icr.io/appcafe/ibmjava:8-jre as you only want the Java runtime in the final image.
Build the container image on your Linux system. When you build the container image the first time, it could take longer to build, as it needs to pull both the SDK and JRE Java images. The image is tagged with 1.0-linux to highlight that it is the Linux image for version 1.0 of the tool.
podman build -f src/resources/Containerfile.linux -t <internal-registry-location>/exampletool:1.0-linux .
When the build is successful, you should see the image returned in podman images.
basic-multi-arch-image$ podman images
REPOSITORY TAG IMAGE ID CREATED SIZE
<internal-registry-location>/exampletool 1.0-linux 4c984233df56 27 seconds ago 292 MB
Running the tool (Linux)
With the container image built, run the container:
basic-multi-arch-image$ podman run -it --rm <internal-registry-location>/exampletool:1.0-linux
Invalid arguments.
Usage: java ExampleTool --input <input-file>
The container has run correctly and returned output asking for an additional input parameter.
Running the tool with input (Linux)
With the tool now running, you need to provide it an input file to read. To provide this file, you must ask Podman/Docker to mount the input file from the host file system into the container file system.
Use the provided src/input directory as your host directory to be mounted into the container.
basic-multi-arch-image$ podman run -it --rm -v $PWD/src/input:/input <internal-registry-location>/exampletool:1.0-linux --input /input/hello.txt
Hello from the ExampleTool.
There is quite a lot going on in that podman run command now, so let's break it down.
The start of the command, tells Podman/Docker to run the container interactively (-it) and remove (--rm) the container when it exits.
The host directory is mounted by using the volume (-v) argument. The argument is passed two values that are separated by a :. To the left is the full path to the host directory that you would like to mount into the container. The $PWD is replaced by the shell with the full path of the current working directory. To the right is the full path to the mounted directory inside the container. The src/input directory will be mounted into the container at /input.
The rest of the command is made up of the image location <internal-registry-location>/exampletool:1.0-linux and the arguments that you are passing to the tool itself. These are combined with the container ENTRYPOINT when the container runs.
<internal-registry-location>/exampletool:1.0-linux --input /input/hello.txt
Pushing our image (Linux)
With the Linux image now built, push it to your internal repository.
podman push <internal-registry-location>/exampletool:1.0-linux
Finally, remove the local image. You do not need to do this but it will be easier to see what is going on in later steps.
podman rmi <internal-registry-location>/exampletool:1.0-linux
Building the image (z/OS)
We are now ready to build the container image for z/OS. Login to your z/OS system and re-create the same directories and files via SCM, compressed file or manually.
basic-multi-arch-image/
|- src/
|- src/input/
|- src/input/hello.txt
|- src/java/
|- src/java/ExampleTool.java
|- src/resources/
|- src/resources/Containerfile.linux
|- src/resources/Containerfile.zos
To ensure the source files are correctly encoded run the following command to tag all files under the src directory as ISO8859-1 encoded.
chtag -Rtc iso8859-1 src
The steps for building container images on z/OS are the same as you ran on Linux. The first difference that you need to tackle though is using z/OS images with the FROM instructions in your Containerfiles.
While the ibmjava:8-sdk and ibmjava:8-jre are both multi-architecture images, there is a separate ibmjava:8 image for z/OS containers, otherwise you could have re-used the same Containerfile for both platforms.
Let's build the new z/OS container image in the same way you did on your Linux system.
podman build -f src/resources/Containerfile.zos <internal-registry-location>/exampletool:1.0-zos .
Running the tool (z/OS)
Remaining on z/OS, with the container image now built, run the container:
basic-multi-arch-image$ podman run -it --rm <internal-registry-location>/exampletool:1.0-zos
Invalid arguments.
Usage: java ExampleTool --input <input-file>
As with the Linux container, the tool running in the z/OS container returned asking for the additional input parameter.
Running the container again with the mounted host directory for input, run the command:
basic-multi-arch-image$ podman run -it --rm -v $PWD/input:/input <internal-registry-location>/exampletool:1.0-zos --input /input/hello.txt
Hello from the ExampleTool.
Pushing your image (z/OS)
With the z/OS image now built, push it to your internal repository.
podman push <internal-registry-location>/exampletool:1.0-zos
With the image now pushed, remove the local image. Again, you do not need to do this but it will be easier to see what is going on in the next steps.
podman rmi <internal-registry-location>/exampletool:1.0-zos
Preparing for multi-architecture images
Let's now take the first proper foray into building a multi-architecture container image. You have built, tested, and pushed an image for both of the platforms you wanted to support and while you have now done enough to support those platforms, a user of the tool would need to remember to specify the right tag for their platform rather than letting Podman or Docker figure it out.

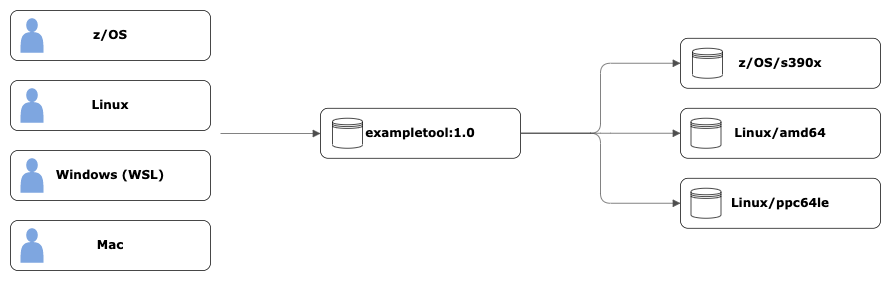

The solution to this is to create a manifest list to map each of your platform images to the platform they were built for. This allows a user on any supported platform, to use the same image location <internal-registry-location>/exampletool:1.0 and receive the image for their platform of choice, ready to be run. You will see that in action shortly.
The process for creating a manifest is remarkably straight-forward. You can run these steps from either the z/OS or Linux system.
First, create the manifest list itself.
podman manifest create <internal-registry-location>/exampletool:1.0
Add both images to your manifest list. You do not need to have the images pulled locally for this to work.
podman manifest add <internal-registry-location>/exampletool:1.0 <internal-registry-location>/exampletool:1.0-linux
podman manifest add <internal-registry-location>/exampletool:1.0 <internal-registry-location>/exampletool:1.0-zos
You should now see your local manifest list with podman images and you can inspect the manifest with podman manifest inspect and see that the images were correctly added for each platform.
basic-multi-arch-image$ podman manifest inspect <internal-registry-location>/exampletool:1.0
{
"schemaVersion": 2,
"mediaType": "application/vnd.docker.distribution.manifest.list.v2+json",
"manifests": [
{
"mediaType": "application/vnd.oci.image.manifest.v1+json",
"size": 1076,
"digest": "sha256:06c332ffa8a15c9722063296adf27d7b5845a789b580a5b2e39ff0d5e7152699",
"platform": {
"architecture": "amd64",
"os": "linux"
}
},
{
"mediaType": "application/vnd.oci.image.manifest.v1+json",
"size": 964,
"digest": "sha256:d4c49100775c4939e32cf0e2f7719d4fdc57c2c1c3e1cd748081d182f04941d6",
"platform": {
"architecture": "s390x",
"os": "zos"
}
}
]
}
With everything now prepared, push your manifest list to the internal registry. The multi-architecture image is now ready to be used.
podman manifest push <internal-registry-location>/exampletool:1.0
Finally, remove the manifest list from your local image storage. You do not need to clean this up but it helps to see exactly what is being pulled when the multi-architecture image is used.
podman rmi <internal-registry-location>/exampletool:1.0
Running the multi-architecture container image
All that is left for you to do now is to experiment with running the container on your Linux and z/OS systems.
First make sure that all previous images/manifest lists are removed and do not appear in podman images (if not use podman rmi to remove them). Then attempt to run your containerised tool on both systems.
basic-multi-arch-image$ podman run -it --rm -v $PWD/src/input:/input <internal-registry-location>/exampletool:1.0 --input /input/hello.txt
Hello from the ExampleTool.
By specifying the 1.0 version tag, the container image matching your current platform is pulled locally to run the container. Inspect the image and format out the Operating System and architecture information to show that the image being used matches your system.
podman inspect -f '{{.Os}}-{{.Architecture}}' <internal-registry-location>/exampletool:1.0
zos-s390x
Conclusion
You have now seen how to quickly provide a consistent product experience with multi-architecture container images. This sample has focused on the basic mechanics of creating and building multi-architecture container images for both native z/OS and Linux using the same standard tools in both environments. In a future article(s) you will delve a little deeper into dealing with file output and logging concerns.
