Create Redis configuration
Take the following YAML and populate the values with the credentials from your Redis instance.
accounts:
rediscache:
- name: Account 1
authType: BASIC
credentials:
host: abcde123-f4g5-6h7j-9876-klm54.fjfk64yrir57dcc.databases.appdomain.cloud
port: "30663"
username: ibm_cloud_d7123456_00b8_239c_f65e_ab1234cd5678
password: 1234qOlflk567r8uBheda99yzLKVtryuquiu543ythD
databaseNumber: "0"
tlsRejectUnauthorized: true
tlsCa: '"LABCS0tLS13CRUsdJTiBQUklWS0tLS0tCk1JSUV2d0lCQURBTkJna3QVRFIEtFWFoa2lHOXcwQkFRRUZBQVNDQktrd2dnUo=","name":"1234c347-876a-12e9-b1a6-c99ac0347fc5"'
endpoint: {}
Save that YAML to a file, let's call it redis-credentials.yaml
We now need to base64 encode the redis-credentials.yaml file for use in our Configuration object.
Run the following command and copy the contents
cat redis-credentials.yaml | base64
Add your base64 encoded redis-credentials.yaml into the Data field of the configuration. Below you can see a populated version of a configuration which we can apply to our OpenShift Container Platform (OCP) cluster.
apiVersion: appconnect.ibm.com/v1beta1
kind: Configuration
metadata:
name: redis
namespace: ace-cam
spec:
type: persistencerediscredentials
data: YWNjb3VudHM6CiAgcmVkaXNjYWNoZToKICAgIC0gbmFtZTogQWNjb3VudCAxCiAgICAgIGF1dGhUeXBlOiBCQVNJQwogICAgICBjcmVkZW50aWFsczoKICAgICAgICBob3N0OiBhYmNkZTEyMy1mNGc1LTZoN2otOTg3Ni1rbG01NC5mamZrNjR5cmlyNTdkY2MuZGF0YWJhc2VzLmFwcGRvbWFpbi5jbG91ZAogICAgICAgIHBvcnQ6ICIzMDY2MyIKICAgICAgICB1c2VybmFtZTogaWJtX2Nsb3VkX2Q3MTIzNDU2XzAwYjhfMjM5Y19mNjVlX2FiMTIzNGNkNTY3OAogICAgICAgIHBhc3N3b3JkOiAxMjM0cU9sZmxrNTY3cjh1QmhlZGE5OXl6TEtWdHJ5dXF1aXU1NDN5dGhECiAgICAgICAgZGF0YWJhc2VOdW1iZXI6ICIwIgogICAgICAgIHRsc1JlamVjdFVuYXV0aG9yaXplZDogdHJ1ZQogICAgICAgIHRsc0NhOiAnIkxBQkNTMHRMUzEzQ1JVc2RKVGlCUVVrbFdTMHRMUzB0Q2sxSlNVVjJkMGxDUVVSQlRrSm5hM1FWUkZJRXRGV0ZvYTJsSE9YY3dRa0ZSUlVaQlFWTkRRa3RyZDJkblVvPSIsIm5hbWUiOiIxMjM0YzM0Ny04NzZhLTEyZTktYjFhNi1jOTlhYzAzNDdmYzUiJwogICAgICBlbmRwb2ludDoge30=
Save the above Configuration to a file named redis-configuration.yaml and swap out the data field for the base64 encoded string you just created.
To apply this to a cluster run
oc apply -f redis-configuration.yaml
Create DesignerAuthoring with batch flows enabled
Now that we've created a Configuration with our Redis credentials we can go ahead and create our instance of DesignerAuthoring with the batch functionality enabled. The YAML for that can be seen below
apiVersion: appconnect.ibm.com/v1beta1
kind: DesignerAuthoring
metadata:
name: des-01-quickstart-ma
labels:
backup.appconnect.ibm.com/component: designerauthoring
namespace: ace-cam
spec:
license:
accept: true
license: L-KPRV-AUG9NC
use: AppConnectEnterpriseProduction
couchdb:
storage:
size: 10Gi
type: persistent-claim
replicas: 1
designerMappingAssist:
incrementalLearning:
schedule: Every 15 days
enabled: true
authentication:
integrationKeycloak:
enabled: false
authorization:
integrationKeycloak:
enabled: false
batch:
configurations:
- redis
enabled: true
designerFlowsOperationMode: local
replicas: 1
version: '13.0'
You can save the above to a file called designer-authoring.yaml
To apply that to a cluster run the following command
oc apply -f designer-authoring.yaml
Create an event-driven flow
Now that we've completed our setup steps we should have an instance of DesignerAuthoring with batch enabled. To grab the URL for the instance run the following command
oc get designerauthoring des-01-quickstart-ma -ojsonpath='{.status.uiUrl}'

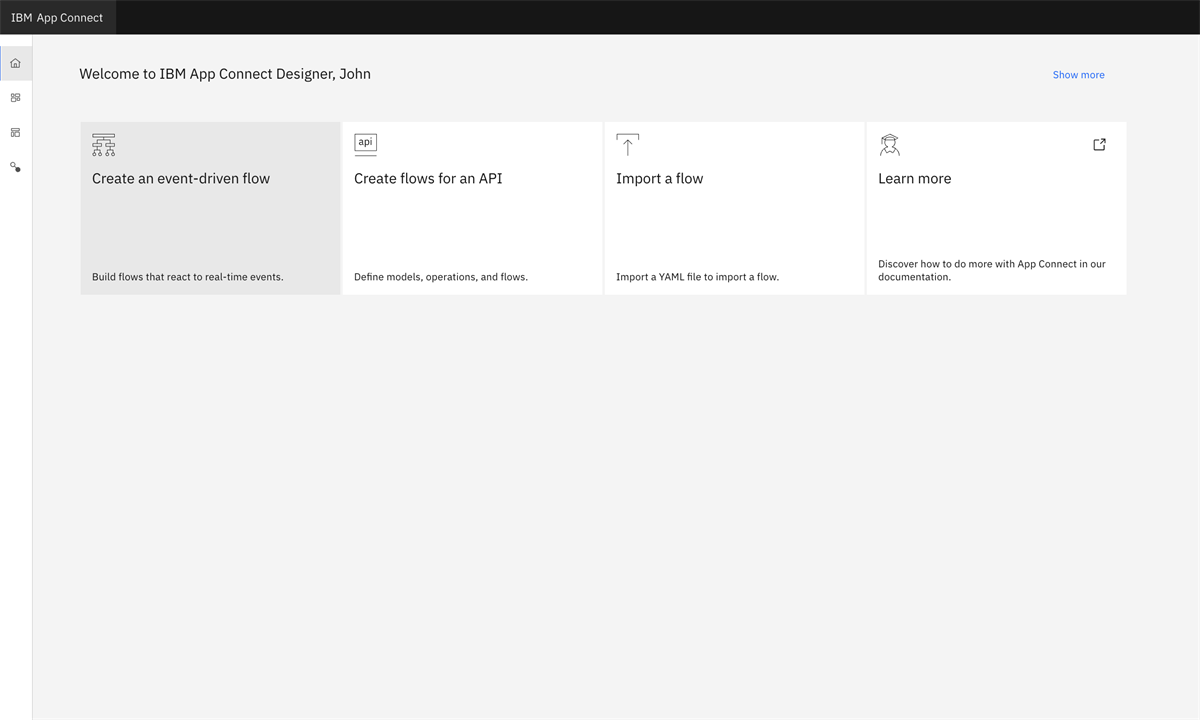

From the homepage you can click "Create an event-driven flow to get started
