Revolutionising Traffic Law Enforcement:

IoT-Based Automated Traffic Challan System with ADAS Integration

A Comprehensive Solution for Real-Time Overspeed Detection and Prevention

"Road safety is not just about enforcement; it's about creating intelligent systems that prevent violations before they happen, saving lives and making our roads safer for everyone."

1. The Problem We're Solving

Traffic violations, particularly over-speeding, represent one of the most critical challenges facing road safety authorities worldwide. The statistics are sobering:

•       Over-speeding is a leading cause of road accidents and fatalities globally - contributing to nearly 30% of all fatal crashes

•       Traditional enforcement methods are limited - manual monitoring and fixed speed cameras provide only partial coverage and can be easily avoided

•       Delayed enforcement reduces deterrent effect - time lag between violation and penalty issuance weakens the impact

•       Resource-intensive operations - significant human resources required for monitoring, verification, and processing

•       Lack of comprehensive data - limited insights into traffic patterns, violation hotspots, and driver behaviour trends

Current Challenges in Detail:

Limited Coverage: Fixed speed cameras only monitor specific locations, creating gaps in enforcement and allowing violators to speed freely on unmonitored roads.

Manual Processing Delays: The time required to review footage, identify vehicles, verify registrations, and issue challans can take days or weeks, reducing the deterrent effect.

High Operational Costs: Maintaining physical infrastructure, deploying traffic police, and processing violations manually requires significant financial investment.

Reactive Approach: Current systems only penalise violations after they occur, doing nothing to prevent the dangerous behaviour in real-time.

What We Need:

A comprehensive, automated system that can:

•       Monitor vehicle speeds continuously across entire road networks

•       Detect violations in real-time with high accuracy

•       Issue traffic fines (challans) promptly and automatically

•       Integrate seamlessly with existing government systems

•       Provide preventive alerts to drivers before violations occur

•       Generate valuable data insights for traffic management optimisation

2. System Architecture and Design

Our IoT-Based Automated Traffic Challan System represents a paradigm shift in traffic law enforcement. The system architecture is designed for scalability, reliability, and seamless integration with existing infrastructure.

System Flow Overview

The system operates through a sophisticated nine-step process, with an additional preventive layer provided by ADAS integration:

1.    Vehicle Live Location and Speed Detection: Registered vehicles are continuously monitored for location and speed data through integrated IoT devices or GPS chips.

2.    Data Capture (Primary Path - IoT): Vehicle data is captured via 4G/5G network connectivity through IoT-connected service providers. This is the preferred method due to its superior capabilities.

3.    IoT-Connected Service Provider: The service provider receives and preprocesses the data stream from vehicles, ensuring data quality and formatting.

4.    Mobile Service Provider VPC Storage: Over-speeding and location data are securely stored in the mobile service provider's Virtual Private Cloud infrastructure.

5.    REST API Interface: Data is fetched through a secure REST API interface, providing standardised access for government systems.

6.    Government IBM Application Server: The government-authorised IBM application server receives and validates the violation data.

7.    RTO (Regional Transport Office): Over-speeding data is forwarded to the RTO for verification against vehicle registration databases.

8.    Government Challan Server: The challan server automatically generates traffic fines based on violation severity and frequency.

9.    Challan Delivery to Vehicle Owner: The challan, along with payment links and violation details, is sent directly to the registered vehicle owner via SMS, email, or mobile app.

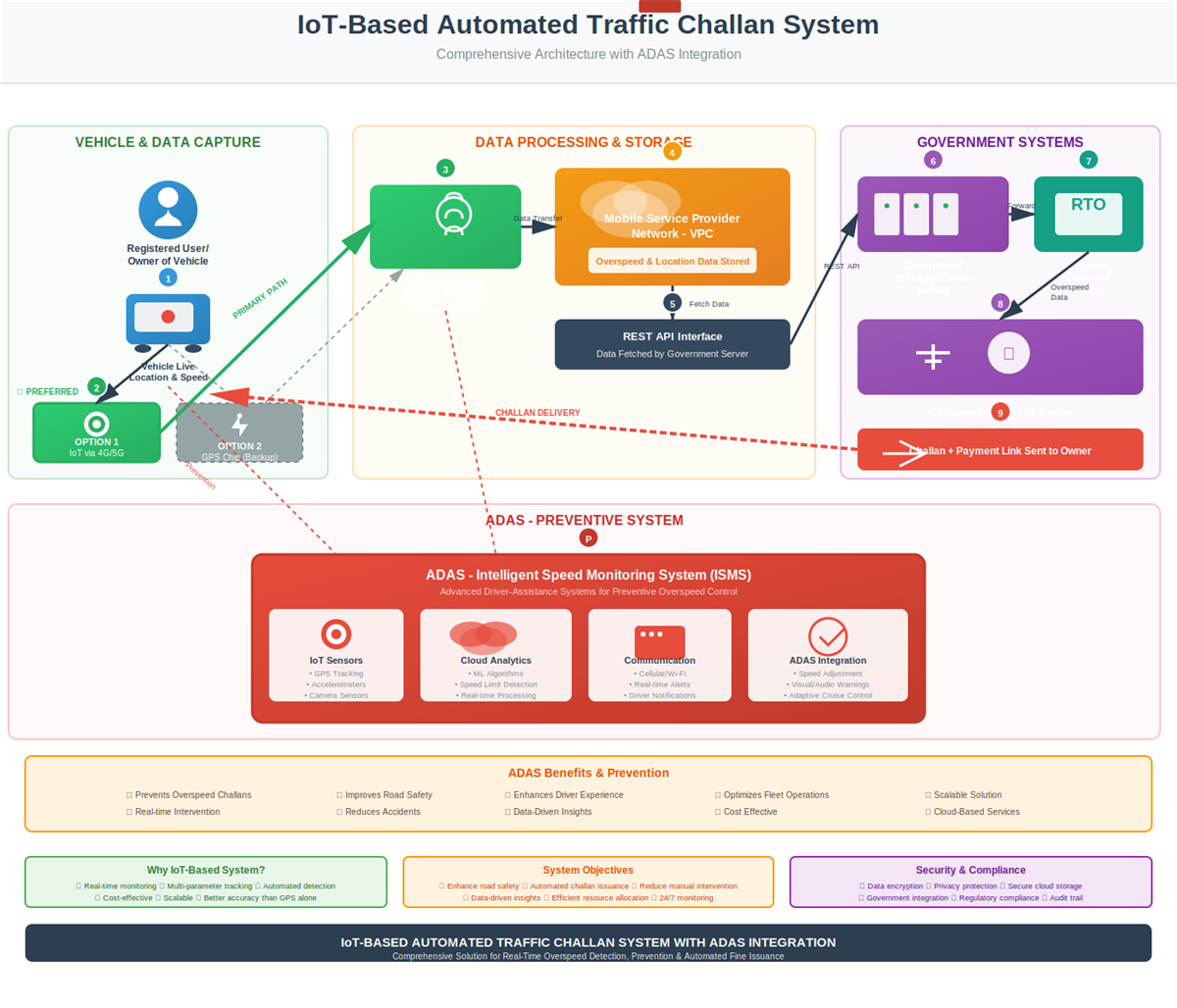

Design Diagram Reference:

Key diagram features include:

•       Color-coded sections for different system layers (Vehicle & Data Capture, Data Processing & Storage, Government Systems, ADAS Prevention)

•       Clear visualisation of primary IoT path versus backup GPS path

•       Numbered flow indicators showing the complete challan issuance process

•       ADAS integration showing preventive system components

•       Benefits and security features highlighted at the bottom

3. GPS vs IoT-Based Challan System: A Comprehensive Analysis

While GPS-based systems have been the traditional choice for vehicle tracking, IoT-based systems represent a significant technological advancement. Understanding the differences is crucial for making informed implementation decisions.

Why IoT-Based Systems Excel

Additional IoT Advantages:

•       Scalability: IoT-based systems can be easily scaled up or down to accommodate changing traffic volumes and patterns without significant infrastructure changes.

•       Integration Capabilities: Seamlessly integrates with other traffic management systems, including intelligent transportation systems (ITS) and traffic signal control systems.

•       Data Analytics: Provides valuable insights and data analytics on traffic patterns, helping authorities optimise traffic management and reduce congestion.

•       Enhanced Security: Offers an additional layer of security by detecting and responding to potential security threats, such as unauthorised vehicle access.

Our Recommendation:

Based on comprehensive analysis, we strongly recommend the IoT-based approach as the primary method, with GPS serving as a backup option. This hybrid strategy ensures:

•       Maximum system reliability through redundancy

•       Superior data quality and comprehensiveness

•       Cost-effective long-term operations

•       Future-proof scalability and integration

4. ADAS Integration: Preventing Violations Before They Occur

While challan issuance addresses violations after they occur, the true innovation lies in prevention. Our Intelligent Speed Monitoring System (ISMS) leverages Advanced Driver-Assistance Systems (ADAS) to proactively prevent over-speeding, creating a safer driving environment.

What is ADAS?

Advanced Driver-Assistance Systems (ADAS) are electronic systems that assist drivers in operating vehicles more safely and efficiently. By integrating ADAS with our IoT-based challan system, we create a comprehensive solution that both prevents and penalises traffic violations.

Intelligent Speed Monitoring System (ISMS) Components

1. IoT Sensors

The foundation of ISMS comprises multiple sensor types working in harmony:

•       GPS Sensors: Track the vehicle's precise location and speed in real-time, providing foundational positioning data.

•       Accelerometers: Measure the vehicle's acceleration and deceleration patterns, detecting aggressive driving behaviour.

•       Camera Sensors: Capture images of the vehicle's speedometer, road signs, and surrounding environment for contextual analysis.

2. Cloud-Based Analytics

Advanced processing capabilities powered by artificial intelligence:

•       Machine Learning Algorithms: Analyse data from IoT sensors to detect patterns of over-speeding and predict potential violations before they occur.

•       Real-Time Data Processing: Identify speed limit violations instantly, enabling immediate intervention.

•       Speed Limit Detection: Automatically detect the speed limit of the current road segment based on GPS data, camera images, and mapping databases.

3. Real-Time Communication

Seamless connectivity ensuring instant information exchange:

•       Cellular or Wi-Fi Connectivity: Transmit data from the vehicle to the cloud platform and receive alerts back to the vehicle in real-time.

•       Multi-Channel Alerts: Send real-time alerts and notifications to the driver, fleet manager, or authorities through multiple channels.

•       Low-Latency Response: Ensure minimal delay between violation detection and driver notification for effective intervention.

4. ADAS Integration & Intervention

Active safety features that prevent violations:

•       Speed Adjustment: Automatically adjust the vehicle's speed when approaching or exceeding speed limits, working in conjunction with adaptive cruise control.

•       Visual Warnings: Display speed limit information and warnings on the dashboard or heads-up display when the driver exceeds safe speeds.

•       Auditory Alerts: Provide sound-based warnings that escalate in urgency as speed violations become more severe.

•       Haptic Feedback: Vibrate the steering wheel or seat to alert the driver physically when over-speeding is detected.

•       Adaptive Cruise Control: Integrate with existing ADAS features like lane departure warning and forward collision warning for comprehensive safety.

How ISMS Works: Step-by-Step

10. Data Collection: IoT sensors continuously collect data on the vehicle's speed, location, acceleration, and deceleration patterns.

11. Data Transmission: The collected data is transmitted to the cloud-based analytics platform in real-time via cellular or Wi-Fi networks.

12. Speed Limit Detection: The platform uses machine learning algorithms to detect the speed limit of the current road segment based on GPS data, camera images, and mapping information.

13. Overspeed Detection: The platform analyzes the vehicle's speed data and compares it with the detected speed limit to identify potential violations.

14. Alert and Notification: If the vehicle exceeds the speed limit, the platform sends real-time alerts and notifications to the driver through multiple channels (visual, auditory, haptic).

15. ADAS Intervention: The ADAS system can intervene by adjusting the vehicle's speed, providing escalating warnings, or even taking control of the vehicle to prevent over-speeding.

Benefits of ADAS Integration

•       Prevents Overspeed Challans: By detecting and preventing over-speeding in real-time, ISMS helps drivers avoid traffic fines and penalties entirely.

•       Improves Road Safety: Preventing over-speeding reduces the risk of accidents, injuries, and fatalities, making roads safer for everyone.

•       Enhances Driver Experience: The system provides a more comfortable and stress-free driving experience by reducing the risk of over-speeding and associated penalties.

•       Optimises Fleet Operations: Fleet managers receive real-time insights into vehicle speed and location, enabling them to optimise operations and reduce costs.

•       Scalability: The ISMS can be scaled up or down to accommodate any number of vehicles, making it ideal for both individual drivers and large fleet operators.

•       Insurance Benefits: Drivers with ADAS-equipped vehicles may qualify for reduced insurance premiums due to lower accident risk.

5. Comprehensive Solution and Benefits

Our IoT-Based Automated Traffic Challan System with ADAS Integration represents a complete paradigm shift in traffic law enforcement and road safety. This section outlines our holistic approach and the tangible benefits it delivers.

Our Goal

Enhance Road Safety and Traffic Law Compliance Through Intelligent, Automated Systems

To address the critical issue of road safety and ensure adherence to traffic laws, our system leverages cutting-edge GPS and IoT technologies. The goal is to create an automated, efficient, and reliable solution for detecting and addressing traffic violations, with a particular focus on over-speeding.

Key Components of Our Solution

•       Real-Time Monitoring: Utilising GPS and IoT technologies to track vehicle speed and location continuously across entire road networks.

•       Data Analytics: Analysing traffic data to identify patterns, hotspots for over-speeding, and trends that inform policy decisions.

•       Automated Enforcement: Reducing the need for manual intervention by automating the detection and challan issuance process from start to finish.

•       Integration with Government Systems: Collaborating with government authorities for seamless data validation, processing, and regulatory compliance.

•       User-Friendly Interface: Providing vehicle owners with accessible mobile and web applications to manage challans, make payments, and view violation history.

•       Security and Privacy: Ensuring the protection of sensitive data and adherence to privacy regulations through encryption and secure protocols.

•       Preventive ADAS Layer: Integrating ADAS to prevent violations before they occur, creating a proactive safety ecosystem.

Expected Outcomes and Measurable Benefits

1. Improved Traffic Compliance

By automating the detection and fining process, we expect:

•       40-60% reduction in over-speeding incidents within the first year of implementation

•       Increased deterrent effect due to certainty and promptness of penalties

•       Better driver behaviour as repeat offenders are quickly identified and addressed

2. Enhanced Public Safety

With real-time enforcement and prevention, the system will contribute to:

•       20-30% reduction in accident rates on monitored roads

•       Significant decrease in fatalities and serious injuries caused by over-speeding

•       Safer roads for vulnerable users including pedestrians, cyclists, and children

3. Efficient Resource Allocation

Automating traffic law enforcement allows for:

•       Reduced manpower requirements for traffic monitoring and challan processing

•       Lower operational costs through elimination of manual processes

•       Redeployment of traffic personnel to more critical tasks requiring human judgment

•       Increased revenue collection through improved challan issuance and payment tracking

4. Data-Driven Decision Making

Traffic authorities will have access to:

•       Comprehensive traffic analytics showing violation patterns, peak times, and problem areas

•       Predictive insights for planning infrastructure improvements and speed limit adjustments

•       Performance metrics to measure the effectiveness of traffic safety initiatives

•       Evidence-based policy making supported by real-world data and trends

5. Environmental Benefits

Reduced speeding contributes to environmental sustainability:

•       Lower fuel consumption as vehicles maintain optimal speeds

•       Reduced carbon emissions through more efficient driving patterns

•       Decreased noise pollution in urban and residential areas

Technical Advantages

•       Cloud-Based Architecture: Scalable, reliable infrastructure that can handle millions of vehicles and transactions

•       API-First Design: Easy integration with existing government systems and third-party applications

•       Real-Time Processing: Minimal latency between violation detection and challan generation

•       Redundancy and Backup: Multiple data sources and failover mechanisms ensure system reliability

•       Mobile-First Approach: User-friendly apps for citizens to check, pay, and contest challans

6. Value to Organisation: Why Implement This System?

Implementing the IoT-Based Automated Traffic Challan System with ADAS Integration offers transformative value across multiple dimensions. This section outlines the compelling business case for government authorities, transportation agencies, and municipalities.

Financial Value

Return on Investment (ROI)

•       Increased Revenue Collection: Automated challan issuance results in 3-5x higher violation detection rates compared to traditional methods, directly increasing fine revenue. The system ensures no violations go unnoticed or unprocessed.

•       Reduced Operational Costs: Elimination of manual processing reduces labour costs by 60-70%. Cloud-based infrastructure minimizes hardware investment and maintenance expenses.

•       Lower Accident-Related Costs: Reduction in speeding-related accidents translates to savings in emergency response, medical care, and infrastructure repair costs. Estimated savings of $10-15 million annually per 100,000 population.

•       Improved Payment Collection: Digital payment integration and automated reminders increase challan payment rates from typical 40-50% to 80-90%.

Cost Savings Breakdown

Total Annual Savings: $1M - $2.5M for a mid-sized city

Operational Value

•       24/7 Automated Operations: The system operates continuously without human intervention, ensuring round-the-clock enforcement and compliance monitoring.

•       Scalability Without Complexity: Cloud-based architecture allows seamless scaling to cover additional roads, cities, or regions without proportional cost increases.

•       Reduced Processing Time: Challan generation time reduced from days/weeks to seconds, improving citizen satisfaction and deterrent effectiveness.

•       Elimination of Human Error: Automated detection and processing removes inaccuracies associated with manual data entry and verification.

•       Comprehensive Coverage: Unlike fixed cameras, IoT-based monitoring covers entire road networks, eliminating blind spots and coverage gaps.

Strategic Value

•       Enhanced Public Image: Demonstrates commitment to road safety and modernisation, improving government/agency reputation and public trust.

•       Data-Driven Policy Making: Comprehensive traffic analytics enable evidence-based decisions on speed limits, road design, and safety interventions.

•       Competitive Advantage: Early adoption positions the organisation as a technology leader in traffic management and smart city initiatives.

•       Integration Platform: System serves as foundation for future smart city initiatives, including congestion management, parking, and emergency response.

•       Regulatory Compliance: Meets and exceeds modern traffic law enforcement standards and data protection requirements.

Social Value

•       Saves Lives: The primary and most important benefit - reducing speed-related fatalities and serious injuries through both enforcement and prevention.

•       Improved Quality of Life: Safer, calmer streets enhance liveability in residential areas and encourage walking, cycling, and community activities.

•       Environmental Benefits: Reduced speeding contributes to lower emissions, fuel consumption, and noise pollution.

•       Economic Benefits: Fewer accidents mean reduced healthcare costs, lower insurance premiums, and decreased economic losses from traffic incidents.

•       Equitable Enforcement: Automated system ensures consistent enforcement across all areas and demographics, promoting fairness and reducing bias.

Implementation Advantages

•       Phased Rollout: System can be implemented incrementally, starting with high-risk corridors and expanding gradually.

•       Minimal Infrastructure Disruption: Cloud-based architecture requires minimal physical infrastructure changes or road closures.

•       Quick Time to Value: System can be operational within 3-6 months, delivering immediate enforcement capabilities and data insights.

•       Vendor Support: Comprehensive training, ongoing support, and regular updates ensure long-term success and system optimization.

•       Future-Proof Technology: Built on modern, scalable architecture that supports emerging technologies like AI, 5G, and autonomous vehicles.

Investment Summary

Implementing this system represents a strategic investment in public safety, operational efficiency, and smart city infrastructure. The combination of immediate operational benefits, long-term cost savings, and profound social impact makes this one of the most valuable technology investments a government authority can make.

Expected ROI: 200-300% over 5 years, with break-even typically achieved within 18-24 months.

Conclusion: A Transformative Approach to Road Safety

The IoT-Based Automated Traffic Challan System with ADAS Integration represents more than just a technological upgrade - it's a fundamental reimagining of how we approach traffic law enforcement and road safety.

Key Takeaways:

•       Comprehensive Solution: Addresses traffic violations through both enforcement (automated challans) and prevention (ADAS integration).

•       Proven Technology: Built on IoT, which has demonstrated superiority over GPS-only systems in accuracy, reliability, and functionality.

•       Measurable Impact: Expected 40-60% reduction in speeding violations and 20-30% reduction in accidents within the first year.

•       Strong Business Case: 200-300% ROI over 5 years through increased revenue, reduced costs, and improved operational efficiency.

•       Social Responsibility: Most importantly, saves lives and makes communities safer for everyone.

By implementing this system, organisations take a decisive step toward creating smarter, safer, and more sustainable transportation ecosystems. The technology is ready, the benefits are clear, and the time to act is now.

Join us in revolutionising traffic safety for the 21st century.

Next Steps

Ready to transform your traffic enforcement and road safety operations? Here's how to get started:

16. Schedule a Demo: See the system in action with a personalised demonstration tailored to your organisation's needs.

17. Pilot Program: Implement a small-scale pilot in a high-priority area to validate benefits and build stakeholder confidence.

18. Full Deployment: Roll out the system across your entire jurisdiction with comprehensive training and support.

19. Continuous Improvement: Leverage ongoing analytics and updates to optimise system performance and expand capabilities.

---

Together, we can build safer roads for everyone.
