Monitor AIX with elastic beats: Observability on AIX

By Aditya Kamath posted 07/14/25 03:34 AM



Elastic beats are lightweight agents used to ship data to Elasticsearch. Elastic offers distinct Beats for metrics, uptime, logs, and other kinds of data. Installing many shippers on a single host may be necessary, depending on the data you wish to gather. If you have Elasticsearch and Kibana in Linux, then you can monitor AIX data using Elastic Beats.

Beats version 8.17.1 is now available in the AIX toolbox. Currently we have Metricbeat, Filebeat, and Auditbeat.

To install Beats in AIX, do the following:

dnf install metricbeat auditbeat filebeat

What beats are available in AIX?

Metricbeat—System and application metrics

What it does: Gathers CPU, memory, disk, file system, and process metrics.

Use case: Monitor AIX performance, detect resource exhaustion, and view metrics in the Kibana dashboard.

Sample YAML config file:

# cat metricbeat_cpu.yml
metricbeat.modules:
  - module: system
    period: 5s
    metricsets:
      - cpu
      - filesystem
      - memory
      - process
    include_cpu_ticks: false

output.elasticsearch:
  hosts: ["https://<Your_IP_Address"]
  username: elastic
  password: <Your_password>
  ssl.verification_mode: none

To run, use: metricbeat -e -c metricbeat.yml

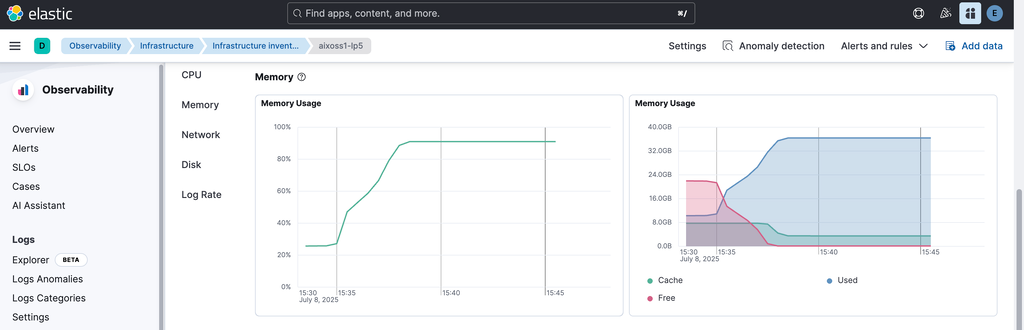

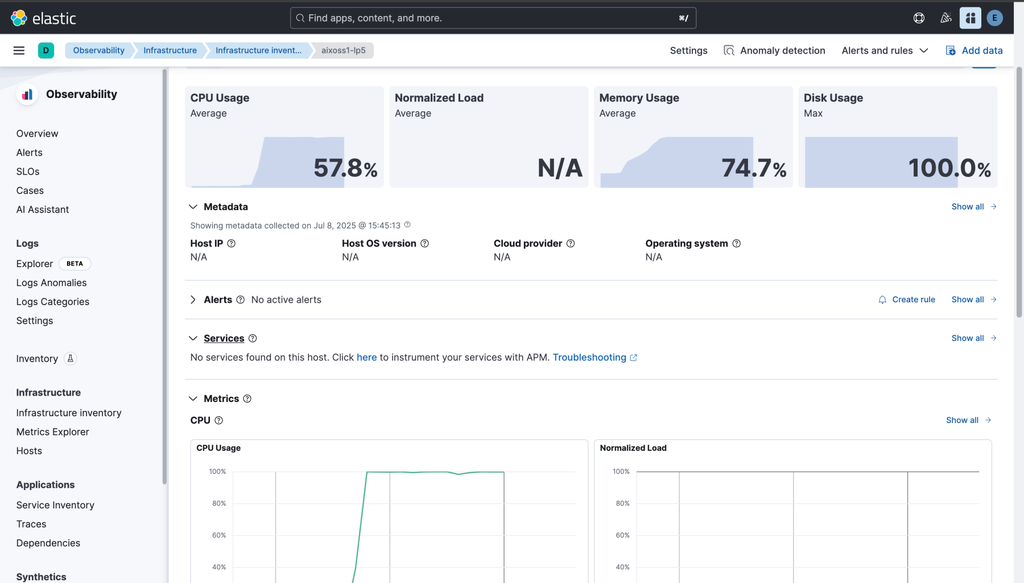

Sample metrics view from kibana

Filebeat—Log File Harvester

What it does: Reads and ships logs line by line.

Use case: Monitor logs like /var/syslog, app logs, and custom directories. Centralize logs from AIX servers into Linux-hosted Elasticsearch.

# cat filebeat.yml
filebeat.inputs:
- type: log
  enabled: true
  paths:
    - /tmp/testlog.log   # The file you want Filebeat to read

output.elasticsearch:
  hosts: ["https://<Your_IP_Address"]
  username: elastic
  password: <Your_password>
  ssl.verification_mode: none

logging.level: info
logging.to_files: true
logging.files:
  path: "/tmp/filebeat-logs"
  name: filebeat.log
  keepfiles: 3
  permissions: 0644

To run, use: filebeat -e -c filebeat.yml

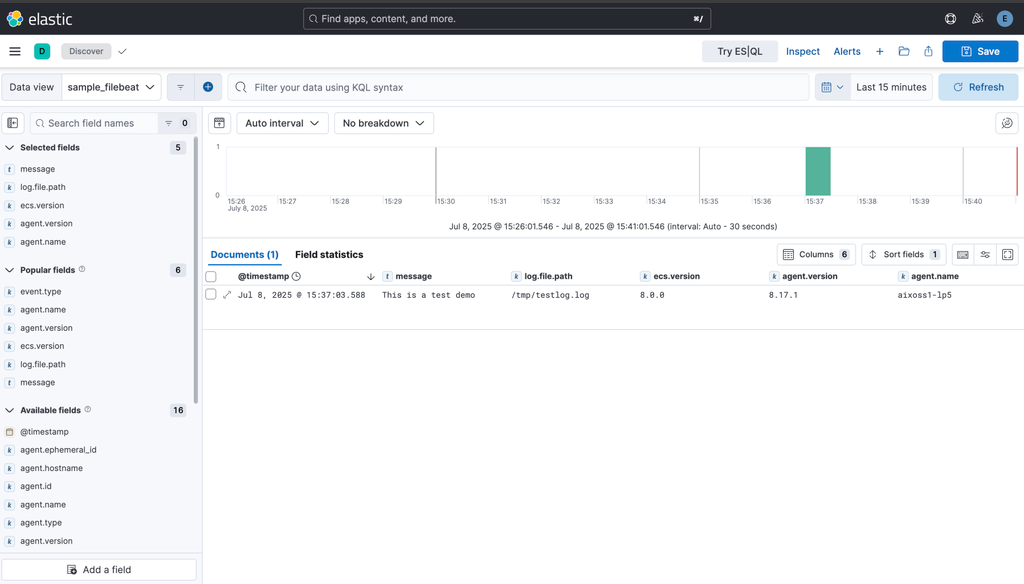

Sample filebeat beat view

Auditbeat - File integrity and Activity monitoring

What it does: Tracks file changes and user activity.

Use case: Track tampering with scripts, binaries, or cron jobs—useful for compliance and doing file/directory-level monitoring.

Sample YAML config file:

# cat auditbeat.yml
auditbeat.modules:
- module: file_integrity
  paths:
    - /tmp/testdir

output.elasticsearch:
  hosts: ["https://<Your_IP_Address"]
  username: elastic
  password: <Your_password>
  ssl.verification_mode: none

logging.level: debug
logging.to_files: true
logging.files:
  path: "/tmp/auditbeat-logs"
  name: auditbeat.log
  keepfiles: 3
  permissions: 0644

To run, use: auditbeat -e -c auditbeat.yml

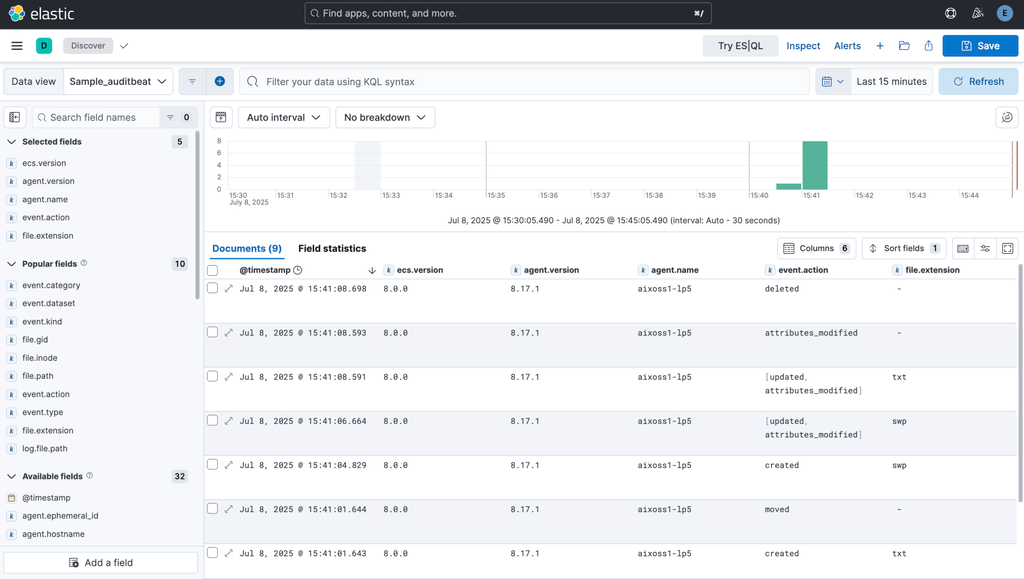

Sample audit beat view

Additional Information

Find more content about elastic Beats and each beat here.

Content about installing Kibana in Linux: https://www.elastic.co/docs/deploy-manage/deploy/self-managed/install-kibana.

Regards,
Toolbox team.


#AIXOpenSource
52 comments
242 views

Permalink

https://community.ibm.com/community/user/blogs/aditya-kamath/2025/07/14/monitor-aix-with-elastic-beats-observability-on-ai

Comments

Aditya Kamath
17 days ago

@Felipe Villagran

Please search for metricbeat versions ( Ex: metricbeat-8.17.1 or filebeat-8.17.1) in our patches URL linked below.
https://public.dhe.ibm.com/aix/freeSoftware/aixtoolbox/PATCHES/

And for how we build,, check the instructions in our SPEC file

https://public.dhe.ibm.com/aix/freeSoftware/aixtoolbox/SPECS/beats-9.3.1-1.spec

Felipe Villagran
20 days ago

@Aditya Kamath Thank you for your help.

Could you share the source code links for metricbeat and filebeat version 8 and 9 for AIX please. We would like to review them. Thank you very much.

Aditya Kamath
05/11/26 08:49 AM

@Rajiraj Noonhiyil and everyone looking for beats >=9.

It is available in AIX toolbox.

Aditya Kamath
04/17/26 09:46 AM

We have completed the build and test. Expect the release around the next 2 weeks.

Aditya Kamath
04/14/26 05:59 AM

@RAJIRAJ NOONHIYIL

You can expect it at the end of May. It is in our list. Will let you know once done.

Rajiraj Noonhiyil
04/13/26 06:12 AM

@Aditya Kamath , are there any updates on 9.X version of Beats? Please let me know

Alejandro Rojas
04/01/26 08:04 AM

@Aditya Kamath thank you so much for your answer, very helpful.

Aditya Kamath
04/01/26 02:36 AM

@Alejandro Rojas

In AIX we can manage Filebeat by registering it as an SRC subsystem, which gives us systemctl-like behaviour (for example, starting, stopping and restarting a service).

Here is how I am using it in my LPAR.

# mkssys \
  -s filebeat \
  -p /opt/freeware/bin/filebeat \
  -a "-e -c /home/beats/beats_bin/yml_files/filebeat.yml" \
  -u root \
  -S \
  -n 15 \
  -f 9 \
  -o /var/log/filebeat.out \
  -e /var/log/filebeat.err

# startsrc -s filebeat
0513-059 The filebeat Subsystem has been started. Subsystem PID is 31588774.

# lssrc    -s filebeat
Subsystem         Group            PID          Status
 filebeat                          31588774     active

# ps -ef | grep filebeat
    root 31588774  7864746   0 01:18:39      -  0:00 /opt/freeware/bin/filebeat -e -c /home/beats/beats_bin/yml_files/filebeat.yml

I hope this helps and answers.

I do not know if in Linux they ship filebeat with the systemd unit files. But in AIX we do not ship it with native SRC integration if Linux does so.

Article about SRC:

https://www.ibm.com/docs/en/aix/7.2.0?topic=s-startsrc-command

Aditya Kamath
04/01/26 02:01 AM

@Felipe Villagran

No. In AIX 7.1, we do not have a Go language compiler, I think. So we cannot port beats there.

Alejandro Rojas
03/31/26 11:31 AM

Great job, guys. Thanks for the effort. It's awesome to use this incredible tool with AIX.
Here is my question: Is there a way to configure the filebeat process to be managed with src? In a "systemctl" kind of way?

Felipe Villagran
03/24/26 10:33 AM

@Aditya Kamath Thank you for the update. Do you know if the current version is compatible with AIX 7.1 ?

Aditya Kamath
02/04/26 01:59 AM

@Felipe Villagran

Yes, we are working on updating beats for the update to yesterday's 9.3.0 release from the open-source community.

You can expect it around the last week of February.

Felipe Villagran
02/03/26 01:15 PM

Hi @Aditya Kamath, So far metricbeat is showing the right metrics no issues with that. Do you know if is possible to work in metricbeat version 9? We are facing issues with loadbalance config, in some point metricbeat stopped sending data to logstash. Thank your for your help @Aditya Kamath

Felipe Villagran
01/26/26 08:44 AM

Hi @Sirak Shiferaw,

You can add this configuration in metricbeat config file to remove the filesystem proc or whatever you need.

processors:
  - drop_event.when.regexp:
      system.filesystem.mount_point: '^/(sys|cgroup|proc|host|lib|snap)($|/)'

Sirak Shiferaw
01/23/26 12:02 PM

for some reason its still showing 0/s on diskio and i also cannot get rid of /proc filesystem, which is always shown as 100%

Aditya Kamath
01/22/26 10:32 PM

Yes, 8.17.1-4

Felipe Villagran
01/22/26 02:35 PM

Thank you @Aditya Kamath . Could you confirm the latest version please. I can see metricbeat-8.17.1-4.ppc.

Aditya Kamath
01/22/26 12:24 PM

@Felipe Villagran @Sirak Shiferaw

The newer update is available in Toolbox with the fix and disk statistics [how many bytes read and written]. Please check and let us know.

Aditya Kamath
01/14/26 04:43 AM

@Felipe Villagran @Sirak Shiferaw

Hi,

Thank you very much for your patience. There was a bug indeed leading to incorrect user space time spent. If we see the code here https://github.com/elastic/elastic-agent-system-metrics/blob/6ebac768d46c4d1d51f200977a8f9e7c09936320/metric/cpu/metrics_aix.go#L85

The tick2msec() is not used for user space time spent. So this caused the problem. In AIX using perfstat we need to convert ticks to milliseconds always. Otherwise it will go wrong.

If we see the outputs now in stress conditions, we get

 03:22:14  0       96       4       0       0    0.25
          1       95       5       0       0    0.25
          2       94       6       0       0    0.25
          3       95       5       0       0    0.25
          4       92       8       0       0    0.25
          5       93       7       0       0    0.25
          6       90      10       0       0    0.25
          7       96       4       0       0    0.25
          -       94       6       0       0    2.00

"system": {
    "cpu": {
      "iowait": {
        "norm": {
          "pct": 0.0013
        },
        "pct": 0.0105
      },
      "cores": 8,
      "total": {
        "norm": {
          "pct": 0.9896
        },
        "pct": 7.917
      },
      "user": {
        "pct": 7.1704,
        "norm": {
          "pct": 0.8963
        }
      },
      "system": {
        "pct": 0.7465,
        "norm": {
          "pct": 0.0933
        }
      },
      "idle": {
        "pct": 0.0725,
        "norm": {
          "pct": 0.0091
        }
      }
    }
  },

There will be a little bit of difference due to sampling timing and rounding of the beats and SAR commands trying to access the data in the kernel. We will release a version with the fixes and disk-I/O statistics as soon as possible, by this week or next one at max.

Aditya Kamath
01/12/26 11:27 PM

@Felipe Villagran

Thank you for your patience; we have found a workload to reproduce the issue.
Will check what happened when in stressful conditions. I can see user and system usage mismatched in metricbeat and vmstat.

Will get back about the CPU issue. We will release a 8.17.1-4 this week with diskio statistics.

# vmstat 1 5

System configuration: lcpu=8 mem=16384MB

kthr    memory              page              faults        cpu
----- ----------- ------------------------ ------------ -----------
 r  b   avm   fre  re  pi  po  fr   sr  cy  in   sy  cs us sy id wa
 0  0 1437401 649760   0   0   0   0    0   0 543 7196 1593  3  6 90  1
 0  0 1437161 650845   0   0   0   0    0   0 354 7522 1964  3  8 88  1
 1  0 1437203 651751   0   0   0   0    0   0 414 4788 1911  2  2 95  1
 0  0 1437207 648115   0   0   0   0    0   0 429 4976 2010  2  3 93  2
 0  0 1437210 648569   0   0   0   0    0   0 457 4278 1786  2  2 95  2
sar -P ALL 1 30
Average   0       17      15      13      55    0.29
          1        9       4       1      86    0.24
          2        5       2       1      92    0.23
          3        5       2       1      91    0.23
          4       17      15      12      57    0.29
          5       10       4       2      84    0.25
          6        5       2       0      93    0.23
          7        4       2       0      93    0.23
          -        9       6       4      80    2.00

 },
  "event": {
    "dataset": "system.cpu",
    "module": "system",
    "duration": 225000
  },
  "metricset": {
    "name": "cpu",
    "period": 5000
  },
  "service": {
    "type": "system"
  },
  "system": {
    "cpu": {
      "iowait": {
        "pct": 0.3351,
        "norm": {
          "pct": 0.0419
        }
      },
      "cores": 8,
      "total": {
        "pct": 1.6882,
        "norm": {
          "pct": 0.211
        }
      },
      "user": {
        "pct": 0.1108,
        "norm": {
          "pct": 0.0139
        }
      },
      "system": {
        "pct": 1.5774,
        "norm": {
          "pct": 0.1972
        }
      },
      "idle": {
        "norm": {
          "pct": 0.7471
        },
        "pct": 5.9767
      }
    }
  },

Felipe Villagran
01/09/26 11:49 AM

Hi @Aditya Kamath,

Thank you for your feedback. I have a concern regarding CPU metrics. Your example works perfectly because the server is under minimal load. However, when applying a stress test, the reported values seem inconsistent.

Please try the same test using the following command twice:

yes > /dev/null &
sar 1 5

In my case, the AIX server shows an average idle CPU of 43%, which means CPU utilization should be around 57%. However, Metricbeat reports only 20–21% utilization. The values for %usr, %sys, %wio, and %idle do not match.

Here is the output from sar:

System configuration: lcpu=8 ent=0.30 mode=Uncapped

11:44:20    %usr    %sys    %wio   %idle   physc   %entc
11:44:21      20      35       0      45    1.00   332.5
11:44:22      20      36       0      44    1.00   332.2
11:44:23      21      35       0      44    1.00   333.1
11:44:24      22      36       0      42    1.00   332.6
11:44:25      22      37       0      41    1.00   333.5

Average       21      36       0      43    1.00   332.7

Metricbeat JSON :

"system": {
      "cpu": {
        "cores": 8,
        "user": {
          "norm": {
            "pct": 0.0077
          },
          "pct": 0.0618
        },
        "system": {
          "norm": {
            "pct": 0.2008
          },
          "pct": 1.6061
        },
        "iowait": {
          "norm": {
            "pct": 0.0001
          },
          "pct": 0.0011
        },
        "total": {
          "norm": {
            "pct": 0.2085
          },
          "pct": 1.6679
        },
        "idle": {
          "norm": {
            "pct": 0.7914
          },
          "pct": 6.331
        }
      }
    },

Aditya Kamath
01/09/26 03:48 AM

@Sirak Shiferaw @Felipe Villagran

Hi,

Regarding disk I/O statistics, we have enabled the number of bytes read and written per disk as of now. See outputs below, and we will release a version sometime next week.
Please see the beats output and iostat -a output below. Unfortunately, in AIX we do not have read count and write count in the persfstat_disk_t data structure like Linux. We are exploring it with the tools team. In beats, data is expected in bytes, and in iostat, we get it in KB. Let us know if this is okay for you all for now.

"system": {
    "diskio": {
      "read": {
        "count": 0,
        "time": 0,
        "bytes": 70463971328
      },
      "write": {
        "bytes": 75301294080,
        "count": 0,
        "time": 0
      },
      "io": {
        "time": 2286846
      },
      "name": "hdisk2"
    }
  },
  "ecs": {
    "version": "8.0.0"
  }
}

# iostat -a

System configuration: lcpu=32 drives=5 ent=2.00 paths=4 vdisks=1 tapes=0

tty:      tin         tout    avg-cpu: % user % sys % idle % iowait physc % entc
          0.0         14.2                0.2   0.2   99.5      0.0   0.0    0.8

Vadapter:                  Kbps      tps     bkread    bkwrtn partition-id
vscsi0                      0.0      5.0        0.9       4.1            1

Disks:              % tm_act     Kbps      tps    Kb_read   Kb_wrtn
hdisk2                 0.1       6.6       0.5   68812472  73536420
hdisk0                 0.6      24.1       3.1   42310160  474931712
hdisk3                 0.5      12.5       1.0   14957340  254527116
hdisk1                 0.1       7.3       0.4   48513104  107552348


So I was analyzing the CPU statistics. We are unfortunately not able to reproduce the issue.

If we check the vmstat output and what Beats is giving, they are close enough. I also checked the code and we are returning what we get from the perfstat APIs.

Elastic raw pct fields are aggregate across cores, so they look large but are correct.

Is there any other way we can reproduce the issue that you have in your mind? We are trying our best to get the issue resolved for you but have not succeeded in reproducing it so far.

# vmstat 1 30

System configuration: lcpu=32 mem=16384MB ent=2.00

kthr    memory              page              faults              cpu
----- ----------- ------------------------ ------------ -----------------------
 r  b   avm   fre  re  pi  po  fr   sr  cy  in   sy  cs us sy id wa    pc    ec
 3  0 1295275 546252   0   0   0   0    0   0  72  569 259  0  1 99  0  0.03   1.6
 3  0 1295275 546250   0   0   0   0    0   0  55  362 331  0  0 99  0  0.03   1.4
 3  0 1295275 546250   0   0   0   0    0   0  63  142 251  0  0 99  0  0.02   1.2
 3  0 1295275 546250   0   0   0   0    0   0  61  617 267  0  1 99  0  0.03   1.4

"system": {
    "cpu": {
      "cores": 32,
      "total": {
        "pct": 0.9664,
        "norm": {
          "pct": 0.0302
        }
      },
      "user": {
        "pct": 0.0002,
        "norm": {
          "pct": 0
        }
      },
      "system": {
        "pct": 0.9662,
        "norm": {
          "pct": 0.0302
        }
      },
      "idle": {
        "pct": 31.0336,
        "norm": {
          "pct": 0.9698
        }
      },
      "iowait": {
        "norm": {
          "pct": 0
        },
        "pct": 0
      }
    }
  },

Aditya Kamath
01/06/26 08:54 AM

Thanks, @Felipe Villagran. I am looking into it.

Felipe Villagran
01/05/26 09:47 AM

Hi @Aditya Kamath , metricbeat is not capturing or calculate the right values for CPU utilization. Thank you very much for your help.

System configuration: lcpu=8 ent=0.30 mode=Uncapped

09:37:13    %usr    %sys    %wio   %idle   physc   %entc
09:37:14      19      33       0      48    1.00   333.0
09:37:15      20      36       0      44    1.00   332.9
09:37:16      18      32       0      50    1.00   332.2
09:37:17      21      36       0      43    1.00   332.9
09:37:18      18      32       0      51    1.00   332.0

Average       19      34       0      47    1.00   332.6

Field Value
event.dataset system.cpu
host.cpu.usage 0.208
metricset.name cpu
system.cpu.cores 8
system.cpu.idle.norm.pct 79.2%
system.cpu.idle.pct 633.4%
system.cpu.iowait.norm.pct 0%
system.cpu.iowait.pct 0.1%
system.cpu.system.norm.pct 20.1%
system.cpu.system.pct 160.5%
system.cpu.total.norm.pct 20.8%
system.cpu.total.pct 166.5%
system.cpu.user.norm.pct 0.8%
system.cpu.user.pct 6%

Aditya Kamath
01/05/26 08:13 AM

@Sirak Shiferaw

Thanks for confirming. We are currently developing diskio features as requested and also analyzing the CPU issue. Will get back in 2 to 3 days.

Thank you for your feedback so far.

Sirak Shiferaw
01/02/26 07:00 AM

Disk usage is fixed on 8.17-3 only problem was /proc was not excluded hence showing 100% on Disk Usage Max

Sirak Shiferaw
01/01/26 10:20 AM

on the lpar. use nmon and enter then press p to see the overall CPU usage,

or collective default monitoring topas command.


i am not sure how i can help you, or you can mail me directly and see the issue in real server

Aditya Kamath
01/01/26 05:32 AM

@Sirak Shiferaw

Regarding disk I/O and throughput. We can develop that and release a version 4 (8.17.1-4)for you. Give me a couple of days.

The next thing is about 2. Can you give me more information on what is happening with CPU information and how I can reproduce the issue.

Regarding 1: The hostname is sent as is and is not in my control. Let us wait for someone's response in the community.

Aditya Kamath
01/01/26 05:20 AM

@Sirak Shiferaw

Disk usage: we recently resolved that bug in 8.17.1-3.

Kindly let me know what your rpm -qa | grep metricbeat output is. If it is not the same, then kindly update. Otherwise, I need to look into this.

Atleast in our testing the numbers came correct. Please see below. Let me know if the filesystem numbers in the release mismatch.

# df -H

Filesystem                                        Size  Used Avail Use% Mounted on

/dev/hd4                                           30G   22G  8.7G  71% /

/dev/hd2                                           11G   10G  430M  96% /usr

/dev/hd9var                                       2.1G  1.6G  436M  79% /var

/dev/hd3                                          3.8G  209M  3.6G   6% /tmp

/dev/hd1                                           26G   24G  1.9G  93% /home

/dev/hd11admin                                    135M  390k  134M   1% /admin

/ahafs                                               -     -     0    - /aha

/dev/hd10opt                                       23G   22G  1.4G  95% /opt

/dev/livedump                                     269M  377k  269M   1% /var/adm/ras/livedump

9.18.2.83:/cst-storage/awx-exp/aix_multi_updater  322G  151G  172G  47% /tmp/patch

"system": {

    "filesystem": {

      "used": {

        "pct": 0.0556,

        "bytes": 208949248

      },

      "mount_point": "/tmp",

      "device_name": "/dev/hd3",

      "type": "jfs2",

      "total": 3758096384,

      "free": 3549147136,

      "available": 3549147136

    }

  },

"system": {

    "filesystem": {

      "used": {

        "bytes": 21366697984,

        "pct": 0.942

      },

      "mount_point": "/opt",

      "device_name": "/dev/hd10opt",

      "type": "jfs2",

      "total": 22682796032,

      "free": 1316098048,

      "available": 1316098048

    }

  },

Sirak Shiferaw
01/01/26 04:15 AM

ok thank you Aditya, i actually have a bunch

  1. hostname is small letter, not sure if i should raise this here or apm-java-agent, hence raised it on both https://github.com/elastic/apm-agent-java/issues/4347
  2. CPU information is not even close to reality nor topas (lpar) or nmon (accross pool usage)

on elastic metricbeat its alreays < 10%

3. Disk usage is not showing correctly every filesystem is 16%

there is no DiskIOPS and Disk Throughput metrics

i will be happy to assist with additional information if requried

regards

Aditya Kamath
01/01/26 02:24 AM

Hi @Sirak Shiferaw

You can contribute or tell us what the issue is. We will support.

We do have plans to make beats as supported in the community sometime this year. Until then, kindly use this post to raise issues or contribute, and we are happy to help/resolve issues in beats.

Sirak Shiferaw
12/24/25 04:27 AM

Dears, the metric collection is wrong, where do i contribute ? directly on elastic page or we have a different repository for aix porting ?

Sirak Shiferaw
12/17/25 07:47 AM

i just converted everything into a service and i don't have to worry about the requested parameter or change any os config, thank you all for the comment

mkssys \
  -s metricbeat \
  -p /opt/freeware/bin/metricbeat \
  -a "run --path.config=/opt/freeware/etc/metricbeat --path.data=/opt/freeware/var/lib/metricbeat --path.logs=/opt/freeware/var/log/metricbeat" \
  -u 0 \
  -S \
  -n 15 \
  -f 9 \
  -R \
  -G elastic

and start as a backgroud service with

lssrc -s metricbeat

startsrc -s metricbeat

Aditya Kamath
12/17/25 12:49 AM

@Sirak Shiferaw @Felipe Villagran

Kindly export PATH=/opt/freeware/bin:$PATH and then try. You may want to store it in .~/bashrc profile.

Felipe Villagran
12/16/25 01:09 PM

@Sirak Shiferaw Try with this command. It should work.

/opt/freeware/bin/metricbeat -e -c /opt/freeware/etc/metricbeat/metricbeat.yml

Sirak Shiferaw
12/16/25 01:01 PM

for some reason i need to run full command otherwise its not loading active module

./metricbeat run \
  --path.config=/opt/freeware/etc/metricbeat \
  --path.data=/opt/freeware/var/lib/metricbeat \
  --path.logs=/opt/freeware/var/log/metricbeat \
  -e

Aditya Kamath
12/04/25 08:41 AM

@Felipe Villagran
Update is available.

Felipe Villagran
12/03/25 02:26 PM

@Aditya Kamath Thank you very much for the update!

Aditya Kamath
12/03/25 08:34 AM

@Felipe Villagran
Wanted to inform you.
I have given beats 8.17.1-3 with the bug fixes and swap metrics addition to upload, which will be done by this Friday (5/12/2025) or the coming Monday (8/12/2025), after which do run dnf update.

Thanks.@Felipe Villagran

Aditya Kamath
11/20/25 01:06 AM

@Felipe Villagran

The numbers of the script match the beats output. So we are okay.

Thanks for the same. Expect the fix and SWAP metric in 8.17. 1 release 3 in coming weeks. [22 Nov - 30 Nov]

Felipe Villagran
11/19/25 09:31 AM

@Aditya Kamath Filesystem output looks good, for SWAP metrics this should be the output.

    "system": {
      "memory": {
        "actual": {
          "free": 19973455872,
          "used": {
            "bytes": 11295678464,
            "pct": 0.361
          }
        },
        "cached": 8370790400,
        "free": 1359364096,
        "swap": {
          "free": 3913539584,
          "total": 4244631552,
          "used": {
            "bytes": 331091968,
            "pct": 0.078
          }
        },
        "total": 31269134336,
        "used": {
          "bytes": 29909770240,
          "pct": 0.957
        }
      }
    }
I have this script to get the information in same format.
#!/bin/ksh
swap_info=$(lsps -s | tail -1)
total=$(echo $swap_info | awk '{print $1}' | sed 's/MB//')
used_pct=$(echo $swap_info | awk '{print $2}' | sed 's/%//')

# Convert to bytes
total_bytes=$((total * 1024 * 1024))
used_bytes=$((total_bytes * used_pct / 100))
free_bytes=$((total_bytes - used_bytes))

echo "{\"swap\": {\"total\": $total_bytes, \"free\": $free_bytes, \"used\": {\"bytes\": $used_bytes, \"pct\": $(echo "scale=3; $used_pct/100" | bc)}}}"
Thank you very much for your support.

Aditya Kamath
11/19/25 08:42 AM

@Felipe Villagran

Thank you very much for reporting this. Yes, we missed this in our test buckets.

I have quickly corrected the same. As a priority, we will release 8.17.1-3 next week. Please see the output named as corrected output below.

As a token of gratitude, we have also implemented the SWAP metrics on priority within beats to be released along the same version. Please see how the JSON will look in AIX in the output named Swap Metrics.


We want one confirmation so the requirement is clear. By swap metrics are you referring to the lsps -a or lsps -s output in AIX? If that is the one, then we have implemented the same and expect it next week. Else let us know.

Let me know. Once again, thank you for reporting the issue and using in beats in AIX.
========= Swap Metrics ==========
"system": {
    "memory": {
      "free": 6677639168,
      "actual": {
        "free": 33434894336,
        "used": {
          "pct": 0.2215,
          "bytes": 9514778624
        }
      },
      "swap": {
        "used": {
          "bytes": 94457856,
          "pct": 0.001
        },
        "free": 93857951744,
        "total": 93952409600
      },
========== Corrected output ==================


"system": {
    "filesystem": {
      "mount_point": "/opt",
      "device_name": "/dev/hd10opt",
      "type": "jfs2",
      "total": 22682796032,
      "free": 1201262592,
      "available": 1201262592,
      "used": {
        "pct": 0.947,
        "bytes": 21481533440
      }

 "system": {
    "filesystem": {
      "mount_point": "/home",
      "device_name": "/dev/hd1",
      "type": "jfs2",
      "total": 25098715136,
      "free": 1937272832,
      "available": 1937272832,
      "used": {
        "bytes": 23161442304,
        "pct": 0.9228
      }
    }
  },


# df -H
Filesystem                                        Size  Used Avail Use% Mounted on
/dev/hd4                                           30G   20G   11G  65% /
/dev/hd2                                           11G   10G  430M  96% /usr
/dev/hd9var                                       2.1G  1.2G  880M  57% /var
/dev/hd3                                          3.8G  195M  3.6G   6% /tmp
/dev/hd1                                           26G   24G  2.0G  93% /home
/dev/hd11admin                                    135M  390k  134M   1% /admin
/ahafs                                               -     -     0    - /aha
/dev/hd10opt                                       23G   22G  1.3G  95% /opt
/dev/livedump                                     269M  377k  269M   1% /var/adm/ras/livedump
9.18.2.83:/cst-storage/awx-exp/aix_multi_updater  322G  149G  174G  47% /tmp/patch

Felipe Villagran
11/18/25 05:04 PM

Hi @Aditya Kamath,

Now is showing same data for All the filesystem something was wrong with this new version. Please your help to fix this and add Swap metrics. We appreciate your support.

Disk/Filesystem    % Disk Used    Free Space    Total Space
/tmp    78.50%    275.7MB    1.3GB
/usr    78.50%    275.7MB    1.3GB
/var    78.50%    275.7MB    1.3GB

Aditya Kamath
11/14/25 12:19 PM

Hi @Felipe Villagran,

Yes, the fix is uploaded in toolbox. Kindly run dnf update metricbeat auditbeat filebeat.

Felipe Villagran
11/14/25 10:43 AM

Hi @Aditya Kamath , Do you have news about new releases? Please your comments. Thank you.

Aditya Kamath
10/27/25 02:23 AM

@Felipe Villagran,

Yes, it is possible to remove unsupported modules. I have removed the garble_macho_executable file from the release 2 RPM releasing this week. Thanks.

We will need some time to develop SWAP metrics. We will plan this and get back.

Felipe Villagran
10/24/25 09:29 AM

Hi @Aditya Kamath,

Thank you for your quick response.

We are currently in the testing phase and have noticed that the SWAP metrics are not being reported—only RAM metrics are visible, and SWAP data appears to be missing.

On another note, regarding Auditbeat, we had to remove the file_integrity module due to a potential threat detection. It seems this module is not compatible with AIX. Is it possible to exclude or remove unsupported modules from the AIX version of Auditbeat?

Details:

  • Path: /opt/freeware/share/auditbeat/module/file_integrity/testdata/garble_macho_executable
  • Threat Name: RDN/Generic.osx

Thank you in advance for your support.

Aditya Kamath
10/24/25 12:24 AM

@Felipe Villagran

We have made corrections in the metric beat code.

In the updated one, the mount point and device name will be shown correctly as below. Thank you for reaching out. Expect the fixed RPMS next week.

  "system": {
    "filesystem": {
      "free": 4633706496,
      "available": 4633706496,
      "used": {
        "pct": 0.8445,
        "bytes": 25162629120
      },
      "mount_point": "/tmp",
      "device_name": "/dev/hd3",
      "type": "jfs2",
      "total": 29796335616
    }
  },

Aditya Kamath
10/14/25 09:43 AM

@Felipe Villagran

Thank you for reaching out. We are analyzing. We will make it consistent in AIX and fix it in the metric beat code if that is the expected behavior. Will get back soon.

Felipe Villagran
10/13/25 03:49 PM

Hi everyone,

I'm using Metricbeat on AIX servers and noticed an unexpected behavior in the system.filesystem module.

When running df -h on AIX, the output correctly shows the logical volume and its mount point, for example:

Filesystem         Mounted on
/dev/defaultlv     /opt/default

However, the data sent by Metricbeat to Elasticsearch shows the fields inverted:

  • system.filesystem.device_name: /opt/default
  • system.filesystem.mount_point: /dev/defaultlv

This is inconsistent with how Metricbeat behaves on Linux, where:

  • device_name refers to the device (e.g., /dev/sda1)
  • mount_point refers to the mount path (e.g., /)

❓ Question

Has anyone else encountered this issue on AIX?
Is there a known workaround or fix for this behavior?
Could this be a bug in the AIX module of Metricbeat?

Any help or guidance would be greatly appreciated.

Thanks,
Felipe

Aditya Kamath
10/12/25 09:57 PM

@Todd Winkler

You can ask your questions here. Kindly go ahead.

Todd Winkler
10/10/25 10:10 AM

Who can help me with some questions on this software?
