 How do you reset the admin password on the power 6 8204-e8a

Jump to  Best Answer
Micah Whalen's profile image
Micah Whalen posted Wed December 31, 2025 12:15 AM

The documentation mentions the pin-hole button on the control panel. I pushed this and held it for a bit, but that didn't work. Also tried removing the TOD battery for 5 minutes. That didn't work either. Documentation mentions dip switches, but my model doesn't seem to have these. How can the password be reset?

Patrick Hügli's profile image
Patrick Hügli posted Fri January 02, 2026 01:49 AM  Best Answer

Hello,

from what i remember.

Power6 550. 8204-E8A. How to reset the ASMI admin password:
A. celogin from ASMI. request password from IBM support
B. DIP switch on MB
SINGLE SW1 dip switch on the mainboard, located between the Slot 1 Processor Book and the first PCI-e slot.
SW1 is micro SMD and hard to find. It’s covered by mylar (polyester film) and requires a very small tool to engage.

CHers Patrick

Micah Whalen's profile image
Micah Whalen posted Sun January 04, 2026 11:51 PM

Thank you Patrick. When I looked again I was doubtful, but then I remembered what you said about the Mylar… that was the ticket!

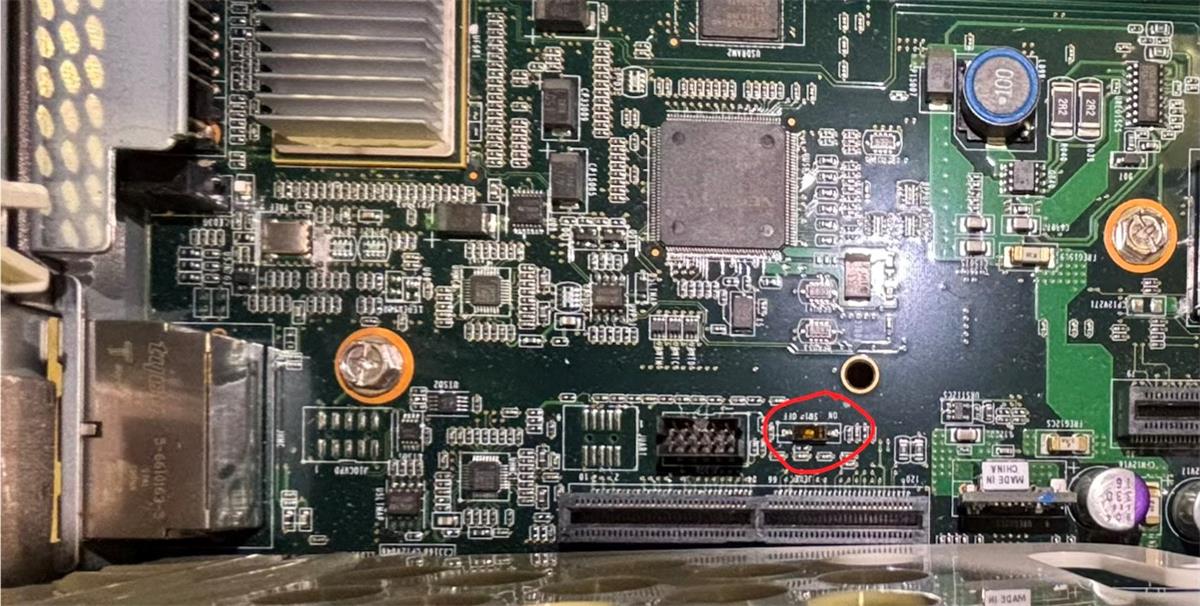

Backed off
Attachment  View in library
IMG_4264.jpeg 1.76 MB
