  • 1.  shutdown power10 error log led

    Posted Wed January 08, 2025 03:01 PM

    Hello, I have the error log LED on the Power10, I have already deleted the logs that are in the spool, but the LED does not turn off, without entering ASMI. How can I turn off this LED? Greetings.



    ------------------------------
    Miguel Peralta
    ------------------------------


  • 2.  RE: shutdown power10 error log led

    Posted Thu January 09, 2025 05:32 AM

    Hello @Miguel Peralta,

    You can login to hmc and there on the P10 server you can just turn on/off from a mouse click. You can switch the tab on and off with the mouse cursor.



    ------------------------------
    Rohit Chauhan
    Senior Technical Specialist
    Norway
    ------------------------------

    Original Message


  • 3.  RE: shutdown power10 error log led

    Posted Thu January 09, 2025 07:35 AM

    https://www.ibm.com/docs/en/power10?topic=dsalbuosvt-deactivating-indicator-light-by-using-i-operating-system

    or, as Rohit said

    https://www.ibm.com/docs/en/power10?topic=dlbuh-deactivating-system-attention-led-partition-led-by-using-hmc

    or:

    https://www.ibm.com/support/pages/how-turn-attention-light-ivm

    https://www.ibm.com/docs/en/power10?topic=indicators-turning-off-system-attention-indicator

    And for some older systems:

    https://www.ibm.com/support/pages/working-system-attention-led-ibm-power-systems

    Note:  for those of you where English is not your primary language, or where you want the information for other Power servers (ie Power 9), simply change the "en" in the url to your language and you figure out the Power level from the URL.  I had to do both on my google results.



    ------------------------------
    Robert Berendt IBMChampion
    Business Systems Analyst, Lead
    Dekko
    Fort Wayne
    ------------------------------

    Original Message


  • 4.  RE: shutdown power10 error log led

    Posted Thu January 09, 2025 09:56 AM

    Hello Miguel,



    For that you use the HMC



    Select the frame and under all actions there should be an option for deactivate error LED






    Original Message


  • 5.  RE: shutdown power10 error log led

    Posted Fri January 10, 2025 11:32 AM

    Thank you so much for the help.



    ------------------------------
    Stella Watts
    ------------------------------

    Original Message


  • 6.  RE: shutdown power10 error log led

    Posted Mon January 13, 2025 08:06 AM

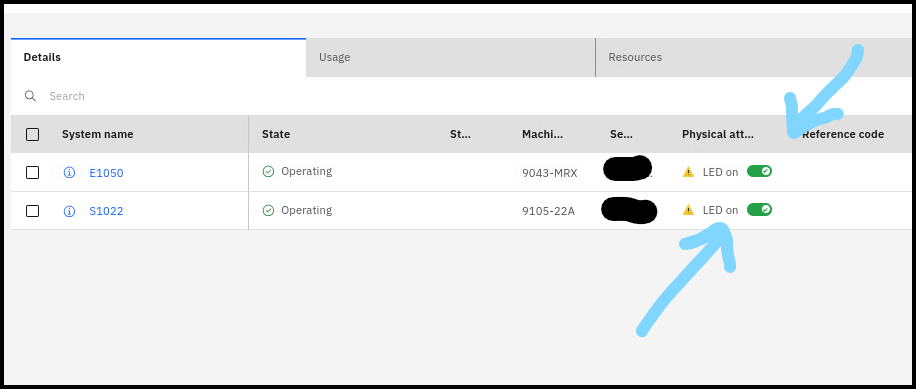

    This is easy to do from the HMC GUI ( see below )  - or I grabbed this about doing it from CLI as well ( so it can be automated  )

    The system attention LED can be disabled using the graphic user interface (GUI) service utility application, but it can be just as quickly done using the chled command. The managed system name is needed to run the chled command and the lssyscfg command can be used to retrieve all the managed systems names if you don't already know them.

    lssyscfg -r sys -F name

    Once you know the managed system name to use in the command line interface (CLI), check to see if the attention LED is active

    lsled -r sa -t phys -m <managed_system>

    Should see output similar to, "state=on."

    Use the chled command to turn off the system attention LED

    chled -r sa -t phys -m <managed_system> -o off

    To check the status of system attention LED you can use the lsled

    lsled -r sa -t phys -m <managed_system>

    Should see output, "state=off."

    For more information on using the chled or lsled commands use the man page command on the HMC.

    man chled
    man lsled


    ------------------------------
    Alan Fulton
    Follow me on Twitter - @The_Iron_Monger
    ------------------------------

    Original Message
