PAfE and (hidden) named ranges causing cell to cell navigation lag.

  • 1.  PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Wed March 11, 2026 11:07 AM

    Hi,

    We have had an ongoing persistent issue with PAfE, since the first release.

    This is the fact that (as I have been told) PAfE tests every named range as you navigate from cell to cell. Why it needs to do this is unknown to me.

    Back in Rebecca H's time we were able to get this test removed or at least be less impactful but after a year or so the problem was re-introduced.

    Taken in isolation this test shouldn't be too impactful but, across all our customers, around once a month we get a ticket where navigation around a workbook has become painfully slow.   Navigating from one cell to the next has a significant lag. This is always because the workbook contains thousands of (usually) hidden named ranges.

    I've just dealt with a case where a customer workbook had 60k hidden named ranges.  None of the customers have ever been able to establish where these names come from.

    Whilst taking on board the fact that the workbooks should never have this many hidden named ranges, the fact is that it does occur regularly given a large enough customer base.

    Shouldn't PAfE deal with these dirty excel books better?

    What is the named range test for, is it really required?  (Some of my reading suggests it might be inherited from the CA client)

    Can it be modified to skip over hidden named ranges?

    How many users of PAfE across the planet are suffering from this issue without realising it, damaging the reputation of the product?  To me this is the biggest problem, how many people are suffering silence?  If we see it regularly at the InfoCat level this suggests that the problem is widespread.

    (Also all the hidden names in the recent example had the text "wrn.allmatrix" in them, if anyone has any idea what might be creating them I would be grateful.  This isn't always the case, in fact I think this is the first time I have seen this specific text in the name.  Web / AI Searching gives a wide variety of conflicting views)

    Yours in frustration!



    ------------------------------
    Steven Rowe
    ------------------------------


  • 2.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Wed March 11, 2026 03:43 PM

    Hello Steven,

    Last week I helped a customer with exactly this problem. For him the culprits were (a couple of thousands):



    ------------------------------
    Wim Gielis
    Senior Consultant
    Aexis International
    Sint-Stevens-Woluwe
    +32496225001
    ------------------------------



  • 3.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Wed March 11, 2026 04:17 PM

    Steve,

    I have always believed these hidden range names originate from clients who have also used the OneStream Excel add-in on the same workbooks that they use with Planning Analytics.  It may not still happen and maybe the OneStream add-in does not generate all these hidden names anymore, but it did at a client with workbooks that were created prior to 2023 that were then just updated monthly using OneStream and PA add-ins, back and forth.

    I remember one workbook that had over 100,000 hidden names. I found the easiest way to clean it was to unzip the Excel file, and manually delete a huge section from the workbook.xml component using Notepad++. I deleted a section that corresponded to the 100,000 hidden named ranges. Needless to say, that probably broke whatever OneStream WAS doing in the workbook, but the workbooks behaved much better with PAfE afterwards. The client no longer used OneStream, so it was a welcome exorcism. Using VBA to clean the Excel file was just too slow.



    ------------------------------
    Walter Coffen
    Technology Manager
    QueBIT Consulting, LLC
    ------------------------------



  • 4.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Thu March 12, 2026 01:25 AM

    We have the same exact issue and had to build a small webpage using python/streamlit that allows a user to upload the file with hidden named ranges and then clears them and returns a clean version to the user. All users we work with have no idea where they have come from and when hidden they aren't even aware they exist.



    ------------------------------
    Robby Meyers
    ------------------------------



  • 5.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Thu March 12, 2026 01:51 AM

    Python is the way to go with books with a large number of issues like hidden named ranges.
    We use a combination of Streamlit and Openpyxl with pandas to summarize the book and then present options e.g. remove named ranges, styles etc.

    Much faster than VBA and have had issues where VBA just cannot sort out the issues due to errors and you end up editing the xlm files.

    In the old days, the SAP BEX addin was notorious for creating these named ranges but today maybe it is the SAP Analysis/SAP Analytics, Solver and Oracle's mySQL addin.

    Probably need to try identify the commonality across all these clients.



    ------------------------------
    George Tonkin
    Business Partner
    MCI Consultants
    Johannesburg
    ------------------------------



  • 6.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Thu March 12, 2026 07:02 AM

    Totally agree with you, Robby. We also have same issues with a user group, and they are not aware of how they got so many phantom name ranges in their file. Phantom name ranges move from file to file because of how Excel treats name ranges. When you move sheet from one book to another, all name ranges within the scope of the source sheets gets transferred to the target book, and it keeps on multiplying.

    I also thought of building on a solution, but since PAfE also creates name ranges (valid ones), you cannot just remove all name ranges. The trick is in finding which ones are safe to be deleted. Looks like you found it. Most of the times names(n).refersto = #NA or Null works, sometimes something else. How have you managed this in your solution?



    ------------------------------
    Subhash Kumar
    ------------------------------



  • 7.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Tue March 17, 2026 11:09 AM

    Hi,

    Just out of curiosity: Are you using openpyxl in that context, or...?

    We recently also ran into this issue again.

    I tested openpyxl to remove all hidden names, but unfortunately it does not support all Excel features. For example, Excel shapes are lost in the process.
    I also considered pywin32 and xlwings, but both rely on Excel under the hood, meaning you could run into Excel limitations again.

    I am currently using and testing a Python script that removes all hidden names directly from the underlying workbook.xml.
    Based on the limited testing performed so far, the results look good, and I have not encountered any Excel errors such as "We found a problem with some content... Do you want us to recover as much as we can?" when opening the file.

    Just sharing my experience...



    ------------------------------
    Herman Teeuwen
    Canon Production Printing
    ------------------------------



  • 8.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Tue March 17, 2026 12:08 PM

    HI Herman, I am using openpyxl and yes there are limitations on shapes and one or two other DrawingML objects and these may need to be copied over again after cleaning.

    Images, VBA etc. are all retained though.

    My initial goal was something that could analyze a workbook and show some stats about the book, the sheets etc. and then from there you could choose to do things like clean up all names, names resolving to errors, remove custom styles etc. etc.

    The project is in its infancy and very far from anywhere near complete. The below gives an idea of what it does currently:

    After cleaning up you can download the cleaned version with a new name. Original files should remain untouched.



    ------------------------------
    George Tonkin
    Business Partner
    MCI Consultants
    Johannesburg
    ------------------------------



  • 9.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Fri March 20, 2026 04:23 AM

    For PAfE reports managed by our TM1 Team, we will follow a Python-based approach to automatically remove hidden and broken names (via directly deleting these names from underlying workbook.xml).

    Our main concern is with end users who have PAfE reports that we cannot control; they might be experiencing performance issues without realizing the cause.

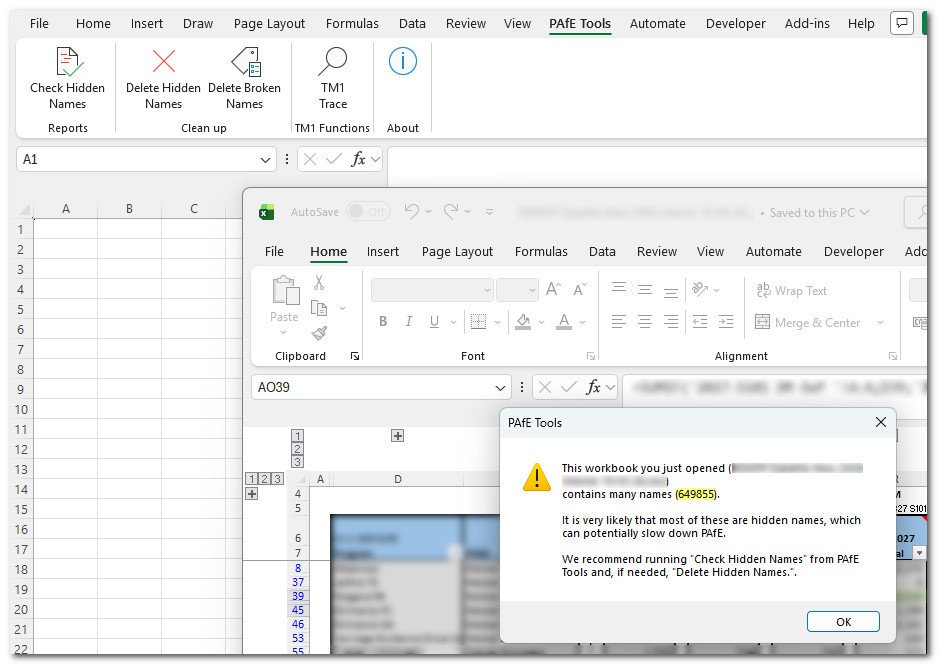

    For this reason, we have developed an Excel add-in that displays a message box when a workbook is opened if the total number of named cells exceeds a certain threshold (shown only once per Excel session).

    Retrieving the total number of named cells is very fast (a one-liner). For example, yesterday we encountered a workbook with 649,855 names, almost all of them hidden.

    As a next step, users can clean up these names. However, cleaning such a large number directly in Excel is not feasible, so we will provide an alternative solution based on the aforementioned Python approach.

    For smaller volumes (e.g., around 35,000 hidden names), we have tested the cleanup in Excel, and it works well.

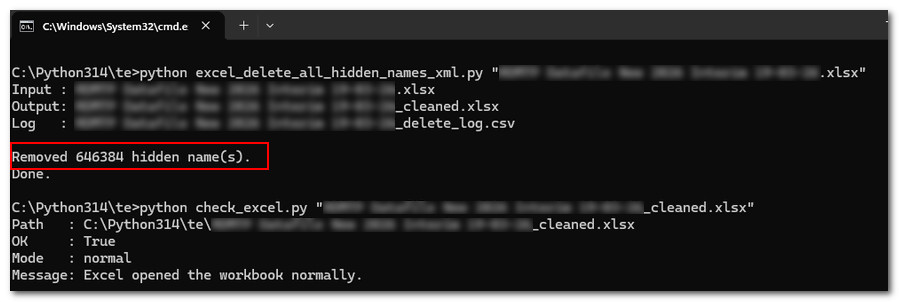

    Cleaning this file with Python took around 10 seconds:






    ------------------------------
    Herman Teeuwen
    Canon Production Printing
    ------------------------------



  • 10.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Fri March 13, 2026 06:39 AM

    Given the widespread and hidden nature of this problem is it something that IBM would be able to resolve?

    It is clear that it is impacting a lot of the user base and we are all finding our own way around the problem, it would be much better if IBM were to change the behaviour of PAfE.



    ------------------------------
    Steven Rowe
    ------------------------------



  • 11.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Fri March 13, 2026 07:59 AM

    +1 to that. Because Perspectives was not impacted by hidden name ranges, at least not as significant as PAfE.

    Users are complaining that the performance of the new tool (PAfE) has downgraded. It will be interesting to see what's IBM take on this.



    ------------------------------
    Subhash Kumar
    ------------------------------



  • 12.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Mon March 16, 2026 09:15 AM

    +1 to that....

    As Steven Rowe has rightly said, this issue is widespread and corrupts the reputation of Planning Analytics as a tool. The problem to address is twofold- firstly to help avoid the creation of unwanted/ random name ranges (whether tm1 at the root cause or not) and secondly to let Pafe performance be unaffected by the same. IBM must work with microsoft to address the same rather than have multiple users try different techniques to resolve on isolated workbooks....



    ------------------------------
    Rashi Singh
    ------------------------------



  • 13.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Fri March 13, 2026 10:45 AM

    As outlined in other posts, this behavior is typically caused by VBA code or other add‑ins that do not fully clean up after execution. PAfE relies on named ranges to understand and maintain the structure of reports such as Quick Reports and Universal Reports (static and dynamic). Because of this dependency, removing or avoiding named ranges is not a viable option without impacting core PAfE functionality.

    In the cases we've investigated, the underlying issue is the accumulation of a very large number of hidden named ranges. These can interfere both with PAfE's ability to locate the named ranges it needs and with overall Excel performance. This is not something we see across all Planning Analytics users, rather there is a consistent pattern where custom VBA scripts or other add‑ins create short lived named ranges but do not remove them once they are no longer required, allowing them to build up over time.

    From our perspective, addressing this by changing PAfE would effectively mean compensating for side effects introduced by external logic, rather than resolving the source of the behavior itself. The more sustainable and reliable approach is to improve script hygiene by explicitly deleting any temporary named ranges at the end of script execution.

    We've also observed that some long‑lived Perspectives workbooks have gradually accumulated a large number of named ranges without users being aware of it. Since Perspectives does not rely on named ranges in the same way as PAfE, this often only becomes noticeable when those workbooks are later used with PAfE.



    ------------------------------
    Xavier Osorio
    ------------------------------



  • 14.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Sun March 15, 2026 10:32 PM

    Xavier

    Putting aside hidden names, there always seem to end up being broken name references in workbooks. These alone can end up killing the performance of workbooks.

    If you are not going to change the way that PAfE is designed then perhaps at least have some sort of in built diagnostic which informs the user that there is a problem which impacts PAfE's performance. The invokation of that could be controlled by a setting .  2 cases it would test for 1)  #Ref cases 2) Hidden names

    That's can't be too hard

    John



    ------------------------------
    John O'Leary
    ------------------------------



  • 15.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Mon March 16, 2026 08:09 AM

    Hi Xavier,
    Thanks for responding.

    tl:dr Would it be possible to have an alert when a book is opened declaring that a book is "dirty"?

    I fully understand that the issue of the named ranges is not an issue of IBMs making and the main responsibility of fixing it should rest with the owner of the spreadsheets.
    That said
    A.  We have never been able to track down root cause of the issue and this has been echoed by many of the other posters on this thread.  Once a customer suffers from this issue, it nearly always comes back, post workbook clean.  Fixing root cause does not seem possible.
    B.  PAfE is a cornerstone of the PA Suite, there are almost definitely many people suffering in silence, causing reputational damage.
    C.  Just the logistics of trying to resolve the issue in the client rather than in the many, many spreadsheets out there, suggests that the PAfE is the most logical place to resolve the problem.

    In short it might not be IBMs responsibility but it is their and our problem.

    I understand that PAfE needs to keep track of the named ranges it uses but it does seem to do this "name survey" every time a new cell is selected.  Is the right work being done on the wrong event?

    Some thoughts on solutions (easy for me to say!).

    1.  An alert that pops up when there are more than 1,000 named ranges (hidden or otherwise) in a workbook, with a link to a webpage explain how to resolve.  The alert could pop-up when the workbook is first opened, rather than on every calculation pass.  This would at least give us an opportunity to actively manage the issue.

    2.  Skip over hidden named ranges in when surveying them.

    3.  When PAfE creates a named range, set the Comment property to "PAfE".  When testing named ranges only look at named ranges where the Comment = PAfE.

    What I suspect is any approach where we test a named range to see if it needs to be looked at, is just as expensive as looking at it in the first place. Once the named range count gets high there is no solution.

    =>  An alert on opening that the book is "dirty" would be very helpful.



    ------------------------------
    Steven Rowe
    ------------------------------



  • 16.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Mon March 16, 2026 12:52 PM

    You're a very convincing group 😊, and you're not wrong.

    You're absolutely correct that PAfE can end up taking the reputational hit for issues that originate well outside of its control. When something goes wrong in Excel, the add‑in is often the first thing blamed… even when Excel itself has been quietly collecting named ranges like it's a hobby.

    While this isn't strictly an IBM‑created problem, it is very much our shared problem, and we agree that ignoring it doesn't help anyone.

    Given the feedback in this thread, we are prepared to look into the idea of a startup warning when a workbook is opened. The goal would be to clearly indicate that the workbook may be "dirty," including surfacing the number of named ranges it contains. Triggering this once on open (instead of repeatedly during normal operations) would at least give users a fighting chance to manage the situation proactively , before Excel brings the party to a halt.

    In parallel, we'll also explore whether we can contribute to an open‑source, non‑IBM‑supported utility (likely Python‑based) that helps clean up these workbooks.

    No promises yet, but the feedback here is well‑reasoned, and hard to ignore. Keep it coming, just maybe don't add any more named ranges while we're talking



    ------------------------------
    Xavier Osorio
    ------------------------------



  • 17.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Mon March 16, 2026 01:40 PM

    Thanks for a very positive response X!

    I am happy to share what I have which does a lot of what is being asked for and happy if it is open sourced to refine it.



    ------------------------------
    George Tonkin
    Business Partner
    MCI Consultants
    Johannesburg
    ------------------------------



  • 18.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Tue March 17, 2026 06:51 AM

    Thanks X, that's great, much appreciated.



    ------------------------------
    Steven Rowe
    Technical Director
    InfoCat Ltd
    ------------------------------



  • 19.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Tue March 17, 2026 06:22 PM

    Xavier

    That would be a good approach. Something else that could be checked on open is whether there is a circular reference in the workbook. Unless something has recently been done to address issue, when PAfE DBRW functions contain arguments with circular references then the circular reference address provided by Excel is incorrect. The base question is why.

    I'm sure everyone on this thread would have developed methods to identify the true cause. I found the only way was to write some VBA code to check each cell in a workbook and where a DBRW exists then evaluate each argument to see if it is a circular reference.

    If the source of the problem cannot be addressed then beyond flagging the issue on open perhaps "In parallel, we'll also explore whether we can contribute to an open‑source, non‑IBM‑supported utility (likely Python‑based) that helps clean up these workbooks" this could be expanded to include something to identify the circular references.

    John



    ------------------------------
    John O'Leary
    ------------------------------



  • 20.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted 28 days ago

    Hey everyone,

    First off, thanks for all your feedback and suggestions, you all have been awesome! Your input really helps us make Planning Analytics for Excel better for everyone.

    We understand that 3rd party created named ranges really affect our performance, and we heard your suggestions.

    Starting with versions 3.1.8 and 2.2.21, you'll get a heads-up warning if your workbook has more than 1,000 named ranges or more than 1,000 Styles. This version will be released sometime in May 2026.

    What To Do If You See the Warning

    - Take a look at your named ranges

    - Clean out any you're not using anymore

    - See if you can combine some that are similar

    - Your workbook will thank you with better performance!

    We really appreciate you taking the time to share your experiences and ideas , it makes a real difference!

    Xavier



    ------------------------------
    Xavier Osorio
    Planning Analytics
    Senior Product Manager
    IBM
    ------------------------------



  • 21.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted 27 days ago

    Thanks X - this is great news and will certainly go a long way in alleviating some of the issues faced by customers.

    Do you perhaps know if named ranges or styles that are in error e.g. #REF! or linked to unknown/unreachable sources take longer to evaluate/parse than valid ones?

    Thinking that may an enhancement to the new feature may be a callout that there are invalid named ranges/styles, and these should be addressed whether or not there is 1 or more than 1000.



    ------------------------------
    George Tonkin
    Business Partner
    MCI Consultants
    Johannesburg
    ------------------------------



  • 22.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted 27 days ago

    George, it is a count, if > 1000 of either users will get a message.



    ------------------------------
    Xavier Osorio
    Planning Analytics
    Senior Product Manager
    IBM
    ------------------------------



  • 23.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted 27 days ago

    Have been wondering the same thing, George.  Dealing with an upgrade and the Perspectives to PAfE is causing more than a few headaches.



    ------------------------------
    Ty Cardin
    ------------------------------



  • 24.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted 27 days ago

    That's a great news X, thanks a lot for taking this up so soon. I do agree with @George Tonkin, this small step will go long way in helping the customers on this issue.

    Referring to the points made by John on Circular References - when there are such references in a file, the cells are stuck at RECALC message and users have no idea what to do next which is annoying. While Microsoft Excel does offer a way to investigate it, it will be great to notify that part as well somehow. Please do assess that point as well.

    I want to send my gratitude towards your spirit in acknowledging this issue which is not created by IBM in the first place. Thanks a lot!

    I am wondering how can speak to Microsoft and convince them to consider fixing this natively in the product rather than people building add-ons.

    Cheers,

    Subhash



    ------------------------------
    Subhash Kumar
    ------------------------------



  • 25.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Fri March 13, 2026 08:00 AM

    Hi all,

    Just to confirm we have also seen this problem and also to confirm that VBA is too slow at removing the hidden named ranges.

    Hopefully IBM can address this issue.

    regards,

    Mark



    ------------------------------
    Mark Wragg
    ------------------------------



  • 26.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Fri March 20, 2026 09:11 AM

    Hi Mark,

    Yes, I noticed recently that I need to log in to the Community.

    Let us investigate if PA Community could be with public access again.

    Best regards,



    ------------------------------
    Svetlana Pestsova
    IBM Planning Analytics Product Manager
    ------------------------------



  • 27.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Fri March 20, 2026 04:35 AM

    I was going to suggest this thread to customers as a useful resource to get ideas on how to deal with this problem until IBM provide some sort of solution but it appears that IBM have now locked down the site to members only, which seems to get away from the spirit of the internet! I am sure the early pioneers of the internet will be spinning in their graves! - apologies if they are still alive :)



    ------------------------------
    Mark Wragg
    ------------------------------



  • 28.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Mon March 23, 2026 11:19 AM

    Hi Mark,

    The connection is resolved.

    Non-members should se the content of the threads and posts.

    Best regards,



    ------------------------------
    Svetlana Pestsova
    IBM Planning Analytics Product Manager
    ------------------------------



  • 29.  RE: PAfE and (hidden) named ranges causing cell to cell navigation lag.

    Posted Mon March 23, 2026 11:54 AM

    Excellent, cheers Svetlana!



    ------------------------------
    Mark Wragg
    ------------------------------
