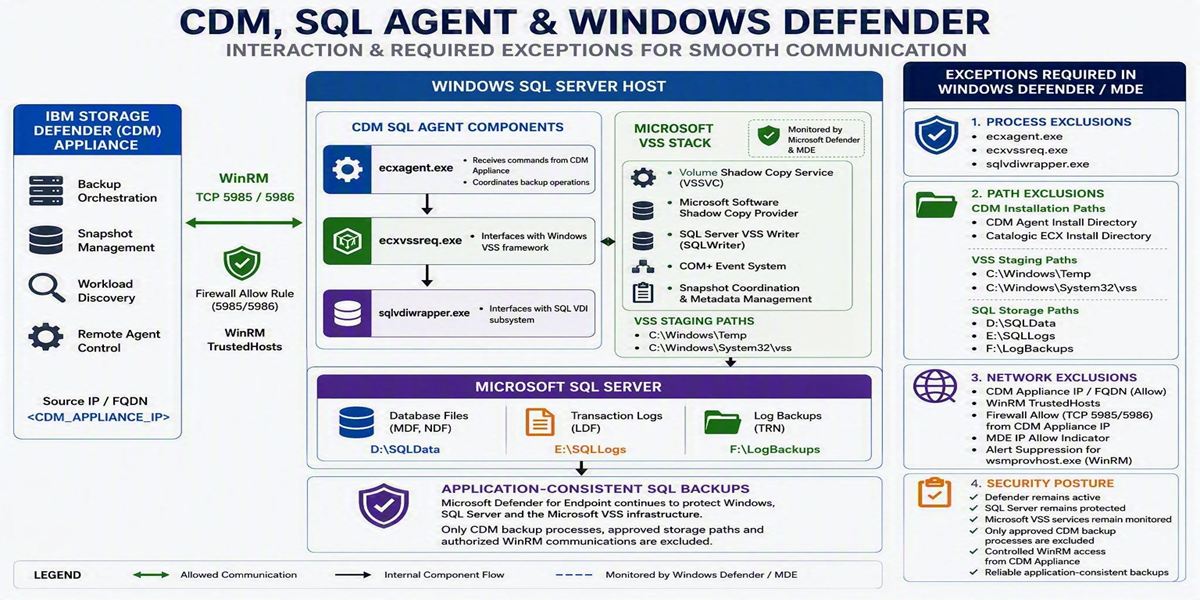

This blog discusses the nuances when making IBM Storage Defender Copy Data management (CDM) work with its MS SQL Agent installed on Windows Server configured with Microsoft Windows Defender.

• Microsoft Defender Antivirus is a built-in security program by Microsoft that protects Windows from viruses and malware.
• Microsoft Defender for Endpoint is an enterprise endpoint-security platform that includes broader protection, detection, investigation, response, and centralized management capabilities.
• IBM Defender Copy Data Management is enterprise software for controlling, automating, and reusing copies of data.

Root Cause Summary

Microsoft Defender Antivirus flags CDM agent components because they:

• Inject into the VSS/VDI subsystem at a low level (similar to rootkit-like behaviour from Defender's heuristic engine)
• Create transient named pipes and COM objects for VDI coordination
• Establish WinRM sessions originating from a non-domain or external IP (the CDM appliance)
• Write/read large binary streams rapidly to/from SQL VSS shadow copies

Remediation

1. Process Exclusions — ecxagent.exe and sqlvdiwrapper.exe

Add these as Process exclusions (not just path exclusions) in Microsoft Defender Antivirus. Process exclusions suppress scanning of all file I/O initiated by the process.

Via PowerShell (run as Administrator on each SQL Server host):

# CDM Agent process exclusions

Add-MpPreference -ExclusionProcess "ecxagent.exe"

Add-MpPreference -ExclusionProcess "sqlvdiwrapper.exe"

Add-MpPreference -ExclusionProcess “ecxvssreq.exe”

# Also exclude the full paths if the binaries are in a fixed location (adjust path as needed)

Add-MpPreference -ExclusionPath "C:\Program Files\IBM\IBM Storage Defender Copy Data Management"

Add-MpPreference -ExclusionPath "C:\Program Files\Catalogic Software\ECX"

# Confirm

Get-MpPreference | Select-Object -ExpandProperty ExclusionProcess

Get-MpPreference | Select-Object -ExpandProperty ExclusionPath

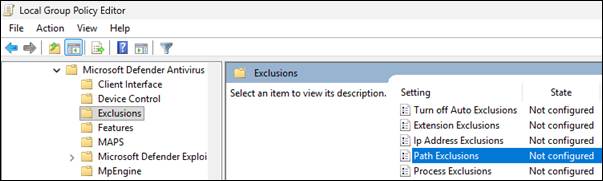

Alternately, via Group Policy (gpedit):

Computer Configuration → Administrative Templates → Windows Components → Microsoft Defender Antivirus → Exclusions

o   Process Exclusions: ecxagent.exe, sqlvdiwrapper.exe

o   Path Exclusions: full install directory of the CDM agent

2. SQL VDI & VSS Related Path Exclusions

sqlvdiwrapper.exe works through the SQL Server VDI (Virtual Device Interface) and creates shadow copies. Defender often flags the temp/staging areas used during this operation.

   # SQL VDI temp and staging paths (adjust volume letters as appropriate)

    Add-MpPreference -ExclusionPath "C:\Windows\Temp" # VDI uses temp named pipes here

    Add-MpPreference -ExclusionPath "C:\Windows\System32\vss" # VSS writer staging

    Add-MpPreference -ExclusionPath "C:\Windows\System32\drivers\etc"

   # SQL Server data/log directories (adapt to your SQL instance paths)

    Add-MpPreference -ExclusionPath "D:\SQLData" #Path to MDF

    Add-MpPreference -ExclusionPath "E:\SQLLogs" #Path to MDF

    Add-MpPreference -ExclusionPath "F:\LogBackups" #Path to log *.trn

Important: Microsoft's own SQL Server best-practice guidance recommends excluding SQL data/log/log backup directories from real-time AV scanning. See [Microsoft's SQL Server AV exclusion KB article] (https://learn.microsoft.com/en-us/troubleshoot/sql/database-engine/security/antivirus-and-sql-server).

3. WinRM Session Exclusions — CDM Appliance IP

Microsoft Defender Antivirus (via Windows Defender Firewall + ATP sensor, if enabled) may flag WinRM connections from the CDM appliance because:

• The source IP is an appliance outside the domain trust
• WinRM over HTTP (port 5985) or HTTPS (5986) from a non-domain source triggers lateral movement heuristic.

Recommended mitigations:

  a) Add the CDM Appliance to WinRM TrustedHosts

    # Replace <CDM_APPLIANCE_IP> with your actual CDM appliance IP or FQDN

     Set-Item WSMan:\localhost\Client\TrustedHosts -Value "<CDM_APPLIANCE_IP>" -Force

    # Verify

     Get-Item WSMan:\localhost\Client\TrustedHosts

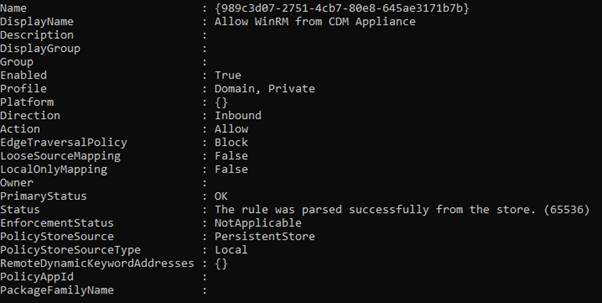

   b) Windows Defender Firewall — Allow Inbound WinRM from CDM Appliance only

      # Scope WinRM inbound rule to CDM appliance IPs only (replaces "any" source)

       New-NetFirewallRule

        -DisplayName "Allow WinRM from CDM Appliance"

        -Direction Inbound `

        -Protocol TCP `

       -LocalPort 5985,5986 `

       -RemoteAddress "<CDM_APPLIANCE_IP>" `

       -Action Allow `

      -Profile Domain,Private

    # Optionally restrict the existing broad WinRM rule

     Set-NetFirewallRule -DisplayName "Windows Remote Management (HTTP-In)" -RemoteAddress "<CDM_APPLIANCE_IP>"

c) If Microsoft Defender for Endpoint (MDE/ATP) is active - Add IOC Exclusion

If you're running the full Microsoft Defender for Endpoint stack (not just the built-in Microsoft Defender AV), the WinRM alerts come from the EDR sensor. You need to suppress those via the MDE portal:

•     Microsoft 365 Defender Portal → Settings → Endpoints → Indicators → IP addresses
•     Add the CDM appliance IP as an Allow indicator
•     Add a suppression rule under Alerts → Suppression Rules scoped to the CDM IP + WinRM process (wsmprovhost.exe)

4. Summary Exclusion Checklist

Verification After Applying Exclusions

  # Confirm all exclusions are in effect

  Get-MpPreference | Select-Object ExclusionProcess, ExclusionPath, ExclusionIpAddress

  # Confirm no active quarantine events for CDM processes

  Get-MpThreatDetection | Where-Object { $_.Resources -match "ecxagent|sqlvdi" }

  # Check WinRM trusted hosts

   winrm get winrm/config/client

After applying these exclusions, trigger a test CDM backup job and monitor Microsoft Defender Antivirus → Protection History to confirm no new alerts are generated for the CDM agent processes or WinRM sessions.
