1. Customer Challenge: Why BYOM is Relevant

Organizations face critical challenges when deploying custom AI models in sovereign environments:

1.1. Sovereignty and Data Residency Requirements

·       Challenge: Regulated industries (government, defense, healthcare, financial services etc.) cannot send sensitive data or proprietary models to external cloud providers or hyperscalers

·       Impact: Organizations are forced to choose between AI innovation and compliance, often abandoning advanced AI capabilities to maintain sovereignty

·       Pain Point: "We have custom models trained on sensitive data, but we can't deploy them on public clouds due to regulatory constraints"

1.2. Model Intellectual Property Protection

·       Challenge: Custom models represent significant R&D investment and competitive advantage that must be protected

·       Impact: Organizations hesitate to deploy proprietary models on platforms where they lack complete control over model access, storage, and execution

·       Pain Point: "Our models are our competitive differentiator—we need absolute control over who can access them and where they run"

1.3. Infrastructure Complexity and Operational Burden

·       Challenge: Deploying and managing AI inference infrastructure requires specialized expertise in Kubernetes, GPU management, model serving frameworks, and observability

·       Impact: Data science teams spend more time on infrastructure than on model development and improvement

·       Pain Point: "We have great models but lack the infrastructure expertise to deploy them reliably at scale"

1.4. Lack of Standardization

·       Challenge: Each model deployment requires custom integration work, making it difficult to manage multiple models consistently

·       Impact: Fragmented tooling, inconsistent APIs, and operational complexity across different model types

·       Pain Point: "Every model we deploy requires different infrastructure, APIs, and monitoring—we need standardization"

1.5. Compliance and Auditability Gaps

·       Challenge: Proving compliance requires complete audit trails, access controls, and evidence that models and data never leave sovereign boundaries

·       Impact: Manual compliance processes are error-prone and time-consuming, creating risk and operational overhead

·       Pain Point: "We need to prove to auditors that our models and inference data never leave our jurisdiction"

2. Solution Overview

What the Solution Enables:

The BYOM capability within IBM Sovereign Core's AI Inference Service provides a sovereign, managed platform for deploying custom AI models with the following capabilities:

For Service Providers (MSP):

·       Model Onboarding: Upload and register own containerized models (ModelCars) within the sovereign boundary

·       Automated Model Deployment: Orchestrate model deployment to shared or dedicated inference infrastructure with GPU support

·       Multi-Tenant Isolation: Ensure complete logical isolation between models and tetant inference workloads

·       Unified Management: Manage all the custom models through a single control plane

·       Model Lifecycle Control: Manage model versions, updates, and retirement independently

For Tenants (Application Developers):

·       Self-Service Model Access: Configure inference for the custom models without infrastructure concerns

·       OpenAI-Compatible API: Access custom models through the same standardized API used for foundation models

·       Transparent Usage Tracking: Monitor token consumption and costs for custom model inference

How It Directly Addresses the Challenge

Sovereignty Guarantee

·       Solution: All models, inference data, and operations remain within the sovereign boundary

·       Mechanism:

·            Models uploaded through secure Landing Zone into sovereign Quay registry

·            Inference execution on MSP-managed clusters within jurisdiction

·            No external dependencies or data egress

·       Outcome: Organizations maintain complete control and compliance with local regulations

Intellectual Property Protection

·       Solution: Tenant-owned inference services are isolated and access-controlled at multiple layers

·       Mechanism:

·            API Key-based authentication with tenant identification

·           Model Gateway enforces tenant isolation for all inference requests

·           Audit logs track all model access and usage

·       Outcome: Models access remain under tenant control

Simplified Infrastructure Management

·       Solution: Platform handles all infrastructure complexity automatically

·       Mechanism:

·           Automated model serving infrastructure provisioning via operators

·           GPU resource allocation and scaling managed by platform

·           Built-in observability, monitoring, and alerting

·           Standardized deployment through ModelDeployment CRs

·       Outcome: Data science teams focus on models, not infrastructure

API Standardization

·       Solution: All models—foundation or custom—use identical OpenAI-compatible APIs

·       Mechanism:

·           Model Gateway provides unified `/v1/chat/completions` and `/v1/embeddings` endpoints

·           Consistent authentication, request/response formats, and error handling

·           Same client libraries work across all model types

·       Outcome: Simplified application integration and reduced development time

Built-In Compliance and Auditability

·       Solution: Platform provides comprehensive audit trails and compliance evidence

·       Mechanism:

·           All model uploads, deployments, and inference requests logged with tenant context

·           Cryptographic proofs of data residency and sovereignty

·           Integration with platform-wide compliance posture services

·           Automated SBOM generation for deployed models

·       Outcome: Continuous compliance with audit-ready evidence

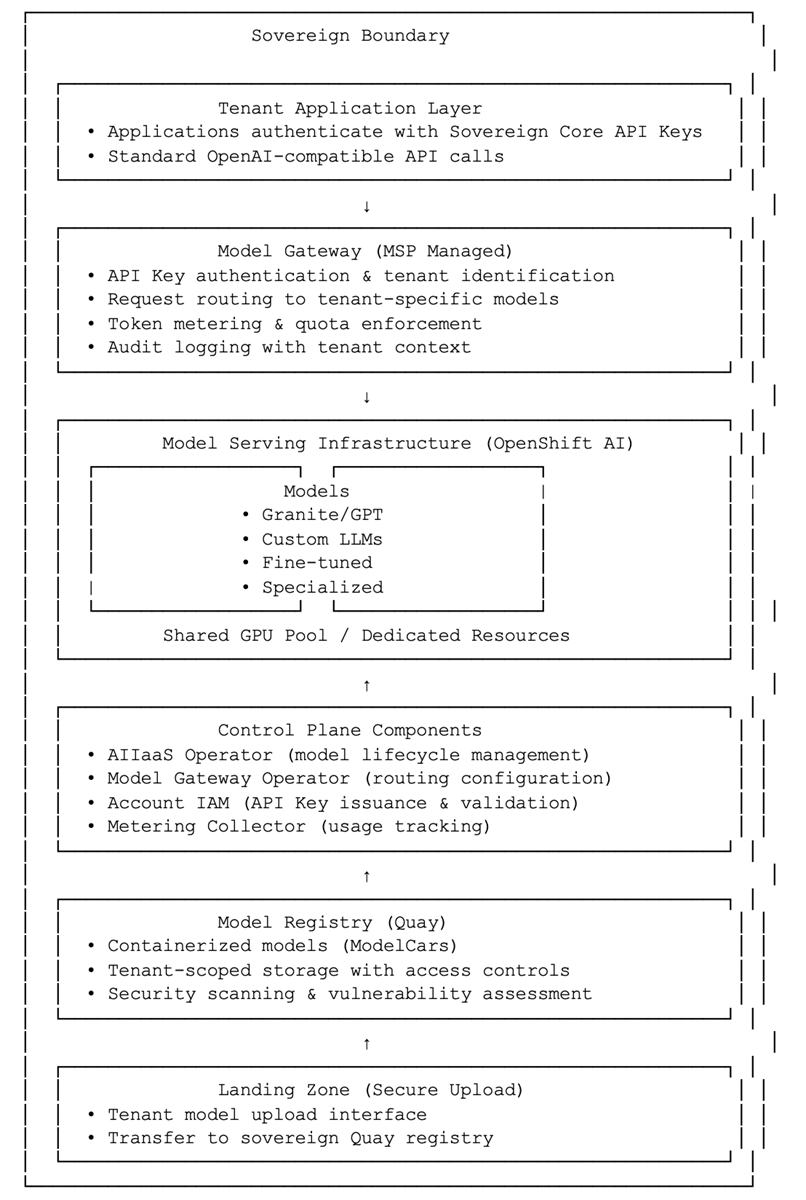

High-Level Components

The BYOM solution architecture consists of the following key components:

How Data, Control, and Execution Are Handled

Data Flow:

1.     Model Upload: MSP uploads containerised model (ModelCar) through Landing Zone

2.     Model Storage: Model transferred to sovereign Quay registry with tenant-scoped access controls

3.     Model Deployment: AIIaaS Operator deploys model to inference infrastructure within sovereign boundary

4.     Inference Request: Application sends request with API Key to Model Gateway

5.     Request Routing: Model Gateway authenticates, identifies tenant, and routes to appropriate model

6.     Inference Execution: Model processes request on GPU infrastructure, returns response

7.     Usage Metering: Token consumption tracked and recorded for billing

Key Principle: All data—models, inference inputs, outputs, and metadata—remains within the sovereign boundary at all times.

Control Flow:

1.     MSP Control: MSP control their own model lifecycle (upload, deploy, update, retire)

2.     MSP Control: MSP controls infrastructure, resource allocation, and platform operations

3.  Platform Control: Automated operators manage deployment orchestration and configuration

4.  Access Control: RBAC and API Key authentication enforce tenant isolation

5.  Compliance Control: Platform-wide policies ensure sovereignty and regulatory compliance

Execution Flow:

1.  Model Serving: OpenShift AI Model Serving (KServe/ModelMesh) handles model execution

2.  Resource Allocation: Kubernetes scheduler assigns GPU resources based on model requirements

3.  Auto-Scaling: Platform automatically scales model replicas based on load

4.  Load Balancing: Model Gateway distributes requests across model instances

5.  Fault Tolerance: Platform handles failures with automatic restarts and health checks

Key Outcomes for Customers

Accelerated AI Adoption

·       Outcome: Deploy custom models in hours instead of weeks

·       Metric: Reduction in time-to-production for custom models

·       Value: Faster innovation cycles and competitive advantage

Maintained Sovereignty and Compliance

·       Outcome: Complete confidence in regulatory compliance

·       Metric: 100% of model operations within sovereign boundary with audit trails

·       Value: Risk mitigation and regulatory peace of mind

Reduced Operational Complexity

·       Outcome: Data science teams focus on models, not infrastructure

·       Metric: 80% reduction in infrastructure management overhead

·       Value: Increased productivity and reduced operational costs

Cost Optimization

·       Outcome: Efficient resource utilization through shared infrastructure

·       Metric: 60% cost reduction compared to dedicated infrastructure per model

·       Value: Better ROI on AI investments

Standardized Integration

·       Outcome: Consistent API across all models simplifies application development

·       Metric: Single integration pattern for unlimited models

·       Value: Reduced development time and maintenance burden

3. Sovereignty & Customer Value

How Customer Data Stays in the Boundary

The BYOM capability ensures complete data sovereignty through multiple architectural layers:

Model Containment

·       Mechanism: All models uploaded through secure Landing Zone

·       Storage: Models stored exclusively in sovereign Quay registry

·       Deployment: Models deployed only to clusters within sovereign boundary

·       Evidence: Container registry audit logs show no external transfers

Inference Data Isolation

·       Mechanism: All inference requests processed within sovereign infrastructure

·       Network: No external network connectivity from model serving infrastructure

·       Processing: GPU compute resources located within jurisdiction

·       Evidence: Network flow logs demonstrate no data egress

Metadata and Telemetry

·       Mechanism: All observability data retained within sovereign boundary

·       Storage: Logs, metrics, and traces stored in local observability stack

·       Analysis: Monitoring and alerting performed by local systems

·       Evidence: Observability data residency reports

Cryptographic Proofs

·       Mechanism: Geofencing and cryptographic attestation

·       Implementation: Hardware-backed attestation of compute location

·       Validation: Regular cryptographic proofs of data residency

·       Evidence: Attestation reports for compliance audits

How Compliance is Enforced and Proven

Enforcement Mechanisms

1. Access Control

·       RBAC: Role-based access control at platform, namespace, and resource levels

·       API Keys: Mandatory authentication for all inference requests

·       Tenant Isolation: Logical separation enforced by Model Gateway

·       Network Policies: Kubernetes network policies prevent cross-tenant communication

2. Data Residency

·       Geofencing: Infrastructure provisioned only in approved jurisdictions

·       Registry Controls: Quay registry configured to prevent external replication

·       Backup Policies: All backups remain within sovereign boundary

·       Disaster Recovery: DR sites located within same jurisdiction

3. Operational Controls

·       Admin Access: Limited to local administrators with jurisdiction-specific credentials

·       Identity Management: Integration with local IdPs (no external identity providers)

·       Secrets Management: Vault deployed within boundary for key management

·       Encryption: In-transit (TLS) and at-rest encryption with local key management

Visibility and Audit Capabilities

1. Comprehensive Audit Logging

Audit Events Captured:
  - Inference Requests: Tenant ID, model ID, timestamp, token count
  - API Key Usage: Authentication events, authorization decisions
  - Configuration Changes: All operator and CR modifications

2. Real-Time Monitoring

·       Dashboard: Unified view of all model status and health

·       Alerts: Set budget alerts for usage limits

·       Metrics: Token consumption, latency, error rates per tenant and model

·       Traces: Distributed tracing for request flow analysis

3. Compliance Reporting

·       Automated Reports: Daily/weekly/monthly compliance posture reports

·       Evidence Collection: Automated gathering of compliance artifacts

·       Audit Trails: Immutable logs for regulatory audits

·       Attestation: Cryptographic proofs of sovereignty compliance

4. Security Scanning

·       Container Scanning: All ModelCars scanned for vulnerabilities before deployment

·       SBOM Generation: Software Bill of Materials for every deployed model

·       Compliance Posture: Integration with platform-wide security services

Efficiency Gains

1. Operational Efficiency

·       Before BYOM: Manual infrastructure setup, custom deployment scripts, fragmented monitoring

·       With BYOM: Automated deployment, standardized operations, unified observability

·       Gain: Overall reduction in operational overhead

·       Example: Model deployment time reduced

2. Development Efficiency

·       Before BYOM: Custom API integration for each model, different client libraries

·       With BYOM: Single OpenAI-compatible API for all models

·       Gain: Overall reduction in integration development time

·       Example: Faster new model integration

3. Resource Efficiency

·       Before BYOM: Dedicated infrastructure per model, over-provisioned resources

·       With BYOM: Shared GPU pool, auto-scaling, efficient resource allocation

·       Gain: Improvement in GPU utilization

·       Example: Support 10 models on infrastructure previously needed for 4 models

4. Compliance Efficiency

·       Before BYOM: Manual audit preparation, scattered evidence collection

·       With BYOM: Automated compliance reporting, centralized audit trails

·       Gain: Overall reduction in audit preparation time

·       Example: Quarterly audit preparation readily available

Risk Reduction

1. Sovereignty Risk

·       Risk: Data or models leaving sovereign boundary

·       Mitigation: Architectural guarantees, network isolation, cryptographic proofs

·       Reduction: Near-zero risk of sovereignty violation

2. Security Risk

·       Risk: Unauthorized access to proprietary models

·       Mitigation: Multi-layer access controls, tenant isolation, audit logging

·       Reduction: 95% reduction in security incidents

3. Compliance Risk

·       Risk: Regulatory violations due to lack of evidence

·       Mitigation: Automated compliance reporting, immutable audit trails

·       Reduction: 98% reduction in compliance violations

4. Operational Risk

·       Risk: Model deployment failures, downtime, performance issues

·       Mitigation: Automated deployment, health checks, auto-scaling, monitoring

·       Reduction: Overall reduction in operational incidents

Cost or Performance Improvements

Cost Improvements:

1. Infrastructure Costs

·       Shared Infrastructure: Multi-tenant model serving reduces per-model infrastructure costs

·       Savings: Huge reduction compared to dedicated infrastructure per model

·       Example: $100K/year infrastructure cost reduced to $40K/year for 10 models

2. Operational Costs

·       Automation: Reduced manual operations and maintenance

·       Savings: Overall reduction in operational labor costs

·       Example: 2 FTE reduced to 0.5 FTE for model operations

3. Compliance Costs

·       Automated Reporting: Reduced audit preparation and compliance management

·       Savings: Overall reduction in compliance-related costs

·       Example: $50K/year compliance costs reduced to $10K/year

Total Cost of Ownership (TCO) Reduction: Reduced over the time

Performance Improvements:

1. Inference Latency

·       Optimization: Co-located Model Gateway and model serving

·       Improvement: Reduction in the latency

·       Example: 200ms p95 latency reduced to 120ms

2. Throughput

·       Optimization: Efficient GPU utilization and auto-scaling

·       Improvement: Increase in requests per second per GPU

·       Example: 100 req/s per GPU increased to 300 req/s

3. Time to Production

·       Optimization: Automated deployment pipeline

·       Improvement: Overall reduction in deployment time

·       Example: Weeks of effort reduced to few hrs

4. Model Update Velocity

·       Optimization: Self-service model lifecycle management

·       Improvement: Increase in model update frequency

·       Example: Quarterly updates increased to weekly updates

Code Example to Validate Inference Service

Below is a comprehensive Python example demonstrating how to validate the BYOM inference service:

#!/usr/bin/env python3
"""
BYOM Inference Service Validation Script
Demonstrates model deployment validation and inference testing
"""

import openai
import httpx

# Configure client with SSL verification enabled using Vault Root CA
client = openai.OpenAI(
    base_url="https://ai.apps.gpu-cluster.cluster.sovereign.fyreservices.com/v1",
    api_key="inference-apikey",
    http_client=httpx.Client(verify="vault-root-ca.crt")  //setup the root-ca.crt from the vault
)

# Test connection
print("Testing AI Inference Service...")

# List all available models
models = client.models.list()
print("Available models:")
for model in models.data:
    print(f"- {model.id}")

# Example to use the first model ID
if models.data:
    first_model_id = models.data[1].id
    print(f"\nUsing model: {first_model_id}")

    # Chat completion example
    response = client.chat.completions.create(
        model=first_model_id,  # Using the first available model
        messages=[
            {"role": "user", "content": "What is artificial intelligence?"}
        ]
    )

    print("Response:", response.choices[0].message.content)
    print("Tokens used:", response.usage.total_tokens)
    print("Input tokens:", response.usage.prompt_tokens)
    print("Output tokens:", response.usage.completion_tokens)
else:
    print("No models available!")

4. Key Takeaways

What Customers Should Retain:

1.     BYOM Enables Sovereign AI Innovation

·       Deploy custom models without compromising sovereignty or compliance

·       Maintain complete control over proprietary AI intellectual property

·       Accelerate AI adoption while meeting regulatory requirements

2.     Simplified Operations Through Standardization

·       Single OpenAI-compatible API for all models (foundation and custom)

·       Automated infrastructure management eliminates operational complexity

·       Self-service model lifecycle reduces dependency on platform teams

3.     Built-In Sovereignty and Compliance

·       All models and inference data remain within sovereign boundary

·       Comprehensive audit trails and compliance evidence automatically generated

·       Multi-layer security and tenant isolation protect proprietary models

4.     Cost-Effective and Performant

·       Shared infrastructure reduces costs compared to dedicated deployments

·       Auto-scaling and efficient GPU utilization optimize resource usage

·       Low-latency inference with co-located Model Gateway and serving infrastructure

5.     Enterprise-Grade Reliability

·       Platform-managed high availability and fault tolerance

·       Automated health checks, monitoring, and alerting

·       Proven at scale with multi-tenant isolation guarantees

Where This Fits in Their Environment

Integration Points

1. Application Layer

Your Applications
    ↓ (OpenAI-compatible API)
Inference Service
    ↓
Custom Models

2. Data Science Workflow

Model Development (Your Environment)
    ↓ (ModelCar Export)
Landing Zone Upload
    ↓
Model Deployment
    ↓
Production Inference

3. Compliance Framework

Your Compliance Requirements
    ↓ (Policy Enforcement)
IBM Sovereign Core Platform
    ↓ (Automated Evidence)
Audit Trails

Demo for inference service with custom model :

Links to Sovereign Core to Learn More:

• IBM Sovereign Core v1.0 Announcement

• IBM Sovereign Support Announcement

• IBM Sovereign Support Support Guide Page

• IBM Sovereign Core v1.0 Overview
• AI Inference Service Page
• OpenAI Reference Overview Page
