Co Author: Nadha Jabeen T

Building a Unified Logging Foundation Through the Functional Toolkit

Logging plays a critical role in enterprise applications, especially for configuration, deployment, troubleshooting, and operational monitoring. As the IBM Content Navigator (ICN) Configuration Manager ecosystem evolved, maintaining consistent and readable logs across products became increasingly challenging.

To address this, a major logging enhancement initiative was introduced within the Functional Toolkit, which acts as the core foundation layer for Configuration Manager products and related clients.

This modernization effort introduced a centralized logging architecture that improves configurability, readability, troubleshooting, and scalability across all applications using the toolkit libraries.

Functional Toolkit as the Logging Foundation

The Functional Toolkit contains the core shared functionality used by multiple enterprise applications and configuration tools.

Instead of every product implementing its own logging mechanism, the toolkit now provides a unified logging framework that can be reused across products.

Products and Clients Benefiting from This Enhancement

The new logging architecture can now be leveraged by:

• IBM Content Navigator (ICN)

• CPE Clients

• GraphQL integrations

• CMIS-based applications

• BAW integrations

• Silent Configuration Manager

• Swing-based GUI Configuration Manager

Since these enhancements are implemented within the functional-toolkit.jar, all clients using the updated jar automatically gain access to the improved logging capabilities.

This significantly reduces duplicate implementation efforts and ensures consistency across products.

Customizable Logging Configuration

One of the major enhancements introduced is the ability to fully customize logging behavior through the cmlogging.propertiesconfiguration file.

Previously, log behavior was largely fixed and difficult to modify. With the new architecture, administrators now have greater control over how logs are generated and managed.

What Can Be Customized

Using the properties file, users can now configure:

• Log file directory location

• Log file names

• Logging levels

• Maximum log file size

• Number of rotated log files

• Append behavior

This flexibility allows organizations to manage logs based on their operational and infrastructure requirements.

For example:

• Production environments can retain larger log histories

• Development teams can enable detailed tracing

• Automated deployments can use separate log locations

This makes the logging system far more adaptable and enterprise-ready.

Support for Multiple Logging Levels

Another important improvement was the introduction of broader logging level support.

Earlier implementations had limitations in controlling the exact verbosity and execution detail captured in logs.

The new architecture now supports multiple logging levels including:

• INFO

• SEVERE

• WARNING

• TRACE

• FINE

• FINER

• CONFIG

• ALL

The framework follows the standard Java Utility Logging priority model.

For example:

• If INFO is configured, higher priority logs such as SEVERE are automatically included.

• If FINE or FINER is enabled, more detailed execution tracing becomes available.

This gives administrators and support teams much better control over operational visibility.

Why This Matters

Different environments require different logging verbosity.

Production Environments

Typically focus on:

• Errors

• Warnings

• Important operational events

Development and Troubleshooting

Often require:

• Detailed execution flow

• Debug-level tracing

• Configuration visibility

The enhanced logging framework now supports both scenarios efficiently.

Improved Log File Format and Readability

A major focus of the enhancement initiative was improving log readability.

The new logging format provides a cleaner and more structured view of execution activity.

Key Improvements

Session-Based Logging

Each execution session now starts with a clearly identifiable session header.

This helps users:

• Separate multiple executions

• Identify execution timelines

• Analyze logs more efficiently

Structured Message Formatting

Each log line now follows a cleaner structure where content is wrapped consistently for better readability.

This improves:

• Visual clarity

• Log parsing

• Operational analysis

Cleaner Exception Handling

Exceptions are now logged in a more organized and readable format.

Instead of cluttered stack traces scattered throughout logs, errors are presented with better structure and context.

This makes troubleshooting significantly easier for administrators and support engineers.

Enhanced Operational Visibility

The new logging framework also improves visibility into runtime operations.

Detailed Execution Messages

Logs now provide better insight into:

• Configuration processing

• Deployment stages

• Validation steps

• Runtime operations

• Task progress

This allows users to understand exactly what the application is doing during execution.

Better Troubleshooting Experience

The enhanced logging approach helps teams quickly identify:

• Where failures occurred

• What operation was running

• Which component generated the issue

This reduces troubleshooting time and improves support efficiency.

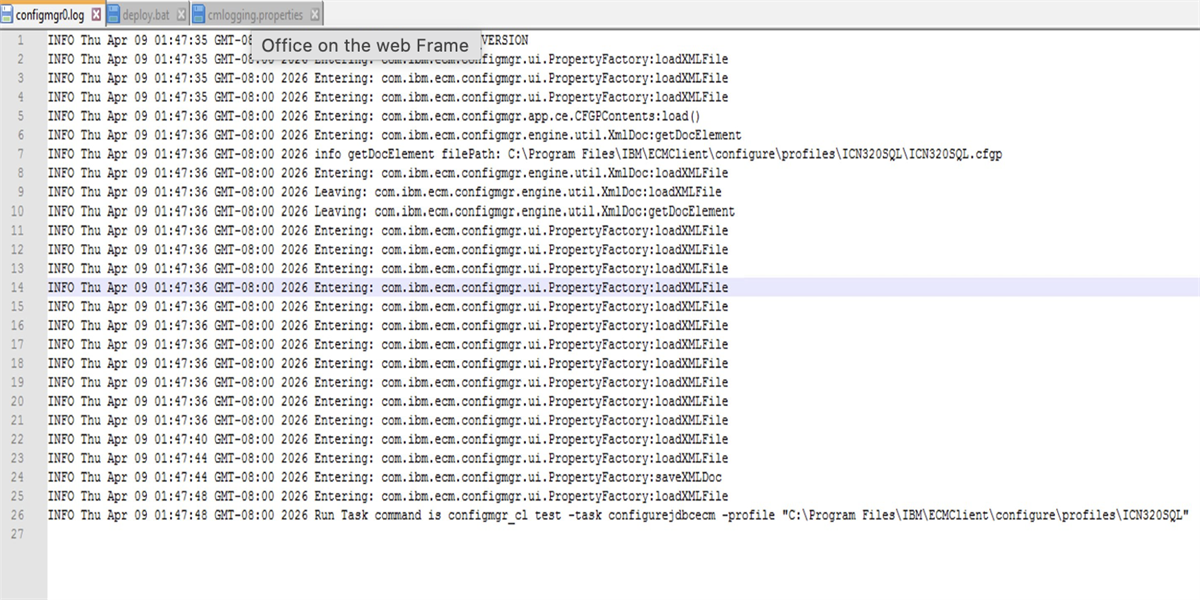

Comparison of the log files -

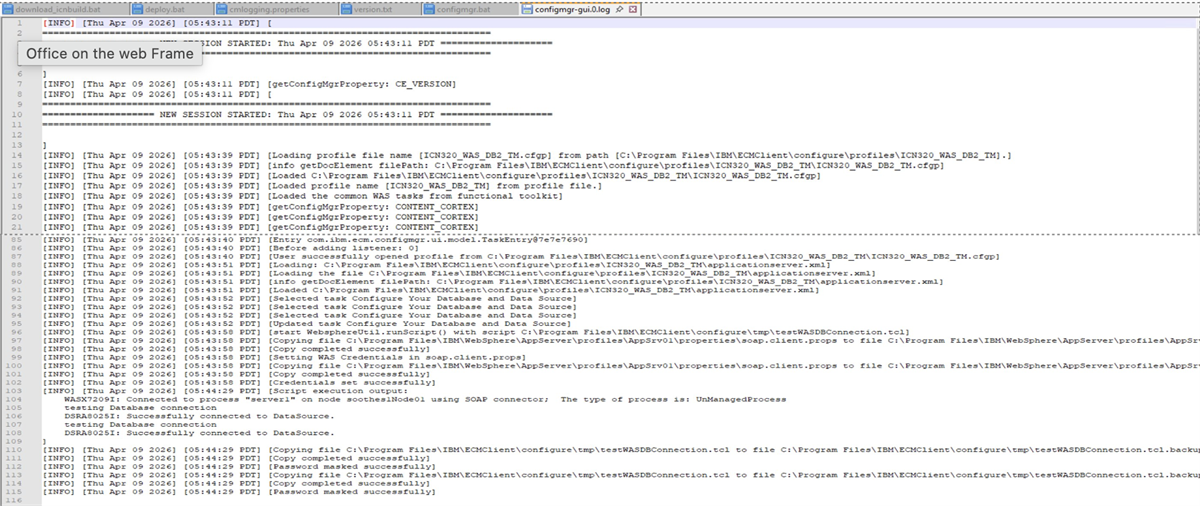

Image 2 : Log file after improvisation

Centralized Logging Benefits Across Products

Because the logging enhancements are implemented within the Functional Toolkit itself, every dependent product benefits from the same architecture.

Key Advantages

Consistency Across Applications

All products now follow the same logging standards and formatting.

Easier Maintenance

Enhancements only need to be implemented once in the toolkit and are automatically inherited by dependent clients.

Better Scalability

New applications integrating with the toolkit immediately gain enterprise-grade logging support.

Improved Customer Experience

Structured logs and multilingual support provide a better operational experience for global customers.

Final Thoughts

The logging modernization initiative in the Functional Toolkit transformed logging from a basic utility into a shared enterprise capability.

With features such as:

• Customizable logging configuration

• Multiple logging levels

• Improved formatting

• Better exception readability

• Centralized toolkit-based architecture

the new framework provides a scalable and maintainable logging solution for the entire Configuration Manager ecosystem.

Most importantly, because these enhancements are implemented in the core toolkit layer, all products and clients using the Functional Toolkit can leverage these capabilities with minimal effort.

This creates a strong foundation for future enterprise applications requiring consistent, readable, and operationally efficient logging.
