By Muhammed Hisham P, Aruna De Silva
1. Introduction
As enterprises increasingly adopt containerized environments for mission-critical workloads, ensuring high availability (HA) of databases like IBM Db2 becomes essential. In this sixth instalment of the Db2 Warehouse on Power Cloud Rack blog series, we explore how the Db2 Warehouse on Power Cloud Rack architecture—deployed on Red Hat OpenShift—handles both soft and hard failover scenarios to maintain service continuity. From pod-level disruptions to full node failures, this chapter details the mechanisms, tests, and outcomes that validate the robustness of the Db2 Warehouse solution in real-world conditions.
2. Understanding HA Failure Scenarios on IBM’s Power Cloud Rack
In a production-grade Db2 Warehouse on Power Cloud Rack deployment on OpenShift, ensuring high availability (HA) involves preparing for both soft and hard failover scenarios. These scenarios simulate real-world disruptions and help validate the resilience of the system.
2.1 Soft Failover Scenarios
Soft failovers are typically triggered by transient or recoverable issues within the OpenShift environment. These do not involve infrastructure-level failures but still test the robustness of the Db2 HA setup.
Common Soft Failover Triggers:
- Pod deletion (intentional or accidental)
- Container crash due to application-level issues
- OpenShift rolling updates or configuration changes (e.g. Kubelet or Machine Configuration changes)
Resource pressure (e.g., CPU/memory eviction)
What Happens During a Soft Failover:
- Kubernetes automatically reschedules the Db2 pod on the same or a different node.
- Persistent storage (via PVCs) ensures data continuity.
- Liveness probes help detect unhealthy containers and restarts them.
Db2’s internal recovery mechanisms (e.g., crash recovery) kick in to restore service.
2.2 Hard Failover Scenarios
Hard failovers involve infrastructure-level failures that require more complex recovery mechanisms. These are critical to test for true HA readiness.
Common Hard Failover Triggers:
What Happens During a Hard Failover:
-
Is determined by the characteristics of the workload:
o Stateless workloads: Kubenetes (OpenShift) scheduler detects node unavailability and reschedules the workload on a healthy node(s).
o Stateful workloads: stateful application cannot function properly if the pods are stuck on the shutdown node and not getting rescheduled onto a running node. Starting Kubernetes v1.28 (OpenShift 4.14), a out-of-service taint can be applied on the failed node to trigger a force-deletion of pods on that node and persistent volumes to be detached. This allows new pods to be created successfully on a different running node. Db2 Pods require a unique/stable network identify and hence fall into the Stateful workload category.
- Persistent storage must be accessible from multiple nodes (e.g., via CSI drivers).
3. Validating Soft Failover Resilience on IBM’s Power Cloud Rack
To ensure the robustness of our Db2 Warehouse on Power Cloud Rack deployment on OpenShift, we conducted a series of soft failover tests. These tests simulate common, non-infrastructure-related disruptions and help measure the system’s ability to recover gracefully. The test Cloud Rack system was a Base Large Rack (BRL) with 6 active Pods running on 6 worker nodes and a standby worker node for HA.
3.1 Test Scenario 1: Single Pod Deletion
In this test, we randomly deleted a single Db2 pod to simulate a crash or accidental termination.
Objective:
To observe how quickly the system recovers and the Db2 instance becomes operational again.
Result:
- The pod was automatically rescheduled by OpenShift.
- Db2 container reinitialized and passed readiness checks.
- Average recovery time: 3 minutes and 10 seconds

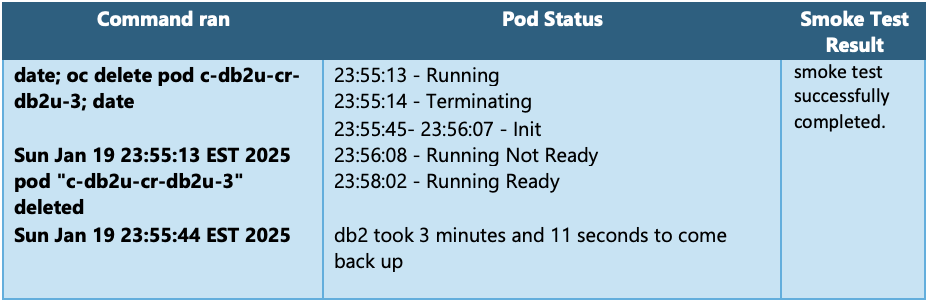

The data below illustrates the outcome of a single-node soft failure test iteration
3.2 Test Scenario 2: Simultaneous Deletion of Two Pods
To further stress the system, we simultaneously deleted two Db2 pods, simulating a more severe but still soft failure scenario.
Objective:
To evaluate the system’s behaviour under concurrent pod failures.
Result:
- Both pods were rescheduled and reinitialized in parallel.
- Db2 instances recovered and became ready without manual intervention
- · Average recovery time: 3 minutes and 10–11 seconds
This confirms that the HA setup can handle multiple simultaneous disruptions effectively.
4. Validating Hard Failure Resilience on IBM’s Power Cloud Rack
To complement our soft failover validation, we also tested hard failure scenarios—which simulate infrastructure-level disruptions. These tests are critical for evaluating the resilience of the Db2 Warehouse on Power Cloud Rack deployment under more severe conditions.
4.1 Known Issue: Node Shutdown Not Detected by Kubernetes kubelet’s Shutdown Manager
Starting Kubernetes 1.21 (OpenShift 4.8), Graceful Node Shutdown feature can be enabled to allow kubelet’s Node Shutdown Manager to detect-and-handle planned node shutdowns (e.g. via Linux shutdown or poweroff commands). However, in certain scenarios, a node shutdown may not be properly detected, typically due to one of the following reasons:
When this detection fails, Db2u Pods managed by Db2uEngine custom resource running on the affected node enter a stuck terminating state. Since the kubelet is unavailable to complete the pod deletion, OpenShift cannot recreate the pods on another node. If these pods use persistent volumes, the associated VolumeAttachment resources also remain bound to the original node, preventing reattachment elsewhere.
As a result, the application becomes non-functional until the original node is restored. If the node does not come back online, the pods remain indefinitely stuck in a terminating state.
To address the limitations of Kubelet’s Node Shutdown Manager in detecting certain shutdown scenarios, we developed a custom cronjob that proactively handles node-level failures. This solution polls Node Status Conditions for types NotReady and Unknown to detect worker node failures and trigger recovery. That ensures Db2u Pods are rescheduled successfully and associated Persistent Volumes are re-attached, even when the default shutdown mechanisms fails.
4.2 Custom Node-HA CronJob: Automated Recovery from Undetected Node Shutdowns
In the following section, we outline the steps to set up and configure this cronjob, which plays a critical role in maintaining high availability in our Db2 Warehouse on Power Cloud Rack deployment.
To begin setting up the Node-HA CronJob, you must first create a dedicated ServiceAccount (SA), along with the necessary ClusterRole and ClusterRoleBinding to apply the minimal RBAC required to execute the job. Use the node-ha-rbac.yaml file provided for this purpose, ensuring that you update the ServiceAccount namespace in the ClusterRoleBinding section to match the project where the Db2uInstance Custom Resource (CR) is deployed.
4.2.1 Kubernetes RBAC Configuration for Node-HA CronJob:
apiVersion: v1
# If required specify pull secret
#imagePullSecrets:
#- name: <pull secret>
kind: ServiceAccount
metadata:
name: db2u-node-admin
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: db2u-node-admin
rules:
- apiGroups:
- ""
resources:
- nodes
verbs:
- get
- list
- patch
- update
- apiGroups:
- ""
resources:
- pods
- pods/finalizers
verbs:
- delete
- get
- list
- watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: db2u-node-admin
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: db2u-node-admin
subjects:
- kind: ServiceAccount
name: db2u-node-admin
namespace: db2
4.2.2 Node-HA CronJob YAML Configuration
Create the CronJob resource along with an associated ConfigMap to encapsulate the Node HA script logic. By wrapping HA logic in a ConfigMap allows using an existing OpenShift CLI client image instead of building a custom image to package the script. To deploy this configuration, use the file provided below:
apiVersion: batch/v1
kind: CronJob
metadata:
name: db2u-node-ha
spec:
schedule: "*/5 * * * *"
#Optional timezone - can help with correlating job logs
#timeZone: Etc/UTC
concurrencyPolicy: Forbid
#startingDeadlineSeconds: 200
successfulJobsHistoryLimit: 1
failedJobsHistoryLimit: 3
jobTemplate:
spec:
template:
metadata:
labels:
parent: "cronjob-db2ha"
spec:
serviceAccountName: db2u-node-admin
volumes:
- name: db2u-node-ha-script-volume
configMap:
name: db2u-node-ha-script
defaultMode: 365
containers:
- name: db2u-ha
image: registry.redhat.io/openshift4/ose-cli:v4.12.0-202405222205.p0.gd691257.assembly.stream.el8
volumeMounts:
- mountPath: /db2u
name: db2u-node-ha-script-volume
command: ["/db2u/db2u-node-ha.sh"]
restartPolicy: OnFailure
---
apiVersion: v1
kind: ConfigMap
metadata:
name: db2u-node-ha-script
data:
db2u-node-ha.sh: |
#!/bin/bash
echo "Checking if any node is down ..."
nodls=""
nodlsNotReady=$(oc get nodes --selector '!node-role.kubernetes.io/master' --output jsonpath="{range .items[?(@.status.conditions[-1].type=='NotReady')]}{.metadata.name} {.status.conditions[-1].type}{'\n'}{end}" | cut -d" " -f1)
echo -e "NotReady nodes: \n${nodlsNotReady}"
nodlsUnknown=$(oc get nodes --selector '!node-role.kubernetes.io/master' --output jsonpath="{range .items[?(@.status.conditions[-1].status=='Unknown')]}{.metadata.name} {.status.conditions[-1].type}{'\n'}{end}" | cut -d" " -f1)
echo -e "Unknown nodes: \n${nodlsUnknown}"
nodlsReady=$(oc get nodes --selector '!node-role.kubernetes.io/master' --output jsonpath="{range .items[?(@.status.conditions[-1].type=='Ready')]}{.metadata.name} {.status.conditions[-1].type}{'\n'}{end}" | cut -d" " -f1)
echo -e "Ready nodes: \n${nodlsReady}"
nodls="${nodlsNotReady} ${nodlsUnknown}"
echo "${nodls}" | grep -E "^[ \t]+$"
if [[ $? -eq 0 ]] && nodls=""; then
echo -e "\nAll nodes are running fine."
else
for node in $(echo ${nodls}); do
echo "Node ${node} not ready, wait 10 min before taking action"
date
sleep 600
status_condtype=$(oc get node ${node} -o jsonpath="{.status.conditions[-1].type}")
status_condstatus=$(oc get node ${node} -o jsonpath="{.status.conditions[-1].status}")
if [[ "${status_condtype}" == "NotReady" || "${status_condstatus}" == "Unknown" ]]; then
echo "Node ${node} is still Not Ready after 10 min. Taking action."
echo "Tainting node ${node} as out-of-service"
oc adm taint nodes ${node} node.kubernetes.io/out-of-service=nodeshutdown:NoExecute --overwrite
else
echo "Node ${node} recovered after 10 minutes, no action taken."
fi
date
done
fi
nodlsReady=$(oc get nodes --selector '!node-role.kubernetes.io/master' --output jsonpath="{range .items[?(@.status.conditions[-1].type=='Ready')]}{.metadata.name} {.status.conditions[-1].type}{'\n'}{end}" | cut -d" " -f1)
echo -e "Ready nodes: \n${nodlsReady}"
for node in ${nodlsReady}; do
echo "Check Node ${node} is still ready, before removing taint"
status_condtype=$(oc get node ${node} -o jsonpath="{.status.conditions[-1].type}")
status_condstatus=$(oc get node ${node} -o jsonpath="{.status.conditions[-1].status}")
if [[ "${status_condtype}" != "NotReady" && "${status_condstatus}" != "Unknown" ]]; then
oc get node ${node} -o jsonpath='{range .items[*]}{.spec.taints[*].key}' | grep -qE "^node.*out-of-service$"
if [[ $? -eq 0 ]] ; then
echo "Removing out-of-service Taint from node ${node}"
oc adm taint nodes ${node} node.kubernetes.io/out-of-service- --overwrite
else
echo "No out-of-service taint found on the node ${node}. Checking the next node"
continue
fi
fi
done
echo "Script execution completed"
Note: Refer to OpenShift CLI client repository history for list of client images available.
4.2.3 Verifying CronJob Execution and Reviewing Logs
Once the Node-HA CronJob is configured and actively running, you can verify its execution status and inspect the logs using the following steps:
- Check CronJob Status:
# oc get po --selector parent=cronjob-db2ha
NAME READY STATUS RESTARTS AGE
db2u-node-ha-28657725-bgx6d 0/1 Completed 0 71s
# oc logs db2u-node-ha-28657725-bgx6d
Checking if any node is down ...
NotReady nodes:
Unknown nodes:
Ready nodes:
worker0.adesilva.cp.fyre.ibm.com
worker1.adesilva.cp.fyre.ibm.com
worker2.adesilva.cp.fyre.ibm.com
All nodes are running fine.
[Optional] Enabling Cascading Deletion for the CronJob ConfigMap
By default, when a CronJob resource is deleted, its associated ConfigMap is not automatically removed. To streamline cleanup and ensure consistency, you can enable cascading deletion by configuring an ownerReference on the ConfigMap. This ensures that the ConfigMap is automatically deleted when the CronJob is removed.
4.2.4 [Optional] Enabling Cascading Deletion for the CronJob ConfigMap
-
Retrieve the UID of the CronJob:
oc get cronjob db2u-node-ha -o jsonpath='{.metadata.uid} {"\n"}'
Example output:
c997615e-bec5-4943-9826-8fd40898a570
-
Edit the ConfigMap to Add ownerReferences:
oc edit cm db2u-node-ha-script
In the metadata section, add the following block (replace the uid with the one retrieved in step 1):
ownerReferences:
- apiVersion: batch/v1
blockOwnerDeletion: true
controller: true
kind: CronJob
name: db2u-node-ha
uid: c997615e-bec5-4943-9826-8fd40898a570
-
Verify Cascading Deletion: After applying the changes, delete the CronJob:
oc delete cronjob db2u-node-ha
The associated db2u-node-ha-script ConfigMap should now be automatically deleted as part of the cascading cleanup process.
4.3 Test Scenario 1: Shutting Down a Worker Node
In this test, we randomly shut down one of the worker nodes in the OpenShift cluster. As a result, the Db2 Pod scheduled on that node became unavailable.
Thanks to the Node-HA CronJob, the failure was detected and handled automatically. After a 10-minute grace period (as defined in the script), the cronjob identified the node as still unresponsive and applied a taint to mark it as out-of-service. This action allowed the Pod to be rescheduled and successfully started on a spare, healthy node.
Result:
- The Pod was automatically recovered on a different node.
- No manual intervention was required.
- Application availability was maintained with minimal disruption.
Here is a visual timeline illustrating the sequence of events in Test Scenario 1:
Figure 1 – Worker Node Shutdown Recovery Timeline (Node Failure)
Figure 2 – Worker Node Shutdown Recovery Timeline (Node Recovery)
Notes:
Starting Kubernetes v1.18 (OpenShift 4.8), Taint based Evictions are applied automatically by the Node Controller when certain Node conditions are true. However, any Pod that is getting scheduled will have tolerationSeconds: 300 tolerations applied to ensure that Pods remain bound to Nodes for 5 minutes after any problem is detected.
4.4 Test Scenario 2: Rebooting a Worker Node
In this scenario, we randomly selected a worker node that was actively hosting a Db2 pod and performed a system reboot. This test simulates a planned maintenance event or an unexpected system restart.
Objective:
To validate whether the Db2 pod remains stable and is able to recover on the same node after the reboot, without triggering a failover or rescheduling.
Behavior Observed:
Outcome:
-
The pod successfully recovered on the same node post-reboot.
-
No taints were applied, and no rescheduling occurred.
-
Application continuity was preserved with minimal disruption.
5. Conclusion
The high availability (HA) validation of IBM’s Cloud Rack for Db2 Warehouse Solution demonstrates a robust and resilient architecture capable of handling both soft and hard failover scenarios. Soft failover tests, including single and multiple pod deletions, confirmed that OpenShift's orchestration and Db2's recovery mechanisms can restore services with minimal downtime. Hard failover scenarios, such as node shutdowns and reboots, further validated the system's resilience, especially with the integration of the custom Node-HA CronJob.
The Node-HA CronJob played a pivotal role in detecting and recovering from node-level failures that were not handled by default Kubernetes scheduling mechanisms. Its proactive approach ensured that Db2uEngine custom resource pods and their Persistent Volumes were detached from failed node(s) and attached to other running node(s) facilitating graceful recovery, and maintaining application availability without manual intervention.
Overall, IBM’s Db2 Warehouse on Power Cloud Rack provides a highly available and production-ready environment for Db2 Warehouse deployments, ensuring business continuity and operational efficiency even under adverse conditions.
