Healthcare AI is rapidly evolving — moving far beyond simple chatbot assistants into intelligent, workflow-driven clinical systems capable of reasoning, retrieval, safety validation, and decision support.
Traditional healthcare chatbots often fail in real-world clinical environments due to:
-
Fragmented clinical information
-
Ungrounded or hallucinated responses
-
Lack of explainability
-
Missing safety validation layers
-
Weak orchestration across complex reasoning tasks
-
Limited clinical context awareness
Modern healthcare systems demand far more than conversational AI.
They require:
✅ Structured clinical understanding
✅ Trusted medical knowledge retrieval
✅ Multi-step reasoning workflows
✅ Medication & patient safety analysis
✅ Explainable AI-generated outputs
✅ Continuous evaluation and monitoring
✅ Privacy-aware and compliant processing
To address these challenges, we can design a production-grade multi-agent healthcare AI architecture powered by:
-
Retrieval-Augmented Generation (RAG)
-
Agentic AI workflows
-
LangGraph orchestration
-
Vector databases
-
Structured state management
-
PII masking & secure processing
In this blog, we’ll explore the complete architecture behind an intelligent healthcare AI platform — including:
-
Multi-agent workflow design
-
Clinical RAG pipelines
-
Safety and escalation mechanisms
-
Evaluation strategies
-
Human-in-the-loop validation
-
Secure and scalable deployment patterns
Let’s dive into how Agentic AI can transform healthcare systems into reliable, explainable, and clinically safer decision-support platforms.
The Core Problem We Are Solving
Healthcare workflows involve multiple independent reasoning tasks happening together.
For example:
-
understanding patient records,
-
retrieving relevant medical guidelines,
-
checking medication interactions,
-
identifying clinical risks,
-
generating care plans,
-
ensuring recommendations are grounded in trusted evidence.
A single LLM prompt cannot reliably handle all these responsibilities together.
This leads to:
Instead of using one monolithic AI model, we divide the workflow into specialized agents.
Each agent solves one focused responsibility.
The Solution: Multi-Agent Clinical Intelligence Architecture
The system is built as a sequence of collaborative AI agents.
Each agent:
-
receives structured context,
-
performs one specialized task,
-
updates shared state,
-
passes enriched context to downstream agents.

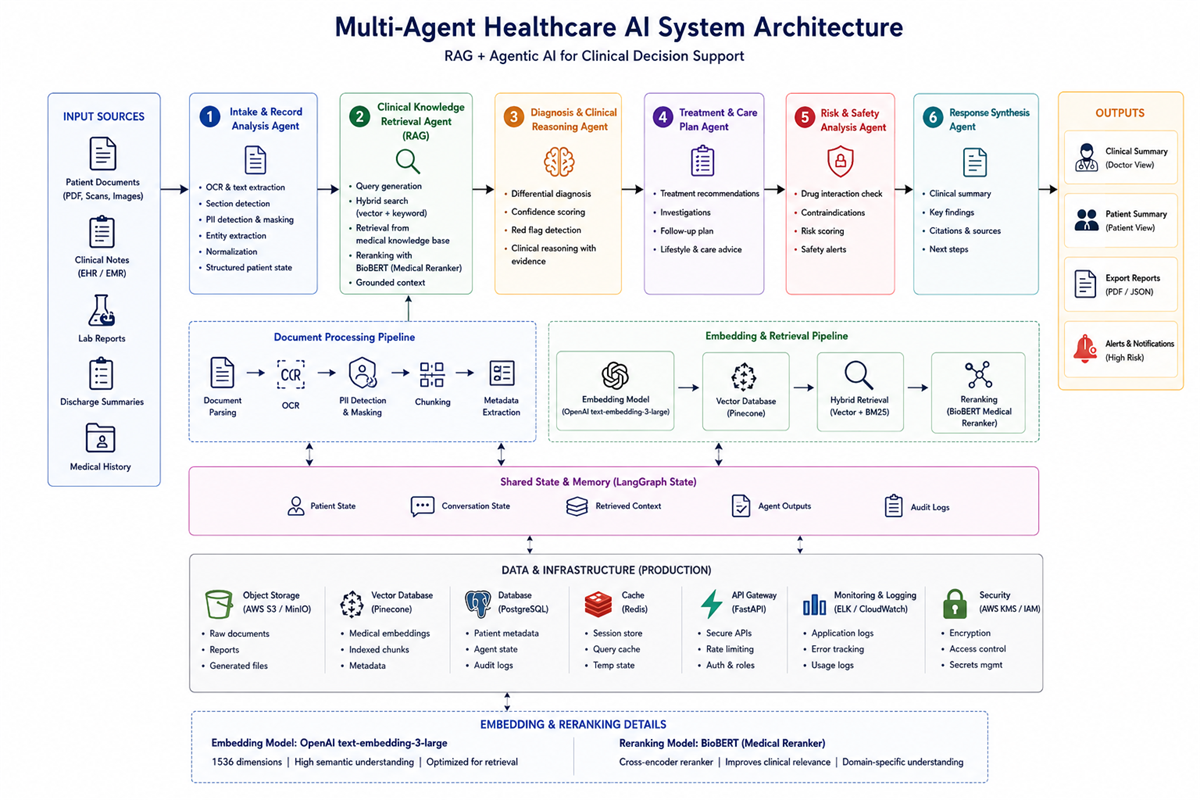

Architecture Diagram
High-Level Workflow
Patient Reports / Clinical Notes
↓
Agent 1 → Intake & Record Analysis
↓
Agent 2 → Clinical Knowledge Retrieval (RAG)
↓
Agent 3 → Diagnosis & Clinical Reasoning
↓
Agent 4 → Treatment & Care Planning
↓
Agent 5 → Risk & Safety Analysis
↓
Agent 6 → Final Response Synthesis
Agent 1 — Turning Clinical Documents into Structured Medical Intelligence
What Does This Agent Do?
This is the preprocessing and structured extraction layer.
The agent:
-
extracts text from PDFs/images,
-
performs OCR,
-
identifies clinical sections,
-
extracts medical entities,
-
normalizes terminology,
-
generates structured patient state.
This transforms raw healthcare data into machine-readable clinical context.
Example Input
Patient John Doe visited Apollo Hospital on 20-May-2026.
Symptoms:
- Chest pain
- Dizziness
Blood Pressure: 160/100
Currently taking Aspirin 81mg daily.
Example Output
{
"symptoms": [
{
"value": "chest pain",
"timestamp": "2026-05-20"
},
{
"value": "dizziness",
"timestamp": "2026-05-20"
}
],
"medications": [
{
"value": "Aspirin",
"dose": "81mg"
}
],
"vitals": {
"blood_pressure": [
{
"value": "160/100"
}
]
}
}
Technologies Used
| Tool |
Purpose |
| PyMuPDF |
PDF parsing |
| pdfplumber |
Table extraction |
| Tesseract OCR |
OCR |
| spaCy / medspaCy |
Medical NLP |
| Pydantic |
Schema validation |
| LangChain |
Structured extraction |
Processing Flow
PDF
↓
OCR
↓
Metadata Extraction
↓
PII Detection & Masking
↓
Section Detection
↓
Chunking
↓
Entity Extraction
↓
Structured Patient JSON
How We Evaluate This Agent
Since this agent forms the foundation of the system, extraction quality is critical.
OCR Evaluation
Checks:
-
text extraction quality,
-
missing text,
-
OCR corruption.
Metrics
-
Character Accuracy Rate
-
Word Accuracy Rate
Entity Extraction Evaluation
Checks:
Metrics
-
Precision
-
Recall
-
F1 Score
Metadata Evaluation
Checks:
-
timestamps,
-
page references,
-
source tracking.
Metrics
-
Timestamp Accuracy
-
Metadata Completeness
Chunking Evaluation
Checks:
Metrics
-
Chunk Coherence Score
-
Context Completeness
Securing Sensitive Patient Data using PII Masking
Healthcare AI systems process highly sensitive information:
-
patient names,
-
MRNs,
-
phone numbers,
-
insurance IDs,
-
addresses.
Before sending data to LLMs:
PII must be masked.
Example Raw Data
Patient John Doe
Phone: 9876543210
MRN: MRN-88273
Example Masked Output
Patient [PERSON_1]
Phone: [PHONE_1]
MRN: [MRN_1]
Why Mask Before LLM Processing?
Because:
Masking reduces privacy exposure significantly.
Rehydration Mechanism
After final report generation:
[PERSON_1] requires cardiology consultation.
becomes:
John Doe requires cardiology consultation.
This happens only inside authorized secure boundaries.
Agent 2 — Retrieving Trusted Medical Knowledge using RAG
What Does This Agent Do?
This is the Retrieval-Augmented Generation (RAG) layer.
The agent:
-
converts patient context into medical retrieval queries,
-
searches vector databases,
-
retrieves guidelines and research papers,
-
reranks retrieved evidence,
-
creates grounded medical context.
This ensures downstream reasoning is evidence-backed.
Example Input
{
"symptoms": [
"chest pain"
],
"conditions": [
"Hypertension"
]
}
Example Generated Queries
{
"queries": [
"hypertension treatment guidelines",
"cardiac risk chest pain",
"Aspirin contraindications"
]
}
Example Retrieved Context
{
"retrieved_context": [
{
"text": "Chest pain with hypertension may indicate elevated cardiac risk.",
"source": "WHO Cardiovascular Guidelines",
"score": 0.91
}
]
}
Technologies Used
| Tool |
Purpose |
| Pinecone / Weaviate |
Vector storage |
| Sentence Transformers |
Embeddings |
| BM25 |
Keyword retrieval |
| Rerankers |
Retrieval optimization |
Retrieval Flow
Patient Summary
↓
Query Generation
↓
Embedding Generation
↓
Vector Search
↓
Reranking
↓
Grounded Clinical Context
How We Evaluate Retrieval Quality
The most critical RAG question is:
Did we retrieve the correct medical evidence?
Retrieval Evaluation
Metrics
-
Context Precision
-
Context Recall
-
Hit Rate@K
Ranking Evaluation
Checks:
Metrics
Groundedness Evaluation
Checks:
Metrics
-
Retrieval Faithfulness
-
Groundedness Score
Agent 3 — Clinical Reasoning and Differential Diagnosis
What Does This Agent Do?
This agent performs medical reasoning using:
The goal is not autonomous diagnosis, but clinical decision support.
The agent:
-
generates differential diagnoses,
-
identifies red flags,
-
assigns confidence scores,
-
explains reasoning.
Example Input
{
"patient_summary": {
"symptoms": [
"chest pain"
]
},
"retrieved_context": [
{
"text": "Chest pain may indicate cardiac ischemia."
}
]
}
Example Output
{
"differential_diagnoses": [
{
"condition": "Stable Angina",
"confidence": 0.82
}
],
"red_flags": [
"High blood pressure"
]
}
Reasoning Flow
Patient Context
+
Retrieved Evidence
↓
Clinical Reasoning
↓
Differential Diagnoses
How We Evaluate Clinical Reasoning
Diagnostic Evaluation
Metrics
-
Diagnostic Accuracy
-
Clinical Relevance
Faithfulness Evaluation
Checks:
Metrics
-
Faithfulness Score
-
Hallucination Rate
Confidence Calibration
Metrics
-
Calibration Error
-
Confidence Reliability
Agent 4 — Generating Personalized Treatment & Care Plans
What Does This Agent Do?
This agent generates:
-
treatment plans,
-
investigations,
-
follow-ups,
-
personalized care plans.
Example Input
{
"diagnoses": [
"Stable Angina"
]
}
Example Output
{
"investigations": [
"ECG",
"Echocardiogram"
],
"follow_up": "2 weeks"
}
Care Planning Flow
Diagnosis
+
Medical Guidelines
↓
Treatment Planning
↓
Follow-up Recommendations
How We Evaluate Care Planning
Guideline Compliance
Metrics
Recommendation Quality
Metrics
-
Recommendation Precision
-
Recommendation Recall
Completeness Evaluation
Metrics
Agent 5 — Patient Safety & Risk Intelligence Layer
What Does This Agent Do?
This agent:
-
analyzes medication interactions,
-
detects emergency risks,
-
evaluates contraindications,
-
triggers alerts.
This is the patient safety layer.
Example Input
{
"medications": [
"Aspirin"
]
}
Example Output
{
"drug_interactions": [
{
"interaction": "Bleeding risk",
"severity": "Moderate"
}
],
"risk_level": "Moderate"
}
Risk Analysis Flow
Patient Medications
+
Clinical Context
↓
Interaction Analysis
↓
Risk Detection
↓
Safety Alerts
How We Evaluate Safety Intelligence
Drug Interaction Evaluation
Metrics
Risk Detection Evaluation
Metrics
-
Risk Recall
-
Risk Precision
Safety Validation
Metrics
-
Safety Violation Rate
-
False Negative Risk Rate
Agent 6 — Synthesizing the Final Clinical Response
What Does This Agent Do?
This final agent:
-
combines outputs from all previous agents,
-
generates final clinical summary,
-
attaches citations,
-
creates doctor-facing response.
Example Input
{
"diagnoses": [...],
"risk_analysis": [...],
"care_plan": [...]
}
Example Output
{
"final_summary": {
"top_diagnosis": "Stable Angina"
},
"sources": [
"WHO Cardiovascular Guidelines"
]
}
Final Response Flow
All Agent Outputs
↓
Summary Generation
↓
Citation Attachment
↓
Clinical Report
How We Evaluate Final Outputs
Summary Quality
Metrics
-
Readability Score
-
Summary Coherence
Citation Evaluation
Metrics
-
Citation Accuracy
-
Citation Coverage
Groundedness Evaluation
Metrics
-
Groundedness Score
-
Faithfulness Score
End-to-End Workflow Evaluation
Beyond individual agents, the full workflow must also be continuously evaluated.
Workflow Metrics
| Metric |
Purpose |
| Workflow Success Rate |
End-to-end completion |
| Agent Transition Accuracy |
Correct orchestration |
| Retry Recovery Rate |
Failure recovery |
| State Integrity |
Shared state consistency |
| End-to-End Latency |
Total execution time |
Advanced Evaluation Strategies
Modern agentic AI systems require deeper evaluation strategies.
1. LLM-as-a-Judge
Another LLM evaluates:
-
correctness,
-
groundedness,
-
faithfulness,
-
relevance.
2. Trajectory Evaluation
Evaluates:
-
tool calls,
-
agent decisions,
-
workflow execution path,
-
state transitions.
This is especially important in multi-agent systems.
3. Synthetic Clinical Scenario Evaluation
Generate:
Used for large-scale testing.
4. Adversarial Safety Testing
Tests:
Recommended Evaluation Stack
| Tool |
Purpose |
| RAGAS |
RAG evaluation |
| DeepEval |
Agent evaluation |
| LangSmith |
Workflow tracing |
| TruLens |
Groundedness |
| Arize Phoenix |
Observability |
| Promptfoo |
Prompt testing |
Final Thoughts
Healthcare AI systems require:
-
structured preprocessing,
-
grounded retrieval,
-
modular reasoning,
-
safety validation,
-
explainability,
-
privacy-aware processing,
-
continuous evaluation.
By combining:
we can build scalable and production-grade healthcare AI systems capable of supporting real-world clinical workflows safely, reliably, and transparently.
