Ever wondered how mainframe systems handle millions of transactions per day? Let me explain IMS TM through something we all understand - sending a courier to a friend.
---
The Day I Sent a Package to My Friend
Last week, I needed to send an important document to my friend across the country. As I handed over my package to the courier company, I realized this process is remarkably similar to how IMS Transaction Manager works in the mainframe world. Let me walk you through this journey.
🏢 The Courier Company = IMS Control Region
When I approached the courier company, I didn't just throw my package at a random person. There was a reception desk that managed everything - this is like the IMS Control Region. It's the brain of the operation, coordinating all activities but not actually delivering packages itself.
What the Control Region does:
- Accepts incoming requests (my package)
- Manages all the resources
- Keeps track of what's happening
- Ensures everything runs smoothly
📋 The Reception Desk = IMS Transaction Manager (TM)
The receptionist took my package and asked me some questions:
- "Where is this going?" (Transaction code)
- "How urgent is it?" (Priority)
- "What type of delivery?" (Transaction type)
This receptionist is the IMS Transaction Manager - the component that receives all transaction requests and figures out what to do with them.
🎫 Getting a Tracking Number = Message Queuing
After registering my package, I got a tracking number. My package was now in the system, waiting to be processed. This is exactly what happens with IMS Message Queues.
The Queue Manager** is like the warehouse where packages wait:
- Input Queue**: Where my package sits waiting for pickup
- Output Queue**: Where the delivery confirmation will be stored
- Shared Queues**: Multiple courier branches can access the same warehouse
In IMS terms:
```
Your transaction request → Message Queue → Waiting for processing
```
🚚 The Warehouse = Shared Queues
Here's where it gets interesting. The courier company doesn't have separate warehouses for each branch. They have a shared warehouse (Shared Queues) that all delivery personnel can access.
Benefits of Shared Queues:
- Any available delivery person can pick up any package
- No package sits idle if one branch is busy
- Better load balancing
- Faster processing
In IMS, this means multiple regions can access the same message queues, ensuring no transaction waits unnecessarily.
📞 The Dispatcher = IMS Dispatcher
Now, the warehouse manager (Dispatcher) looks at all the packages and decides:
- Which delivery person is available?
- Who's closest to the destination?
- Who specializes in this type of delivery?
The IMS Dispatcher does exactly this:
- Monitors available MPP/JMP regions (delivery personnel)
- Assigns transactions to free regions
- Balances the workload
- Ensures efficient processing
🚴 Delivery Personnel = MPP/JMP Regions
The actual delivery people are like Message Processing Program (MPP) regions** or **Java Message Processing (JMP) regions. These are the workers who:
- Pick up packages from the queue
- Deliver them to the destination
- Bring back confirmation
- Return to pick up the next package
Different types of delivery personnel:
- MPP Regions: Traditional delivery drivers (COBOL/PL/I programs)
- JMP Regions: Modern delivery drivers with GPS (Java programs)
- IFP Regions: Express delivery specialists (Fast Path)
- BMP Regions: Bulk delivery trucks (Batch processing)
🗂️ The Database = IMS Database (DB)
When my package was delivered, the courier needed to:
- Check my friend's address (read data)
- Update delivery status (write data)
- Record signature (update data)
This is the IMS Database - where all the important information is stored:
- Customer details
- Transaction history
- Account information
- Business data
🔄 The Complete Journey
Let me trace the complete path of my package (transaction):
Step 1: Package Drop-off
```
Me → Courier Reception Desk
(User/Application → IMS TM)
```
Step 2: Registration & Queuing
```
Reception → Warehouse Queue
(IMS TM → Message Queue)
```
Step 3: Assignment
```
Warehouse Manager checks available drivers
(Dispatcher checks available MPP/JMP regions)
```
Step 4: Pickup
```
Driver picks up package from warehouse
(MPP/JMP region retrieves message from queue)
```
Step 5: Delivery Process
```
Driver delivers package, checks address in system
(Program processes transaction, accesses IMS DB)
```
Step 6: Confirmation
```
Delivery confirmation sent back to warehouse
(Response message placed in output queue)
```
Step 7: Notification
```
I receive delivery confirmation
(Application receives response)
```
🎯 The Scheduler = Workload Manager
But wait, there's more! The courier company has a scheduler who:
- Plans delivery routes
- Allocates resources based on demand
- Adjusts staff during peak hours
- Ensures service level agreements are met
In IMS, the Scheduler (often z/OS Workload Manager):
- Manages region priorities
- Allocates system resources
- Balances workloads across regions
- Ensures performance goals are met
🔐 Application Enablement (AE) = The Franchise System
Now imagine the courier company wants to expand. They create a franchise system where:
- New branches can easily join
- Standard procedures are followed
- Central coordination is maintained
- Local customization is allowed
This is IMS Application Enablement (AE):
- Simplifies application development
- Provides standard interfaces
- Enables modern applications to use IMS
- Supports web services, REST APIs, and more

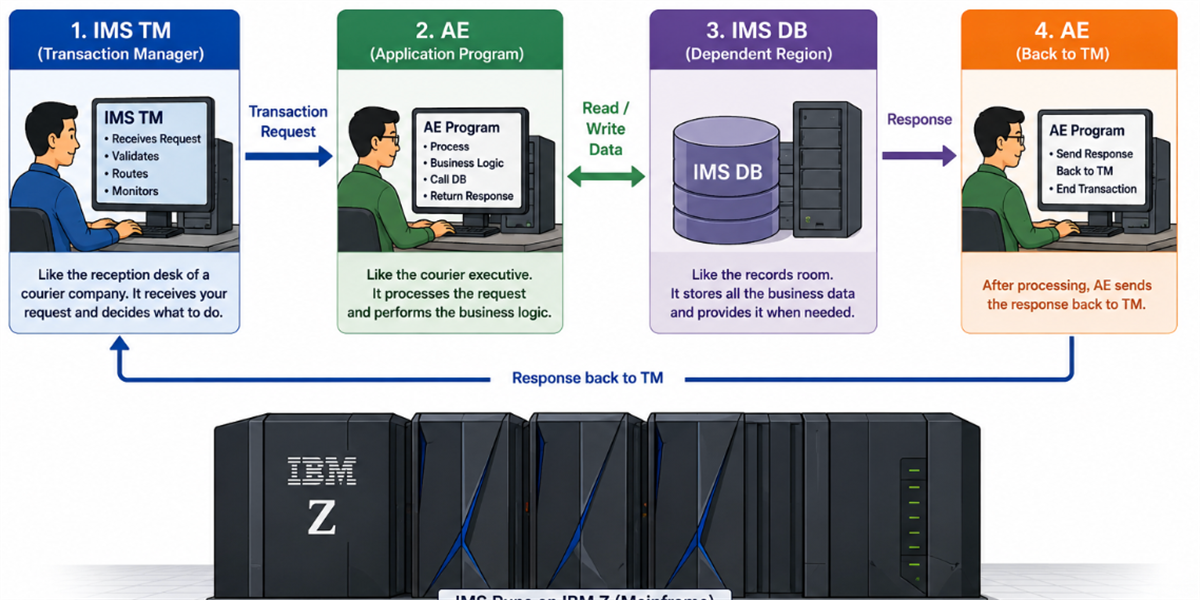

🌐 Putting It All Together
Here's the complete picture when I send my package:
```
📦 ME (Application)
↓
🏢 COURIER RECEPTION (IMS Control Region + TM)
↓
📋 REGISTRATION (Transaction Code Assignment)
↓
🗄️ WAREHOUSE QUEUE (Message Queue/Shared Queue)
↓
📞 WAREHOUSE MANAGER (Dispatcher)
↓
🚴 AVAILABLE DRIVER (MPP/JMP Region)
↓
🗺️ CHECK ADDRESS (Access IMS Database)
↓
✅ DELIVER PACKAGE (Process Transaction)
↓
📝 CONFIRMATION (Response Message)
↓
🗄️ RETURN TO WAREHOUSE (Output Queue)
↓
📬 NOTIFY ME (Return Response to Application)
🚀 The Real Power
The beauty of IMS TM is that it can handle millions of packages (transactions) per day with:
- Sub-second response times
- 99.999% reliability
- Automatic load balancing
- Seamless scaling
Next time you send a courier, remember - you're experiencing a real-world version of what IMS has been doing for decades in the mainframe world, processing billions of transactions that power banks, airlines, insurance companies, and more!
---
Have you ever thought about how similar everyday logistics are to enterprise transaction processing? Drop your thoughts in the comments below!
