Building workflows in IBM Business Automation Workflow (BAW) and IBM Cloud Pak for Business Automation (CP4BA) empowers developers to orchestrate complex business processes at scale. After you design a workflow, the next critical step is to efficiently validate logic, test integrations, and simulate inputs to ensure that the workflow behaves as expected before you move it to production.

IBM Bob, combined with a local Model Context Protocol (MCP) server, helps streamline this phase by enabling developers to simulate data, validate workflow behavior early, and iterate faster. This approach improves developer productivity and accelerates time to production while maintaining the robustness expected from enterprise-grade workflows.

This blog focuses on BAW running on containers or CP4BA and is intended for developers and technical practitioners who are exploring MCP-based integrations and workflow testing strategies.

Business Automation Workflow development pain points

Pain point 1: No way to test business functions in isolation

In Business Automation Workflow development, you cannot test business functions (service operations that perform specific tasks like calculating loan eligibility or validating data) in isolation. You must create a REST service that can be used as an exposed automation service. This requirement means:

• Every test requires full workflow deployment.
• You cannot quickly iterate on different test scenarios.
• Integration issues are discovered late in the development cycle.
• Debugging is complex because you are testing the entire workflow, not just the individual business function.

Pain point 2: Manual test data creation is tedious

Creating comprehensive test data requires thinking through all possible scenarios:

• Happy path cases (everything works perfectly)
• Edge cases (boundary conditions)
• Error cases (invalid data, missing fields)
• Performance cases (large data sets, complex calculations)

Manually crafting JSON payloads for each scenario is time-consuming and error-prone. You might spend hours creating test data, only to realize that you missed critical scenarios.

Pain point 3: Running multiple test cases takes time

Even with test data ready, executing multiple test cases is a slow, manual process:

1. Deploy the workflow.
2. Trigger with test data.
3. Wait for execution.
4. Record results.
5. Repeat for each test case.

Testing 10 scenarios can take half a day or an entire day. If you discover an issue, you must start the cycle again.

Pain point 4: Service flow validation is difficult

A service flow is a sequence of services, gateways, and events. The service flow is exposed as an automation service and acts as an MCP tool. Understanding how your MCP tool flow behaves across different scenarios requires extensive testing. Questions like these are hard to answer:

• Where are the decision boundaries? (For example, at what credit score does approval change?)
• How do multiple factors interact? (income + credit score + debt)
• Are there any inconsistencies in the decision logic?
• What happens at edge cases?

How IBM Bob solves these problems: A real example

The following sections walk through a real scenario by using the LoanEligibilityService from the Business Automation Workflow MCP server. This service evaluates loan applications based on customer income, credit score, and existing liabilities. These sections show you exactly how IBM Bob helps at each stage of development.

Scenario: Building a loan approval workflow

You are building a workflow that needs to determine loan eligibility. The service accepts the following parameters:

• customerId: Unique customer identifier
• monthlyIncome: Customer's monthly income
• creditScore: Credit score
• existingLiability: Current debt obligations

The service returns the following values:

• eligibilityStatus: Eligible or Not Eligible
• eligibleAmount: Maximum loan amount (if eligible)
• riskCategory: Low, Medium, or High risk

Building an automation service in Process Designer

This section walks through the steps that are required to create an automation service that determines loan eligibility in IBM Business Automation Workflow (BAW) by using Process Designer.

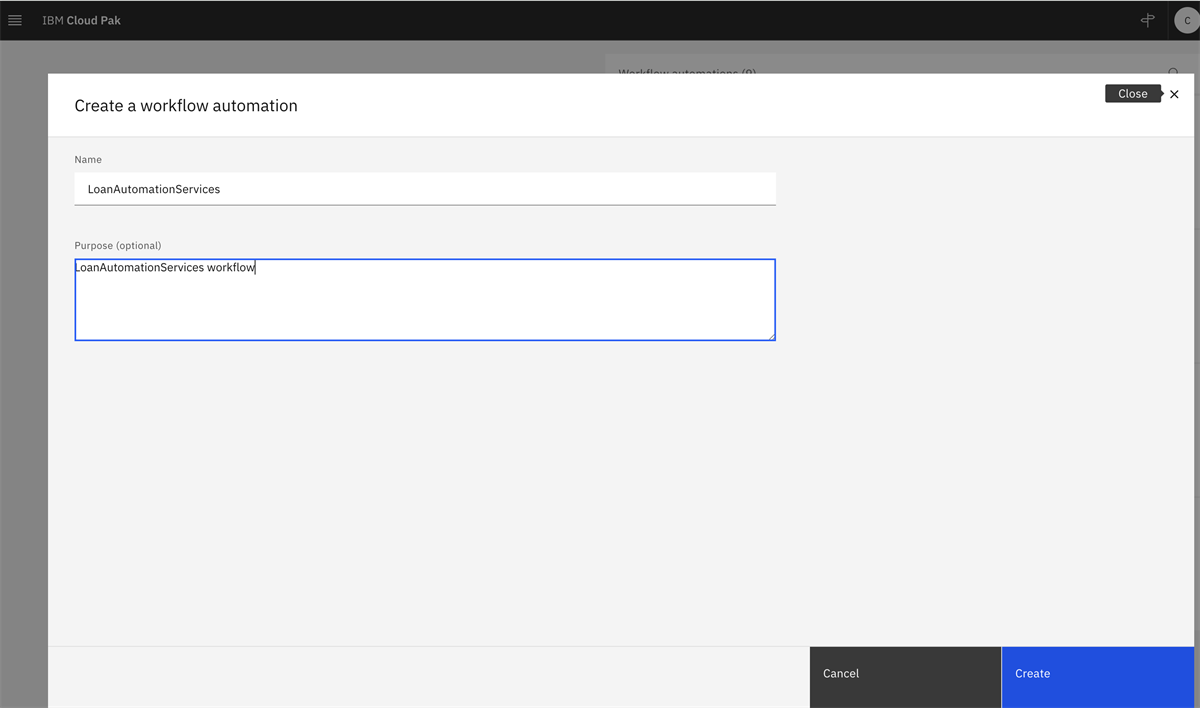

Step 1: Create a business automation project

Step 2: Create a service flow to implement the business logic

Complete the following steps:

1. Open the newly created project.
2. Click Add > Service flow.
3. Provide a name, such as LoanEligibilityService.
4. Add a meaningful description.
5. Click Create.

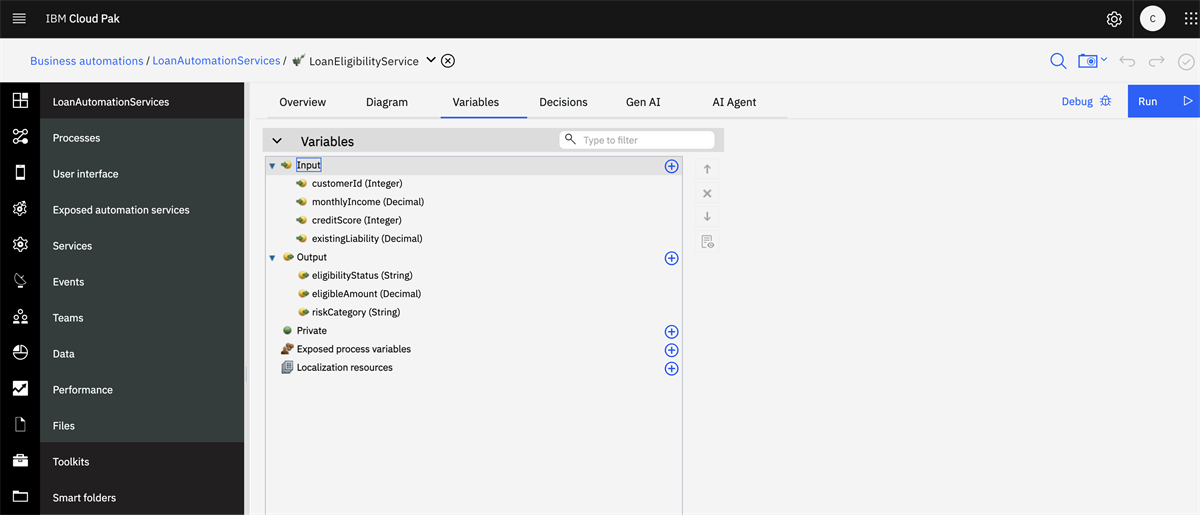

Define the input and output parameters as follows:

Input parameters:

• customerId (Integer)
• monthlyIncome (Decimal)
• creditScore (Integer)
• existingLiability (Decimal)

Output parameters:

• eligibilityStatus (String)
• eligibleAmount (Decimal)
• riskCategory (String)

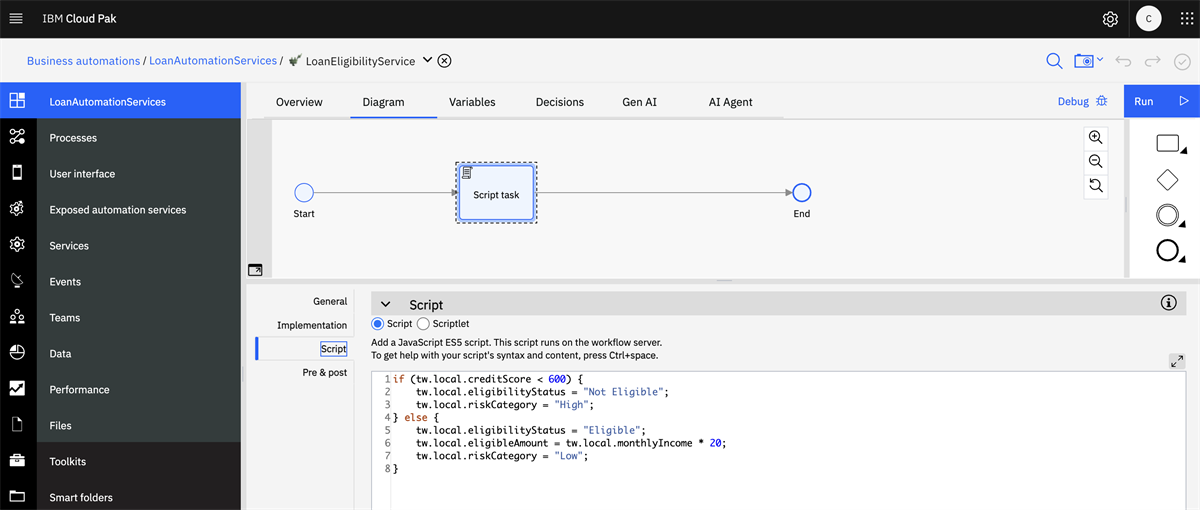

if (tw.local.creditScore < 600) {
    tw.local.eligibilityStatus = "Not Eligible";
    tw.local.riskCategory = "High";
} else {
    tw.local.eligibilityStatus = "Eligible";
    tw.local.eligibleAmount = tw.local.monthlyIncome * 20;
    tw.local.riskCategory = "Low";
}

Step 3: Expose the workflow as a REST service

The REST service is now ready to be invoked as a tool through the MCP server.

How IBM Bob addresses workflow developer pain points

Step 1: Test the MCP tool without deployment

Instead of integrating the tool or business function as a REST service into your workflow first, you can ask IBM Bob to test it directly:

You: "IBM Bob, test the LoanEligibilityService with a high-quality applicant"

IBM Bob immediately runs the test with appropriate data:

Test Case 1: High-Quality Applicant
Customer ID: 1001
Monthly Income: $8,500
Credit Score: 750
Existing Liability: $1,200

Result (returned in 2 seconds):

✓ ELIGIBLE
Eligible Amount: $170,000
Risk Category: Low

What you learned:

• The service is accessible and responding.
• The data format is correct (no type errors).
• High-quality applicants are approved with substantial loan amounts.
• Risk assessment is working (low risk for strong profile).

All of this information is available in 2 seconds, without deploying anything. In traditional development, this process would have taken considerable time for deployment and testing.

Step 2: Run multiple test cases to understand business rules

Now you want to understand how the service handles different applicant profiles. You can ask IBM Bob to test multiple scenarios:

You: "IBM Bob, run three test cases: high-quality, marginal, and high-risk applicants"

IBM Bob runs all three tests and presents a comparison:

Test Case 1: High-Quality Applicant (ID: 1001)

Input: Income $8,500 | Credit 750 | Liability $1,200
Result: ✓ ELIGIBLE
  • Eligible Amount: $170,000
  • Risk Category: Low

Test Case 2: Marginal Applicant (ID: 1002)

Input: Income $4,500 | Credit 680 | Liability $800
Result: ✓ ELIGIBLE
  • Eligible Amount: $90,000
  • Risk Category: Low

Test Case 3: High-Risk Applicant (ID: 1003)

Input: Income $2,800 | Credit 580 | Liability $1,500
Result: ✗ NOT ELIGIBLE
  • Eligible Amount: Not provided
  • Risk Category: High

Total execution time: Under 5 seconds for all three tests

Key insights from these tests:

• Decision logic: The service has clear approval and rejection logic based on financial profile.
• Loan amount scaling: Eligible amounts scale with income and credit quality ($170K versus $90K).
• Risk assessment: Even eligible applicants can have different risk categories.
• Rejection criteria: Low income + poor credit + high debt = rejection.
• Edge case discovery: The marginal applicant (680 credit) is still approved, which suggests that the threshold is below 680.

With IBM Bob, the process took 5 seconds. More importantly, you now understand the business rules before you write any workflow code.

Step 3: Simulate test data for edge cases

Based on the initial tests, you want to explore the decision boundaries more thoroughly. You can ask IBM Bob to help:

You: "IBM Bob, create test cases around the credit score boundary. Test scores from 550 to 700 in increments of 30"

IBM Bob generates and runs the test cases:

Credit Score Boundary Analysis:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Score 550 | Income $5,000 | Debt $1,000 → NOT ELIGIBLE | High Risk
Score 580 | Income $5,000 | Debt $1,000 → NOT ELIGIBLE | High Risk
Score 610 | Income $5,000 | Debt $1,000 → ELIGIBLE | $80,000 | Low Risk
Score 640 | Income $5,000 | Debt $1,000 → ELIGIBLE | $95,000 | Low Risk
Score 670 | Income $5,000 | Debt $1,000 → ELIGIBLE | $110,000 | Low Risk
Score 700 | Income $5,000 | Debt $1,000 → ELIGIBLE | $125,000 | Low Risk
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Decision Boundary Identified: Credit score ~600 is the approval threshold

What this analysis reveals:

• The approval threshold is around 600 credit score.
• Eligible amounts increase steadily with credit score.
• Risk category changes from High to Low at the approval boundary.
• The service has consistent, predictable behavior.

This kind of systematic boundary testing would be nearly impossible in traditional development. With IBM Bob, you can explore decision boundaries in minutes and gain deep insights into business rule behavior.

Step 4: Validate data formats and error handling

Before you integrate the tool into your workflow, you want to understand how it handles edge cases and errors:

You: "IBM Bob, test with invalid data - negative income, credit score of 1000"

IBM Bob tests error scenarios:

Error Handling Tests:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Test: Negative Income (-$1,000)
Result: Service accepts but returns NOT ELIGIBLE
Learning: Service does not validate input ranges

Test: Invalid Credit Score (1000)
Result: Service accepts but treats as maximum
Learning: Service caps credit scores internally

Test: Missing Fields (no liability)
Result: Service assumes $0 liability
Learning: Optional fields have default values

Critical insights for your workflow:

• You need to validate input data in your workflow before you call the service.
• Credit scores should be capped at 850 in your workflow logic.
• Liability is optional but should be explicitly set to $0 if not provided.
• The service is forgiving with bad data but might return unexpected results.

These insights prevent bugs before they happen. Without IBM Bob, you would discover these issues after deployment, which would require workflow modifications and redeployment.

The real benefits: Beyond speed

While the speed improvement is dramatic, the real benefits go deeper:

Higher quality code

Because you understand the MCP tool behavior before integration, you write better code the first time. You handle edge cases, validate inputs properly, and align your business logic with the service behavior.

Fewer production issues

Comprehensive pre-integration testing catches issues that would otherwise surface in production. You discover data format problems, business rule misalignments, and edge case failures before they affect users.

Better documentation

IBM Bob test results serve as living documentation of expected behavior. You can share these results with your team, reference them during code reviews, and use them to onboard new developers.

Increased confidence

When you deploy your workflow, you know it works. You tested dozens of scenarios, explored edge cases, and validated business rules. There are no surprises.

Faster iteration

When requirements change or you need to modify business rules, you can quickly retest with IBM Bob. What used to take days now takes minutes, which enables true agile development.

Best practices for using IBM Bob in BAW development

Build a test case library

Create a library of test cases for each MCP tool that you use. Include the following types of test cases:

• Happy path scenarios
• Edge cases at decision boundaries
• Error scenarios with invalid data
• Performance tests with large data sets

You can reuse these test cases whenever you modify the workflow or update the MCP tool.

Explore decision boundaries systematically

Do not test only obvious scenarios. Use IBM Bob to systematically explore decision boundaries:

• Test values just above and below thresholds.
• Vary one parameter at a time to understand its impact.
• Look for inconsistencies or unexpected behavior.

Document your findings

Keep a record of IBM Bob test results. This documentation helps in the following ways:

• Team members understand the MCP tool behavior.
• Code reviewers validate your integration logic.
• Future developers maintain and modify the workflow.

Retest after changes

Whenever you modify business rules, update the MCP tool, or change workflow logic, rerun your test suite with IBM Bob. This regression testing ensures that changes do not break existing functionality.

Conclusion: Transform your workflow development process

Testing workflows has traditionally been a manual effort or required significant time to automate test cases and prepare realistic test data. With IBM Bob, you can now accelerate this process by simulating data and running tests early, which enables faster iterations and quicker updates to your flows.

IBM Bob enables developers to complete the following tasks:

• Test MCP tools instantly without deployment
• Simulate diverse test data in seconds
• Run multiple test cases automatically
• Validate business rules early in the development cycle
• Systematically explore edge cases
• Identify issues when they are easiest and least costly to fix

The outcome is a more efficient development experience with higher-quality workflows, fewer production issues, and faster delivery to production.

As demonstrated with the real loan eligibility service tests, IBM Bob goes beyond speeding up development. It enhances how workflows are tested and validated by offering deeper visibility into MCP tool behavior, clearer understanding of business rules, and greater confidence when you build and evolve workflows.
