Prerequisites

Before implementing, ensure:

1. Instana Mobile SDK is integrated in your app
2. Website Monitoring script is installed on web pages loaded in WebView:

<script>
  (function(s,t,a,n){s[t]||(s[t]=a,n=s[a]=function(){n.q.push(arguments)},
  n.q=[],n.v=2,n.l=1*new Date)})(window,"InstanaEumObject","ineum");
  ineum('reportingUrl', 'https://<eum-your-region>.instana.io');
  ineum('key', 'your-website-monitoring-key');
  ineum('trackSessions');
</script>
<script async src="https://eum-your-region.instana.io/eum.min.js"></script>

The `ineum` object must be available globally for session correlation to work.

Implementation

Complete Android implementation

class WebViewActivity : AppCompatActivity() {

    private lateinit var webView: WebView

    /**
     * Retrieves the current Instana mobile session ID
     * This ID will be used to correlate mobile and web sessions
     * Returns "unknown" if session ID is not available
     */
    private fun getInstanaSessionId(): String {
        return Instana.sessionId ?: "unknown"
    }

    /**
     * Generates JavaScript code to inject the mobile session ID into the web context
     * This script:
     * 1. Checks if the Instana EUM agent (ineum) is loaded on the web page
     * 2. If available, sets the mobile session ID as metadata using ineum('meta', ...)
     * 3. This metadata will be attached to all web beacons sent from the WebView
     * 4. Logs a warning if the EUM agent is not found
     */
    private fun getInjectedScript(): String {
        val sessionId = getInstanaSessionId()
        return """
            (function() {
                if (typeof ineum !== 'undefined') {
                    ineum('meta', 'mobile_sessionId', '$sessionId');
                } else {
                    console.warn('Instana EUM agent (ineum) not found');
                }
            })();
        """
    }

    @SuppressLint("SetJavaScriptEnabled")
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_webview)
        webView = findViewById(R.id.webView)

        /**
         * Build the Instana dashboard URL that filters web beacons by mobile session ID
         * This URL structure:
         * - Points to the Website Monitoring beacon analysis page
         * - Filters for pageLoad beacons
         * - Uses tagFilterExpression to match beacons where beacon.meta[mobile_sessionId] equals our mobile session ID
         * - When opened, shows all web activity correlated to this mobile session
         */
        val domain = "https://<your-instana-instance>.instana.io"
        val instanaUrl = "$domain/#/websiteMonitoring/analyzeBeacons;" +
            "beaconType=pageLoad;" +
            "groupBy=()~;" +
            "tagFilterExpression=!(type~TAG*_FILTER~name~beacon.meta~operator~EQUALS~key~mobile_sessionId~value~*${Instana.sessionId}"

        /**
         * Report a custom event to make this session searchable
         * Benefits:
         * - Appears in the mobile session timeline
         * - Searchable by event name "WebUrl"
         * - Metadata contains the correlation URL for easy access
         * - Helps identify which mobile sessions have WebView activity
         */
        val myEvent = CustomEvent("WebUrl").apply {
            meta = mapOf("WebUrlEvent" to instanaUrl)
        }
        Instana.reportEvent(myEvent)

        // Configure WebView settings and behavior
        setupWebView()

        /**
         * Create an HTTP marker for one-click navigation
         * This creates a fake HTTP call in the mobile trace that:
         * - Shows up as a GET request in the mobile session
         * - URL is the Instana dashboard correlation link
         * - Clicking it navigates directly to the correlated web session
         * - Provides the fastest way to jump from mobile to web data
         */
        val marker = Instana.startCapture(instanaUrl)
        val httpMarkerData = HTTPMarkerData(
            requestMethod = "GET",
            responseStatusCode = 200  // Simulate successful request
        )
        marker?.finish(httpMarkerData)

        // Load the actual web content into the WebView
        webView.loadUrl("https://your-web-content.com")
    }

    /**
     * Configures WebView settings and sets up the WebViewClient
     * Key configurations:
     * - Enables JavaScript (required for Instana EUM agent and session injection)
     * - Enables DOM storage (required for web monitoring)
     * - Sets up page lifecycle callbacks for session ID injection
     */
    @SuppressLint("SetJavaScriptEnabled")
    private fun setupWebView() {
        webView.settings.apply {
            javaScriptEnabled = true      // Required for Instana monitoring and injection
            domStorageEnabled = true      // Required for web session tracking
        }

        webView.webViewClient = object : WebViewClient() {
            /**
             * Called when a page starts loading
             * This is the critical timing point - we inject the session ID here to ensure:
             * 1. The injection happens before the page fully loads
             * 2. The session ID is available when the EUM agent initializes
             * 3. All beacons sent from this page will include the mobile session ID
             */
            override fun onPageStarted(view: WebView?, url: String?, favicon: Bitmap?) {
                super.onPageStarted(view, url, favicon)
                // Inject the mobile session ID into the web context
                injectJavaScript(getInjectedScript())
            }
        }
    }

    /**
     * Executes JavaScript code in the WebView context
     * Uses evaluateJavascript for modern Android versions (API 19+)
     * The result callback can be used to verify injection success
     */
    private fun injectJavaScript(script: String) {
        webView.evaluateJavascript(script) { result ->
            // Optional: Log or handle the result of the injection
            // Result will be "undefined" for successful meta setting
        }
    }

    /**
     * Clean up WebView resources when activity is destroyed
     * Important to prevent memory leaks
     */
    override fun onDestroy() {
        webView.destroy()
        super.onDestroy()
    }
}

Key Implementation Points

1. Session ID Injection


   ineum('meta', 'mobile_sessionId', '$sessionId');

   This adds the mobile session ID as metadata to all web beacons, enabling correlation.


2. Dashboard URL Construction


   val instanaUrl = "$domain/#/websiteMonitoring/analyzeBeacons;" +
   "beaconType=pageLoad;" +
   "tagFilterExpression=!(type~TAG*_FILTER~name~beacon.meta~operator~EQUALS~key~mobile_sessionId~value~*${Instana.sessionId}"

   This URL filters Website Monitoring beacons by the mobile session ID.


3. Timing

   Inject in `onPageStarted()` to ensure the session ID is set before beacons are sent.



   Session Correlation




   Dashboard URL Parameters

   https://your-instana-instance.instana.io/#/websiteMonitoring/analyzeBeacons;beaconType=pageLoad;tagFilterExpression=!(type~TAG*_FILTER~name~beacon.meta~operator~EQUALS~key~mobile_sessionId~value~*YOUR_SESSION_ID



   Add 7-Day Timeline

   Append the following string to the end of the dashboard URL to view beacon correlation for the past 7 days

   ?timeline.ws=604800000&timeline.to&timeline.fm&timeline.ar=false

   Parameters:

   - `timeline.ws=604800000`: Window size (7 days in milliseconds)
   - `timeline.to`: Current time (empty = now)
   - `timeline.ar=false`: Disable auto-refresh

   Common window sizes:

   - 1 hour: `3600000`
   - 24 hours: `86400000`
   - 7 days: `604800000`



   Accessing Correlated Data

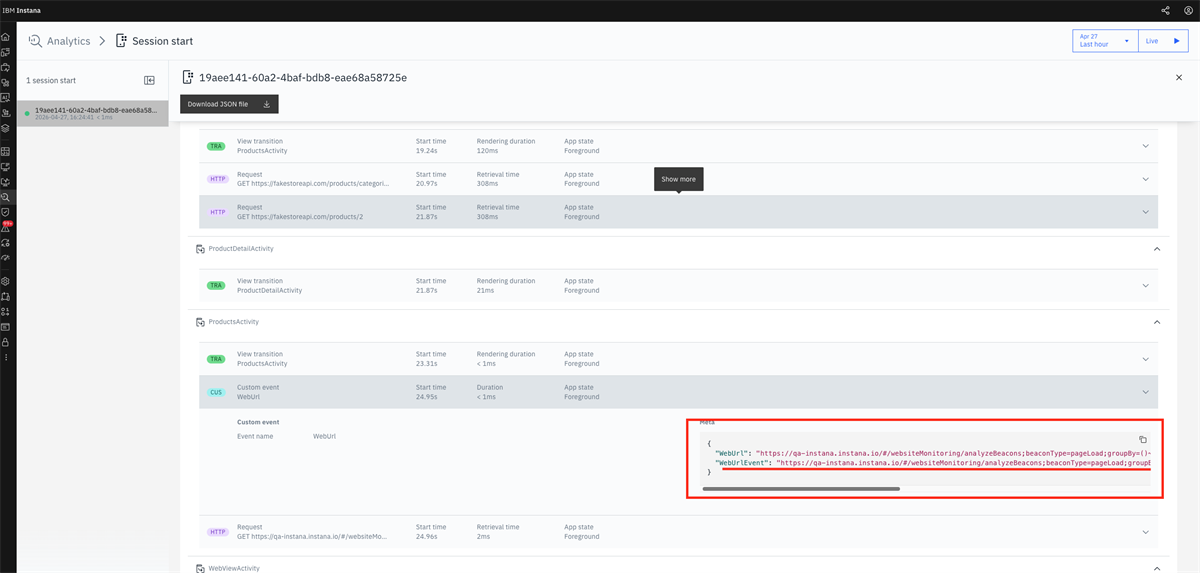

   Method 1: From Custom Event

   1. Open mobile session
   2. Find `WebUrl` event in timeline
   3. Copy URL from event metadata

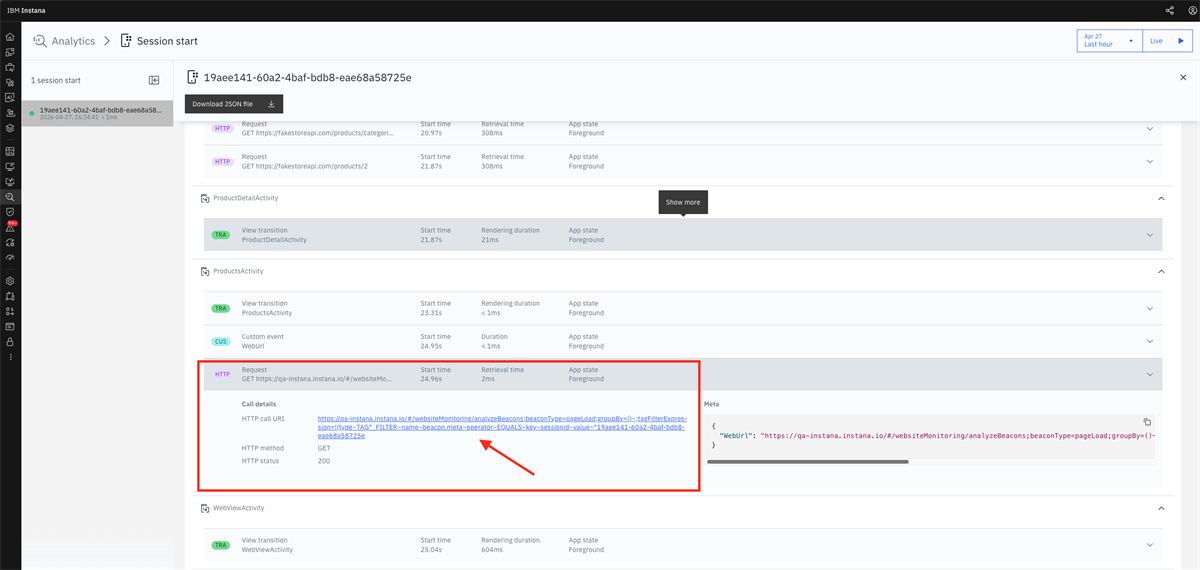

   Method 2: From HTTP Marker (One-Click)

   1. Open mobile session
   2. Find GET request to dashboard URL
   3. Click to navigate directly







   Filtering Strategies

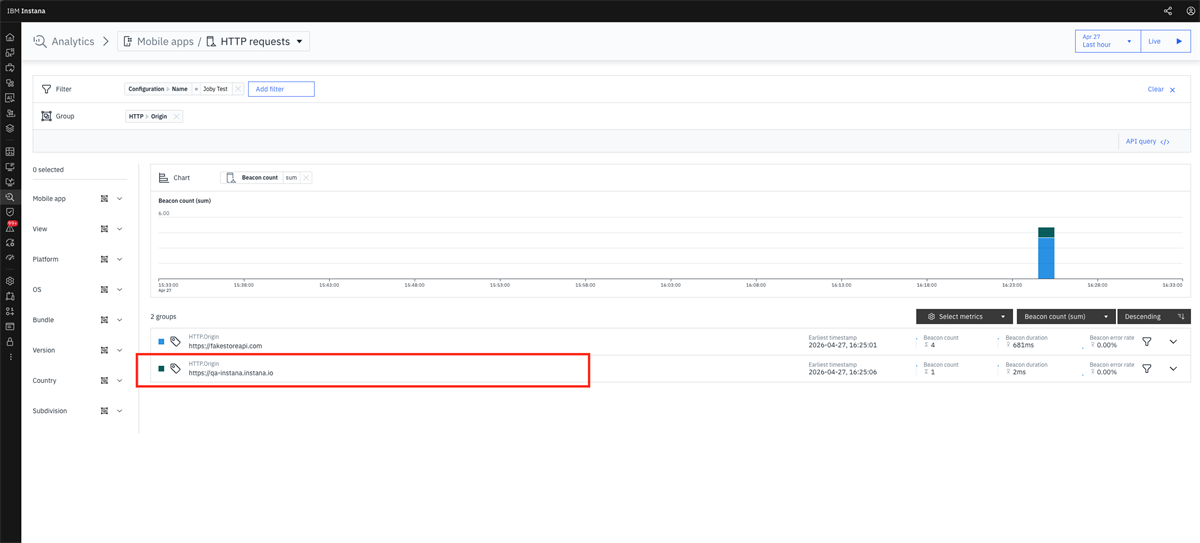

   Find All WebView Sessions (In Mobile Monitoring:)

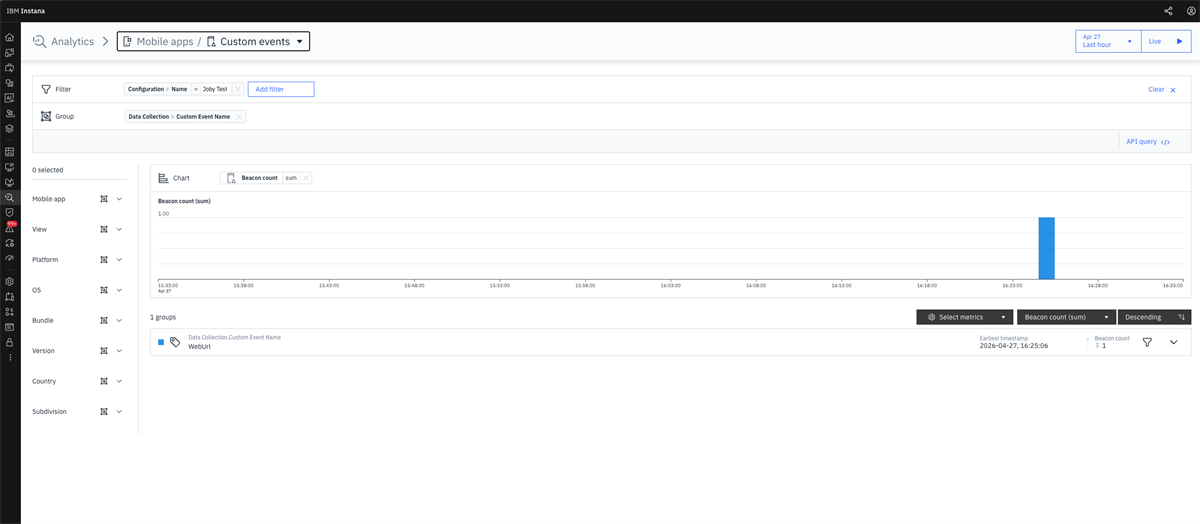

   Filter: Event Name = “WebUrl”
Filter: HTTP URL contains “your-instana-instance.instana.io”

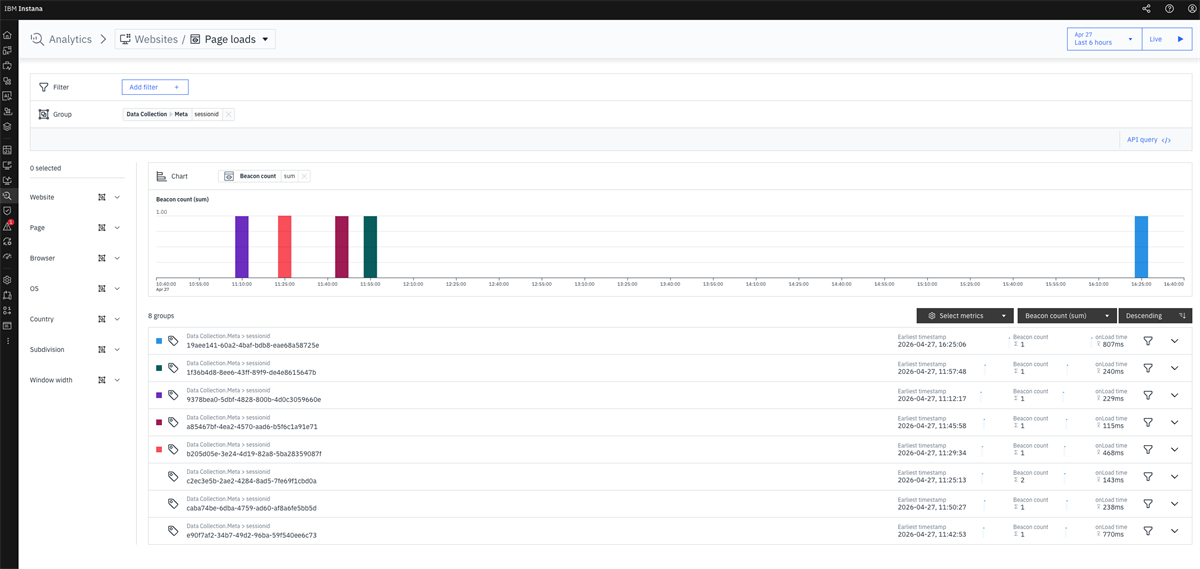

   Find Specific Correlated Session (In Website Monitoring:)

   Filter: beacon.meta.mobile_sessionId = YOUR_MOBILE_SESSION_ID







   iOS Implementation Key Differences:

   - Use `WKWebView` instead of Android’s `WebView`
   - Use `evaluateJavaScript(_:completionHandler:)` for script injection
   - Use `WKNavigationDelegate` for page lifecycle events



   Known Limitations

   iFrames and Nested WebViews: Session ID injection only works for top-level WebView content. iFrames run in separate JavaScript contexts and won’t automatically receive the session ID. Use `postMessage` API or inject the EUM script separately in each iFrame if correlation is needed.

   Unified Dashboard: Mobile and web metrics exist in separate data streams and cannot be displayed together in a single dashboard without custom configuration. You’ll need to create custom dashboards using meta values (`beacon.meta`) to merge mobile and web data, or navigate between views using the HTTP marker links.



   Conclusion

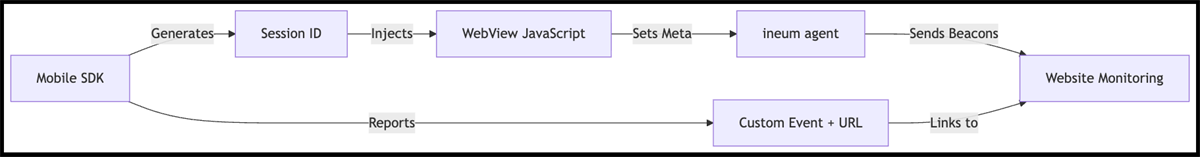

   This integration approach bridges Instana’s Mobile SDK and Website Monitoring to provide:

   ✅ Complete end-to-end visibility across native and web layers
   ✅ Unified session correlation for faster troubleshooting
   ✅ Multiple access methods (metadata, events, HTTP markers)
   ✅ Flexible filtering and navigation options
