Mastering Network and DNS Configuration in PowerVC Appliance (PVCVA): A Comprehensive Guide to chpvc Commands

Introduction

In enterprise cloud environments, efficient network configuration management is crucial for maintaining reliable infrastructure. PowerVC, IBM's cloud management solution for Power Systems, provides powerful command-line tools that simplify network and DNS administration. This article explores the chpvc network and chpvc network_dns commands, demonstrating how they streamline network interface management and DNS configuration in PowerVC Appliance environments.

Whether you're a system administrator managing a PowerVC instance, understanding these tools will help you maintain persistent, validated, and properly logged network configurations.

__________________________________________________

Part 1: Network Interface Management with `chpvc network`

Overview

The chpvc network command provides an intuitive interface for managing network configurations in PowerVC environments. It handles IP addresses, netmasks, and gateway configurations while ensuring persistence across system reboots—a critical requirement for production environments.

Core Functionality

1. Adding New Network Configurations

When deploying new network interfaces or reconfiguring existing ones, the add subcommand creates persistent network configurations:

chpvc network add --interface eth0 \
  --ip 10.0.0.50 \
  --netmask 255.255.255.0 \
  --gateway 10.0.0.1

This command:

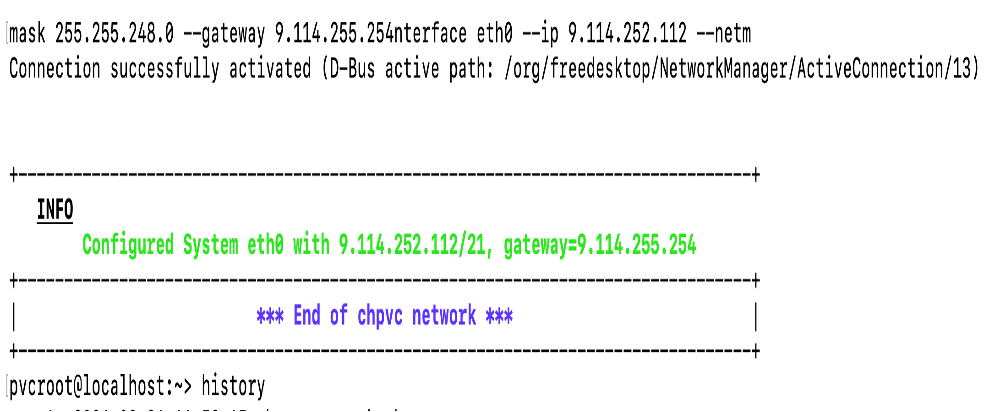

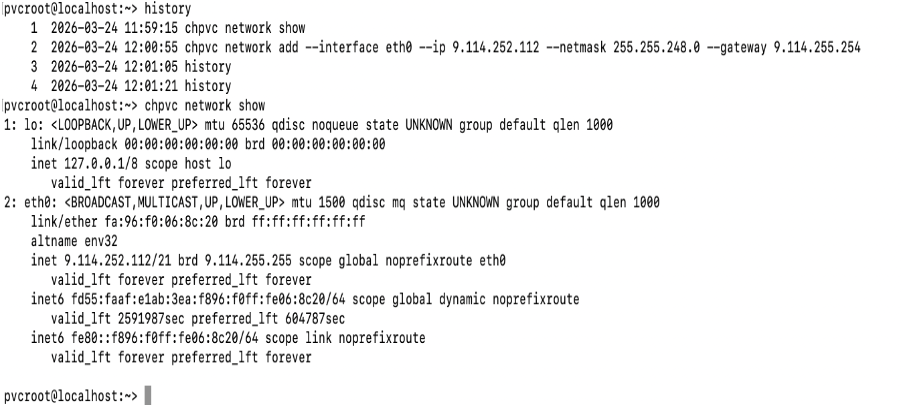

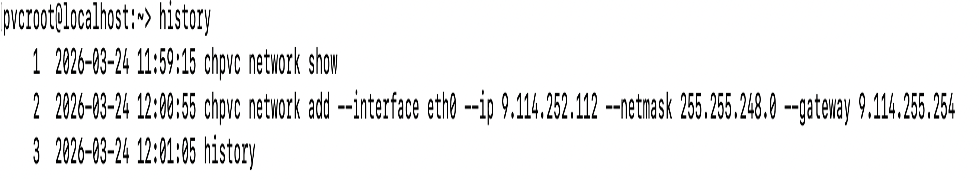

Examples-

2. Modifying Existing Configurations

Network requirements evolve over time. The modify subcommand allows you to update existing interface configurations without disrupting other network settings:

chpvc network modify --interface eth0 \
  --ip 192.168.1.100 \
  --netmask 255.255.255.0 \
  --gateway 192.168.1.1

Use Case: This is particularly useful when migrating networks, changing IP addressing schemes, or adjusting network topology without requiring a complete system reconfiguration.

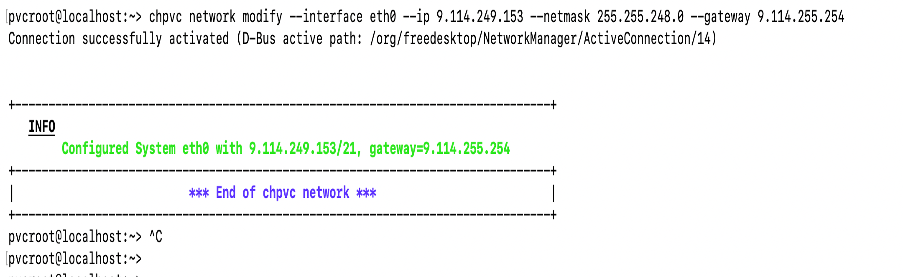

Example

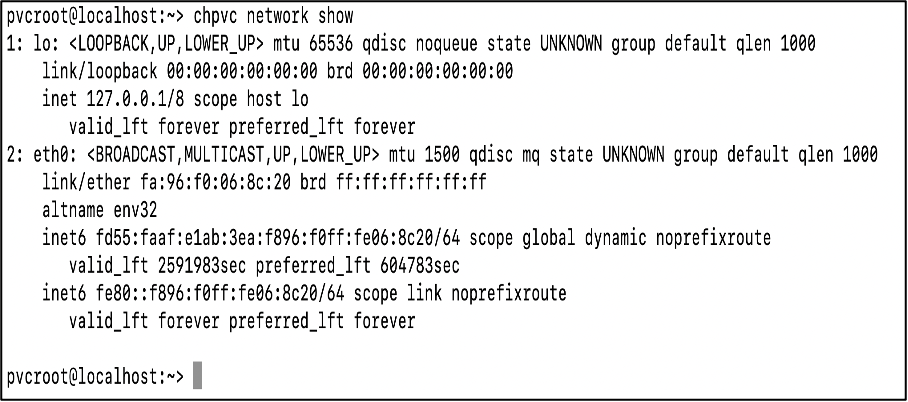

3. Viewing Current Network Information

Before making changes, it's essential to understand the current state. The show subcommand displays active network configurations:

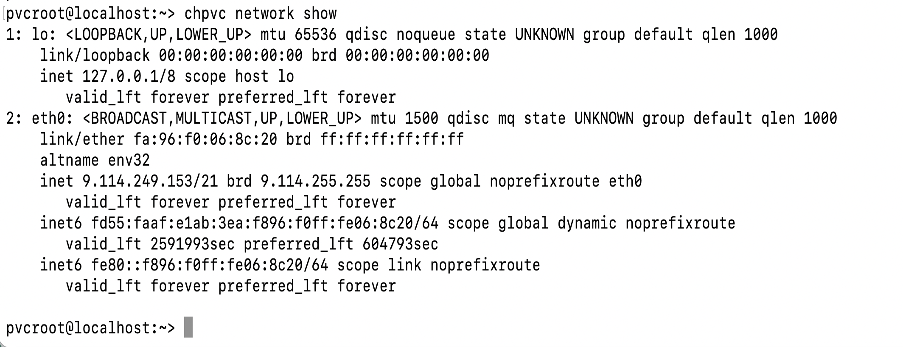

chpvc network show

This command provides visibility into:

Example

Best Practices for Network Configuration

1. Post-Change Validation

After applying network changes, validate connectivity:

# Test gateway connectivity
ping -c 4 <gateway_ip>

# Verify DNS resolution
nslookup google.com

# Check routing table
ip route show

Common Troubleshooting Scenarios

Issue 1: "Failed to get connection for interface"

Symptoms: Command fails with connection error

Root Causes:

Resolution Steps:

# Verify interface name
ip addr show

# Check NetworkManager status
systemctl status NetworkManager

# Restart NetworkManager if needed
systemctl restart NetworkManager

# Verify interface is managed
nmcli device status

Issue 2: "Invalid netmask"

Symptoms: Command rejects netmask value

Common Mistakes:

Correct Format:

# Valid netmask examples
chpvc network add --interface eth0 --netmask 255.255.255.0    # /24
chpvc network add --interface eth0 --netmask 255.255.0.0      # /16
chpvc network add --interface eth0 --netmask 255.255.255.128  # /25

Monitoring and Logging

Track network configuration changes:

# View chpvc logs
tail -f /powervclog/commandcontrol/pvc_chpvc.log

# Filter network-specific entries
grep "network" /powervclog/commandcontrol/pvc_chpvc.log

__________________________________________________

Part 2: DNS Configuration Management with `chpvc network_dns`

Overview

The chpvc network_dns command provides a robust interface for managing DNS nameservers and domain search suffixes. It directly modifies /etc/resolv.conf with built-in validation and comprehensive logging, ensuring reliable name resolution across your PowerVC infrastructure.

Core Commands and Syntax

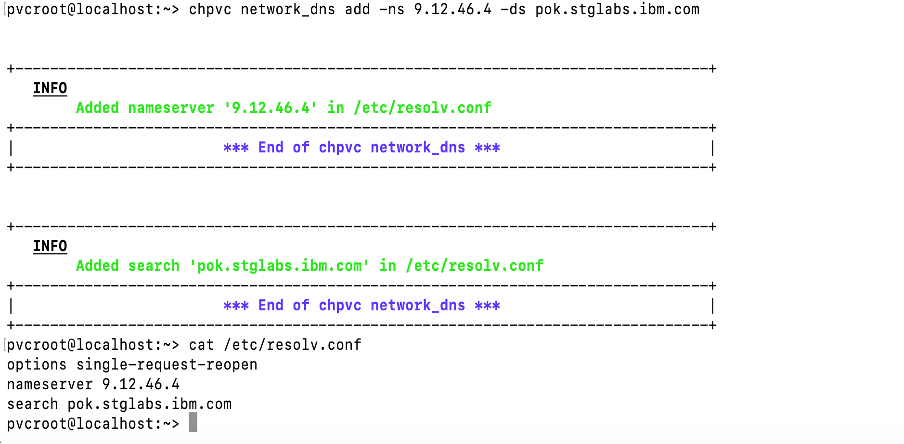

Adding DNS Servers

Configure nameservers for domain name resolution:


chpvc network_dns add -ns <IP_ADDRESS>

Example:

chpvc network_dns add -ns 8.8.8.8

Adding Domain Suffixes

Configure search domains for hostname resolution:


chpvc network_dns add -ds <DOMAIN>

Part 3: Hostname Management with `chpvc hostname`

Overview

The chpvc hostname command provides a streamlined interface for managing hostname settings in PowerVC appliances, ensuring consistent identification across your infrastructure.

__________________________________________________

Core Commands and Syntax

Setting the Hostname

Configure the system hostname:

chpvc hostname modify <HOSTNAME>

Viewing Current Hostname

Display the current hostname configuration:

chpvc hostname show

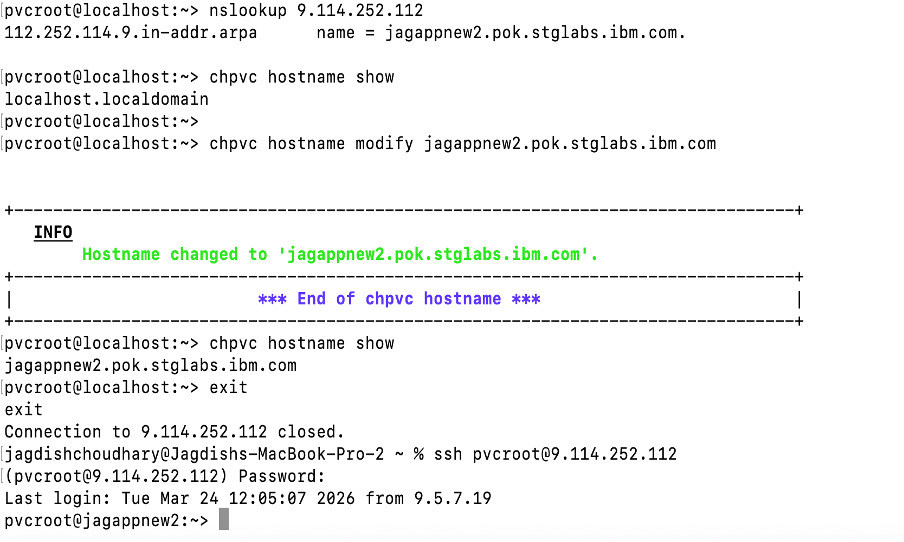

Example:

________________________________________________

Monitoring and Logging

Viewing Hostname Configuration Logs

# View chpvc logs for hostname changes
tail -f /powervclog/commandcontrol/pvc_chpvc.log


✅ Do’s

❌ Don’t

Conclusion

The chpvc network, chpvc network_dns and hostname commands provide powerful, streamlined interfaces for managing network, DNS and hostname configurations in PowerVC environments.
