Turning Db2 SMF data into actionable performance intelligence with IBM Z IntelliMagic Vision
Every Db2 for z/OS environment already holds the answers to its performance challenges—hidden within SMF records. The real challenge is not collecting data, but turning that data into actionable insight before performance issues impact users.
The Db2 Performance Challenge
In many organizations, performance issues are only identified after applications begin to slow down or fail. By then, the impact is already visible to users and the business. Root cause analysis is often time-consuming—not because the data is missing, but because it is difficult to interpret and correlate. The sheer volume of SMF data, combined with disconnected tools and limited visibility across subsystems, workloads, and configurations, makes it challenging to quickly pinpoint what is actually driving a performance issue.
The result is longer resolution times and missed early warning signals that could have prevented the issue altogether.
Why SMF Data Matters More Than Ever
Db2 SMF records already contain everything needed to understand system behavior—if they are used effectively. The key is not just collecting the data, but understanding how to interpret it in context.

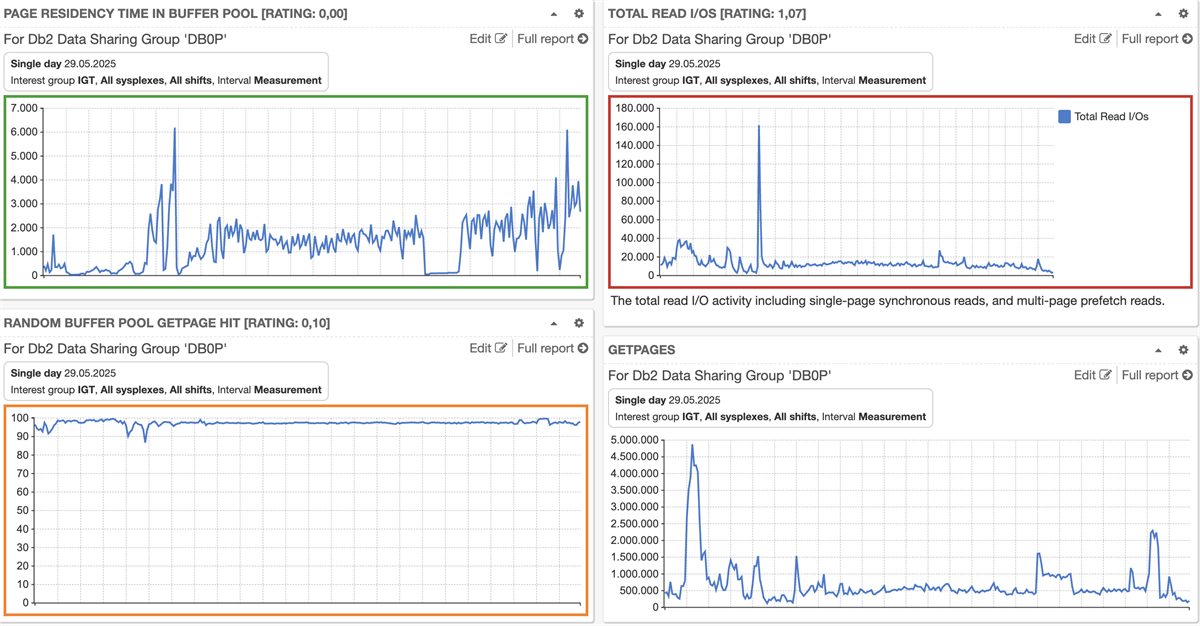

Db2 Statistics (SMF 100)
SMF 100 statistics can help detect performance degradation before it occurs by providing a high-level view of subsystem health, including:
- Buffer pool and memory usage
- I/O activity patterns
- Long-term performance behavior

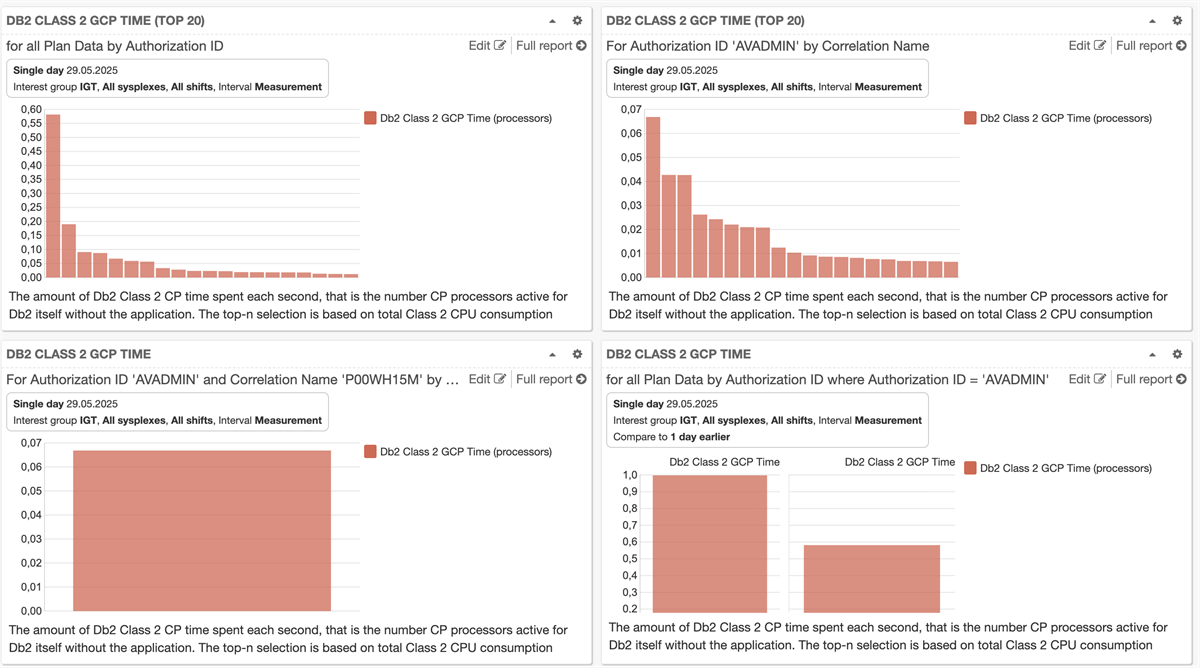

Db2 Accounting (SMF 101)
SMF 101 records shift the focus to workload behavior and resource consumption, helping identify where time is spent and where inefficiencies exist. These include:
- CPU usage and wait times
- Locking and contention
- SQL execution characteristics
Db2 Performance (SMF 102)
For deeper diagnostics, SMF 102 records provide detailed insight into object-level activity and configuration, enabling more precise root cause analysis. These include:
- Object and dataset I/O behavior

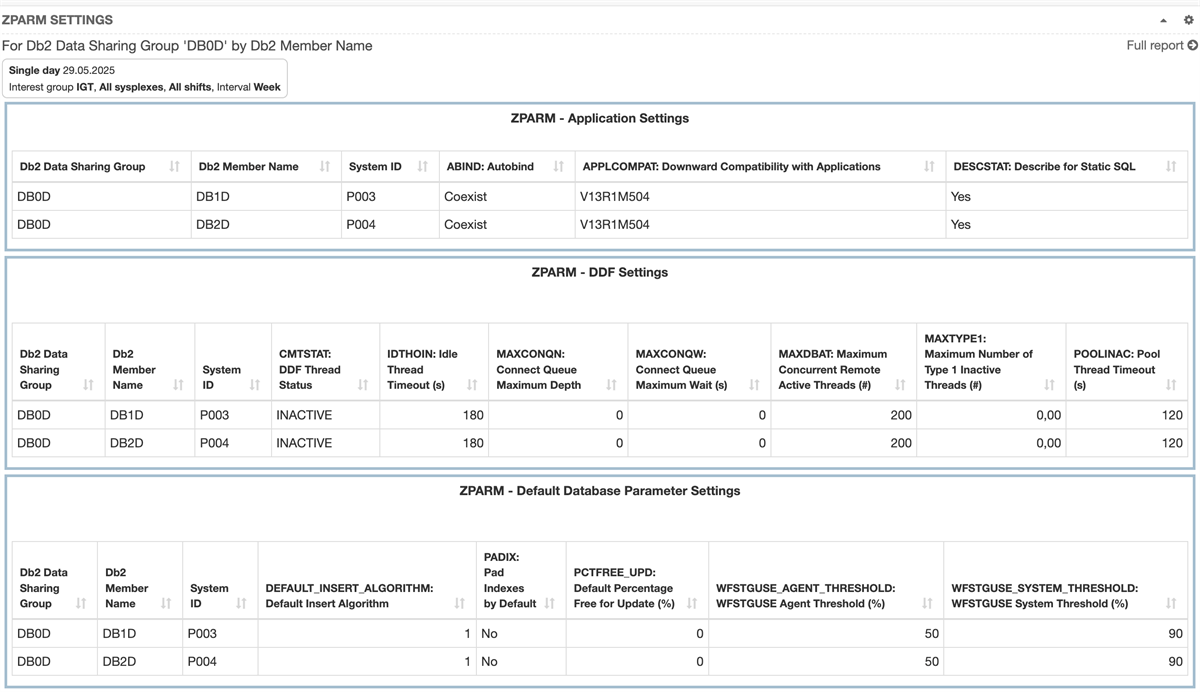

- Db2 subsystem configuration (DSNZPARMs)
- Distributed and security-related indicators
IBM Z IntelliMagic Vision for Db2 simplifies and accelerates performance analysis by automatically analyzing SMF data and correlating statistics, accounting, and performance information.
Instead of manually navigating raw SMF reports, teams can quickly identify anomalies, understand performance trends, and focus on the areas that matter most. This shift reduces the dependency on time-consuming manual analysis and enables faster, more consistent insights.
Customer Use Case: From Reactive Troubleshooting to Proactive Performance
One organization experiencing intermittent slowdowns during peak business hours had access to all the necessary SMF data, but relied on manual extraction, disconnected tools, and time-consuming analysis. As a result, root cause identification often happened long after users were already impacted.
By adopting a more structured and insight-driven approach to analyzing SMF data, the team was able to correlate subsystem behavior, workload characteristics, and configuration details more effectively. This quickly revealed patterns such as buffer pool inefficiencies and increased synchronous I/O during peak periods, driven by changes introduced in a recent workload.
After targeted tuning and optimization, the results were significant:
- Incident resolution time reduced by over 60%
- Noticeable improvement in peak-time response performance
- Fewer recurring issues
- Greater confidence in capacity planning
More importantly, the team moved from reactive troubleshooting to proactive performance management.
Business and Operational Impact
With a more intelligent approach to SMF data analysis, organizations can reduce incident resolution time, improve application stability, and make more informed decisions around capacity and cost optimization.
This enables both technical and business teams to operate with greater confidence and efficiency.
Final Takeaway
The data required to solve Db2 performance challenges already exists in SMF records. The real differentiator is the ability to turn that data into actionable intelligence quickly, consistently and before users are impacted.
