Many modern applications process massive amounts of unstructured text—such as emails, reports, articles, and social media posts. To extract useful structured information (like names, dates, and relationships), we use Information Extraction (IE).

Traditional IE methods relied on grammars and regular expressions, but these approaches struggle with scalability and handling unstructured documents that lack a predefined data model.

systemT overcomes these challenges by providing an efficient framework to extract, query, and analyze information from unstructured documents.

Problem with Unstructured Documents

1. Lack of Structure: Unlike databases, unstructured documents don’t follow a fixed schema, making it hard to locate and extract specific information.
2. Ambiguity and Variability: Natural language is inherently ambiguous. The same concept can be expressed in many ways, and context is often required to interpret meaning.
3. Scalability Issues: Manual rule-writing or traditional NLP pipelines struggle to scale across domains or document types.
4. Low Reusability: Rules or models built for one document type often don’t generalize well to others.
5. Maintenance Overhead: Updating extraction logic as documents evolve is time-consuming and error-prone.

What is SystemT and how does it works?

SystemT is IBM’s advanced information extraction system that converts unstructured text (emails, reports, articles, etc.) into structured data. Unlike traditional grammar or regex methods, it uses a database-inspired, algebraic approach for scalable extraction.

Key Components:

• AQL (Annotation Query Language): A rule-based, SQL-like language to define extraction patterns (e.g., names, dates).
• Optimizer: Chooses the most efficient execution plan using cost-based optimization.
• Execution Engine: Runs the optimized plan and extracts structured information.

Workflow:

1. Write Rules in AQL – Define patterns (e.g., extract capitalized words with lastnames).
2. Compile to Operator Graph – Translates rules into operators like Extract, Select, Join, Consolidate.
3. Optimize – Optimizer picks the fastest plan, like a database query optimizer.
4. Execute – Operator graph runs on text to output structured annotations.

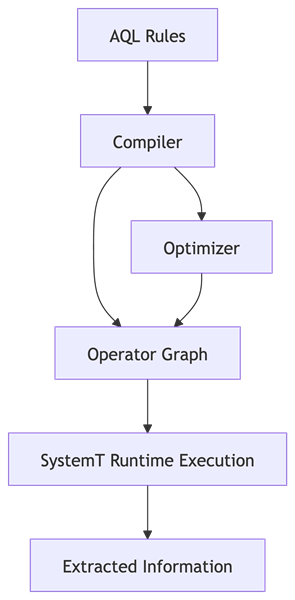

The compilation process in IBM SystemT :

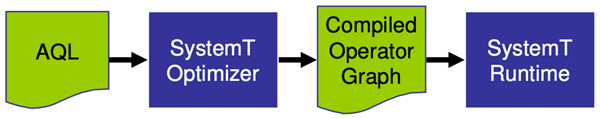

IBM SystemT Architecture Diagram

Here's a simplified diagram illustrating the IBM SystemT workflow:

How IBM Automation Document Processing leverages the extractors built using IBM SystemT

IBM Automation Document Processing uses IBM SystemT extractors to read unstructured documents like invoices, forms etc., and turn them into structured data. These extractors (from a library, custom dictionaries, or built-in NER) pick out key details such as names, dates, and amounts. SystemT then processes the text with its rules and optimizer, and IBM Automation Document Processing delivers clean, structured data ready for automation, checks, and analysis.

Example : How IBM systemT works ?

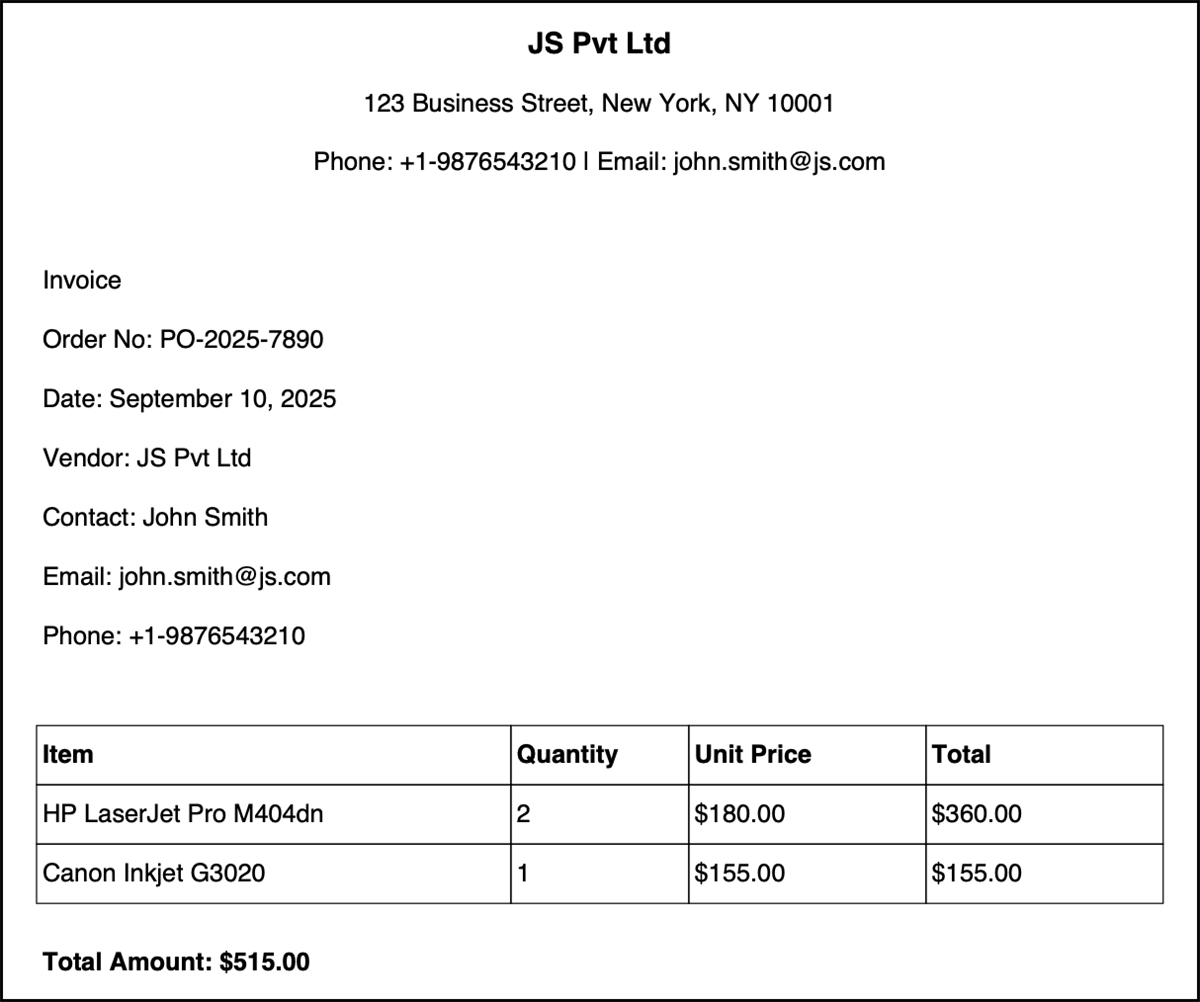

Imagine we have a document like this:

Extraction Goal

Our objective is to extract the following information from the sample document:

• Order No
• Invoice Date
• Vendor
• Contact
• Email
• Phone
• Total Amount

Extracted Information

From the sample document, the following information will be extracted:

• Order Number: PO-2025-7890
• Invoice Date: September 10, 2025
• Vendor Name: JS Pvt Ltd
• Contact Person: John Smith
• Email Address: [email protected]
• Phone Number: +1-9876543210
• Total Amount: $515.00

How IBM SystemT is Configured in IBM Automation Document Processing

There are following ways to setup the IBM SystemT in IBM Automation Document Processing :

1. Configure from Existing Library

   • IBM Automation Document Processing provides a library of predefined extractors built on top of IBM SystemT.

   • Users can simply select an extractor from this library (e.g., address extractor, phone number extractor, email extractor).

   • No need to write rules from scratch—these extractors are already optimized and ready to use.

   • Best for common extraction tasks where standard patterns (like names, dates, identifiers) are needed.

2. NER (Named Entity Recognition) Extraction

   • Uses inbuilt value-type extractors (pre-trained models + rules) to detect common named entities.

   • Examples include:


     • Person names
     • Locations
     • Organizations
     • Dates, times, currencies, and percentages

   • These NER extractors combine SystemT’s AQL rules with built-in linguistic knowledge to recognize entities without requiring custom dictionaries.

   • Ideal for cases where you want out-of-the-box entity recognition with minimal setup.
